> > SKU: STROBE 3 IP-new

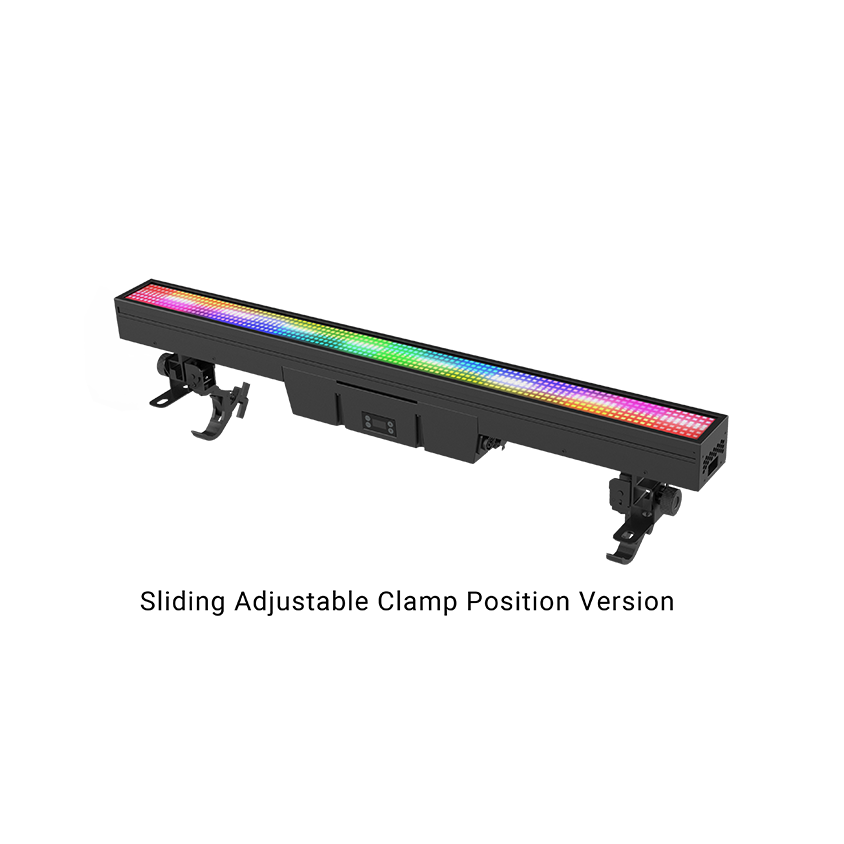

The ACME PIXEL LINE IP strip light is like no other. Its small size and weight, IP66 rating for indoor and outdoor use, and uniform colors and effects make this fixture extremely versatile for any application.

The PIXEL LINE IP is powered with 672 RGB LEDs and 112 cool white LEDs with the RGBW LEDs divided into 32 sections and the white LEDs into 16 sections. The unit is equipped with ACME’s patented Smart Glass Technology for unprecedented, frosted looks. The white LEDs deliver bright strobe effects and are integrated in such a way to complement the color LED sections.

The fixture offers ten DMX control modes from simple operation to intense, eye-catching individual pixel control effects. The PIXEL LINE IP also offers preprogrammed effects macros and colors for time-saving programming. Incorporating ACME’s Smart Glass Technology allows the unit to switch from its normal strip light mode to soft light mode without adding an external frost filter, making the unit more flexible during your production.

The PIXEL LINE IP can be mounted in any orientation from the floor to hanging in truss and features a tool-less connection system for quick side-by-side joining. The PIXEL LINE IP is a powerful, all-weather fixture that redefines what a strip light can be.

    Consultar precios

    Descripción

    Performance

    Light Source

    672 x 0.5W RGB LEDs

    112 x 3W CW LEDs

    LED Life Expectancy

    30,000 hours

    Total Lumen Output of Fixture

    21,900 lumens

    Beam Angle

    101°(RGB)

    108°(CW)

    Field Angle

    149°(RGB)

    152°(CW)

    Weight

    7.3 kg (16.1 lbs)



    Technical & Specification

    Model

    • Model Name: PIXEL LINE IP
    • Model Code: STROBE 3 IP

    Version

    • Version 1: STROBE 3 IP (Omega Bracket Mounting)
    • Version 2: STROBE 3 IPS (Sliding Adjustable Clamp)
    • Note: Different vesions cannot be connected together

    Light Source

    • Light Source :
      • 672 x 0.5W RGB LEDs (can be divided into 32 controllable sections)
      • 112 x 3W CW LEDs (can be divided into 16 controllable sections)
    • Total Lumen Output of Fixture: 21,900 lumens
    • Color Temperature Output of Fixture: 7,000K-7,500K
    • Life Expectancy: 30,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle :
      • RGB: 101°
      • CW: 108°
    • Field Angle :
      • RGB: 149°
      • CW: 152°
    • DMX Controllable Smart Glass technology:
      • Patent No. :
        • CN216010577U
        • US11698183B1
        • DE202023101966U1
        • FR3134870B3

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 11
    • Control Channels: 7/15/17/21/33/39/35/38/70/112/117
    • Firmware Upgrade: Upgrade via DMX link

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Outstanding color effects

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 420W
    • Power In/Out: Waterproof power connector in/out (On-request customized direct cord version for Power/Signal In&Out)
    • Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

    Physical Information

    • Fixture Dimension :
      • Omega Bracket Version:
        • Width : 1,000 mm (39.4″)
        • Depth : 90 mm (3.5″)
        • Height : 124 mm (4.9″)
        • Weight : 7.3 kg (16.1 lbs)
      • Fixed Foldable Clamp Version:
        • Width : 1,000 mm (39.4″)
        • Depth : 192 mm (7.6″)
        • Height : 237 mm (9.3″)
        • Weight : 8.3 kg (18.3 lbs)

    Packing Information

    • Flight Case Dimensions 1:
      • Width : 1,196 mm (47.1″)
      • Depth : 580 mm (22.8″)
      • Height : 750 mm (29.5″)
      • Weight :
        • Standard : G.W.: 126.5 kg (278.9 lbs) (eight-pack loader case)
    • Flight Case Dimensions 2:





      Video









      Beam Angle

      Field Angle
