> > SKU: STROBE 1 IP-new

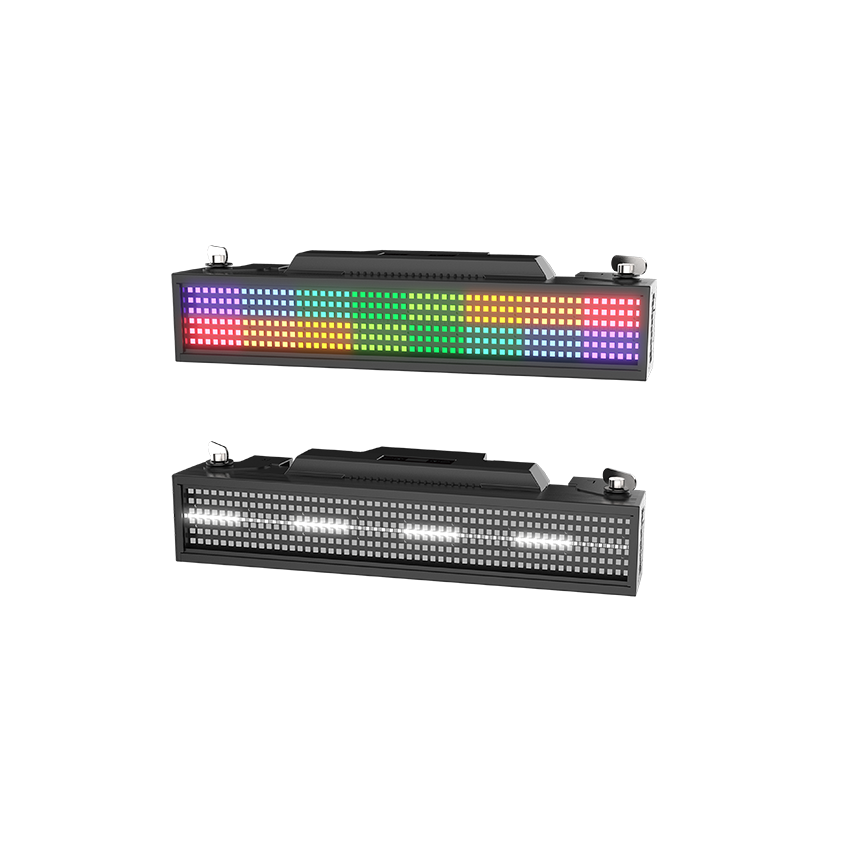

The ACME PIXEL LINE IP 500 is an remarkable fixture equipped with 336 0.5-Watt RGB LEDs and 112 6-Watt cool white LEDs, all divided into 16 controllable sections. The RGB LEDs boast a beam angle of 102° and a field angle of 149°, while the cool white LEDs boast a beam angle of 108° and a field angle of 150°.

With its outstanding color mixing effects, high output strobe effects, and patented Smart Glass Technology for frost effects, the PIXEL LINE IP 500 delivers a stunning visual effect that will leave you in awe. It is also designed for durability with an IP66 rating, making it suitable for both indoor and outdoor use.

Furthermore, it can be mounted horizontally or vertically, further increasing its versatility. Whether you’re looking to create a dynamic lighting atmosphere or simply add some visual flair to your space, the PIXEL LINE IP 500 is the perfect choice.

    Consultar precios

    Descripción

    Performance

    Light Source

    336 x 0.5W RGB LEDs

    112 x 6W CW LEDs

    LED Life Expectancy

    30,000 hours

    Total Lumen Output of Fixture

    56,500 lumens

    Beam Angle

    102° (RGB)

    108° (CW)

    Field Angle

    149° (RGB)

    152° (CW)

    Weight

    5.1 kg (11.2 lbs)



    Technical & Specification

    Model

    • Model Name: PIXEL LINE IP 500
    • Model Code: STROBE 1 IP

    Version

    • Version 1: STROBE 1 IP (Omega Bracket Mounting)
    • Version 2: STROBE 1 IP (Fixed Foldable Clamp)
    • Note: Different vesions cannot be connected together

    Light Source

    • Light Source :
      • 336 x 0.5W RGB LEDs (divided into 16 controllable sections)
      • 112 x 6W CW LEDs (divided into 16 controllable sections)
    • Total Lumen Output of Fixture: 56,500 lumens
    • Color Temperature Output of Fixture: 7,000K-7,500K
    • Life Expectancy: 30,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle :
      • RGB: 102°
      • CW: 108°
    • Field Angle :
      • RGB: 149°
      • CW: 152°
    • DMX Controllable Smart Glass technology:
      • Patent No. :
        • CN216010577U
        • US11698183B1
        • DE202023101966U1
        • FR3134870B3

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 11
    • Control Channels: 8/10/16/18/22/26/34/37/39/56/62
    • Firmware Upgrade: Upgrade via DMX link

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Outstanding color mixing
    • One Linear Strobe Bar, Two Modes At Your Hand
    • Powerful Mode (16 RGB sections plus 16 CW sections): High output, high brightness
    • Splicing Mode (16 RGB sections plus 8 CW sections): Same output as Pixel Line IP

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 875W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

    Physical Information

    • Fixture Dimensions :
      • Width : 500 mm (19.7″)
      • Depth : 113 mm (4.5″)
      • Height : 124 mm (4.9″)
      • Weight :
        • 5.1 kg (11.2 lbs) – vesion 1 with omega brackets
        • 5.8 kg (12.8 lbs) – vesion 2 with fixed foldable clamps

    Packing Information

    • Flight Case Dimensions 1:
      • Width : 1,170 mm (46.1″)
      • Depth : 580 mm (22.8″)
      • Height : 580 mm (22.8″)
      • Weight :
        • Standard : G.W.: 100 kg (220.5 lbs) (eight-pack loader case)
    • Flight Case Dimensions 2:
