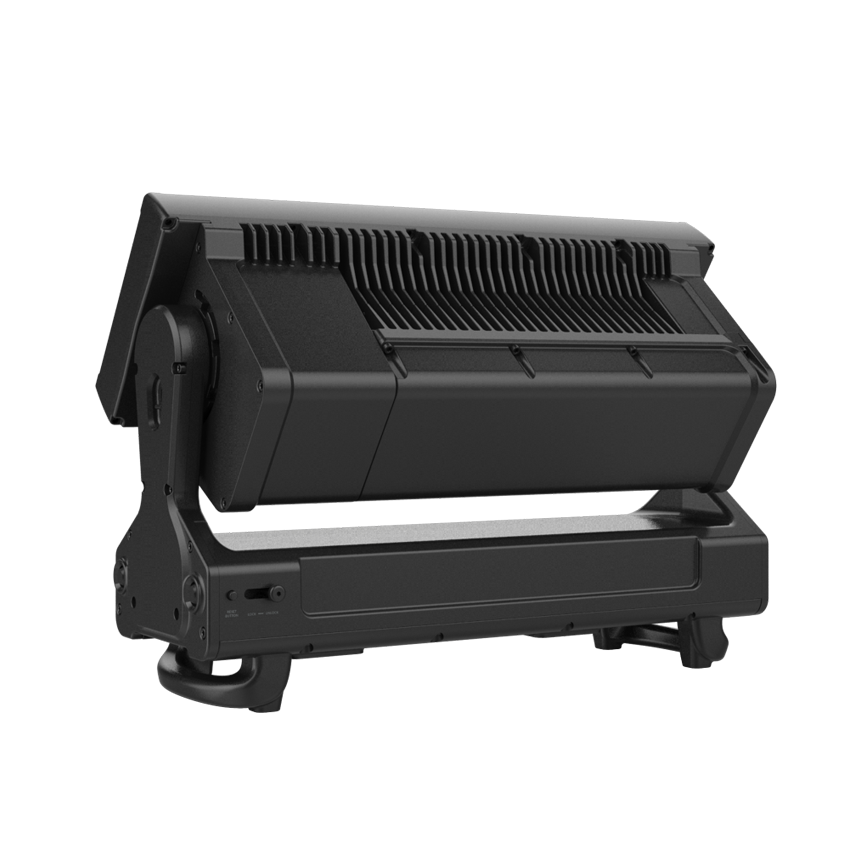

The ACME LIGHTNING X combines Beam, Wash, Strobe Line and Strip Line in one versatile fixture, offering endless creative possibilities for your lighting designs.

The main section of the LIGHTNING X features 30, 10W cool white beam LEDs, and 240, 12W RGBW LEDs divided into 30 individually controllable zones. In its center, two strobe lines boast 80, 21W cool white LEDs, each with 5 individual zones. At the top and bottom of the fixture’s face, there are two strip lines comprised of 50, 2W cool white LEDs, 50, 0.5W RGB LEDs, and 50, 2W warm white LEDs, each with 5 individual zones, allowing for switching between cool and warm white. This combination ensures exceptional color mixing and stunning visual effects.



The LIGHTNING X features a fast 185° tilt in just one second, adding unmatched dynamism to any show. With ACME’s patented electronic frost system, the fixture delivers smooth transitions. Its hidden twist-lock design enables quick horizontal or vertical connections for multiple fixtures.



The IP66 LIGHTNING X meets your diverse lighting needs and redefine what stage lighting can achieve!

    Consultar precios

    Descripción

    Performance

    Light Source

    Wash: 240 x 12W RGBW LEDs

    Strip Line: 50 x 2W CW LEDs

    Beam: 30 x 10W CW LEDs

    Strip Line: 50 x 2W WW LEDs

    Strobe Line: 80 x 21W CW LEDs

    Strip Line: 50 x 0.5W RGB LEDs

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    34,000 lumens

    Beam Angle

    2.6°(10W CW)107°

    Weight

    19 kg (41.9 lbs)



    Technical & Specification

    Model

    • Model Name: LIGHTNING X
    • Model Code: STROBE 7 IP

    Light Source

    • Light Source :
      • Wash: 240 x 12W RGBW LEDs
      • Beam: 30 x 10W CW LEDs
      • Strobe Line: 80 x 21W CW LEDs
      • Strip Line: 50 set x 2W CW/WW & 0.5W RGB LEDs
    • Total Lumen Output of Fixture: 34,000 lumens
    • Color Temperature Output of Fixture: 6,300K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

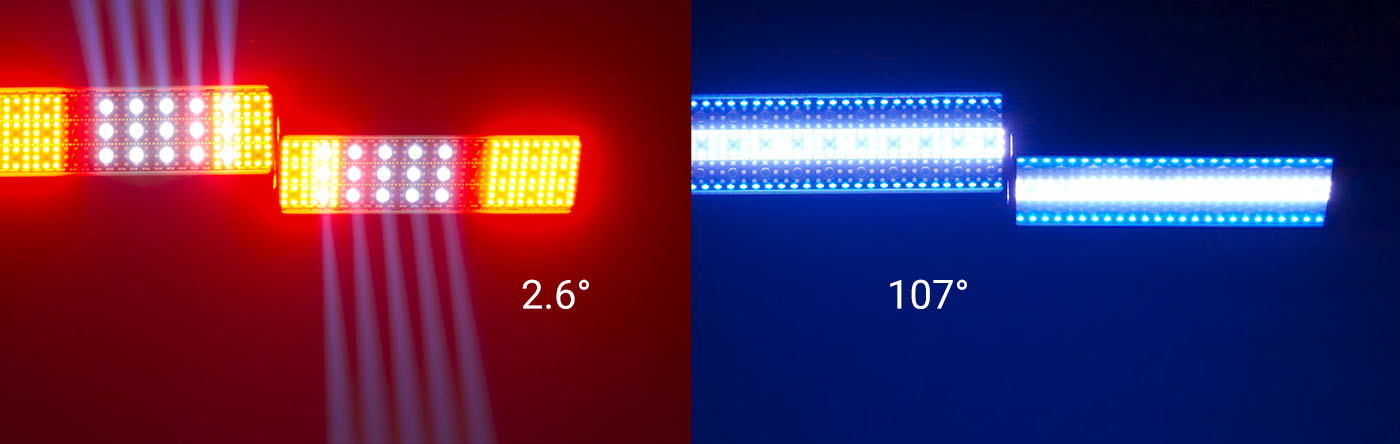

    • Beam Angle :
      • 10W CW: 2.6°
      • 12W RGBW/21W CW/2W CW/2W WW/5W RGB: 107°
    • DMX Controllable Smart Glass technology:
      • Patent No. :
        • CN216010577U
        • US11698183B1
        • DE202023101966U1
        • FR3134870B3

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 6
    • Control Channels: 31/43/100/230/20+80/20+210
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Tilt Movement: 185° at 1.0 sec
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Outstanding color mixing
    • Combine Dot, Pixel, Strobe Lines and Color Strips in one
    • Two color strips, each with 5 individual zones, allow for switching between cool and warm white

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 1,135W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector,USB connector

    Physical Information

    • Fixture Dimensions:
      • Width: 500 mm (19.7″)
      • Depth: 180 mm (7.1″)
      • Height: 327 mm (12.9″)
      • Weight: 19 kg (41.9 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 1,220 mm (48.0″)
      • Depth : 610 mm (24.0″)
      • Height : 570 mm (22.4″)
    • Carton Dimensions:
      • Width : 640 mm (25.2″)
      • Depth : 415 mm (16.4″)
      • Height : 280 mm (11.0″)
      • Weight :
        G.W.: 22 kg (48.5 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: -10°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP66

    Approvals

    • CE compliant
    • UKCA compliant
    • cETLus compliant

    Installation

    • Horizontal or vertical mounting
    •

      Dimensions

      Photometrics



      Video









      Beam Angle
