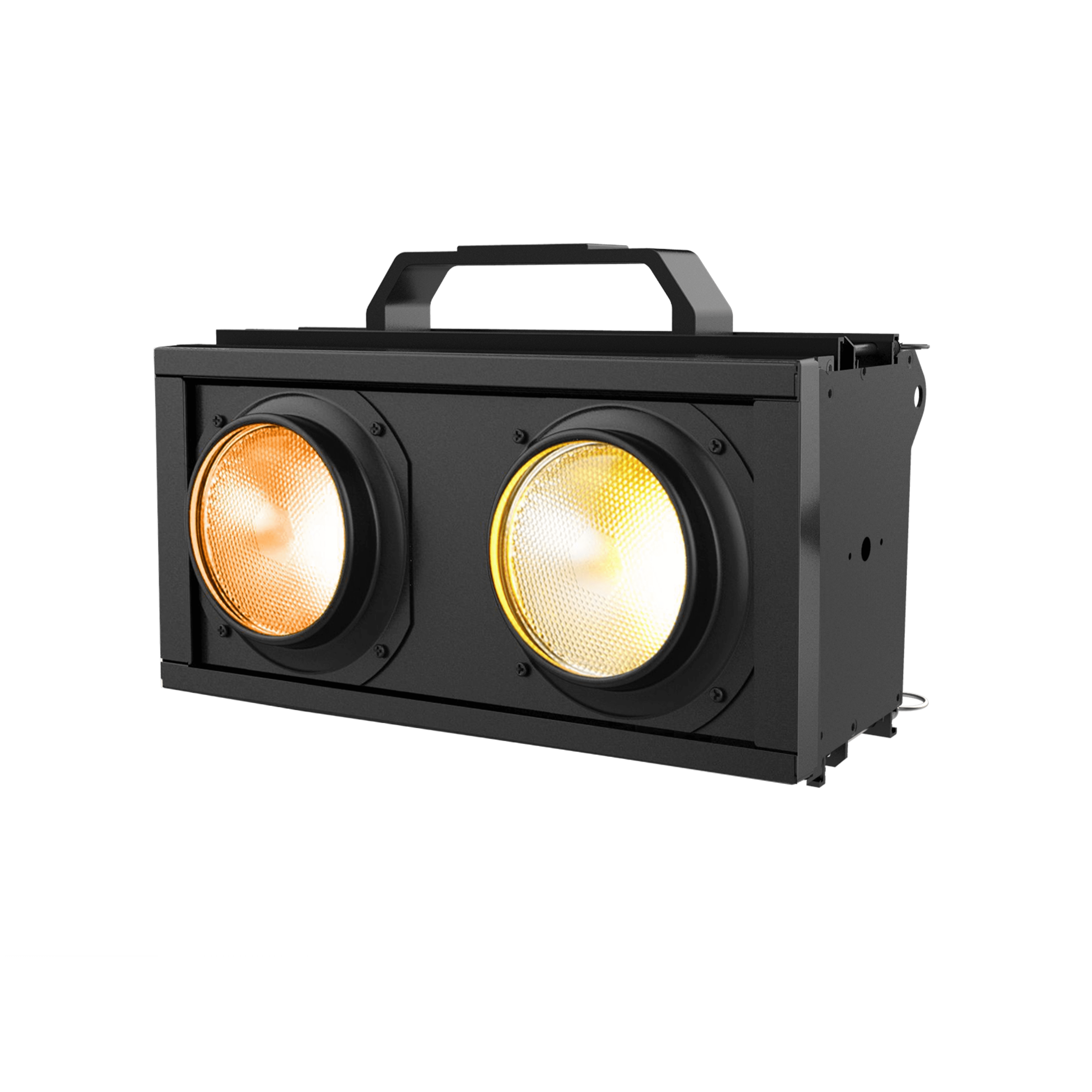

STAGE BLINDER IP WW2

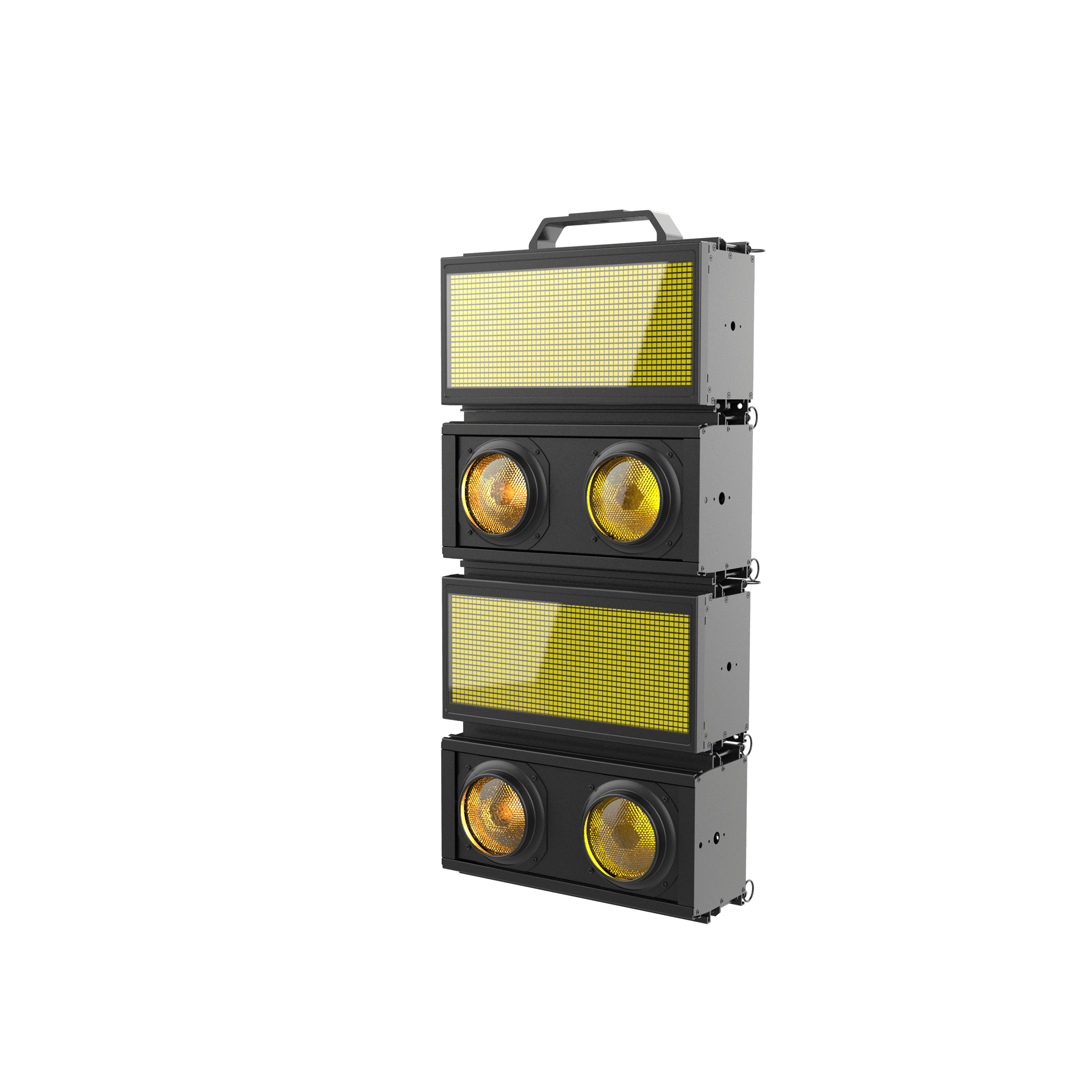

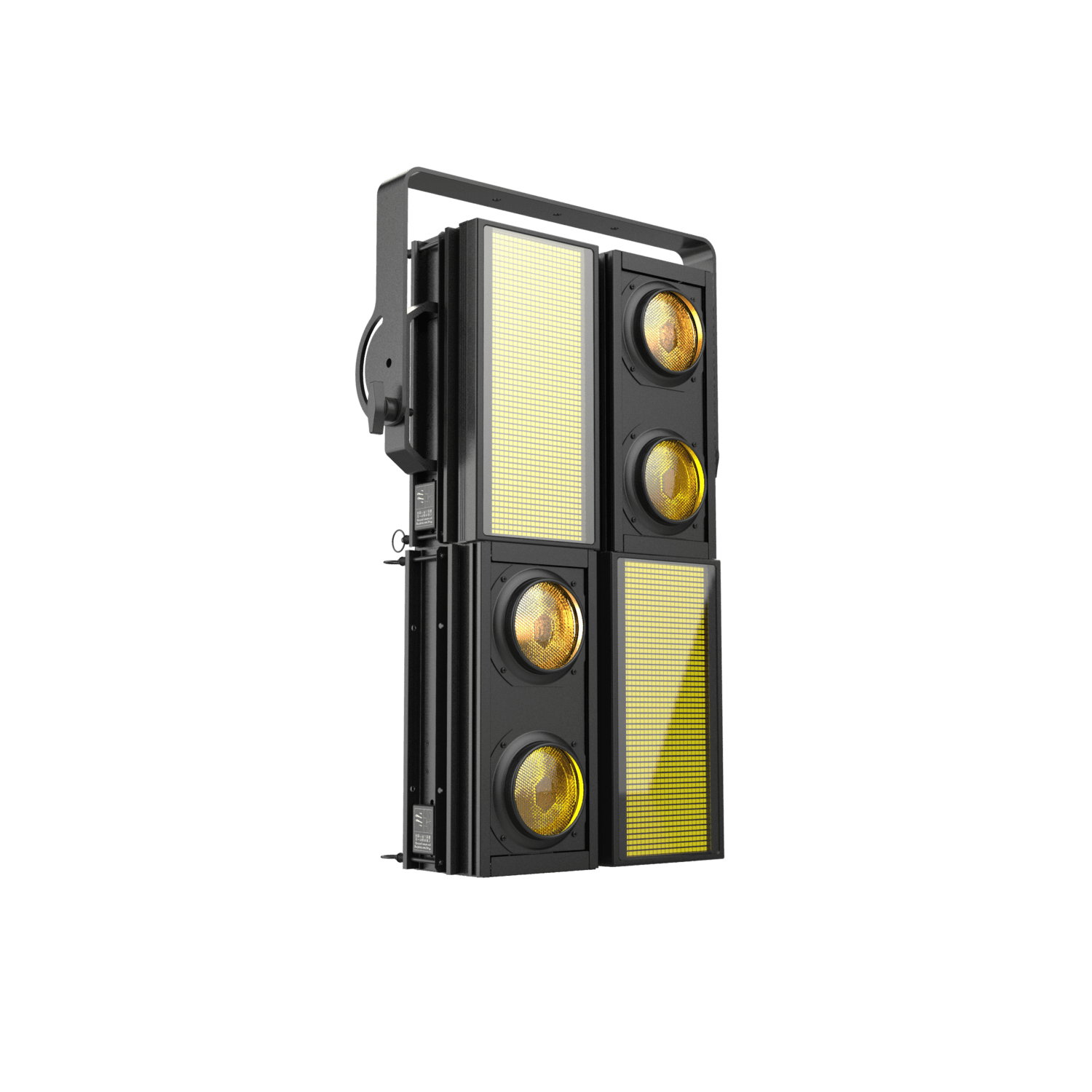

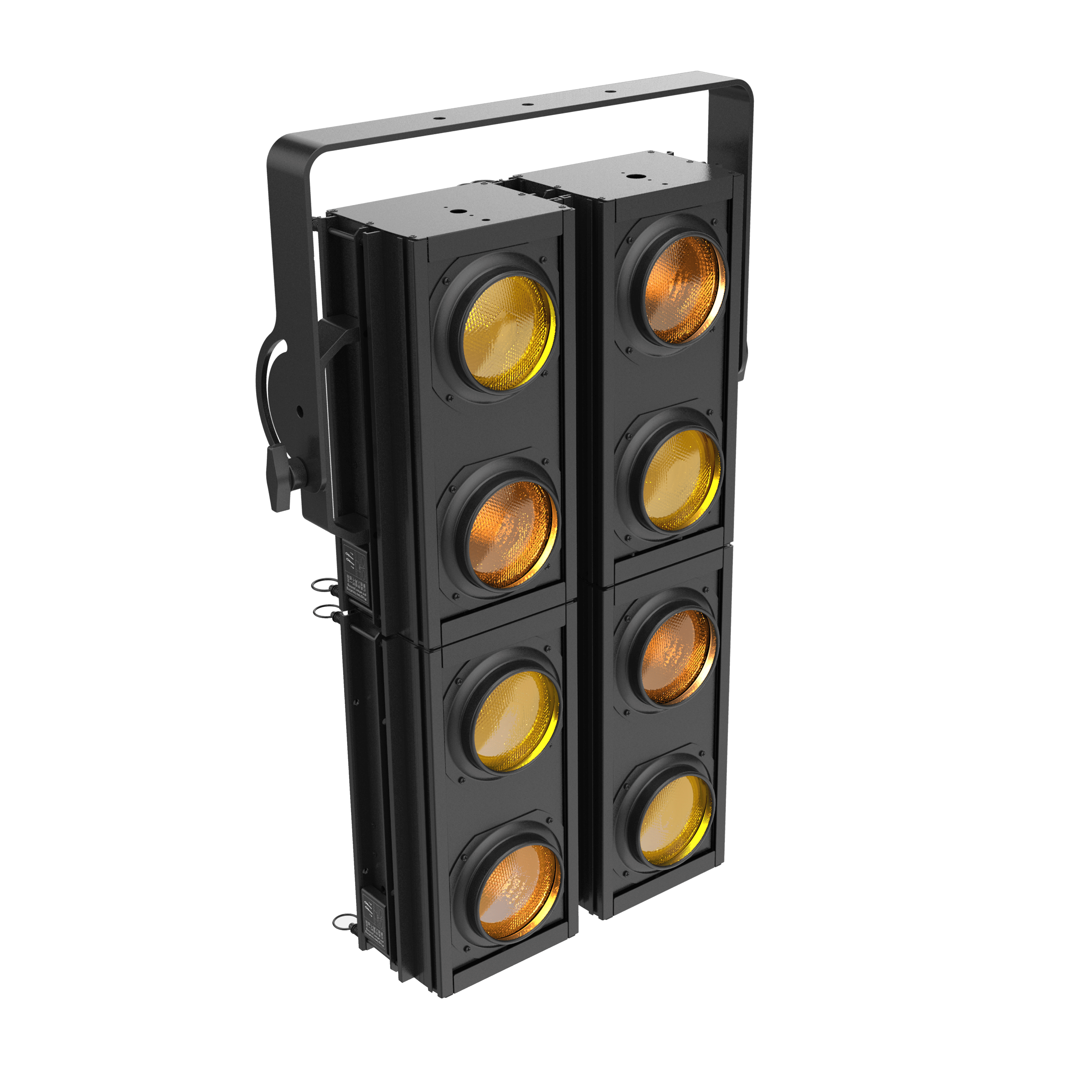

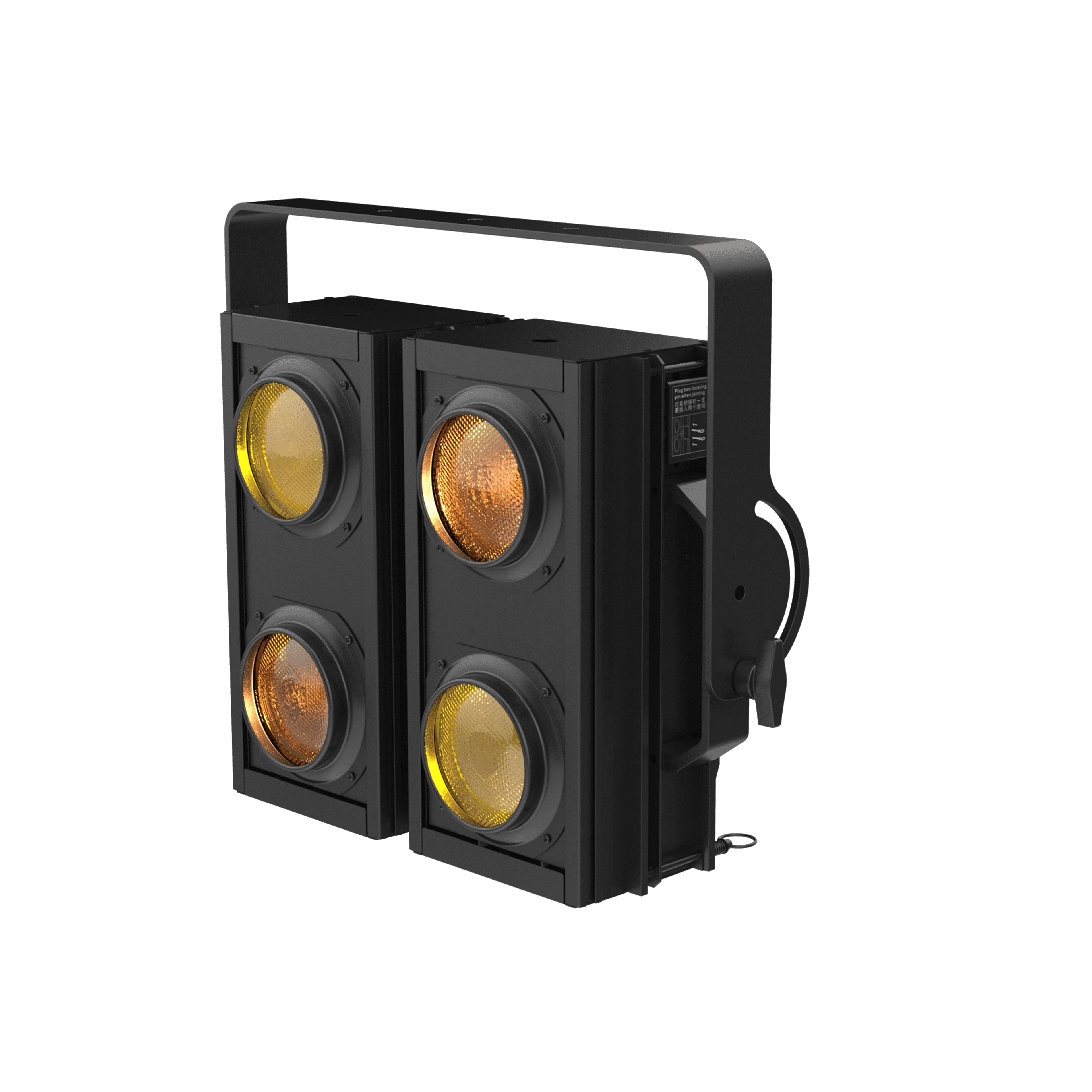

STAGE BLINDER IP WW2 presenta la apariencia clásica de la serie Blinder y el característico efecto tungsteno. Su sistema patentado de conexión permite una instalación rápida sin herramientas y se puede combinar libremente con las luminarias de la serie ACME STAGE BLINDER IP para ampliar las opciones creativas, además de ofrecer múltiples ángulos de rotación fácilmente localizables.

Más brillante que el cegador de público tradicional, con un excepcional efecto estroboscópico de velocidad variable y un grado de protección IPX4, STAGE BLINDER IP WW2 es ideal para conciertos de gran y mediano formato, espectáculos de variedades y otras aplicaciones profesionales de escenario o entretenimiento que requieren un impacto visual impactante.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    2 x 125W LED module

    LED Life Expectancy

    10,000 hours

    Beam Angle

    50°

    Field Angle

    90°

    Weight

    6.8 kg (14.9 lbs)



    Technical & Specification

    Model

    • Model Name: STAGE BLINDER IP WW2
    • Model Code: BL-200 WW2

    Light Source

    • Light Source: 2 x 125W LED module
    • Color Temperature Output of Fixture: 2,700 / 1,200K
    • Life Expectancy: 10,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 50°
    • Field Angle : 90°

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 4
    • Control Channels: 1/2/4/6
    • Firmware Upgrade: Upgrade via DMX link

    Pan & Tilt

    • Dimmer: 16 bit

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Flicker-free management
    • Unique tungsten effect
    • Fast, tool-free mounting of multiple units in an orientation
    • Multiple, easily located rotation angles
    • Ultra-high brightness, brighter than traditional audience blinder
    • Compact design, excellent thermal design, easy installation
    • Suitable for large and medium concerts and events of all kinds
    • Prevent splashing water intrusion
    • Maximum Connection:120V, 60Hz = 4 sets/230V, 50Hz = 8 sets

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 235W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR
    • Power supply with electronic auto-ranging

    Physical Information

    • Fixture Dimensions:
      • Width: 400 mm (15.7″)
      • Depth: 215 mm (8.4″)
      • Height: 200 mm (6.8″)
      • Weight: 6.8 kg (14.9 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 1,245 mm (49.0″)
      • Depth : 570 mm (22.4″)
      • Height : 648 mm (25.5″)
      • Weight :
        • Standard: G.W.: 99.6 kg (219.6 lbs) (Eight-pack loader case)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IPX4

    Approvals

    • CE compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • Foot-stands with 3 locking points
    • Safety cable attachment point

    Included Items

    • Digital user manual

    Optional Accessories (With Order Code)

    • Flight Case:
      • Standard : Eight-pack loader case (63582018)
    • Clamp : C-250B (2060001632-B)
    • Safety Cable: SW-02 (2060000200)
    • Signal Cable: 3-pin or 5-pin signal cable
    • Hanging Bracket: 50137301601100



    Dimensions

    Photometrics











    Animation Wheel
