OZONE

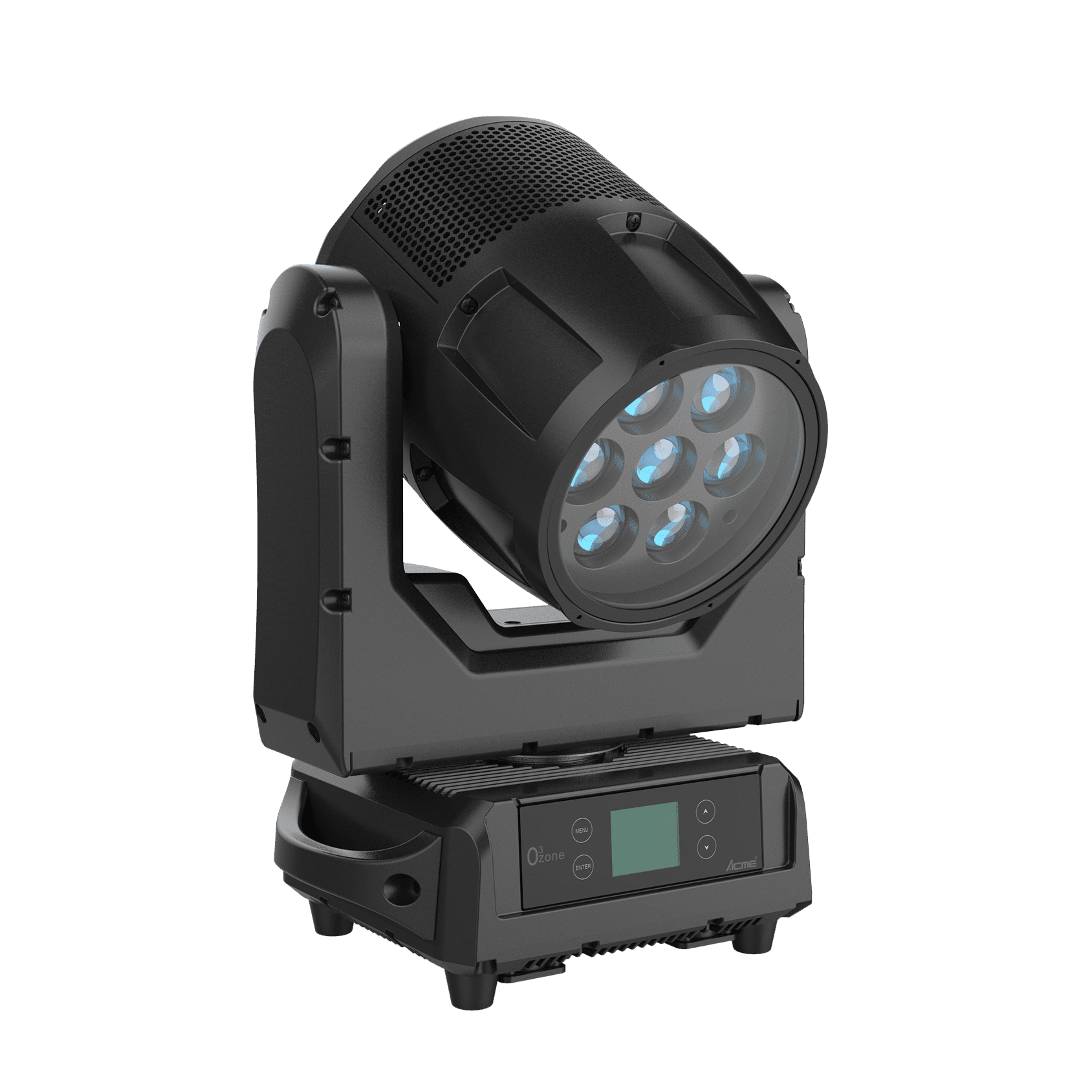

The ACME OZONE is a compact, IP65-rated outdoor moving head wash fixture with an Osram 7x40W RGBW 4-in-1 LEDsource. With robust construction and IP65-rating, the OZONE is designed for indoor or outdoor use. Its durable aluminium die-cast housing protects it from dust, sand, moisture and liquid, making it ideal for use in any situation, from dusty deserts to rainy fields.

Perfect for festivals and outdoor events as well as open-air installations, this ground-breaking fixture offers an extended operational life and reduced need for maintenance, thanks to its sealed casing design and long-life LEDsource.

The OZONE is equipped with a motorized zoom (1:6.7 ratio, 6-40˚), gamma positioning correction, smooth dimming and fast pan/tilt movement.It offers a USB port for software updates and is fitted with 3-pin (5-pin optional) DMX in/out, powerconnector in/out to daisy-chain power. All connections are IP65 rated with protective rubber covers.

    Consultar precios

    Descripción

    Performance

    Light Source

    7 x 40W RGBW LEDs

    LED Life Expectancy

    30,000 hours

    Total Lumen Output of Fixture

    2,200 lumens

    Variable CTO

    2,500K-8,000K

    Zoom Range

    6°-40°

    Weight

    16 kg (35.2 lbs)



    Technical & Specification

    Model

    • Model Name: OZONE
    • Model Code: CM-400Z IP

    Light Source

    • Light Source: 7 x 40W RGBW LEDs
    • Total Lumen Output of Fixture: 2,200 lumens
    • Life Expectancy: 30,000 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range: 6°-40°
    • Zoom Ratio : 1 : 6.7

    Control

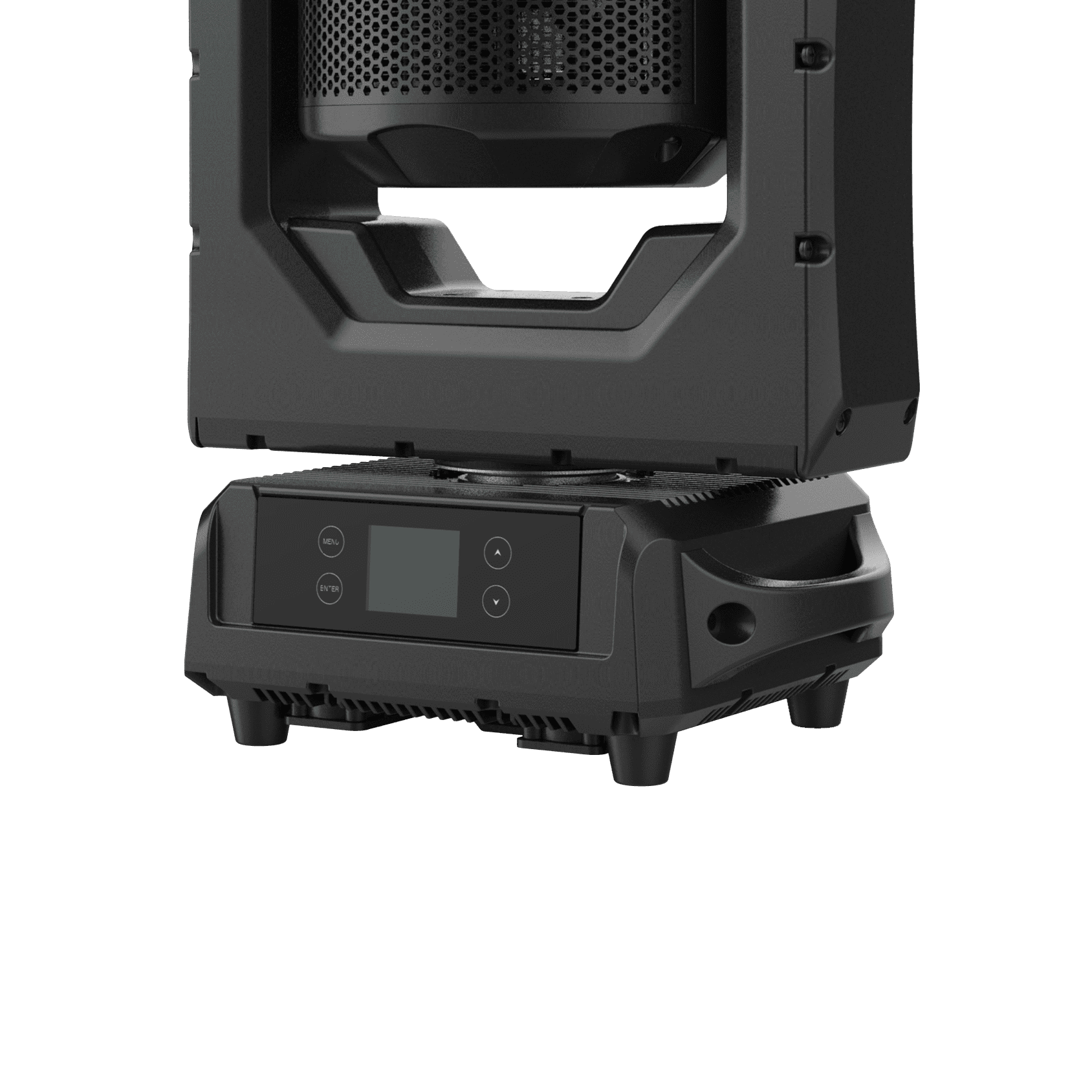

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 2
    • Control Channels: 17/37
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 250°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Dimmer: 16 bit

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized linear zoom system
    • Individual pixel control
    • Outstanding color macro effects
    • Flicker-free management
    • Powerful beam and wash effects
    • Fast and silent operation
    • Dust-proof and oil-proof design

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 380W

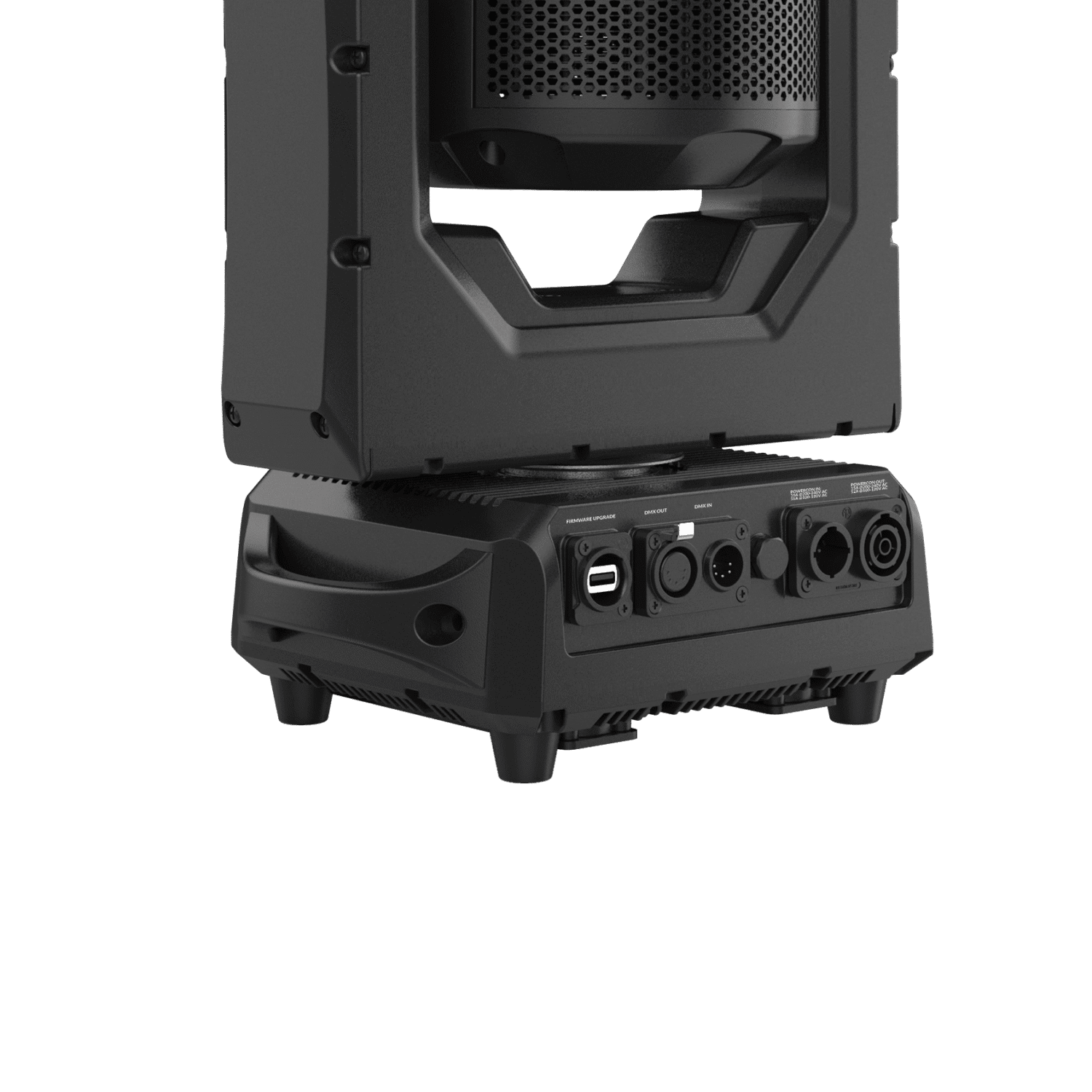

    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 303 mm (11.9″)
      • Depth: 210 mm (8.2″)
      • Height: 457 mm (17.9″)
      • Weight: 15.8 kg (34.8 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 800 mm (31.5″)
      • Depth : 660 mm (26.0″)
      • Height : 655 mm (25.8″)
      • Weight :
        • Standard: G.W.: 112 kg (246.9 lbs) (four-pack loader case)
    • Carton Dimensions:
      • Width : 400 mm (15.8″)
      • Depth : 355 mm (14.0″)
      • Height : 515 mm (20.3″)
      • Weight :
        G.W.: 19 kg (41.9 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: -10°C
    • Maximum Surface Temperature: 75°C
    • Protection Rating: IP65

    Approvals

    • CE compliant
    • IP Class Test Verification

    Installation

    • Horizontal or vertical mounting
    • Universal working position

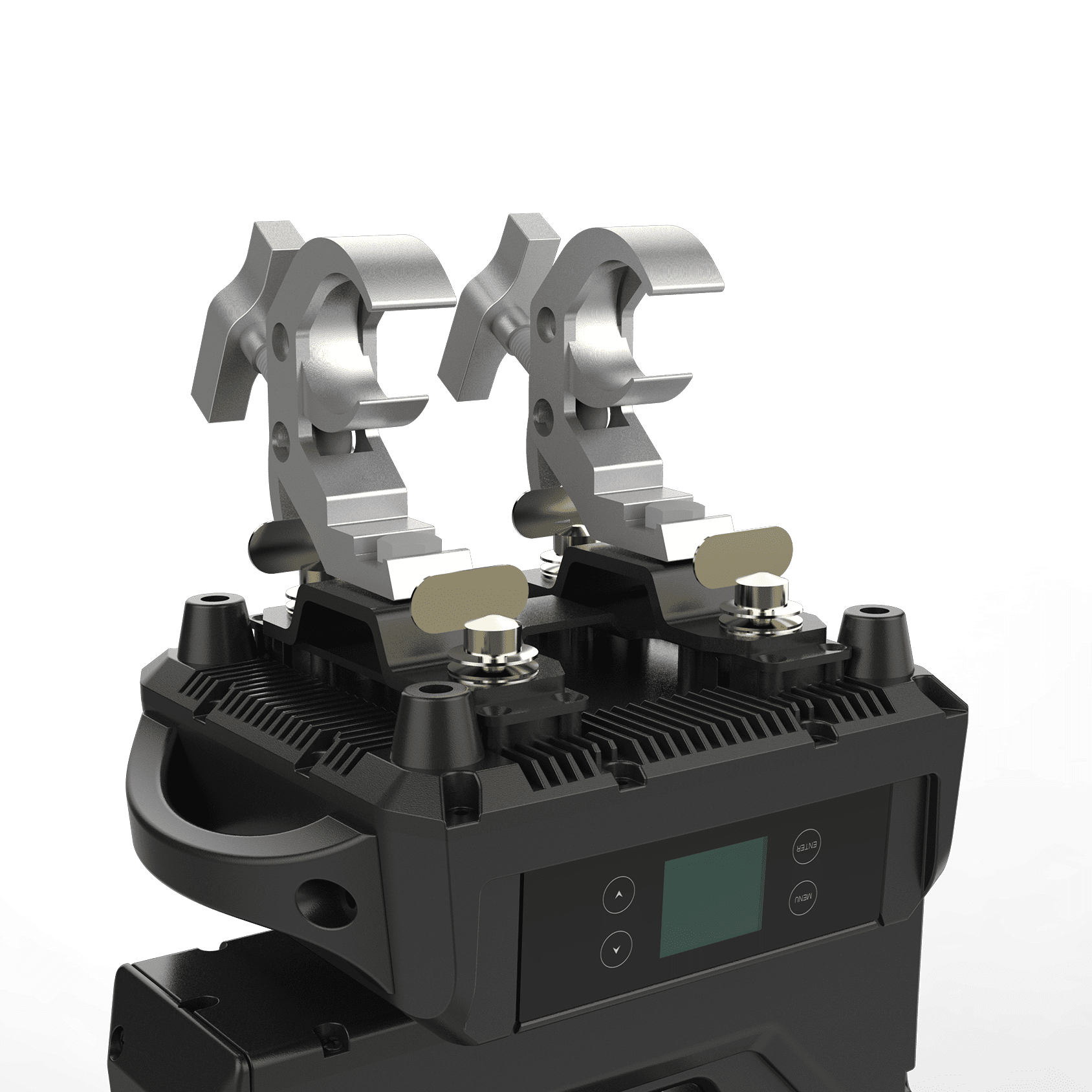

    • 2 omega brackets
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable

    Optional Accessories (With Order Code)

    • Flight Case:
      • Standard : Four-pack loader case (63581972 )
    • Clamp : C-250B (2060001632-B)
