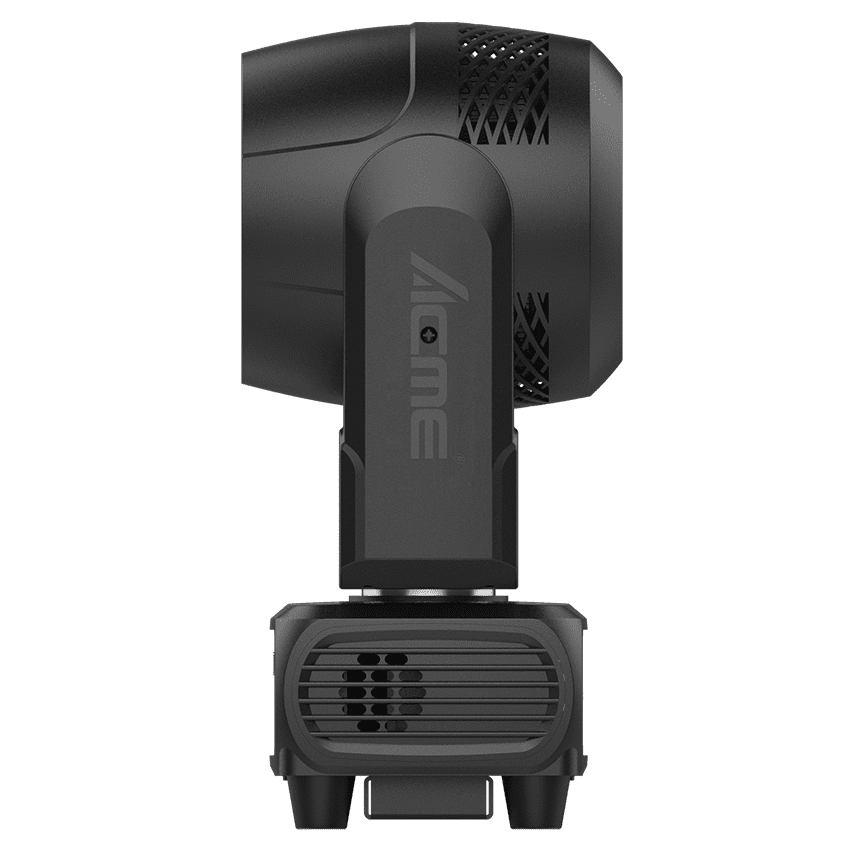

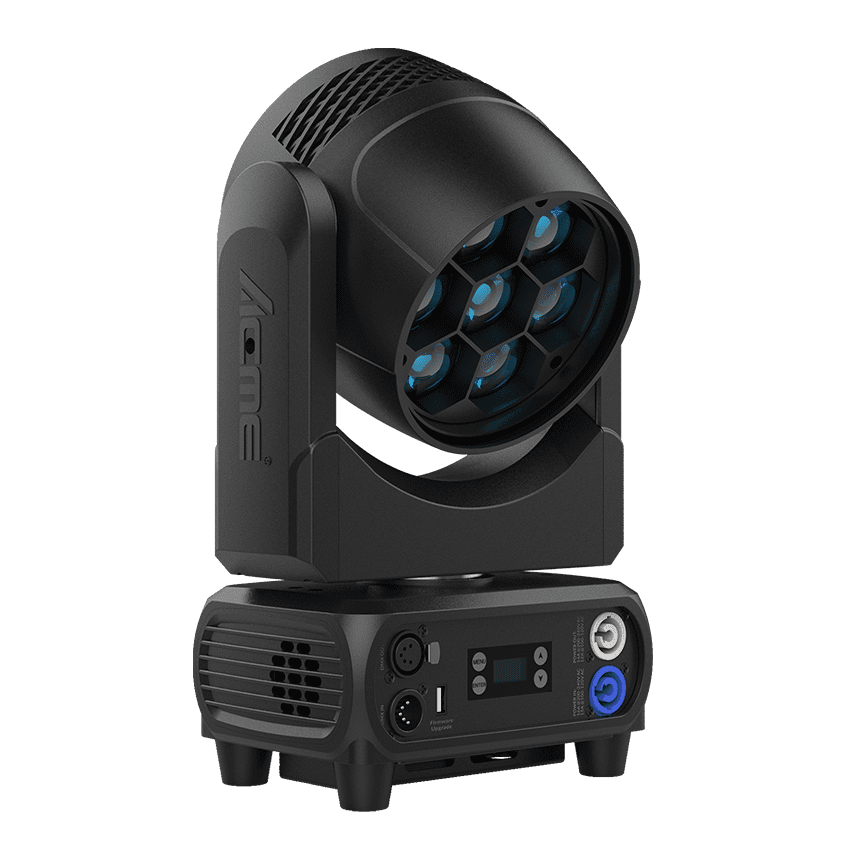

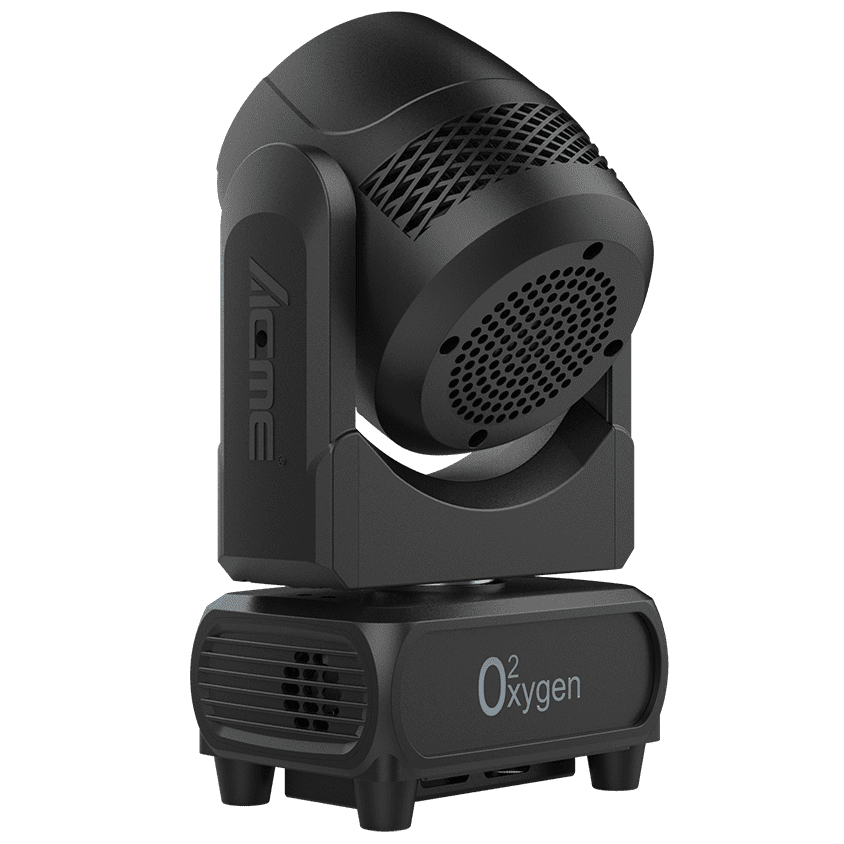

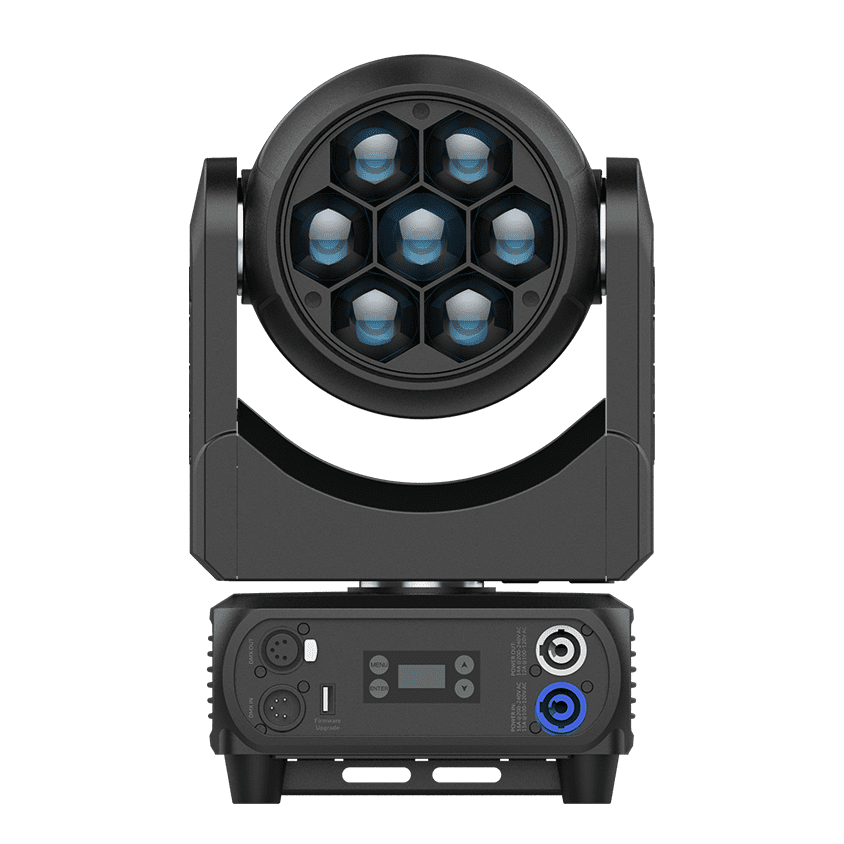

OXYGEN

La cabeza móvil LED ACME OXYGEN crea colores uniformes en modo wash o beam, con efectos increíbles. Su motor OSRAM RGBW de 7 piezas y 40 vatios produce hasta 4600 lúmenes. Su pequeño tamaño la hace perfecta para una amplia variedad de aplicaciones, como instalaciones permanentes, teatros, clubes y mucho más.

OXYGEN cuenta con un rango de zoom lineal motorizado que va desde 4,5° hasta 36,5°, y produce colores vibrantes en todo su rango. OXYGEN ofrece dos modos DMX de 17 y 37 canales para mayor control y creatividad.

Cada uno de los siete LED se puede controlar individualmente y la unidad ofrece una amplia gama de colores preprogramados y macros de efectos/patrones LED para un control rápido y sencillo, ahorrando tiempo de programación en beams o washes suaves.

La cabeza móvil ACME OXYGEN es compacta pero de gran rendimiento, ideal para grandes producciones, espacios pequeños y más.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    OSRAM 7x40W RGBW LED

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    4,600 lumens

    Variable CTO

    2,500K-8,000K

    Beam Angle

    4.5°-36.5

    Field Angle

    8.5°-56.5

    Weight

    6.3 kg (13.9 lbs)



    Technical & Specification

    Model

    • Model Name: OXYGEN
    • Model Code: CM 400Z

    Light Source

    • Light Source: OSRAM 7x40W RGBW LED
    • Total Lumen Output of Fixture: 4,600 lumens
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 4.5°-36.5°
    • Field Angle : 8.5°-56.5°

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Operational Modes: DMX Control,Show Mode
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 2
    • Control Channels: 17/37
    • Firmware Upgrade: Upgrade via DMX link or USB stick
    • Power supply with electronic auto-ranging

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 230°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit

    Colors

    • Linear CTO Color Correction: 2,500K-8,000K

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Excellent RGBW color mixing
    • Powerful beam and wash effects
    • Individual pixel control
    • Motorized linear zoom system

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 340W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR
    • Power supply with electronic auto-ranging

    Physical Information

    • Fixture Dimensions:
      • Width: 170 mm (6.7″)
      • Depth: 216 mm (8.5″)
      • Height: 345 mm (13.6″)
      • Weight: 6.3 kg (13.9 lbs)

    Packing Information

    • Flight Case Dimensions 1:
      • Width : 1,105 mm (43.5″)
      • Depth : 530 mm (20.9″)
      • Height : 600 mm (23.6″)
      • Weight :
        • Standard : G.W.: 102 kg (224.9 lbs) (eight-pack loader case)
    • Flight Case Dimensions 2:
      • Width : 1,220 mm (48.0″)
      • Depth : 610 mm (24.0″)
      • Height : 610 mm (24.0″)
      • Weight :
        • North American Standard : G.W.: 116 kg (255.7 lbs) (eight-pack loader case)
    • Carton Dimensions:
      • Width : 315 mm (12.4″)
      • Depth : 255 mm (10.0″)
      • Height : 425 mm (16.7″)
      • Weight :
        G.W.: 7.8 kg (17.2 lbs) (onr-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP20

    Approvals

    • CE compliant
    • UKCA compliant



    Dimensions

    Photometrics











    Beam Angle

    Field Angle
