HYPERZONE

ACME HYPERZONE es una cabeza móvil LED wash de nueva generación, equipada con 7 LEDs RGBL de 150W que ofrecen colores vibrantes y saturados que destacan en cualquier escenario.

Con control individual de píxeles y macros de color integradas, permite añadir capas creativas con total facilidad. Diseñado para ofrecer la máxima versatilidad, el HYPERZONE cuenta con un ángulo de haz variable de 3° a 32° y un ángulo de campo de 4,8° a 45°, lo que permite generar desde haces estrechos e intensos hasta baños de luz amplios y suaves.

El CTO variable permite transiciones fluidas entre temperaturas frías y cálidas, garantizando una reproducción natural del color. Su movimiento de paneo/inclinación rápido y preciso añade una energía dinámica al espectáculo. Además, su certificación IP66 asegura un rendimiento fiable en cualquier condición meteorológica y con un mantenimiento mínimo.

Redefiniendo lo que puede ser una cabeza móvil wash, el ACME HYPERZONE ofrece un alto rendimiento y una imagen visual impactante, allá donde te lleve tu creatividad.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    7 x 150W RGBL LEDs

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    19,500 lumens

    Variable CTO

    2,500K-8,000K

    Color Rendering

    Ra ≥ 85

    Beam Angle

    3° – 32°

    Field Angle

    4.8°-45°

    Weight

    26.4 kg (58.2 lbs)



    Model

    • Model Name: HYPERZONE
    • Model Code: CM 7 IP

    Light Source

    • Light Source: 7 x 150W RGBL LEDs
    • Total Lumen Output of Fixture: 19,500 lumens
    • Color Temperature Output of Fixture: 8,000K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 3°-32°
    • Field Angle : 4.8°-45°
    • Color Rendering: Ra≥85

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 2
    • Control Channels: 19/41
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 210°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Fixation: Pan/Tilt lock

    Colors

    • Linear CTO Color Correction: 2,500K-8,000K

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Outstanding color macro effects
    • Outstanding color mixing
    • Individual pixel control
    • Sharp and saturated beam effects
    • Dimming frequency from 900Hz to 25,0Hz
    • Motorized zoom

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 1,370W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 380 mm (15.0″)
      • Depth: 318 mm (12.5″)
      • Height: 500 mm (19.7″)
      • Weight: 26.4 kg (58.2 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 980 mm (38.6″)
      • Depth : 580 mm (22.6″)
      • Height : 825 mm (32.5″)
      • Weight :
        • Standard: G.W.: 104 kg (229.3 lbs) (two-pack loader case)
    • Carton Dimensions:
      • Width : 490 mm (19.3″)
      • Depth : 450 mm (17.7″)
      • Height : 675 mm (26.6″)
      • Weight :
        G.W.: 32 kg (70.6 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: -10°C
    • Maximum Surface Temperature: 75°C
    • Protection Rating: IP66

    Approvals

    • CE compliant
    • UKCA compliant
    • cETLus compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position

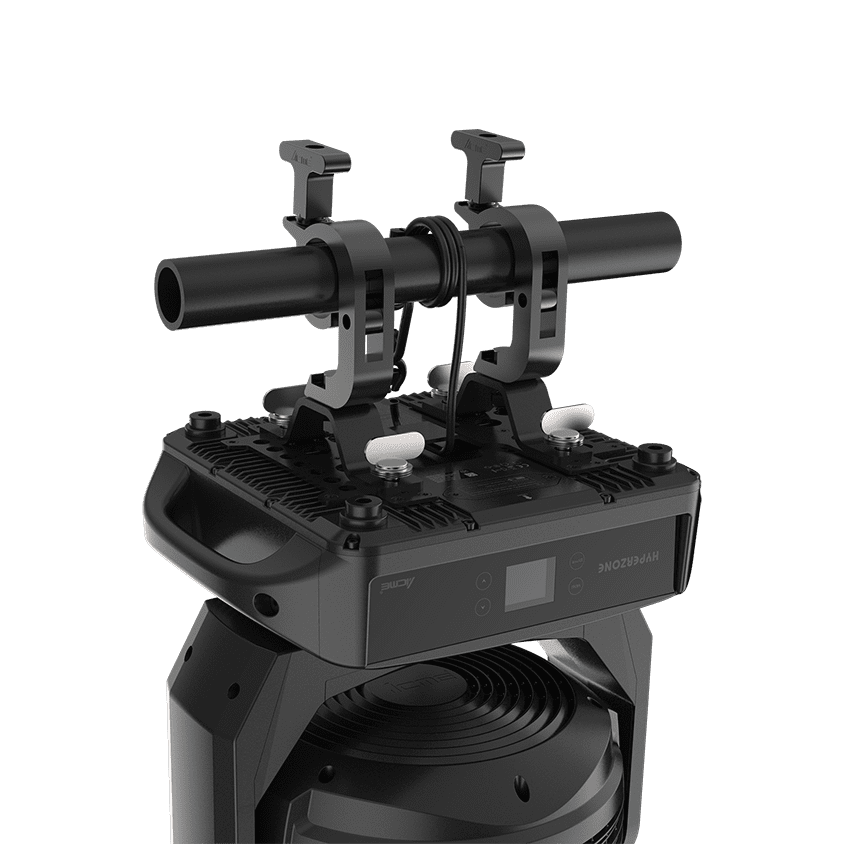

    • 2 omega brackets
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable
    • 2 omega brackets (3002003003)

    Optional Accessories (With Order Code)

    • Flight Case:
      • Standard : Two-pack loader case (63584070)
    • Clamp : C-250B (2060001632-B)
    • Safety Cable: SW-05 (2060001603-E)
    • Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
