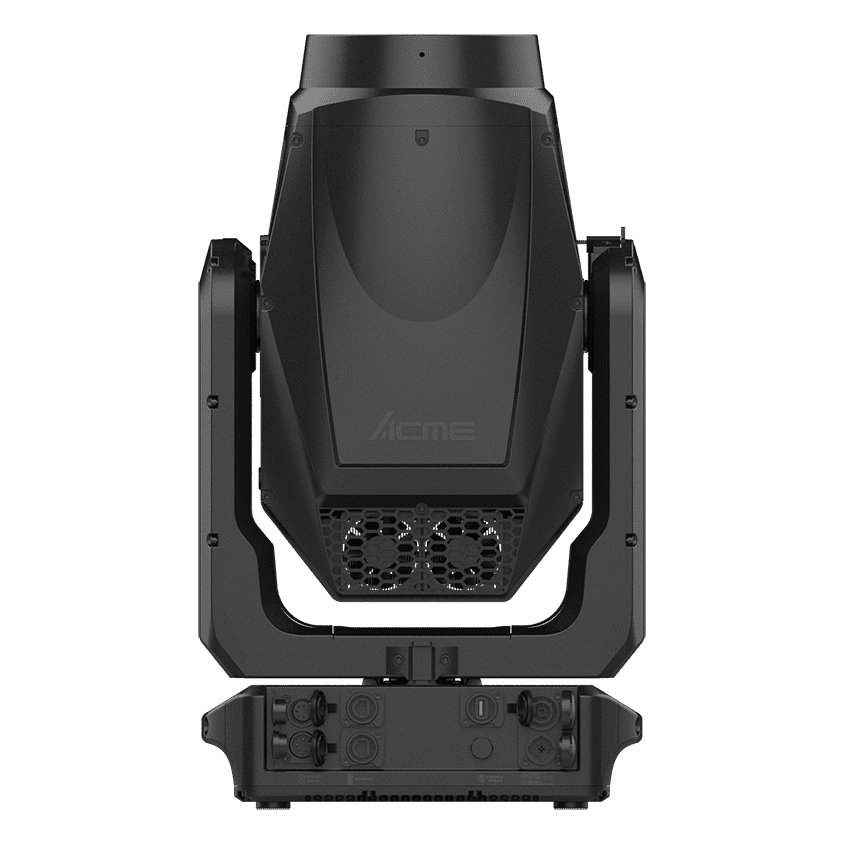

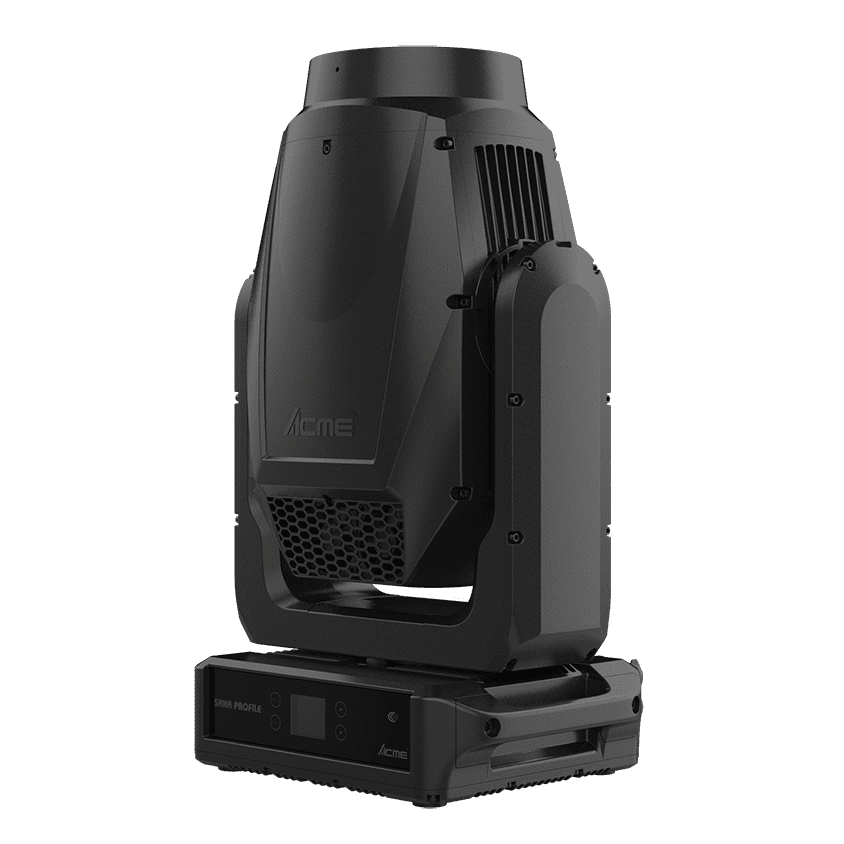

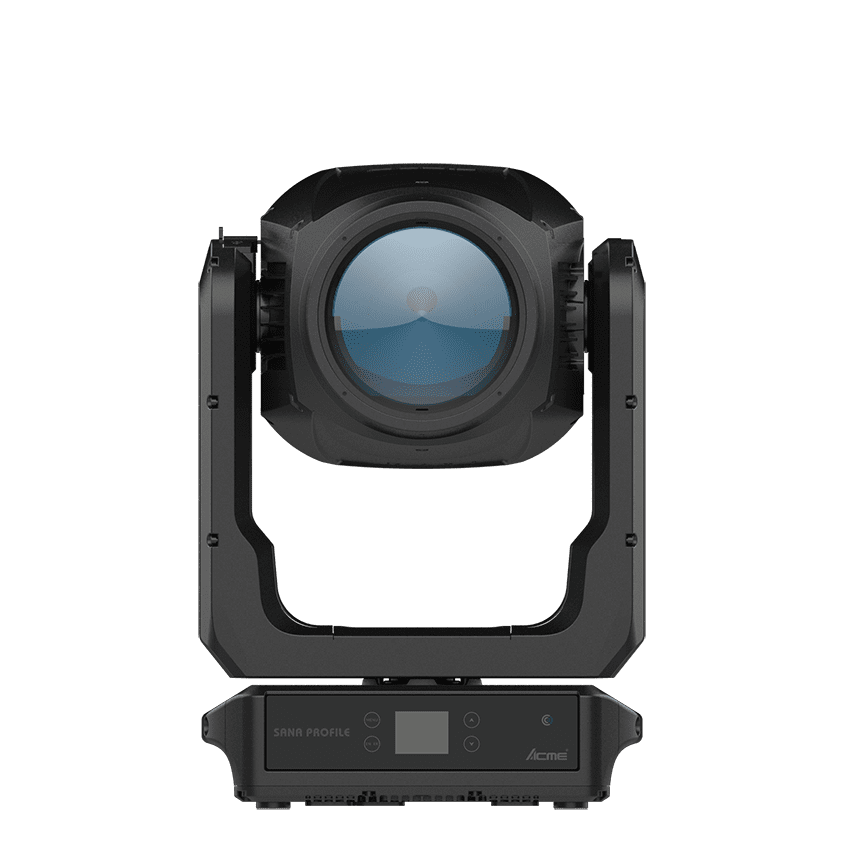

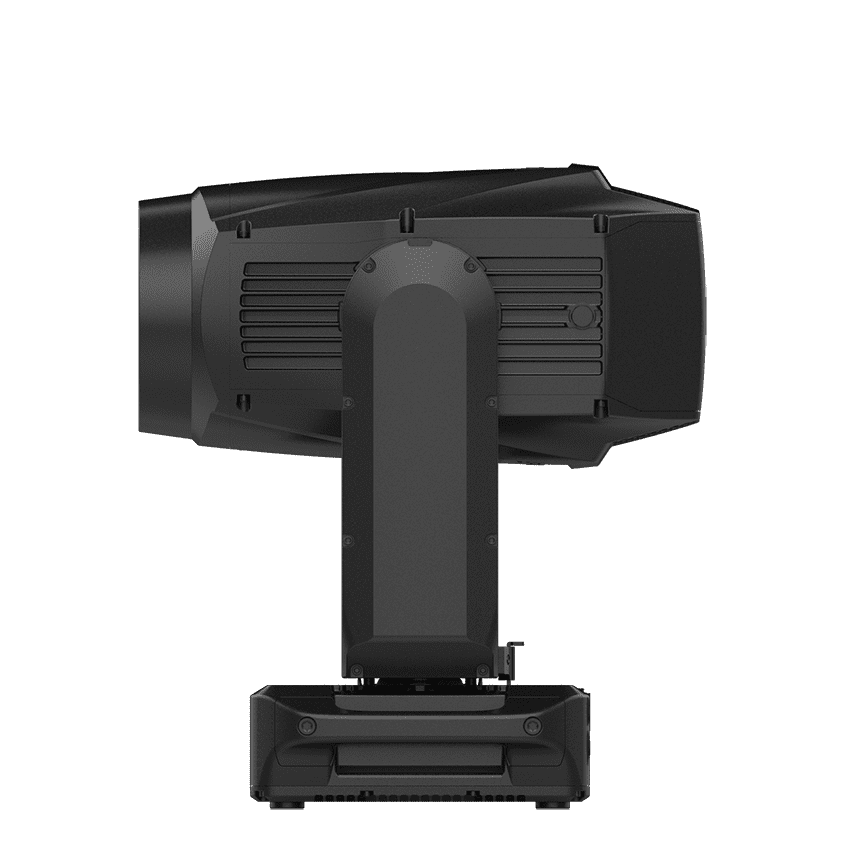

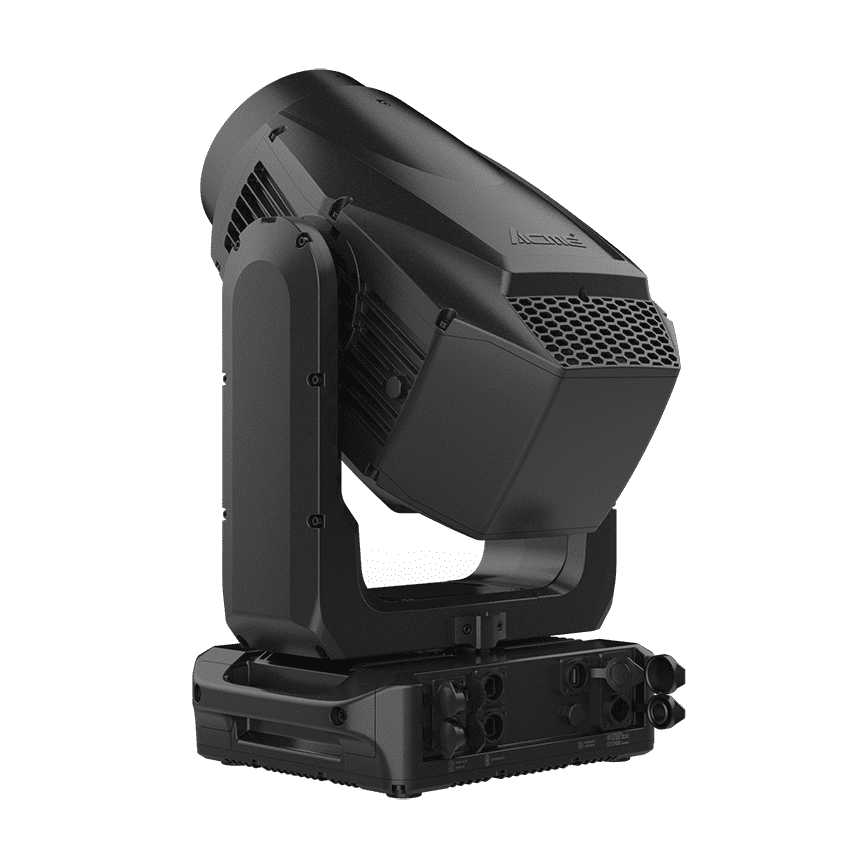

SANA PROFILE

ACME
SKU: XA 300 BSWF IP

El ACME SANA PROFILE es la última incorporación a la serie SANA, combinando las características clave de las series MANA y LYRA en un perfil móvil compacto. Diseñado para un movimiento infinito y una versatilidad excepcional, este accesorio permite a los diseñadores explorar infinitas posibilidades creativas.

Equipada con un motor LED de 330 W, la SANA PROFILE ofrece hasta 15 000 lúmenes con una nítida temperatura de color de 7000 K. Su lente frontal de 150 mm produce haces de luz increíblemente nítidos. Con una notable relación de zoom de 14:1 y un rango de zoom más amplio de 3,9° a 50°, la luminaria ofrece un control preciso y mayor flexibilidad que la LYRA, adaptándose fácilmente a diversas aplicaciones.

Para ampliar las posibilidades creativas, el SANA PROFILE cuenta con un sistema de mezcla de colores CMY para transiciones suaves, un CTO variable de 2700K a 7000K y una rueda de seis colores para colores saturados. La sección de efectos incluye 9 gobos estáticos, 7 gobos giratorios, una rueda de animación gráfica y dos prismas combinables para crear efectos aéreos en capas. Los filtros dobles Frost permiten transiciones fluidas desde haces nítidos hasta lavados suaves y uniformes. El sistema de encuadre cuenta con 4 láminas de obturador controlables individualmente con una rotación de ±90°, lo que permite un modelado preciso del haz y un oscurecimiento total instantáneo.

Compacto pero robusto, el SANA PROFILE con clasificación IP66 ofrece potencia, versatilidad e impacto visual en un tamaño reducido. Es la solución definitiva para diseñadores que buscan total libertad creativa.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    330W LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    15,000 lumens

    Variable CTO

    2,700K-7,000K

    Color Rendering

    Standard Mode: Ra≥70

    HCRI Mode: Ra≥90

    Zoom Range

    3.9°-50°

    Diameter of Frontal Lens

    150 mm

    Weight

    26 kg (57.3 lbs)



    Model

    • Model Name: SANA PROFILE
    • Model Code: XA 300 BSWF IP

    Light Source

    • Light Source: 330W LED engine
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Photometric Data

    • Light Engine Luminous Output: 15,000 lumens
    • CCT: 7,000K (+/- 200K)
    • Standard Mode: Ra≥70
    • HCRI Mode: Ra≥90
    • TM-30 Rf (IES TM-30-15 Fidelity Index): 73
    • TM-30 Rg (IES TM-30-15 Fidelity Index): 93
    • TLCI: 48
    • Peak Luminous Intensity: 2,898,000 cd

    Optical System

    • Zoom Range: 3.9°-50°
    • Diameter of Frontal Lens: 150 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,NFC
    • DMX Protocol Modes: 4
    • Control Channels: 27/36/36/45
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement : Infinity
    • Tilt Movement : Infinity
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Pan/Tilt lock

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 2,700K-7,000K
    • 1 Color Wheel: 6 colors + CRI, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 9 gobos, plus open
      • Gobo: Ф20 mm, lmage: Ф14 mm

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 7 gobos, plus open
      • Gobo: Ф20 mm, lmage: Ф14 mm

    Animation Wheel

    • A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create water and flame effects

    Prism

    • 2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable and overlayable in both directions

    Frost Filter

    • 1 combinable light frost filter and 1 combinable medium frost filter

    Framing System

    • Shutter Blades: 4 blades, each with separate movement and full blackout
    • Rotation: ±90° of the complete framing system

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized linear iris
    • Motorized focus system

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 570W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 336 mm (13.2″)
      • Depth: 256 mm (10.1″)
      • Height: 582 mm (22.9″)
      • Weight: 26 kg (57.3 lbs)

    Packing Information

    • Flight Case Dimensions 1:
      • Width : 820 mm (32.3″)
      • Depth : 580 mm (22.8″)
      • Height : 880 mm (34.7″)
      • Weight :
        • Standard : G.W.: 102 kg (224.9 lbs) (two-pack loader case)
    • Flight Case Dimensions 2:
      • Width : 1,220 mm (48″)
      • Depth : 610 mm (24″)
      • Height : 840 mm (33.1″)
      • Weight :
        • North American Standard : G.W.: 160.9 kg (354.7 lbs) (three-pack loader case)
    • Carton Dimensions:
      • Width : 550 mm (21.7″)
      • Depth : 455 mm (17.9″)
      • Height : 665 mm (26.2″)
      • Weight :
        G.W.: 32 kg (70.6 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 45°C
    • Minimum Operating Temperature: -20°C
    • Maximum Surface Temperature: 75°C
    • Protection Rating: IP66

    Approvals

    • CE compliant
    • UKCA compliant
    • cETLus compliant

    Installation

    • Horizontal or vertical mounting
    • 2 omega brackets
    • Safety cable attachment point

    Included Items

    • QR code on fixture to receive digital user manual
    • Power cable
    • 2 omega brackets (3002003003)

    Optional Accessories (With Order Code)

    • Flight Case 1:
      • Standard : Two-pack loader case (63584353)
    • Flight Case 2:
      • North American Standard : Three-pack loader case (63584381)
    • Clamp : C-250B (2060001632-B)
    • Safety Cable: SW-05 (2060001603-E)
    • Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)



    Dimensions

    Photometrics



    v

    Colors

    Linear CMY Color Mixing

    CMY

    3027005382

    3027005385

    3027005383

    Linear CTO Color Correction

    2,700K-7,000K

    3027005384

    Color Wheel: 6 colors + CRI, plus open

    Red
    3027005375
    Slot 1

    Green
    3027005376
    Slot 2

    Pink
    3027005377
    Slot 3

    Orange
    3027005378
    Slot 4

    Blue
    3027005379
    Slot 5

    CRI
    3027005380
    Slot 6

    CTB
    3027005381
    Slot 7



    Gobos

    Static Gobo Wheel: 9 gobos, plus open

    Gobo: Ф20 mm, Image: Ф14 mm

    3011001749
    Slot 1

    3011001750
    Slot 2

    3011001751
    Slot 3

    3011001752
    Slot 4

    3011001753
    Slot 5

    3011001754
    Slot 6

    3011001755
    Slot 7

    3011001756
    Slot 8

    3011001757
    Slot 9

    Rotating Gobo Wheel: 7 gobos, plus open

    Gobo: Ф20 mm, Image: Ф14 mm

    3011001500
    Slot 1

    3011001501
    Slot 2

    3011001502
    Slot 3

    3011001503
    Slot 4

    3011001504
    Slot 5

    3011001505
    Slot 6

    3011001546
    Slot 7



    Prisms/Frost Filters

    2 Combinable Rotating and Indexable Prisms:

    1× 4-facet circular prism,1 x 4-facet linear prism,

    rotatable and overlayable in both directions

    1 combinable light frost filter and 1 combinable medium frost filter

    4-Facet Circular Prism

    4-Facet Linear Prism

    Light Frost Filter

    Medium Frost Filter



    Zoom Range

    Animation Wheel

    A graphic animation wheel with continuous rotation

    in both directions, used alone or in combination with gobos

    to create water and flame effects



    Framing System

    Shutter Blades: 4 blades, each with separate movement and full blackout

    Rotation: ±90° of the complete framing system
