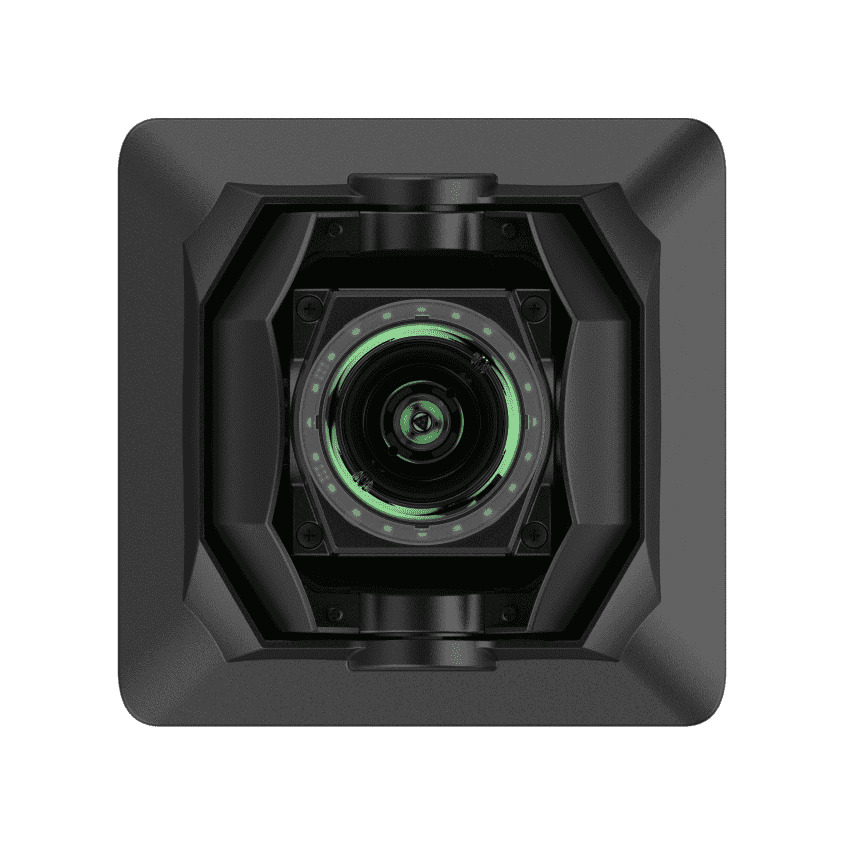

EYES CC

EYES CC (versión de instalación en techo) está diseñado para instalaciones artísticas escénicas como escenarios de imágenes visuales, bares, salones de baile, salones de banquetes, etc. Su diseño compacto y ligero fue clave para lograr una unión horizontal y vertical uniforme y rápida. Además, su forma es flexible y adaptable para todo tipo de creación de espectáculos.

Con un LED de ojo de ángel en la parte superior, aumenta la diversión al jugar con carreras de píxeles, persecución circular, estroboscopia, atenuación y otros efectos creativos gracias al sistema de mezcla de color RGBW uniforme de 40 W.

Además, el innovador desarrollo de ejes exclusivos de ACME ha completado los dinámicos efectos visuales 3D y ha dado rienda suelta a la imaginación, más que cualquier otra iluminación tradicional.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    1 x 40W RGBW LED

    20 x 0.5W Angel Eye LED

    LED Life Expectancy

    20,000 hours

    Beam Angle

    5°/25°

    Weight

    3.5 kg (7.7 lbs)



    Technical & Specification

    Model

    • Model Name: EYES CC
    • Model Code: BEAM 50C RGBW

    Light Source

    • Light Source :
      • 1 x 40 W RGBW LED
      • 20 x 0.5 W Angel Eye LED
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 5°/25°

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 2
    • Control Channels: 14/29

    Pan & Tilt

    • Pan Movement: 77°
    • Tilt Movement: 77°
    • Automatic Pan/Tilt position correction

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Excellent RGBW color mixing
    • Effects: Angel Eye LED pixel running, circle chasing, stroboscopic, dimming speeding, 3D visual movement
    • Compact design, small size and light weight

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 50W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 195 mm (7.67″)
      • Depth: 195 mm (7.67″)
      • Height: 236 mm (9.3″)
      • Weight: 3.5 kg (7.7 lbs)

    Packing Information

    • Carton Dimensions:
      • Width : 275 mm (10.8″)
      • Depth : 345 mm (13.6″)
      • Height : 305 mm (12″)
      • Weight :
        G.W.: 4.3 kg (9.5 lbs) (One-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP20

    Approvals

    • CE compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • Can be built-in embedded ceiling by junction buckle
    • Built-in embedded ceiling fixed point installation
    • Special clamp, which can assist installation on the ceiling of the room
    • Safety cable attachment point

    Included Items

    • Digital user manual

    Optional Accessories (With Order Code)

    • Safety Cable: SW-02 (2060000200)
    • Signal Cable: 3-pin or 5-pin signal cable



    Dimensions

    Photometrics











    Beam Angle



    Descargas


    EYES CC Descargas Enlace
