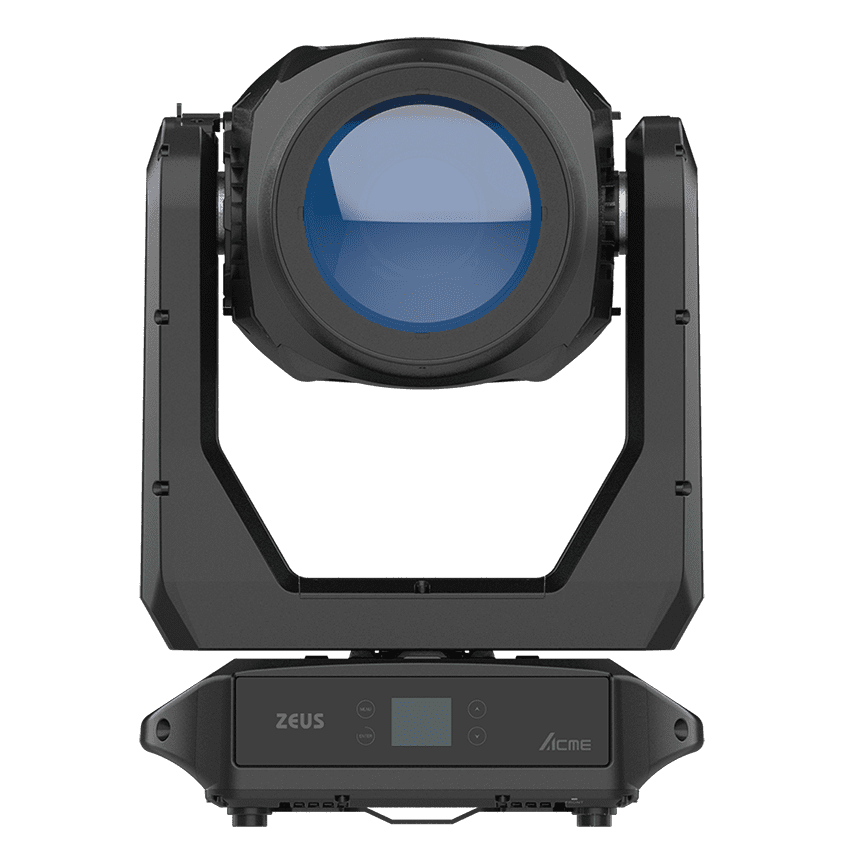

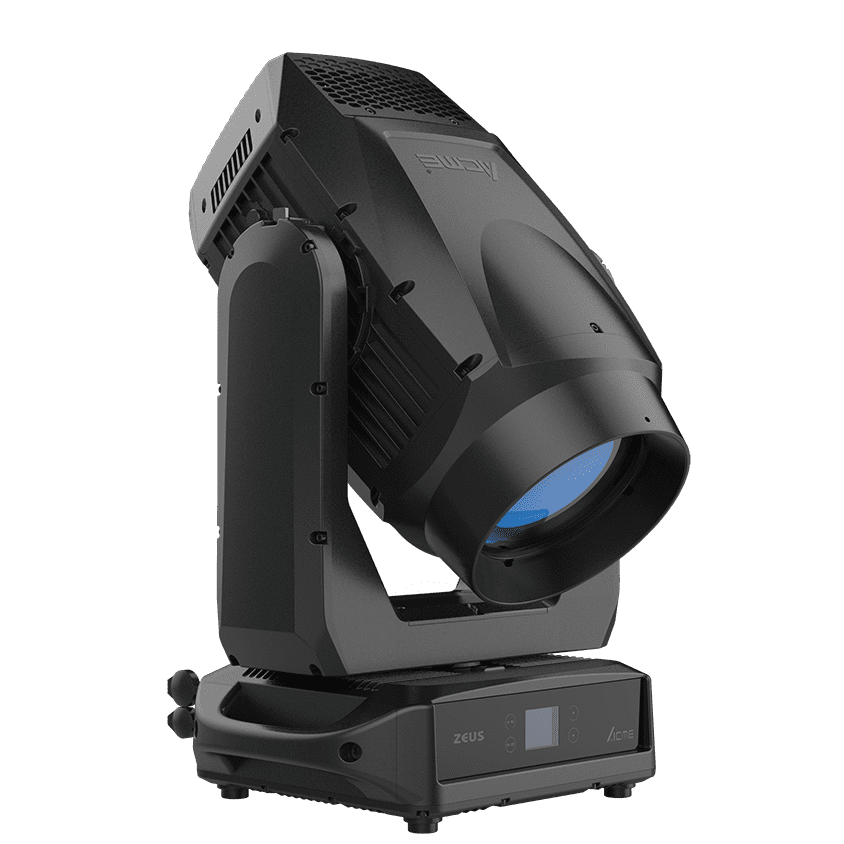

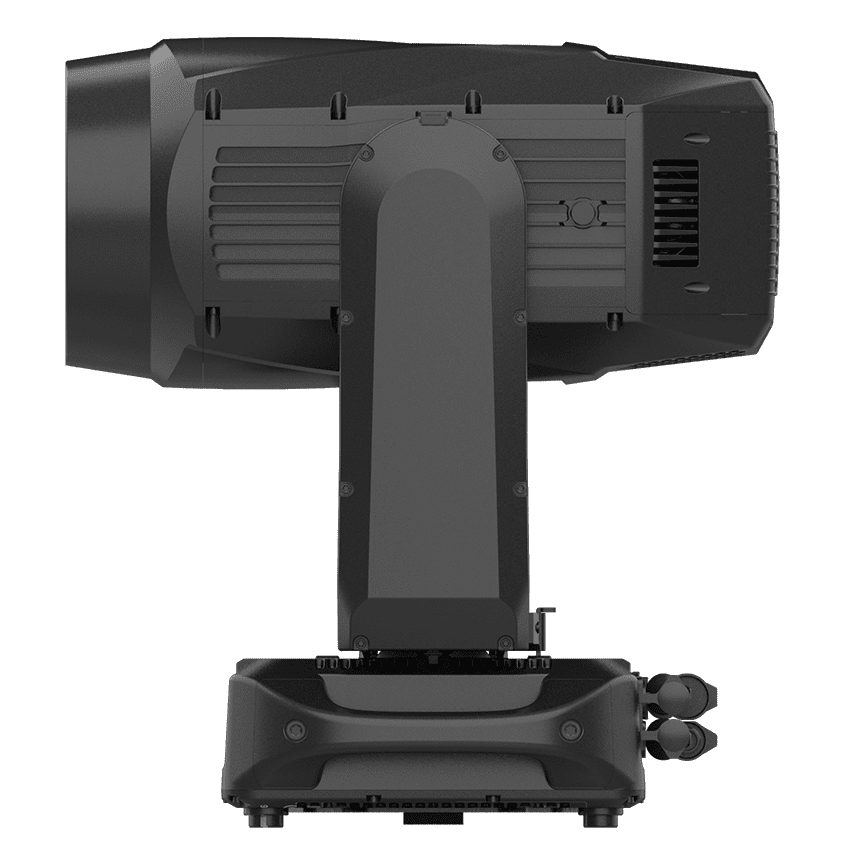

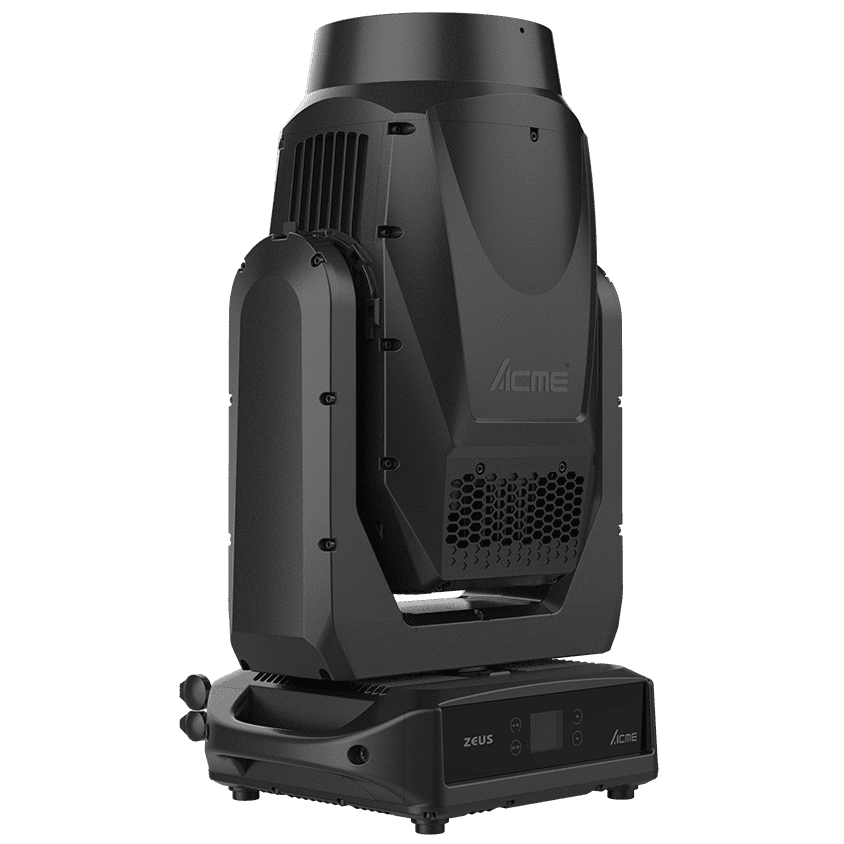

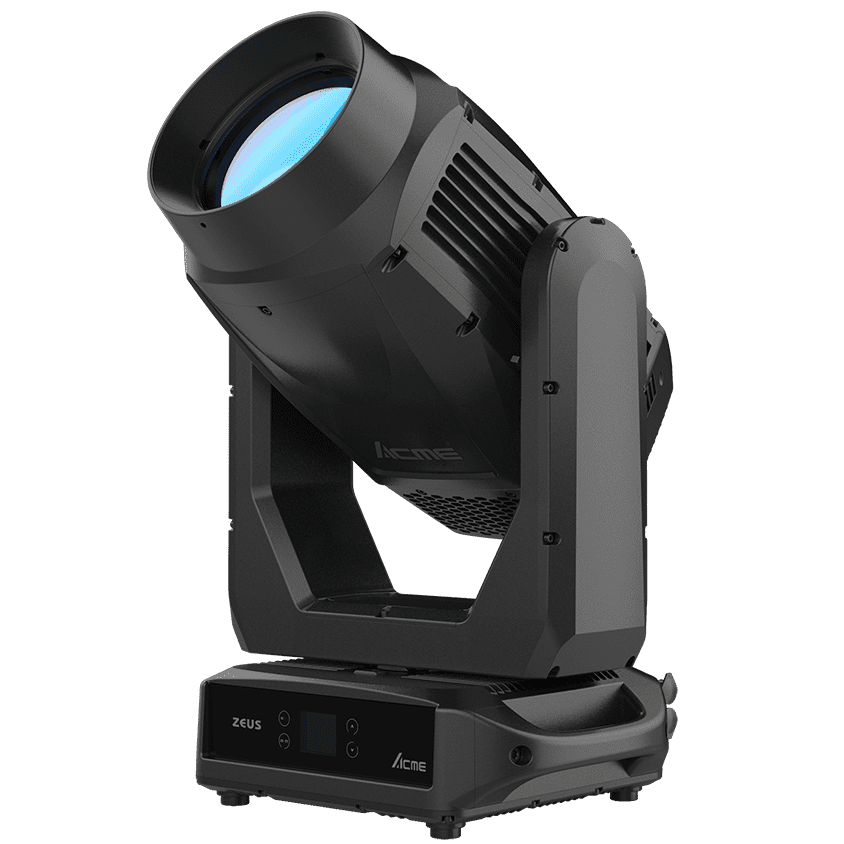

ZEUS

ACME ZEUS es una cabeza móvil híbrida IP66 que ofrece haces precisos y dinámicos en un diseño compacto. Alimentado por una lámpara Philips MSD Silver de 420 W y larga duración, con una vida útil de hasta 3500 horas, ZEUS ofrece unos impresionantes 13 800 lúmenes con una nítida temperatura de color de 7800 K.

Con un ángulo de haz ultraestrecho de 1,6°, el dispositivo ofrece una precisión sin igual. Su lente frontal de 170 mm y sus tres modos de zoom conmutables garantizan unos haces brillantes y nítidos. Con movimientos rápidos de panorámica e inclinación, un CTO variable y un sistema de mezcla de colores CMY, ZEUS le permite crear colores ricos y vibrantes y efectos dinámicos con facilidad.

Para ofrecer infinitas posibilidades creativas, ZEUS cuenta con dos ruedas de colores, cada una con seis colores, una rueda de gobos estática con 16 gobos, una rueda de gobos giratoria con 9 gobos, dos prismas giratorios combinables y un filtro frost.

Con un peso de solo 30 kg, el dispositivo es adecuado para cualquier aplicación. Versátil, ligero y compacto, ACME ZEUS supera las expectativas con su alta calidad y su diseño innovador.

    Consultar precios

    Descripción

    Performance

    Light Source

    PHILIPS MSD Silver 420W/2 LL

    Lamp Life Expectancy

    3,500 hours

    Total Lumen Output of Fixture

    13,800 lumens

    Variable CTO

    3,200K-6,700K

    Zoom Range

    Beam: 1.6°-27°

    Spot: 2.3°-44°

    Wash: 8°-60°

    Diameter of Frontal Lens

    170 mm

    Weight

    30 kg (66.1 lbs)



    Technical & Specification

    Model

    • Model Name: ZEUS
    • Model Code: XP 500 BSW IP

    Light Source

    • Light Source : PHILIPS MSD Silver 420W/2 LL
    • Total Lumen Output of Fixture: 13,800 lumens
    • Color Temperature Output of Fixture: 7,800K
    • Life Expectancy: 3,500 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range :
      • Beam: 1.6°-27°
      • Spot: 2.3°-44°
      • Wash: 8°-60°
    • Diameter of Frontal Lens: 170 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 2
    • Control Channels: 20/28
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 265°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Fixation: Pan/Tilt lock

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 3,200K-6,700K
    • 2 Color Wheels:
      • Color Wheel 1: 6 colors, plus open
      • Color Wheel 2: 6 colors, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 16 gobos, plus open
      • Gobo: Ф125 mm

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 9 gobos, plus open
      • Gobo: Ф18 mm, lmage: Ф11 mm

    Prism

    • 2 Combinable Rotating and Indexable Prisms: 1 x 8-facet circular prism, 1 x 6-facet linear prism, rotatable in both directions

    Frost Filter

    • 1 frost filter

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized focus system
    • Motorized zoom
    • Flicker-free management

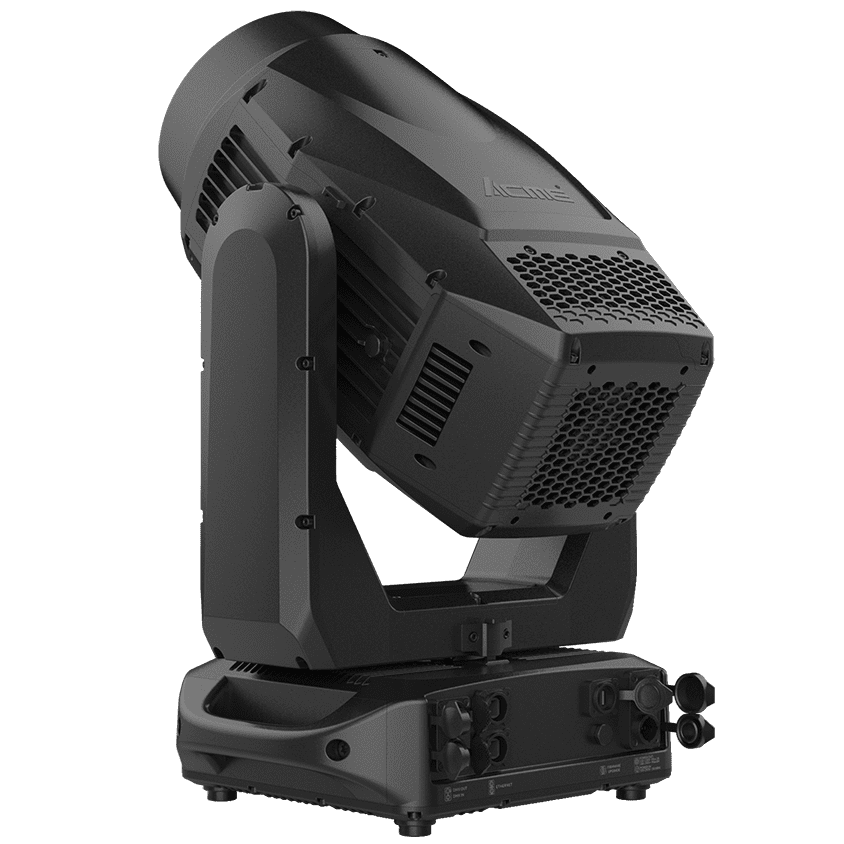

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 655W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 379 mm (14.9″)
      • Depth: 284 mm (11.2″)
      • Height: 659 mm (25.9″)
      • Weight: 30 kg (66.4 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 1,170 mm (46.1″)
      • Depth : 610 mm (24.0″)
      • Height : 795 mm (31.3″)
    • Carton Dimensions:
      • Width : 610 mm (24.0″)
      • Depth : 490 mm (19.3″)
      • Height : 715 mm (28.2″)
      • Weight :
        G.W.: 38 kg (83.8 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: -10°C
    • Maximum Surface Temperature: 75°C
    • Protection Rating: IP66

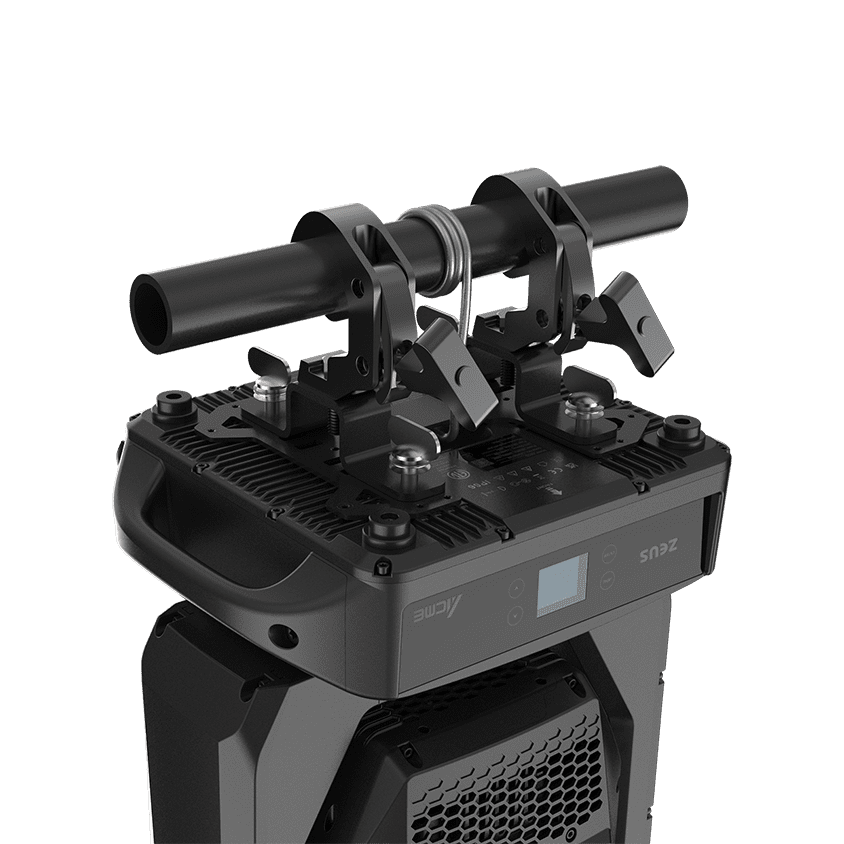

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • 2 omega brackets
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable
    • 2 omega brackets (3002003002)

    Optional Accessories (With Order Code)

    • Flight Case:
      • Standard : Two-pack loader case (63584148)
    • Clamp : C-250B (2060001632-B)
    • Safety Cable: SW-05 (2060001603-E)
    • Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)


    Dimensions
    Photometrics


    Video
    v
    Colors

    Linear CMY Color Mixing

    CMY

    3027005325

    3027005328

    3027005327

    Linear CTO Color Correction

    3,200K-6,700K
    3027005326

    Color Wheel 1: 6 colors, plus open

    Red
    3027001967
    Slot 1

    Orange
    3027001966
    Slot 2

    Aquamarine
    3027001777
    Slot 3

    Green
    3027001968
    Slot 4

    Light Green
    3027001779
    Slot 5

    Lavender
    3027001780
    Slot 6

    Color Wheel 2: 6 colors, plus open

    Pink
    3027001781
    Slot 1

    Magenta
    3027001783
    Slot 2

    Blue
    3027001784
    Slot 3

    Yellow
    3027001785
    Slot 4

    Light Yellow
    3027001786
    Slot 5

    UV
    3027001788
    Slot 6



    Gobos

    Static Gobo Wheel: 16 gobos, plus open

    Gobo: Ф125 mm

    Order Code: 3011001616

    Slot 1

    Slot 2

    Slot 3

    Slot 4

    Slot 5

    Slot 6

    Slot 7

    Slot 8

    Slot 9

    Slot 10

    Slot 11

    Slot 12

    Slot 13

    Slot 14

    Slot 15

    Slot 16

    Rotating Gobo Wheel: 9 gobos, plus open

    Gobo: Ф18 mm, Image: Ф11 mm

    Dashed Circle
    3011001617
    Slot 1

    Square Tunnel
    3011001618
    Slot 2

    Eccentric Circles
    3011001619
    Slot 3

    Tiny Bubbles
    3011001620
    Slot 4

    String
    3011001621
    Slot 5

    Pebbles
    3011001622
    Slot 6

    Leaves
    3011001623
    Slot 7

    Elliptical Flower
    3011001624
    Slot 8

    Bar
    3011001626
    Slot 9



    Prisms/Frost Filters

    2  Combinable Rotating and Indexable Prisms:

    1 x 6-facet linear prism, 1 x 8-facet circular prism, rotatable in both directions

    1 frost filter

    6-Facet Linear Prism
    8-Facet Circular Prism
    1 Frost Filter


    Zoom Range
