TORNADO

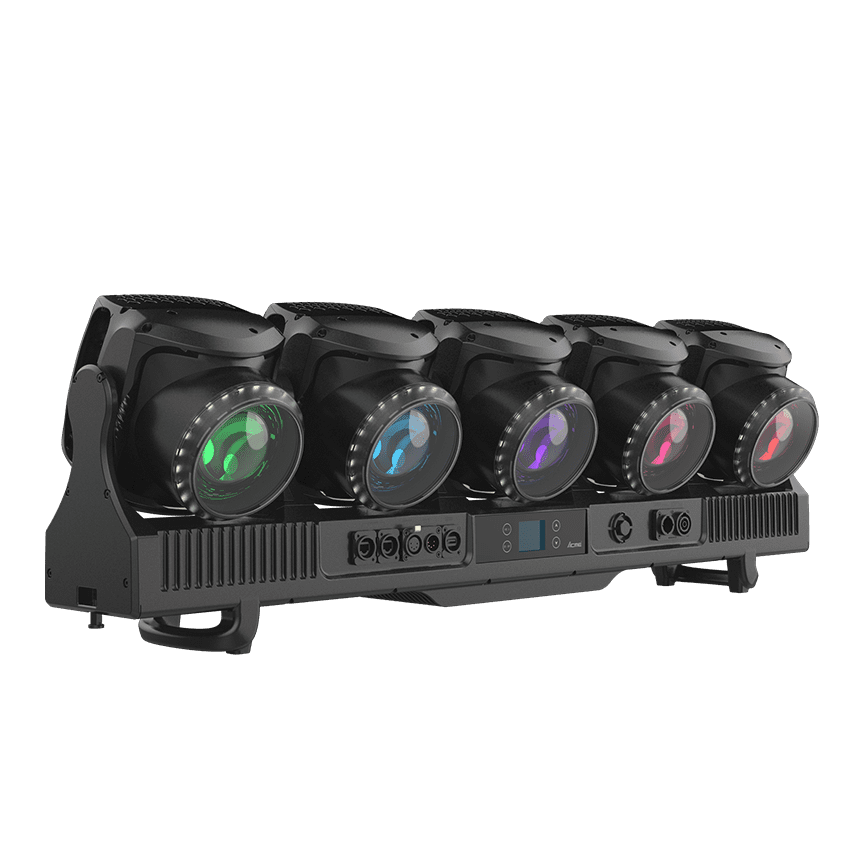

ACME TORNADO, con un diseño y una apariencia innovadores, está diseñado para llevar tus experiencias visuales a nuevas alturas. Con una potente fuente de luz principal de 5 LED RGBL de 120 W, complementada por un anillo de 120 LED RGB de 0,5 W que la rodea, promete una fusión inigualable de brillo y versatilidad.

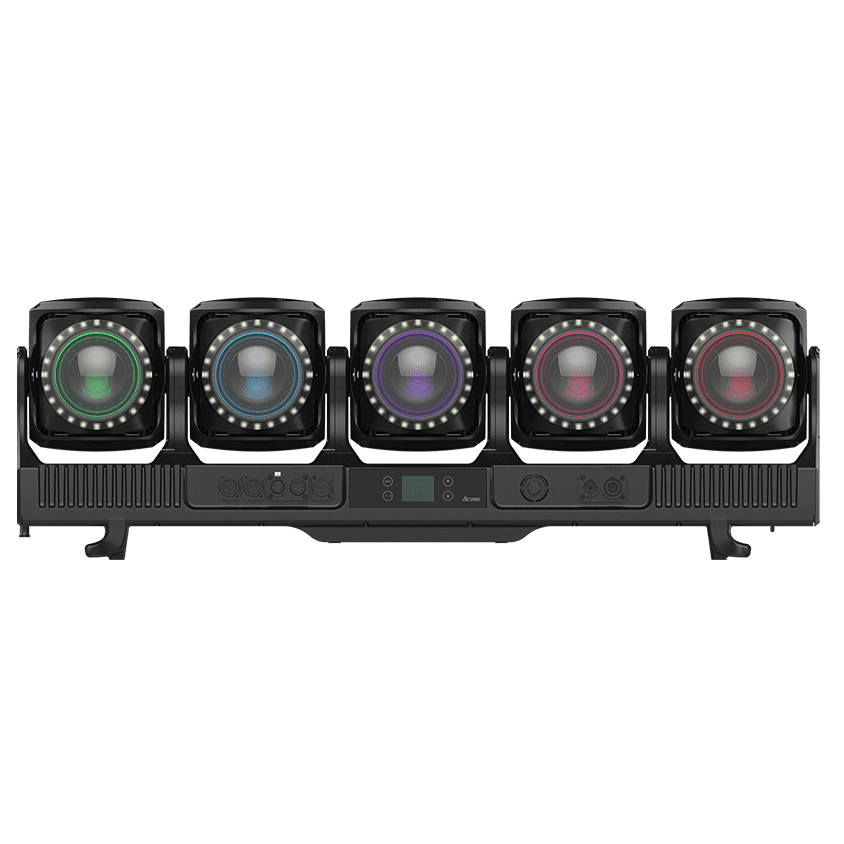

La luminaria está equipada con cinco cabezales individuales con precisos movimientos de giro e inclinación. Cada cabezal se puede controlar de forma independiente, ofreciendo infinitas posibilidades para la exploración y creación artística.

Experimenta el zoom lineal rápido y suave de 3° a 30°, con un ángulo de campo de 4° a 35°. Sé testigo de la magia mientras produce efectos de haz nítidos y saturados, asegurando que tus visuales brillen con una intensidad y un brillo inigualables.

Con certificación IP66 para todo tipo de clima, TORNADO está diseñado para resistir las inclemencias del tiempo, garantizando un rendimiento inquebrantable en cualquier entorno, tanto en interiores como en exteriores.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    Main Light: 5 x 120W RGBL LEDs

    Outer Circle: 120 x 0.5W RGB LEDs

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    13,000 lumens

    Beam Angle

    3° – 30°

    Field Angle

    4° – 35°

    Weight

    30 kg (66.2 lbs)



    Technical & Specification

    Model

    • Model Name: TORNADO
    • Model Code: TB 5 IP

    Light Source

    • Light Source :
      • Main Light: 5 x 120W RGBL LEDs
      • Outer Circle: 120 x 0.5W RGB LEDs
    • Total Lumen Output of Fixture: 13,000 lumens
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 3°-30°
    • Field Angle : 4°-35°

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 5
    • Control Channels: 41/71/75/85/170
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 59°
    • Tilt Movement: 221°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Outstanding color macro effects
    • Outstanding color mixing
    • 5 individual light heads with pan/ tilt movement, can be controlled individually
    • The outer circle of the light head has 24 LEDs, which can be controlled individually
    • Sharp and saturated beam effects
    • Linear focusing structure

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 935W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 1,000 mm (39.4″)
      • Depth: 192 mm (7.5″)
      • Height: 350 mm (13.7″)
      • Weight: 30 kg (66.2 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 1,220 mm (48.0″)
      • Depth : 610 mm (24.0″)
      • Height : 615 mm (24.2″)
      • Weight :
        • Standard: G.W.: 117 kg (257.9 lbs) (two-pack loader case)
        • North American Standard: G.W.: 122 kg (269.0 lbs) (two-pack loader case)
    • Carton Dimensions:
      • Width : 1,120 mm (44.0″)
      • Depth : 460 mm (17.7″)
      • Height : 310 mm (12.2″)
      • Weight :
        G.W.: 35.5 kg (78.3 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: -10°C
    • Maximum Surface Temperature: 75°C
    • Protection Rating: IP66

    Approvals

    • CE compliant
    • UKCA compliant
    • cETLus compliant

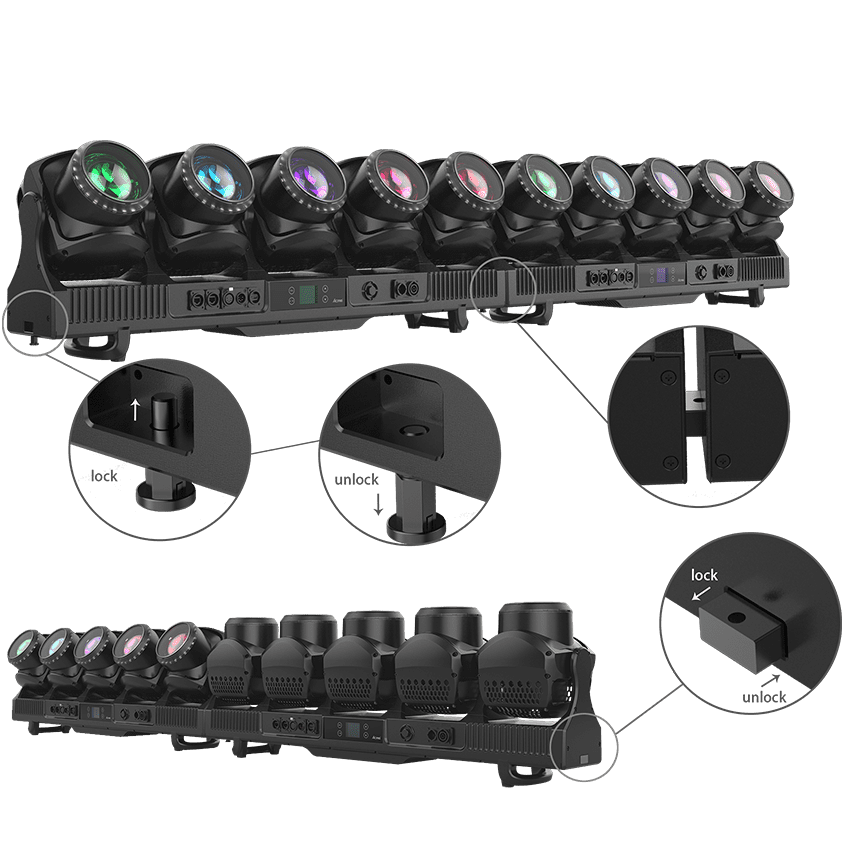

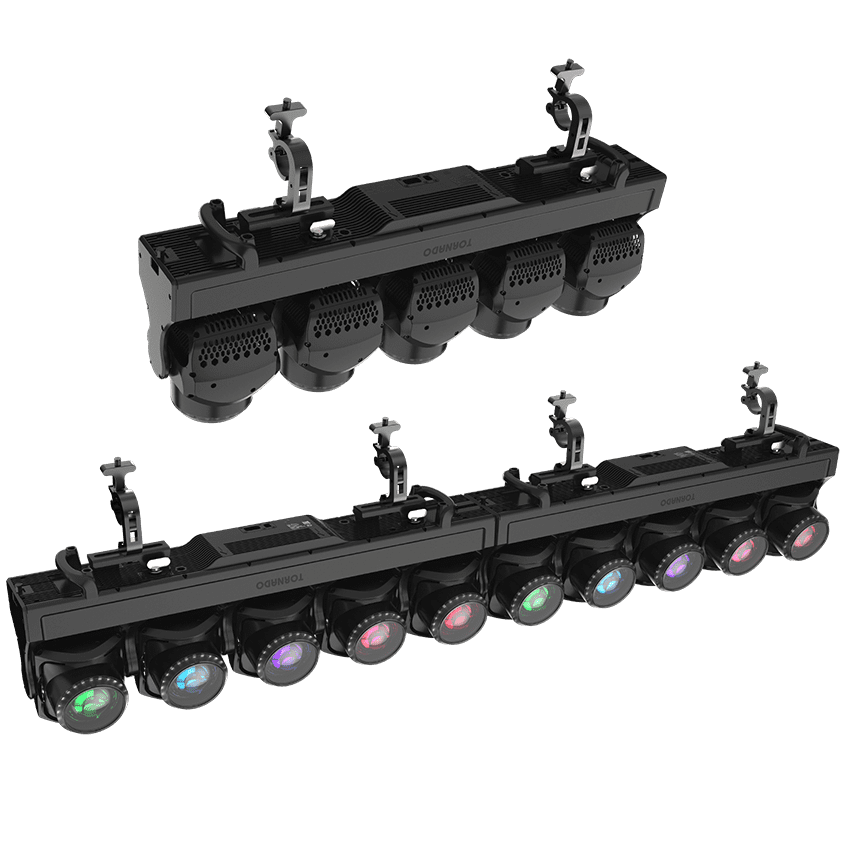

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • 2 omega brackets
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable
    • 2 omega brackets (63583426)



    Dimensions



    Video









    Beam Angle

    Field Angle



    Descargas


    TORNADO Descargas Enlace
