PULSAR PLUS S2

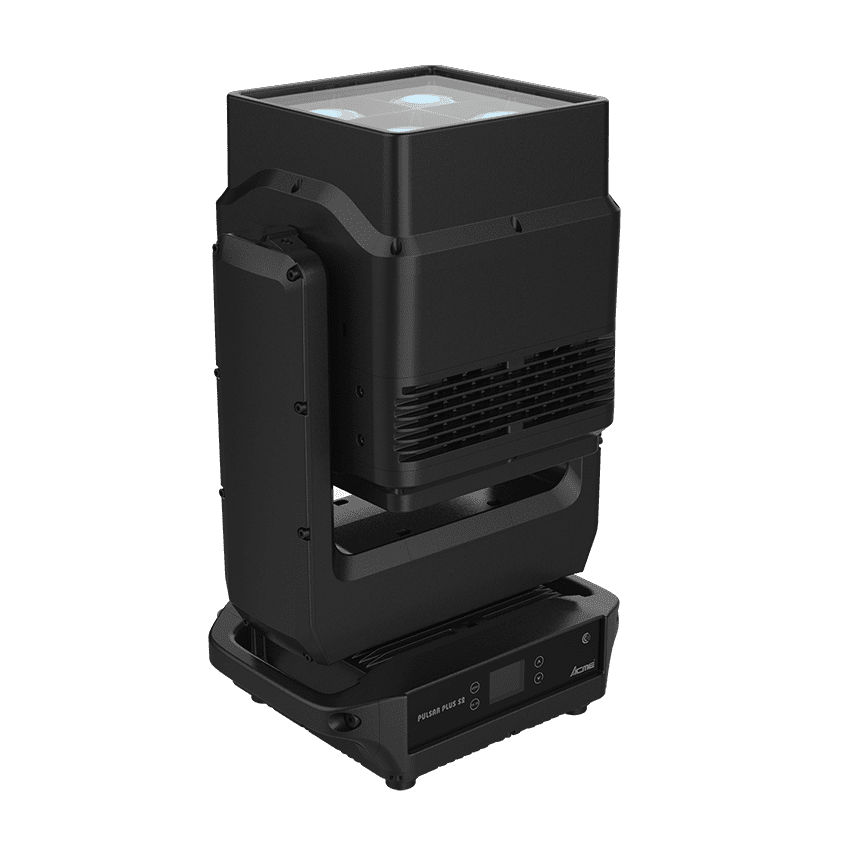

El ACME PULSAR PLUS S2 es la versión mejorada del aclamado PULSAR S2, ofreciendo mayor brillo, durabilidad con clasificación IP66 y aún más posibilidades creativas. Su diseño de cabezal de doble cara combina efectos de haz, estroboscópico, píxeles y lavado, mientras que el movimiento pan/tilt infinito ofrece la máxima flexibilidad creativa.

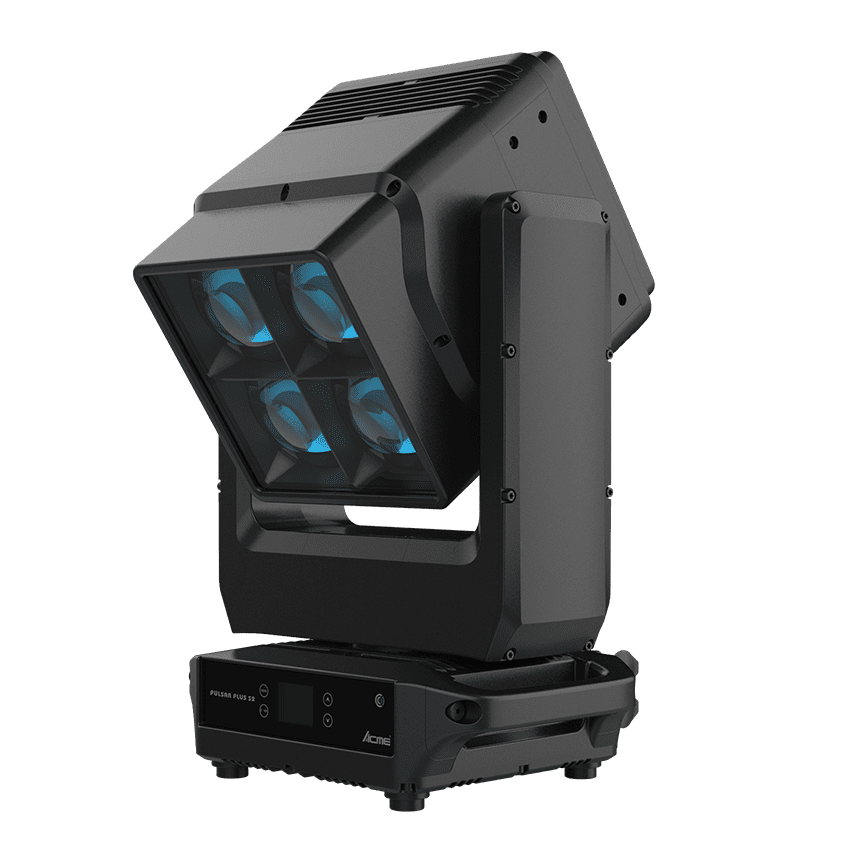

La parte frontal del cabezal cuenta con cuatro LED RGBL de 150 W que ofrecen potentes haces de luz y washes uniformes mediante un zoom motorizado de 3,5° a 24°. Esta sección produce una impresionante potencia de 10 500 lúmenes, ofreciendo mayor brillo que el PULSAR S2. Estos LED están cubiertos por una lente exterior de gran tamaño, lo que garantiza un rendimiento óptico excepcional y una fácil limpieza y mantenimiento. Una característica destacada es el efecto caleidoscopio, impulsado por LED RGBL de 150 W, que produce texturas vibrantes y multicolor que realzan las visuales del escenario.

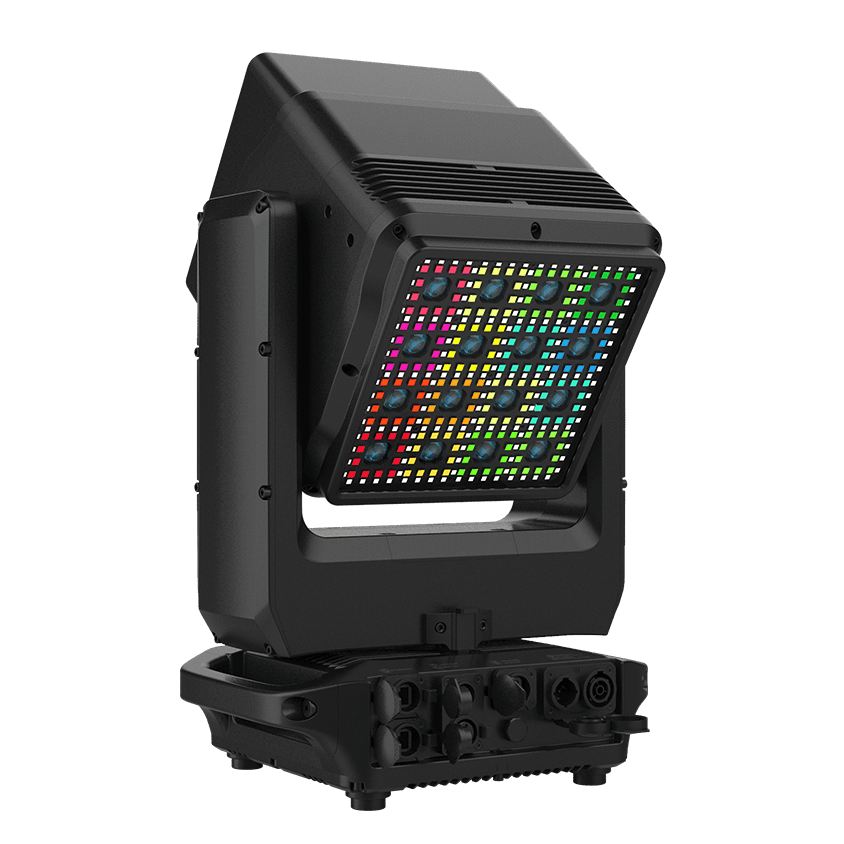

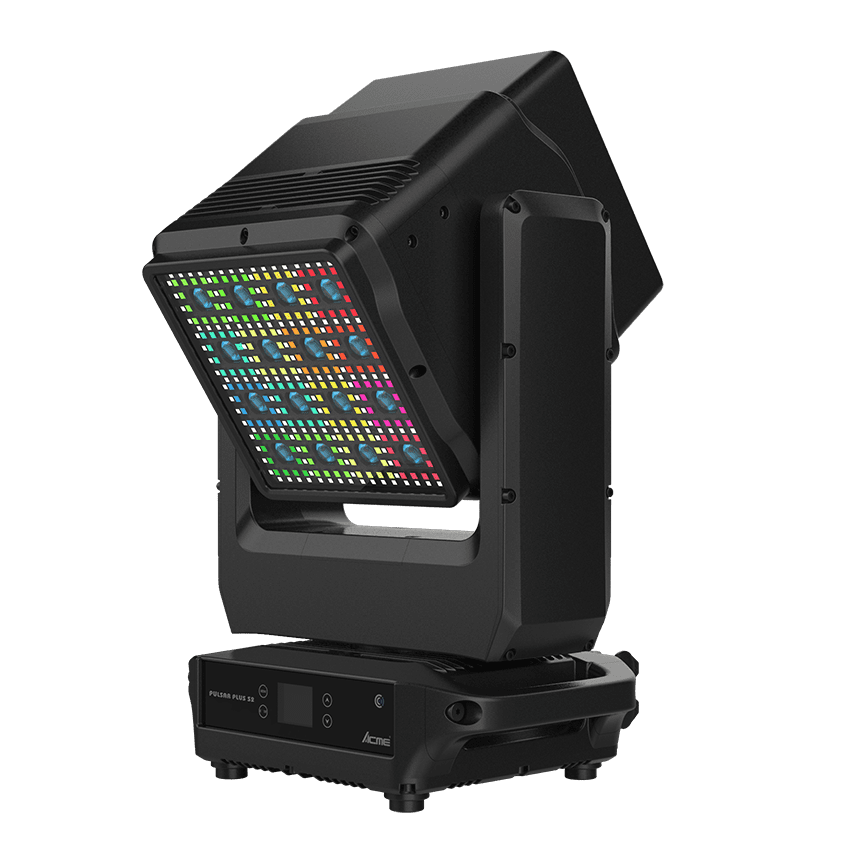

La parte trasera del cabezal cuenta con una sección de píxeles/estrobo con 160 LED CW de 3 W y 192 LED RGB de 0,5 W, además de una sección de haz con 16 LED CW de 10 W. Para mayor creatividad, el PULSAR PLUS S2 está equipado con el sistema electrónico de escarcha patentado por ACME, aplicado tanto a los píxeles como a las secciones de haz de 10 W. Esto permite transiciones fluidas de haces nítidos a efectos suaves.

Con un potencial creativo ampliado y una carcasa resistente IP66, el PULSAR PLUS S2 supera los límites del diseño original, lo que lo convierte en la opción perfecta para producciones al aire libre a gran escala.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    Beam/Wash: 4 x 150W RGBL LEDs

    Pixel/Strobe: 160 x 3W CW LEDs

    Pixel/Strobe: 192 x 0.5W RGB LEDs

    10W Beam: 16 x 10W CW LEDs

    Total Lumen Output of Fixture

    Beam/Wash: 10,500 lumens

    Pixel: 3,800 lumens

    Strobe: 28,500 lumens

    10W Beam: 2,700 lumens

    Beam Angle

    Beam/Wash: 3.5°-24°

    Pixel: 115°

    Strobe: 108°

    10W Beam: 3.5°

    Field Angle

    Beam/Wash: 5°-30°

    Variable CTO

    2,500K-8,000K

    Weight

    20.5 kg (45.2 lbs)



    Technical Specification

    Model

    • Model Name: PULSAR PLUS S2
    • Model Code: CM S2 IP

    Light Source

    • Light Source :
      • Beam/Wash: 4 x 150W RGBL LEDs
      • Pixel/Strobe: 160 x 3W CW LEDs
      • Pixel/Strobe: 192 x 0.5W RGB LEDs
      • 10W Beam: 16 x 10W CW LEDs
    • Color Temperature Output of Fixture: 8,000K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Photometric Data

    • Total Lumen Output of Fixture :
      • Beam/Wash: 10,500 lumens
      • Pixel (RGB): 3,800 lumens
      • Strobe (CW): 28,500 lumens
      • 10W Beam: 2,700 lumens
    • Color Rendering: 85
    • TM-30 Rf (IES TM-30-15 Fidelity Index): 87
    • TM-30 Rg (IES TM-30-15 Fidelity Index): 105
    • TLCI: 85

    Optical System

    • Beam Angle :
      • Beam/Wash: 3.5°-24°
      • Pixel: 115°
      • Strobe: 108°
      • 10W Beam: 3.5°
    • Field Angle :
      • Beam/Wash: 5°-30°
    • Kaleidoscope Effect: 14°, 24°
    • Diameter of Frontal Lens: 90 x 90 mm
    • DMX Controllable Smart Glass technology:
      • Patent No. :
        • CN216010577U
        • US11698183B1
        • DE202023101966U1
        • FR3134870B3

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,sACN,NFC
    • DMX Protocol Modes: 4
    • Control Channels: 43/153/195/27+168
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement : Infinity
    • Tilt Movement : Infinity
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Pan/Tilt lock

    Colors

    • Linear CTO Color Correction: 2,500K-8,000K

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized linear zoom system
    • Individual pixel control
    • Built-in color macro effects

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 1,200W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 310 mm (12.2″)
      • Depth: 228 mm (9″)
      • Height: 496 mm (19.5″)
      • Weight: 20.5 kg (45.2 lbs)

    Packing Information

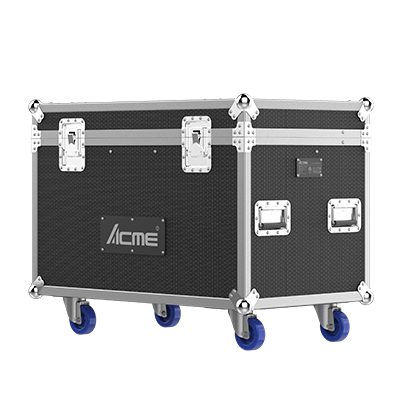

    • Flight Case Dimensions:
      • Width : 1,000 mm (39.4″)
      • Depth : 610 mm (24″)
      • Height : 785 mm (30.9″)
      • Weight :
        • Standard: G.W.: 149 kg (328.5 lbs) (four-pack loader case)
    • Carton Dimensions:
      • Width : 405 mm (15.9″)
      • Depth : 385 mm (15.2″)
      • Height : 660 mm (26″)
      • Weight :
        G.W.: 24.5 kg (54 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 45°C
    • Minimum Operating Temperature: -20°C
    • Maximum Surface Temperature: 70°C
    • Protection Rating: IP66

    Approvals

    • CE compliant
    • UKCA compliant
    • cETLus compliant

    Installation

    • Universal working position

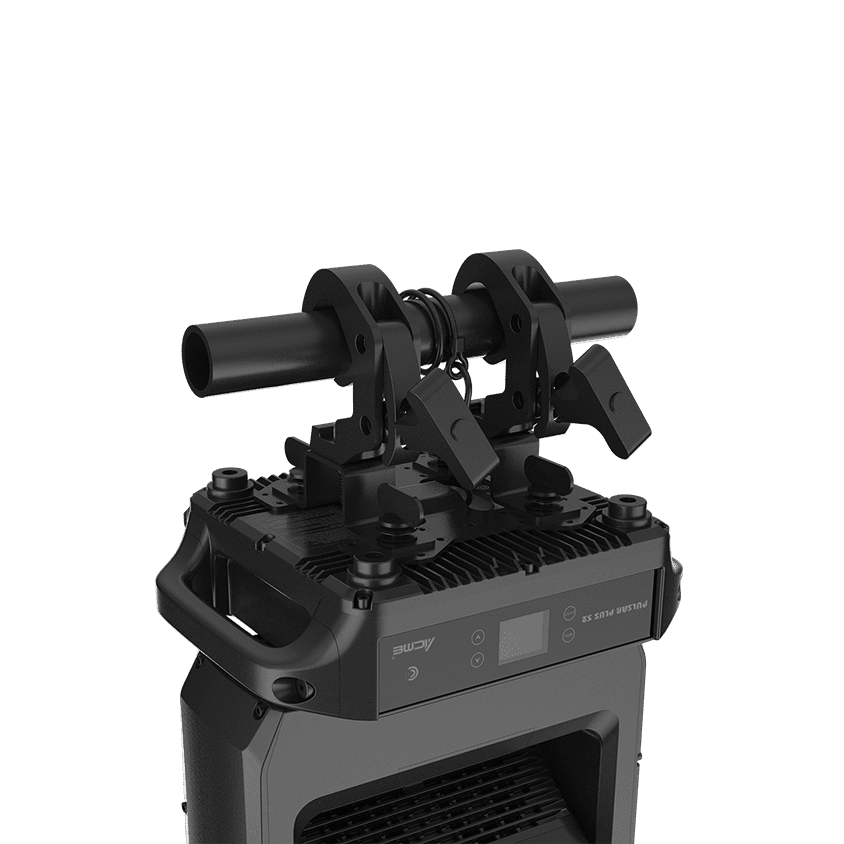

    • 2 omega brackets
    • Safety cable attachment point

    Included Items

    • QR code on fixture to receive digital user manual
    • Power cable
    • 2 omega brackets (3002003002)

    Optional Accessories (With Order Code)

    • Flight Case:
      • Standard : Four-pack loader case (63584350)
    • Clamp : C-250B (2060001632-B)
    • Safety Cable: SW-05 (2060001603-E)
    • Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)



    Dimensions



    v







    Beam Angle

    Field Angle
