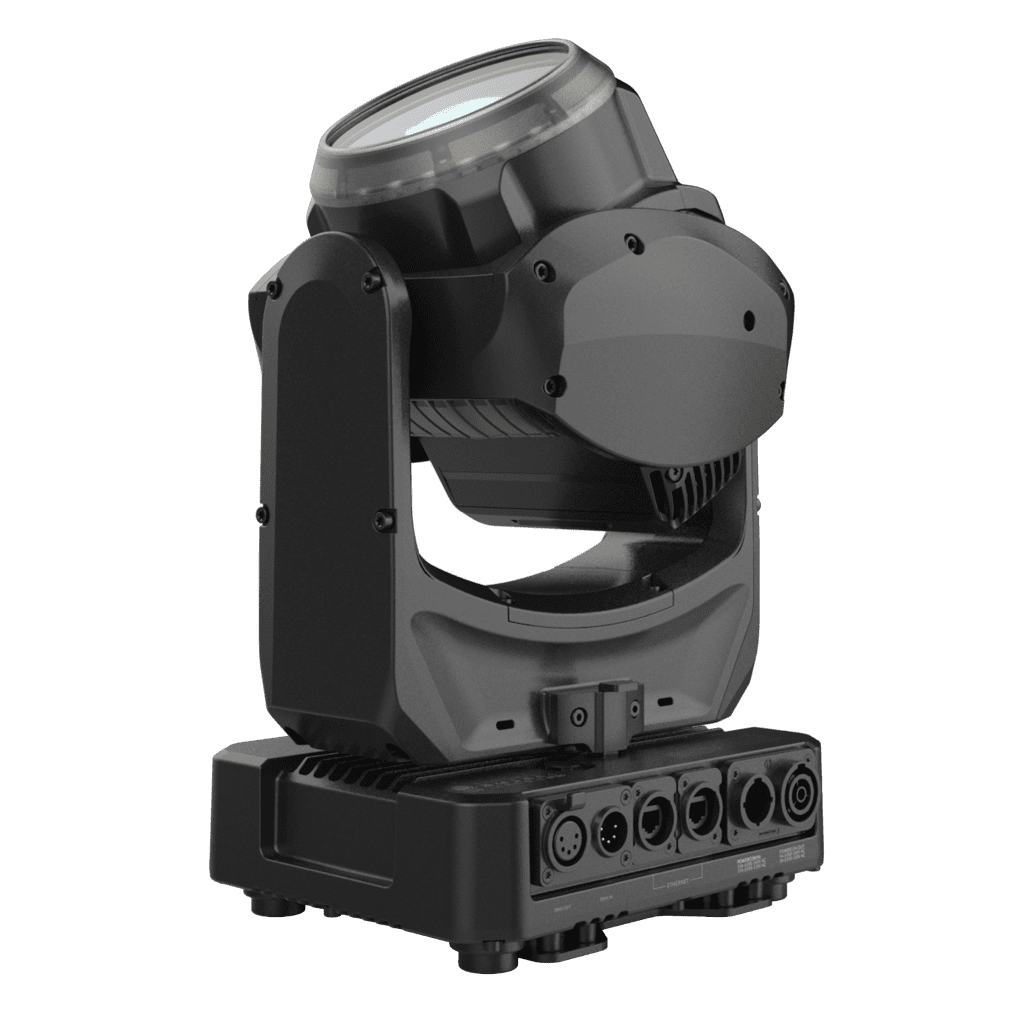

CYCLONE

Desata una explosión de energía visual con el ACME CYCLONE. Inspirado en el éxito del exitoso TORNADO, este dispositivo ofrece un potente haz central, un anillo de píxeles, vibrantes baños de luz y movimiento infinito, todo desde un solo cabezal.

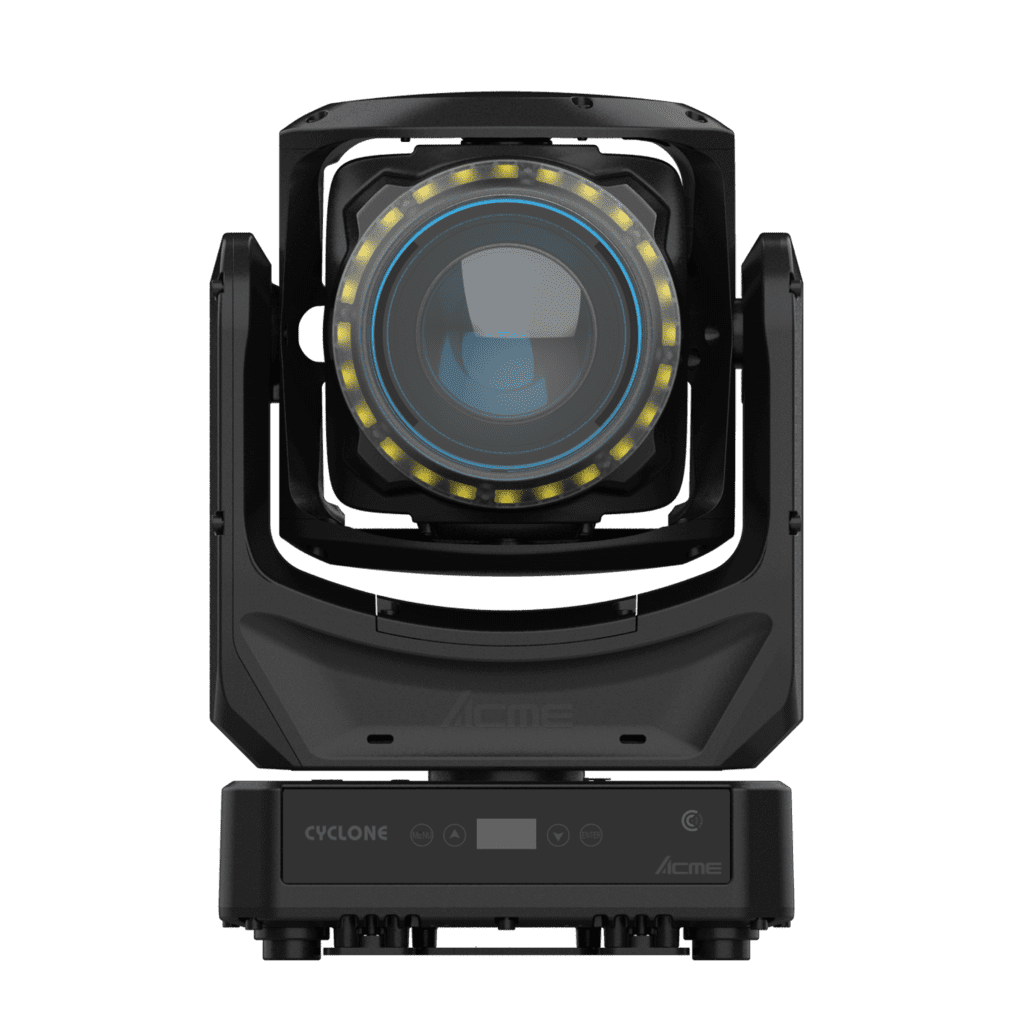

En su núcleo se encuentra un motor LED RGBL de 150 W, que ofrece 3600 lúmenes de salida brillante y colores ricos y saturados. El efecto caleidoscopio aporta texturas vívidas y reticuladas al escenario, creando efectos visuales oníricos y superpuestos. Alrededor de la lente central se encuentra un anillo exterior de 24 LED RGB de 0,5 W, que ofrecen deslumbrantes píxeles y efectos estroboscópicos de gran impacto.

El dispositivo proporciona un zoom rápido y suave para transiciones instantáneas desde haces nítidos de 4° hasta amplios y uniformes wash de 30°. Con movimiento en tres ejes, el CYCLONE ofrece un movimiento altamente cinético. Su panorámica infinita permite un movimiento rápido y fluido, lo que permite efectos aún más dinámicos y una mayor libertad creativa.

Diseñado para ampliar tu paleta creativa, el CYCLONE ofrece una mezcla de colores excepcional y efectos macro impactantes. Un CTO variable permite transiciones fluidas de tonos cálidos a fríos, creando la atmósfera perfecta para cada escena.

Con clasificación IP66, su rendimiento es fiable en cualquier lugar, desde giras y eventos en vivo hasta festivales al aire libre. Ligero, potente y dinámico, el CYCLONE ofrece un rendimiento excepcional y efectos visuales impactantes en un formato compacto.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    Beam/Wash: 1 x 150W RGBL LED

    Pixel/Strobe: 24 x 0.5W RGB LEDs

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    Beam/Wash: 3,600 lumens

    Pixel/Strobe: 1,500 lumens

    Kaleidoscope Effect: 4,000 lumens

    Beam Angle

    4°-30°

    Field Angle

    5°-35°

    Weight

    8.5 kg (18.7 lbs)



    Model

    • Model Name: CYCLONE
    • Model Code: CM 150 IP

    Light Source

    • Light Source :
      • Beam/Wash: 1 x 150W RGBL LED (main light)
      • Pixel/Strobe: 24 x 0.5W RGB LEDs (outer circle)
    • Color Temperature Output of Fixture: 8,000K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Photometric Data

    • Total Lumen Output of Fixture :
      • Beam/Wash: 3,600 lumens
      • Pixel/Strobe: 1,500 lumens
      • Kaleidoscope Effect: 4,000 lumens
    • Color Rendering: 85
    • TM-30 Rf (IES TM-30-15 Fidelity Index): 87
    • TM-30 Rg (IES TM-30-15 Fidelity Index): 105
    • TLCI: 87

    Optical System

    • Beam Angle : 4°-30°
    • Field Angle : 5°-35°
    • Kaleidoscope Effect: 14°, 24°
    • Diameter of Frontal Lens: 110 mm

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Protocols: DMX512,RDM,Art-Net,sACN,NFC
    • DMX Protocol Modes: 3
    • Control Channels: 27/50/58
    • Firmware Upgrade: Upgrade via DMX link

    Pan & Tilt

    • Pan Movement : Infinity
    • Tilt Movement: 220°
    • Roll: 60°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Pan/Tilt lock

    Colors

    • Linear CTO Color Correction: 2,500K-8,000K

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Outstanding color macro effects
    • Outstanding color mixing
    • Linear focus system

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 260W

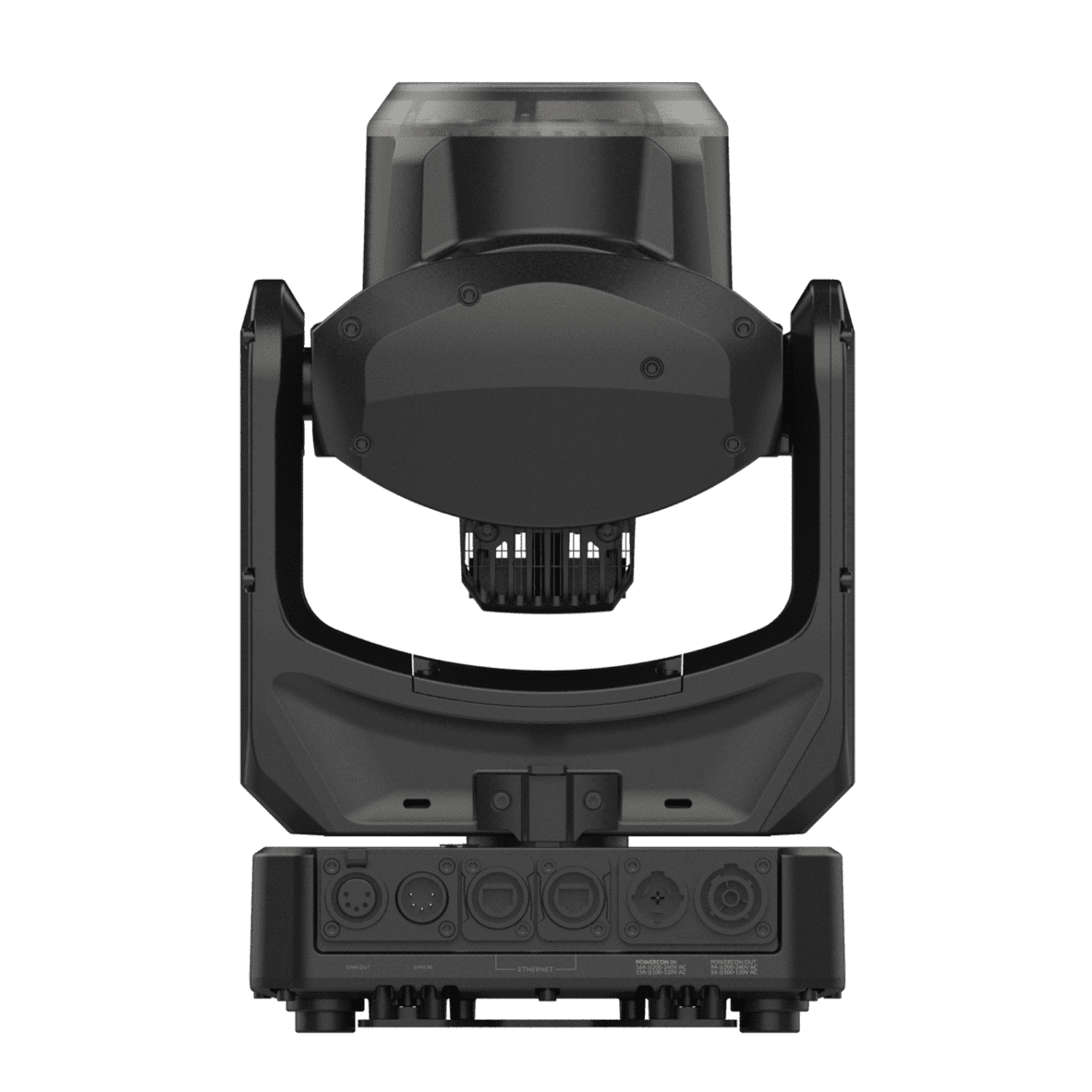

    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 235 mm (9.3″)
      • Depth: 192 mm (7.6″)
      • Height: 363 mm (14.3″)
      • Weight: 8.5 kg (18.7 lbs)

    Packing Information

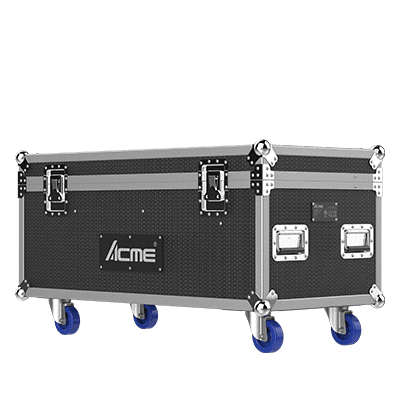

    • Flight Case Dimensions 1:
      • Width : 1,170 mm (46.1″)
      • Depth : 580 mm (22.8″)
      • Height : 640 mm (25.2″)
      • Weight :
        • Standard : G.W.: 119 kg (262.4 lbs) (six-pack loader case)
    • Flight Case Dimensions 2:
      • Width : 1,220 mm (48″)
      • Depth : 810 mm (31.9″)
      • Height : 635 mm (25″)
      • Weight :
        • North American Standard : G.W.: 159.5 kg (351.6 lbs) (eight-pack loader case)
    • Carton Dimensions:
      • Width : 330 mm (13″)
      • Depth : 315 mm (12.4″)
      • Height : 520 mm (20.5″)
      • Weight :
        G.W.: 11 kg (24.3 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 45°C
    • Minimum Operating Temperature: -20°C
    • Maximum Surface Temperature: 75°C
    • Protection Rating: IP66

    Approvals

    • CE compliant
    • UKCA compliant
    • cETLus compliant

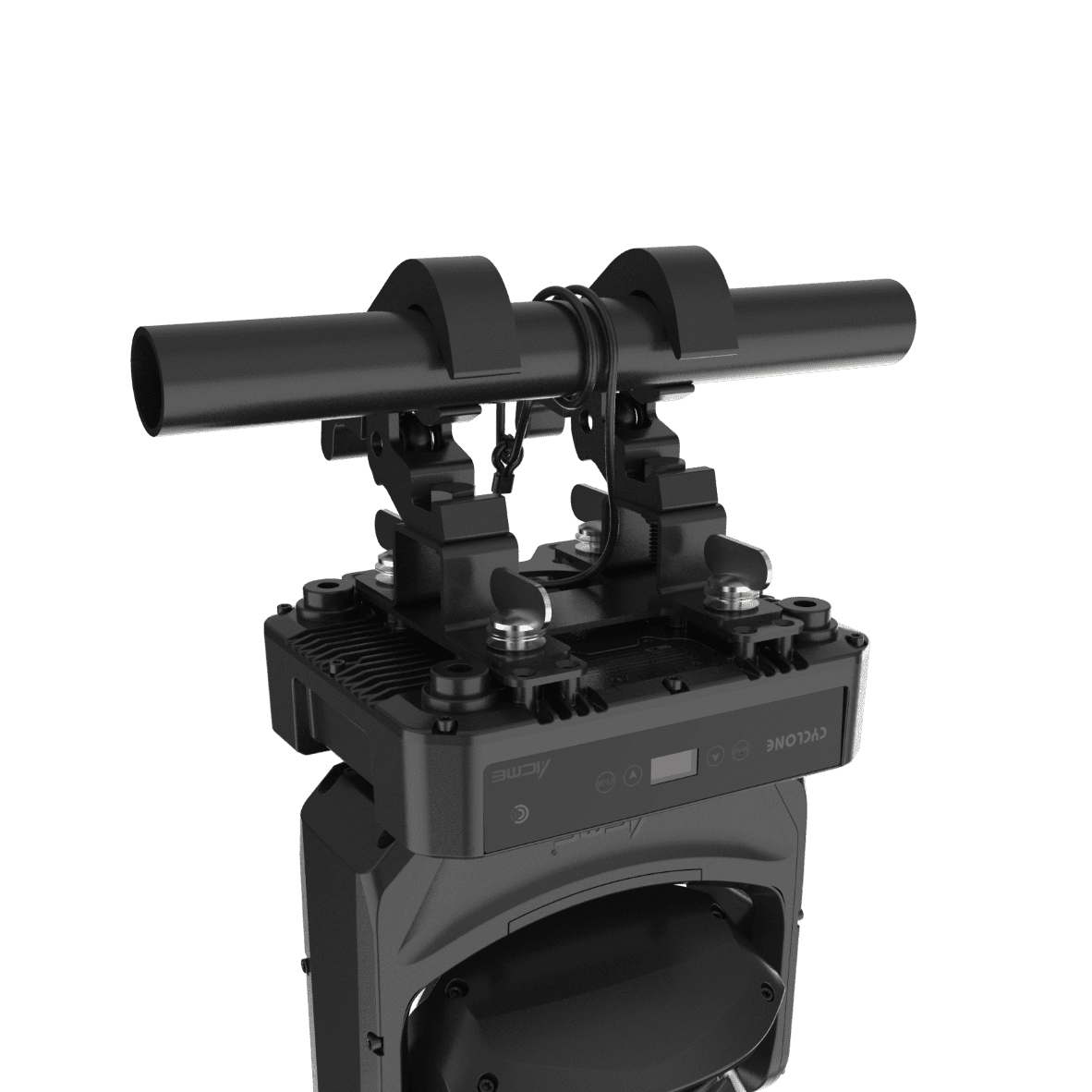

    Installation

    • Universal working position
    • 2 omega brackets
    • Safety cable attachment point

    Included Items

    • QR code on fixture to receive digital user manual
    • Power cable
    • 2 omega brackets (3002003002)

    Optional Accessories (With Order Code)

    • Flight Case 1:
      • Standard : Six-pack loader case (63584349)
    • Flight Case 2:
      • North American Standard : Eight-pack loader case (63584377)
    • Clamp : C-150B (2060001625-C)
    • Safety Cable: SW-05 (2060001603-E)
    • Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)



    Dimensions
