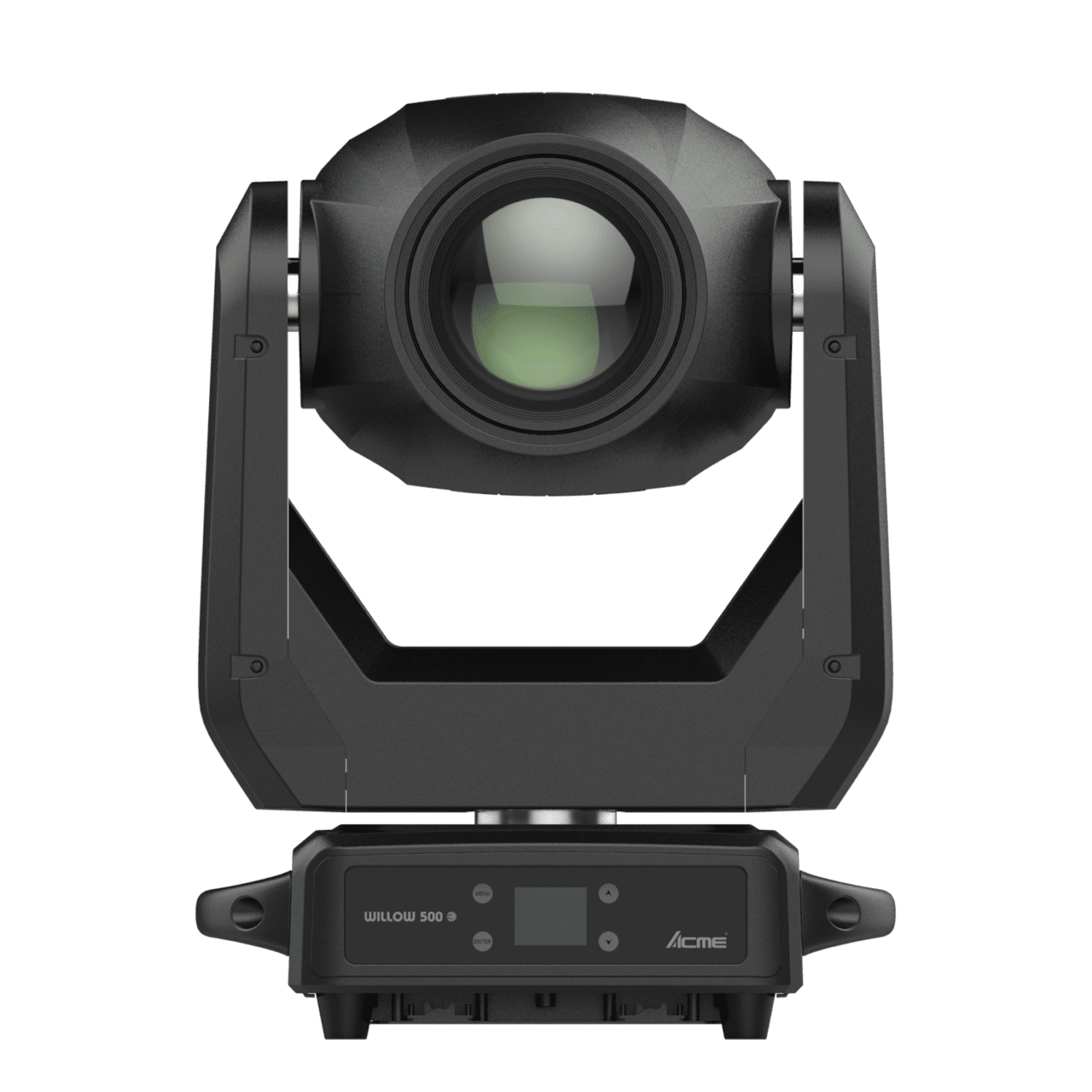

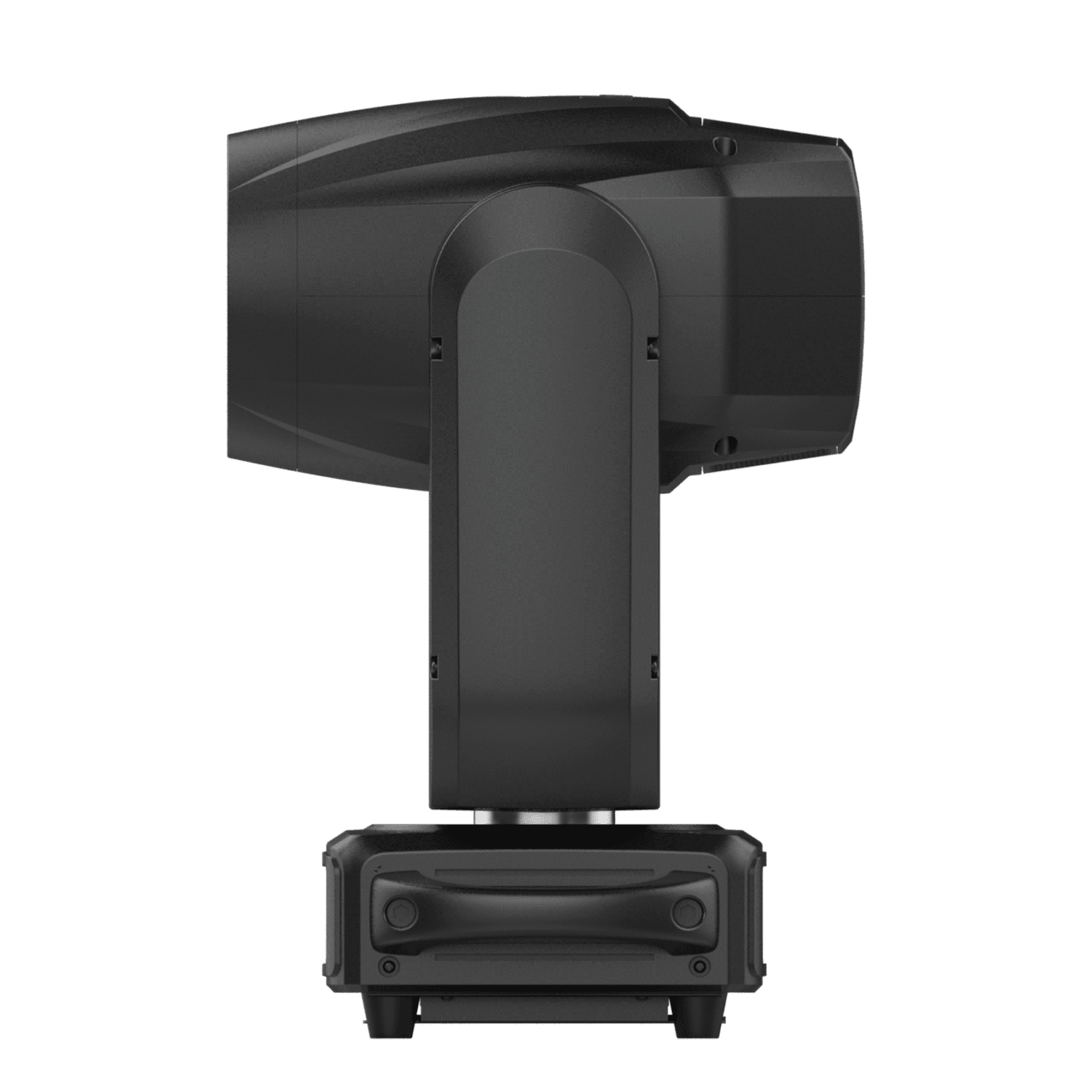

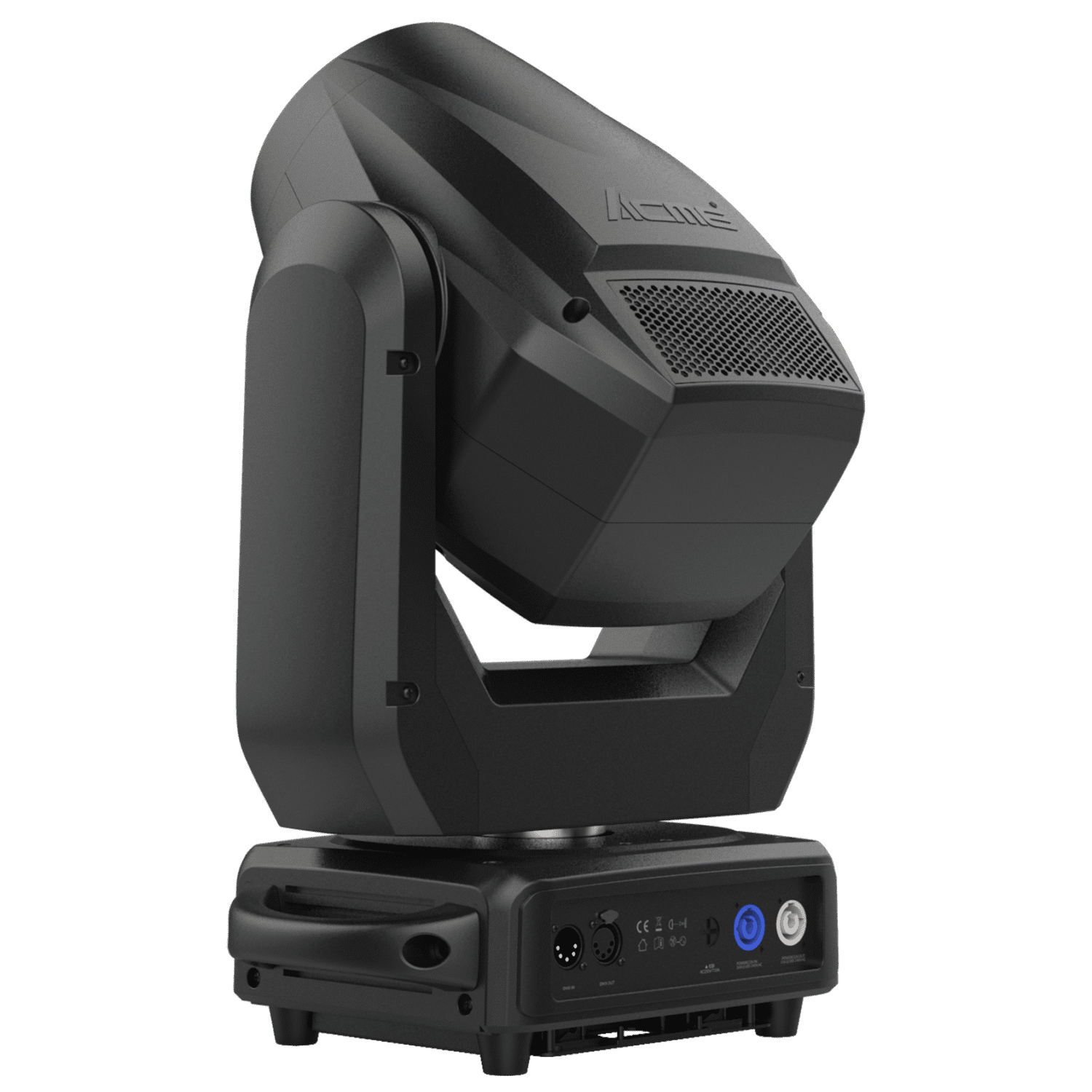

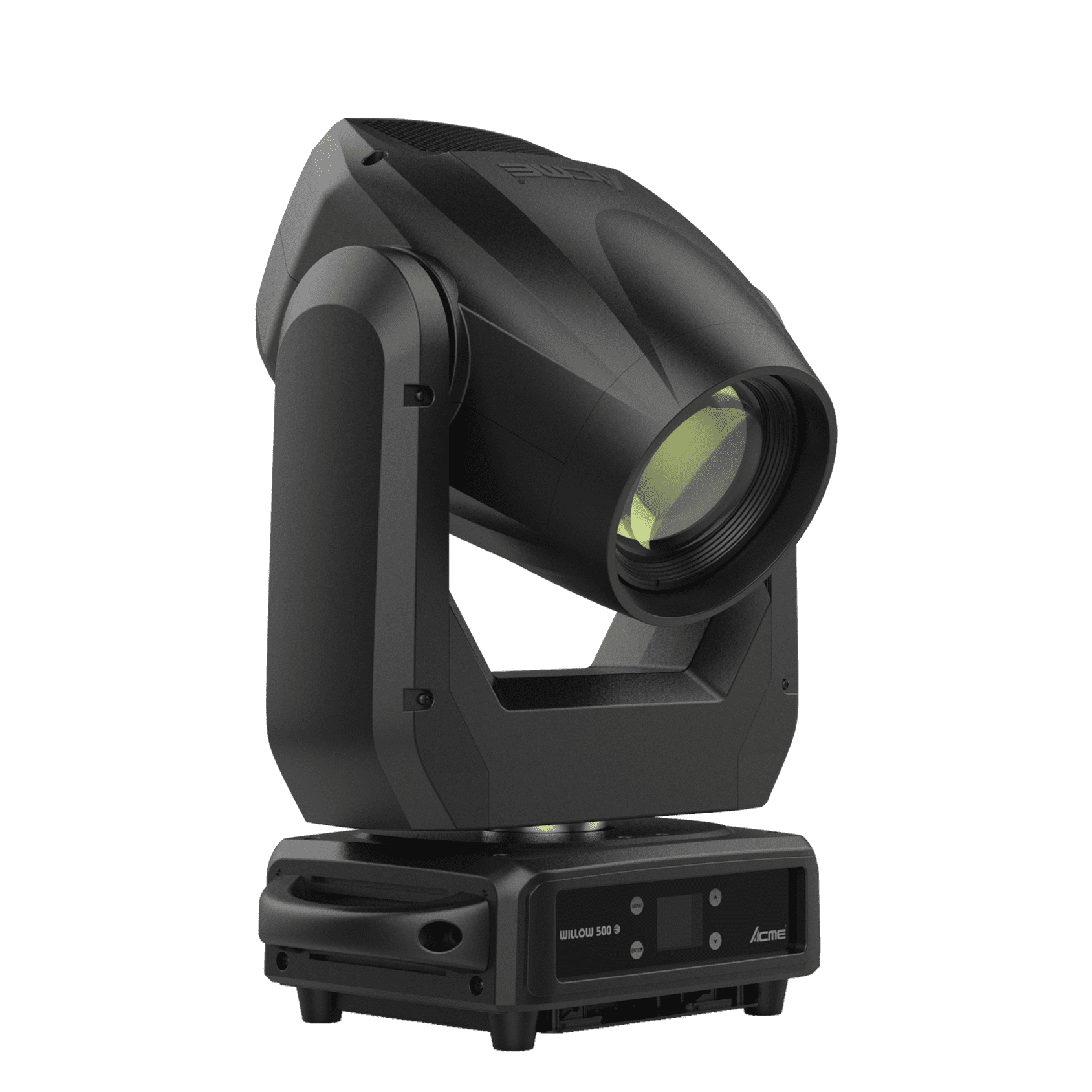

WILLOW 500

Con la modernización y el progreso tecnológico, presentamos WILLOW 500 de ACME, basado en ACME ENERGY HYBRID. Este dispositivo híbrido 3 en 1 BEAM+SPOT+WASH pesa solo 17,5 kg y ofrece 29.500 lx a 5 m en un ángulo de 10°. Con un motor LED de 400 W, 4 opciones de haz alternativas, 9 gobos fijos, 7 gobos giratorios, 7 colores populares, efecto escarcha independiente y un prisma giratorio bidireccional de 6 facetas, ¡Willow 500 ya está listo para impulsar tu imaginación!

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    400W LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    10,100 lumens

    Beam Angle

    1°/3°/6.5°/10°

    Weight

    17.5 kg (38.6 lbs)



    Technical & Specification

    Model

    • Model Name: WILLOW 500
    • Model Code: BSW 500

    Light Source

    • Light Source: 400W LED engine
    • Total Lumen Output of Fixture: 10,100 lumens
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 1°/3°/6.5°/10°
    • Spot Angle:
      • Static Gobo: 9°/18°(with zoom lens)°
      • Rotating Gobo: 10°/20°(with zoom lens)°
    • Diameter of Frontal Lens: 136 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 1
    • Control Channels: 18
    • Firmware Upgrade: Upgrade via DMX link
    • Power supply with electronic auto-ranging

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 270°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit

    Colors

    • 1 Color Wheel: 7 colors, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 9 gobos, plus open
      • Gobo: Ф134 mm, lmage: Ф/ mm

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 7 gobos, plus open
      • Gobo Slot 1-7: Ф26.8 mm, lmage: Ф16.8 mm
      • Gobo Slot 5: Ф26.8 mm

    Prism

    • 1 Rotating and Indexable Prism: 1 x 6-facet circular prism, rotatable in both directions

    Frost Filter

    • 1 frost filter

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized focus system
    • Included three features: beam, spot, and wash
    • Rainbow effect in both directions

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 460W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR
    • Adaptive power supply

    Physical Information

    • Fixture Dimensions:
      • Width: 350 mm (13.8″)
      • Depth: 234 mm (9.2″)
      • Height: 531 mm (20.9″)
      • Weight: 17.5 kg (38.6 lbs)

    Packing Information

    • Carton Dimensions:
      • Width : 590 mm (23.2″)
      • Depth : 420 mm (16.5″)
      • Height : 460 mm (18.1″)
      • Weight :
        G.W.: 22 kg (48.5 lbs) (One-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP20

    Approvals

    • CE compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position

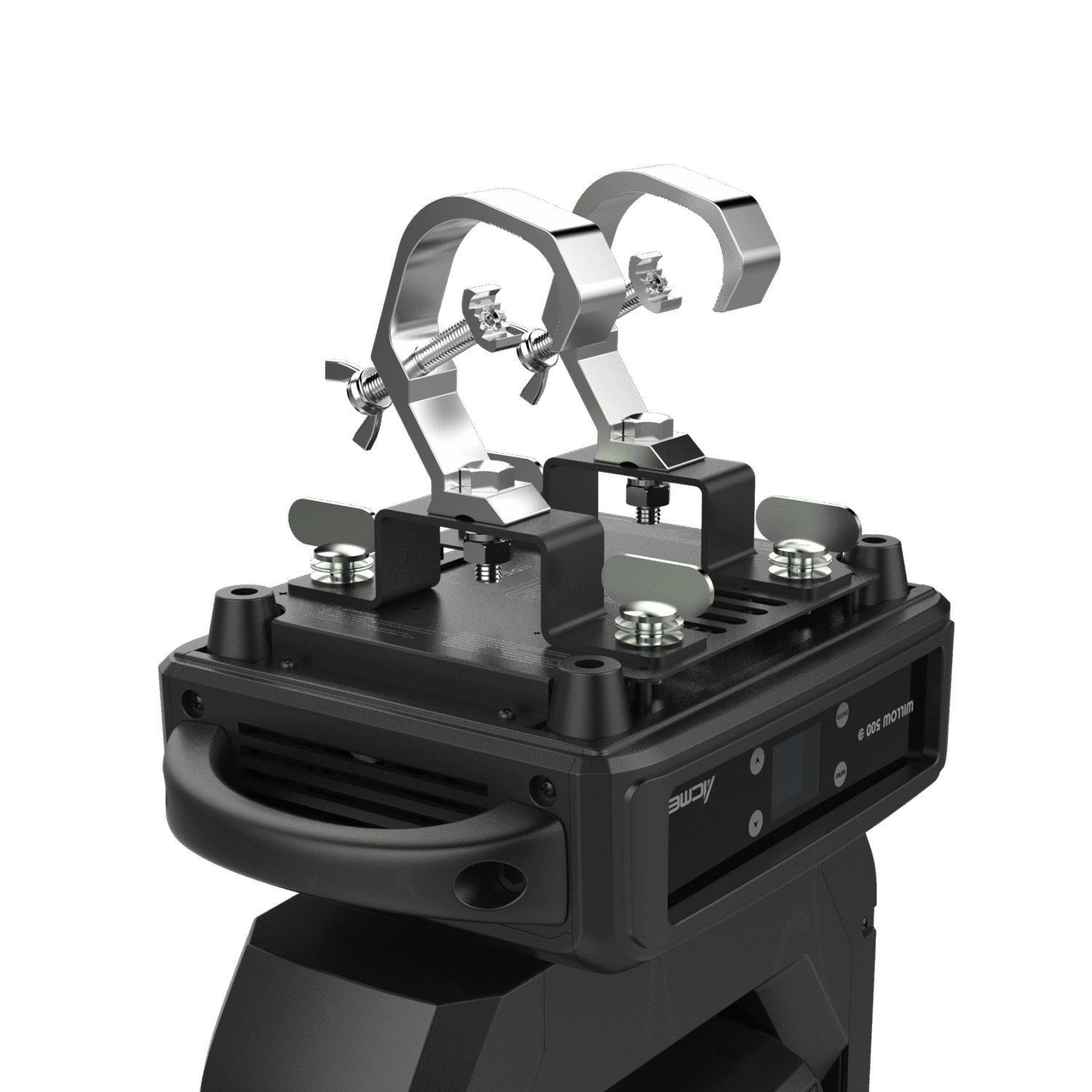

    • 2 clamps for 50 mm truss
    • 2 omega brackets
    • Safety cable attachment point



    Dimensions

    Photometrics



    Video



    Colors

    Color Wheel :  7 colors, plus white

    Red
    3027002270
    Slot 1

    Deep Blue
    3027004046
    Slot 2

    Magenta
    3027004045
    Slot 3

    Yellow
    3027004041
    Slot 4

    Orange
    3027004047
    Slot 5

    Light Green
    3027004043
    Slot 6

    Light Blue
    3027004042
    Slot 7



    Gobos

    Static Gobo Wheel: 9 gobos, plus open

    Gobo: Ф134 mm

    3011001402
    Slot 1

    3011001402
    Slot 2

    3011001402
    Slot 3

    3011001402
    Slot 4

    3011001402
    Slot 5

    3011001402
    Slot 6

    3011001402
    Slot 7

    3011001402
    Slot 8

    3011001402
    Slot 9

    Rotating Gobo Wheel: 7 gobos, plus open

    Gobo Slot 1-7: Ф26.8 mm, lmage: Ф16.8 mm

    Gobo Slot 5: Ф26.8 mm

    ①Gobo
    3011000751
    Slot 1

    ②Gobo
    3011000745
    Slot 2

    ③Gobo
    3011001129
    Slot 3

    ④Gobo
    3011000750
    Slot 4

    ⑤Gobo
    3011001130
    Slot 5

    ⑥Gobo
    3011001355
    Slot 6

    ⑦Gobo
    3011000746
    Slot 7



    Prisms/Frost Filters
    • Prism: 6-facet prism, rotating in both directions
      Independent frost effect

    6-Facet Circular Prism

    Frost Filter



    Beam Angle



    Descargas


    WILLOW 500 Descargas Enlace
