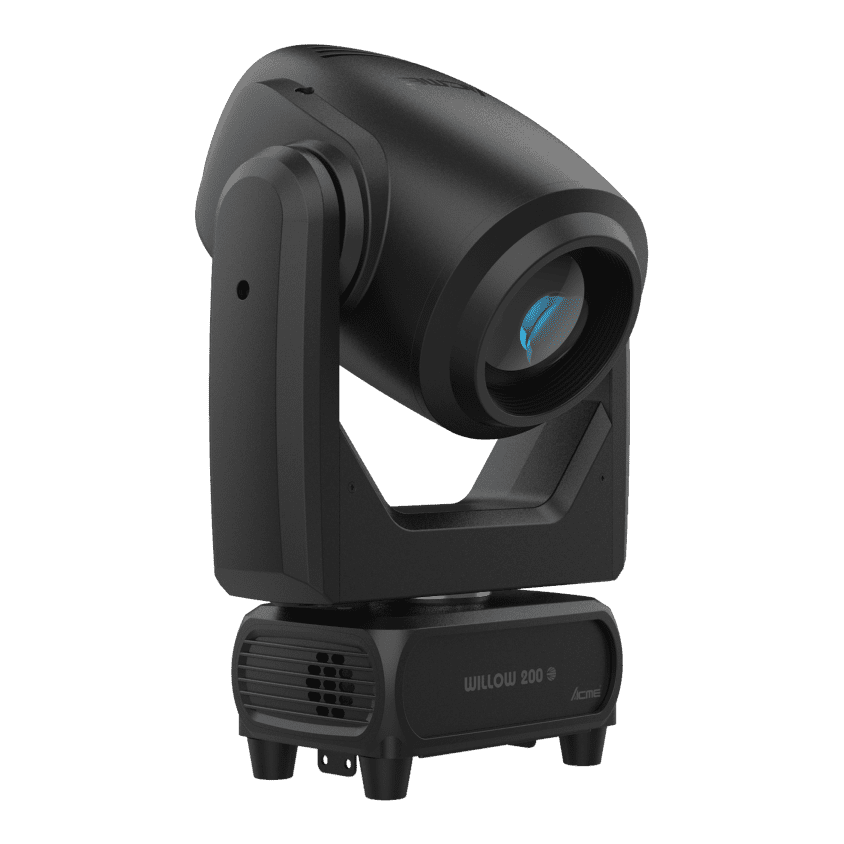

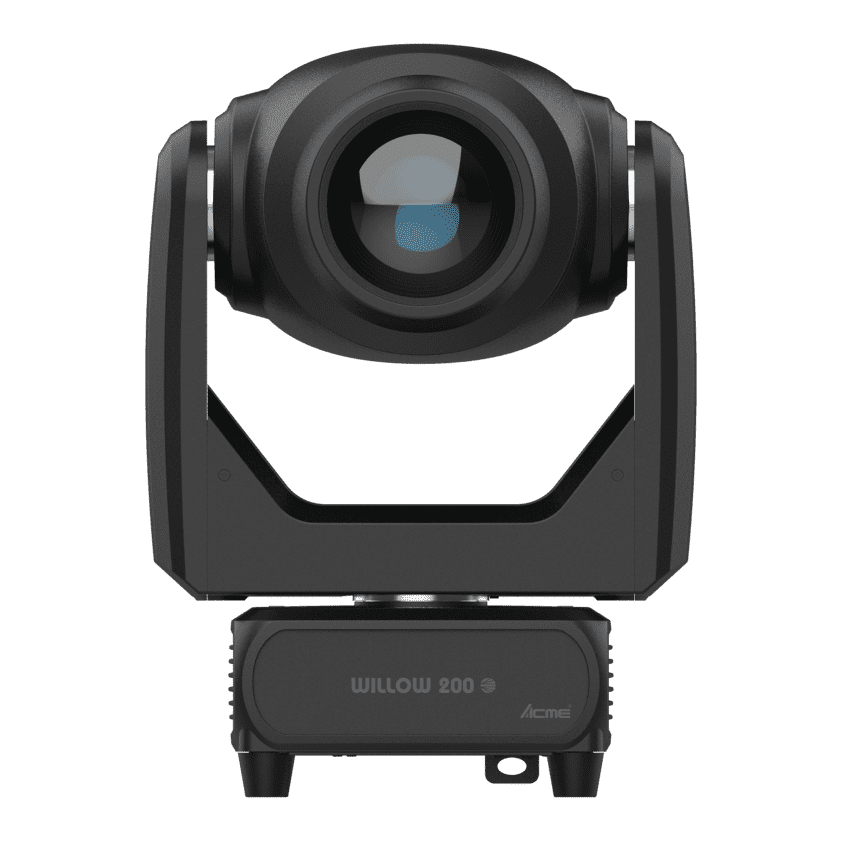

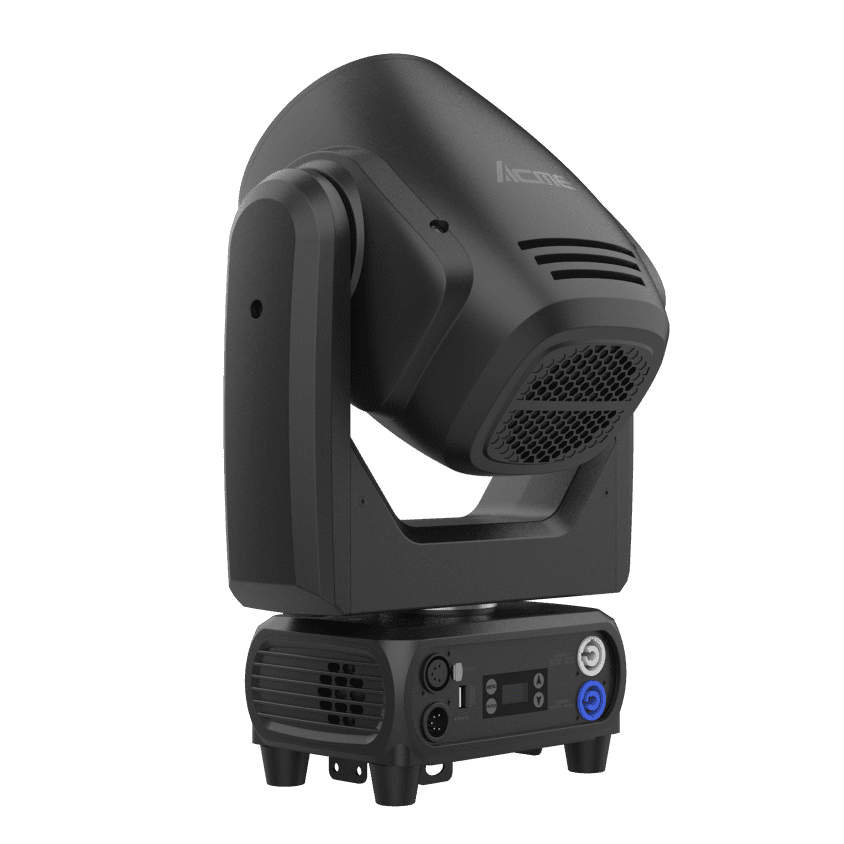

WILLOW 200

WILLOW 200 amplía las posibilidades de potencia, compacidad y eficiencia energética, ofreciendo una opción aún más atractiva. Combinando Beam, Wash y Spot en uno, este dispositivo está equipado con un motor LED de 150 W, que ofrece un rendimiento de iluminación versátil.

Con una temperatura de color de 11.250 K y una impresionante salida de 8.000 lúmenes, WILLOW 200 crea un impacto visual impactante en cualquier actuación. Con una rueda de gobos giratoria y una rueda de color, este dispositivo puede crear con flexibilidad efectos de gobos vibrantes y brindar fácilmente una experiencia visual radiante a su escenario, mejorando la calidad general del espectáculo.

Con un peso de tan solo 9 kg, WILLOW 200 es una opción económica para diversas aplicaciones de entretenimiento como bares, bodas y salones de fiestas.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    150W LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    8,000 lumens

    Color Rendering

    Ra > 70

    Beam Angle

    9.5°/13° (Beam Mode)

    17° (Wash Mode)

    Diameter of Frontal Lens

    100 mm

    Weight

    9 kg (19.8 lbs)



    Technical & Specification

    Model

    • Model Name: WILLOW 200
    • Model Code: BSW 200

    Light Source

    • Light Source: 150W LED engine
    • Total Lumen Output of Fixture: 8,000 lumens
    • Color Temperature Output of Fixture: 11,250K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle :
      • Beam Mode: 9.5°/13°
      • Wash Mode: 17°
    • Standard Mode: Ra>70
    • Diameter of Frontal Lens: 100 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Operational Modes: DMX Control,Show Mode,Sound Active
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 1
    • Control Channels: 17
    • Firmware Upgrade: Upgrade via DMX link

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 270°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit

    Colors

    • 1 Color Wheel: 8 colors, plus open

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 6 gobos, plus open
      • Gobo: Ф21.3 mm, lmage: Ф16 mm

    Prism

    • 1 Rotating and Indexable Prism: 1 x 3-facet circular prism, rotatable in both directions

    Frost Filter

    • 1 frost filter

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Intelligent sound control, lighting effect changes with the music rhythm
    • Multiple built-in show modes
    • 1 zoom lens
    • Motorized linear focus

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 220W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR
    • Power supply with electronic auto-ranging

    Physical Information

    • Fixture Dimensions:
      • Width: 286 mm (11.3″)
      • Depth: 166 mm (6.6″)
      • Height: 424 mm (16.7″)
      • Weight: 9 kg (19.8 lbs)

    Packing Information

    • Carton Dimensions:
      • Width : 380 mm (15.0″)
      • Depth : 345 mm (13.6″)
      • Height : 490 mm (19.3″)
      • Weight :
        G.W.: 11.2 kg (24.7 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 60°C
    • Protection Rating: IP20

    Approvals

    • CE compliant
    • UKCA compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable

    Optional Accessories (With Order Code)

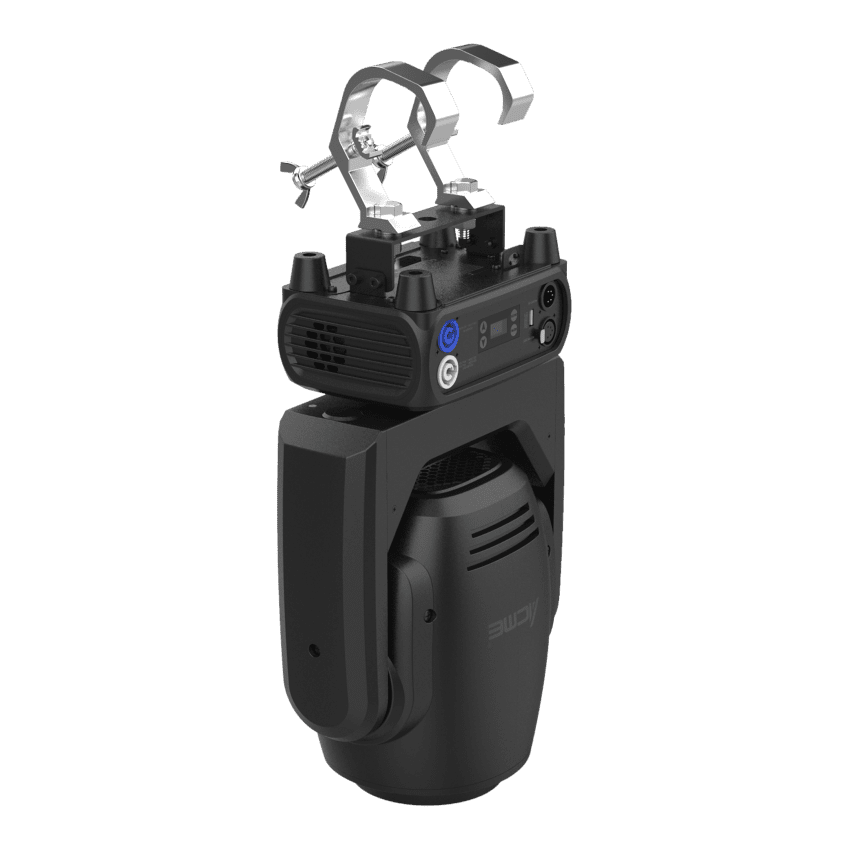

    • Clamp : C-100A (2060001635)



    Dimensions

    Photometrics





    Colors

    Color Wheel: 8 colors, plus open

    Red
    3027005246
    Slot 1

    Dark Blue
    3027005247
    Slot 2

    Magenta
    3027005248
    Slot 3

    Yellow
    3027005249
    Slot 4

    Orange
    3027005250
    Slot 5

    Light Green
    3027005251
    Slot 6

    Light Blue
    3027005252
    Slot 7

    Pink
    3027005253
    Slot 8



    Gobos


    Rotating Gobo Wheel : 6 gobos, plus open

    Gobo: Ф21.6 mm, lmage: Ф16 mm

    3011001558
    Slot 1

    3011001563
    Slot 2

    3011001562
    Slot 3

    3011001561
    Slot 4

    3011001560
    Slot 5

    3011001559
    Slot 6



    Prisms/Frost Filters

    1 x 3-facet prism, rotatable in both directions

    1 combinable frost filter

    3-Facet Circular Prism

    Frost Filter



    Zoom Range
