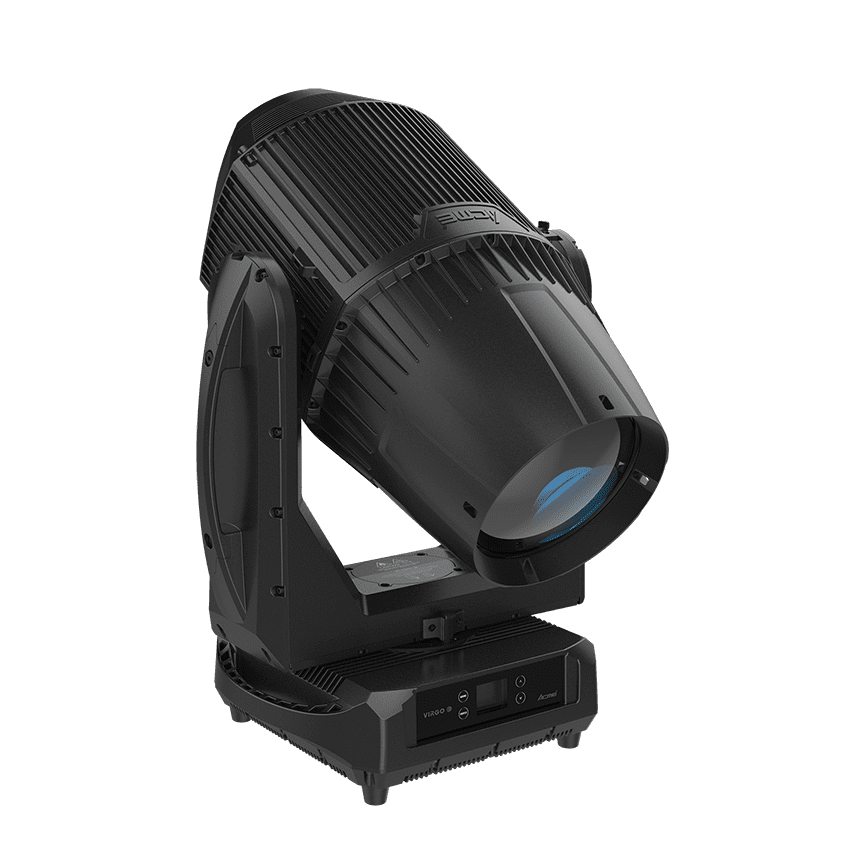

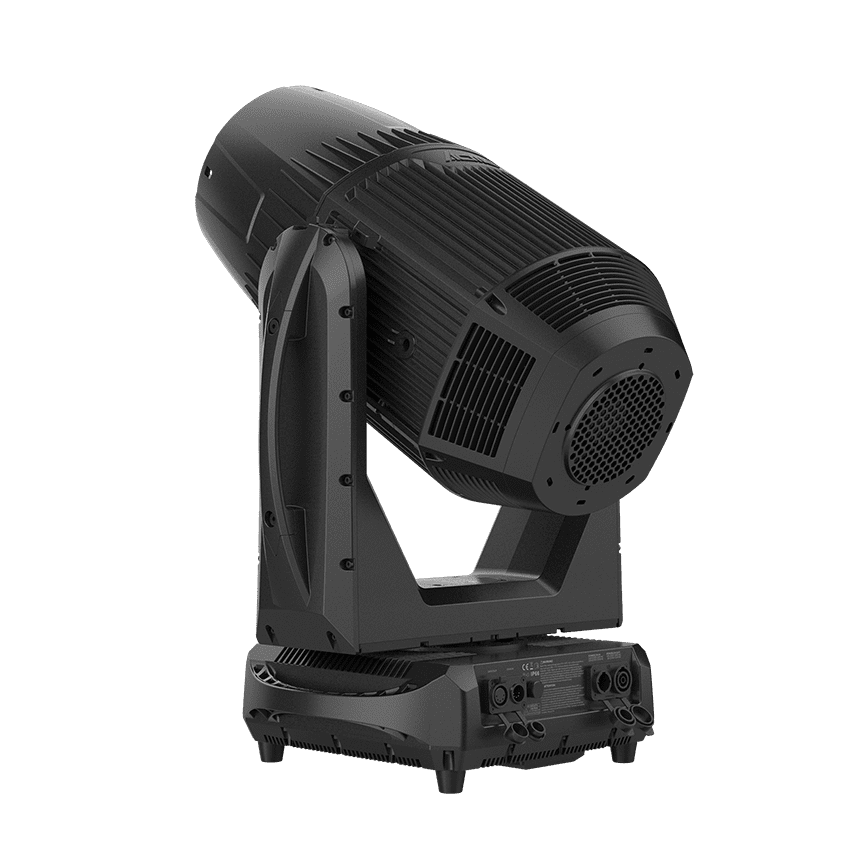

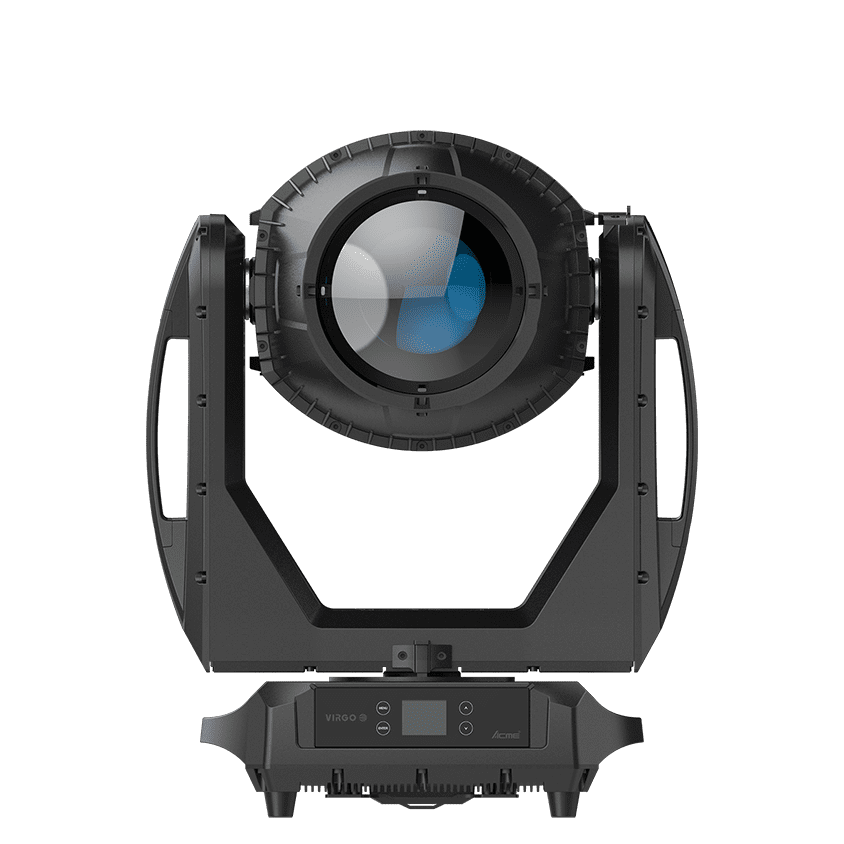

VIRGO

VIRGO, al igual que su homólogo SCORPIUS, es la próxima generación de la línea de ACME de luminarias de cabeza móvil con clasificación IP66 para todo tipo de clima. Esta luminaria cuenta con la nueva lámpara de descarga Philips MSD Platinum 500L Flex de 550 vatios, por lo que VIRGO ofrece imágenes sólidas, uniformes y ultra nítidas en modo spot con un rango de zoom de 5° a 32°. En modo beam, el rango produce haces colimados de 2° a 7° y en modo wash, el rango de zoom es de 8° a 70°. Con su sistema óptico de alta calidad y lente frontal de 165 mm, VIRGO puede satisfacer una amplia gama de necesidades.

El sistema de color del dispositivo VIRGO cuenta con un sistema de mezcla de colores CMY, CTO lineal de 3200K a 6700K y una rueda de 14 colores. Ya sea que necesite colores saturados profundos y ricos o suaves pasteles, VIRGO ofrece el rendimiento perfecto en los modos spot, beam o wash.

Para efectos, VIRGO cuenta con una rueda de gobos giratoria con siete gobos de alta definición, una rueda de gobos estática con 16 gobos, una rueda de animación giratoria y reemplazable, un sistema de doble prisma con prismas de ocho y seis facetas, y un filtro frost para suavizar los bordes del beam.

Ya sea que necesite conciertos al aire libre, teatro en interiores, festivales, eventos temáticos o cualquier otra producción, VIRGO es uno de los equipos más versátiles del mercado, ofreciendo la potencia y los efectos que espera de este versátil equipo.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    PHILIPS MSD Platinum

    500L Flex

    Lamp Life Expectancy

    4,000 hours

    Total Lumen Output of Fixture

    18,000 lumens

    Variable CTO

    3,200K-6,700K

    Color Rendering

    Ra>80

    Zoom Range

    Beam: 2° – 7°

    Spot: 5° – 32°

    Wash: 8° – 70°

    Diameter of Frontal Lens

    165 mm

    Weight

     41.5 kg (91.5 lbs)



    Technical & Specification

    Model

    • Model Name: VIRGO
    • Model Code: XP 550 BSW IP

    Light Source

    • Light Source : Philips MSD Platinum 500L Flex
    • Total Lumen Output of Fixture: 18,000 lumens
    • Color Temperature Output of Fixture: 6,700K
    • Life Expectancy: 4,000 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range :
      • Beam Mode: 2°-7°
      • Spot Mode: 5°-32°
      • Wash Mode: 8°-70°
    • Zoom Ratio : 16 : 1
    • Color Rendering: Ra>80
    • Diameter of Frontal Lens: 165 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 2
    • Control Channels: 19/26
    • Firmware Upgrade: Upgrade via DMX link

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 260°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Fixation: Pan/Tilt lock

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 3,200K-6,700K
    • 1 Color Wheel: 14 colors, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 16 gobos, plus open
      • Gobo: Ф130 mm

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 7 gobos, plus open
      • Gobo: Ф22.5 mm, lmage: Ф12 mm

    Animation Wheel

    • A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels

    Prism

    • 2 Combinable Rotating and Indexable Prisms: 1 x 8-facet circular prism, 1 x 6-facet linear prism, rotatable in both directions

    Frost Filter

    • 1 frost filter

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized zoom and focus
    • Flicker-free management

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 810W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 499 mm (19.6″)
      • Depth: 330 mm (13.0″)
      • Height: 790 mm (31.1″)
      • Weight: 42.5 kg (93.7 lbs)

    Packing Information

    • Flight Case Dimensions 1:
      • Width : 715 mm (28.1″)
      • Depth : 595 mm (23.4″)
      • Height : 905 mm (35.6″)
      • Weight :
        • Standard : G.W.: 91.5 kg (201.7 lbs) (one-pack loader case)
    • Flight Case Dimensions 2:
      • Width : 1,235 mm (48.6″)
      • Depth : 810 mm (31.9″)



    Dimensions

    Photometrics



    Video



    Colors

    Linear CMY Color Mixing

    CMY

    3027005123

    3027001875

    3027005124

    Linear CTO Color Correction

    3,200-6,700K

    3027005125

    Color Wheel: 14 colors, plus open

    Red
    3027001967
    Slot 1

    Orange
    3027001966
    Slot 2

    Aqua Marine
    3027002313
    Slot 3

    Green
    3027001968
    Slot 4

    Light Green
    3027001779
    Slot 5

    Levender
    3027001780
    Slot 6

    Pink
    3027001781
    Slot 7

    Light Yellow
    3027001781
    Slot 8

    Magenta
    3027001783
    Slot 9

    Cyan
    3027001784
    Slot 10

    Yellow
    3027001785
    Slot 11

    3,200K
    3027001787
    Slot 13

    6,000K
    3027001787
    Slot 13

    UV
    3027001788
    Slot 14



    Gobos

    Static Gobo Wheel: 16 gobos, plus open

    Gobo: Ф130 mm

    Order Code: 3011001304

    Slot 1

    Slot 2

    Slot 3

    Slot 4

    Slot 5

    Slot 6

    Slot 7

    Slot 8

    Slot 9

    Slot 10

    Slot 11

    Slot 12

    Slot 13

    Slot 14

    Slot 15

    Slot 16

    Rotating Gobo Wheel: 7 gobos, plus open

    Gobo: Ф22.5 mm, lmage: Ф12 mm

    Dashed Circle
    3011001305
    Slot 1

    Square Tunnel
    3011001167
    Slot 2

    Eccentric Circles
    3011001308
    Slot 3

    Tiny Bubbles
    3011001307
    Slot 4

    String
    3011001306
    Slot 5

    Pebbles
    3011001168
    Slot 6

    Leaves
    3011001169
    Slot 7



    Prisms/Frost Filters

    1 Combinable Rotating and indexable Prism: 1 x 8-facet circular prism,

    6-facet linear prism, rotatable and overlayable in both directions

    1 frost filter

    8-Facet Circular Prism

    6-Facet Linear Prism

    Frost Filter



    Zoom Range

    Animation Wheel

    A graphic animation wheel with continuous

    rotation in both directions, creating the

    splendid water wave & flame effect, and can be changed into other wheels



    Descargas


    VIRGO Descargas Enlace
