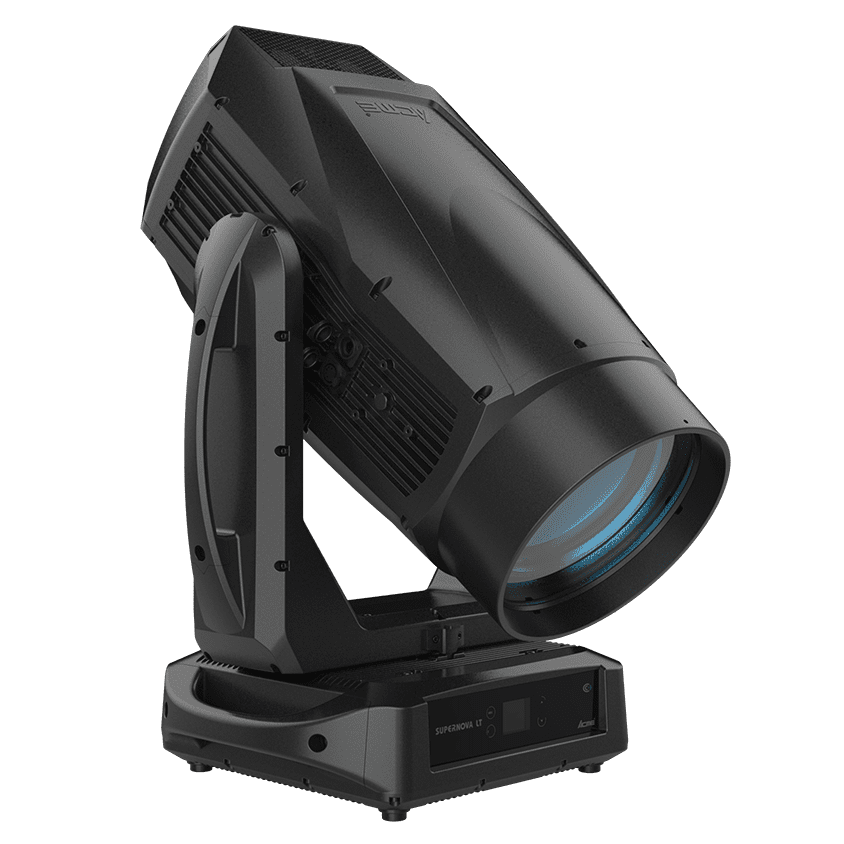

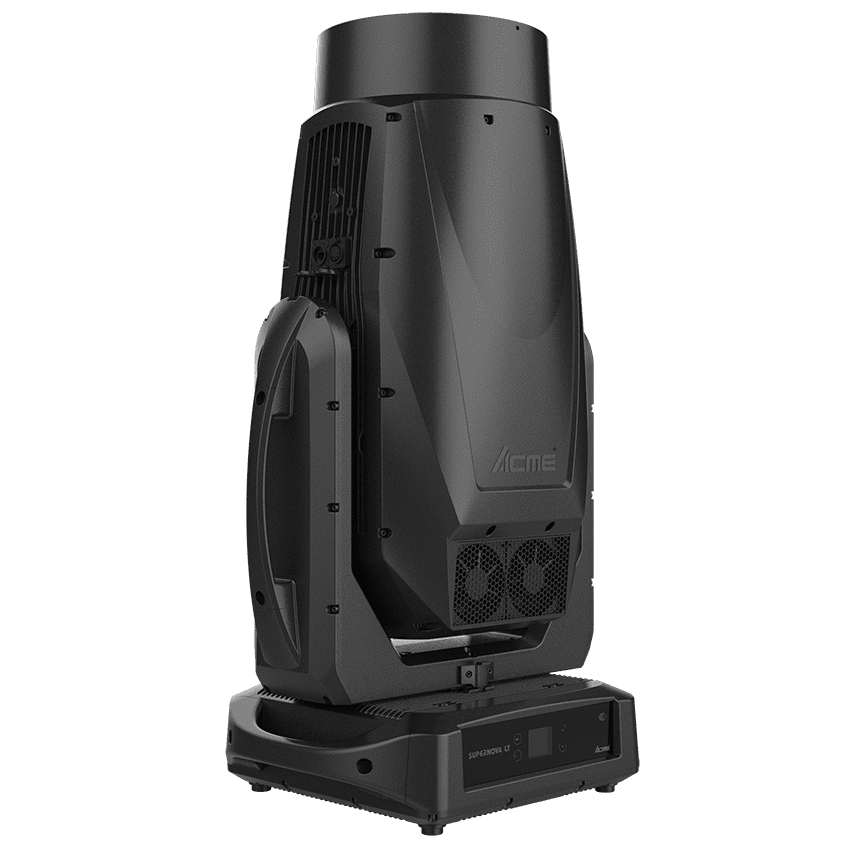

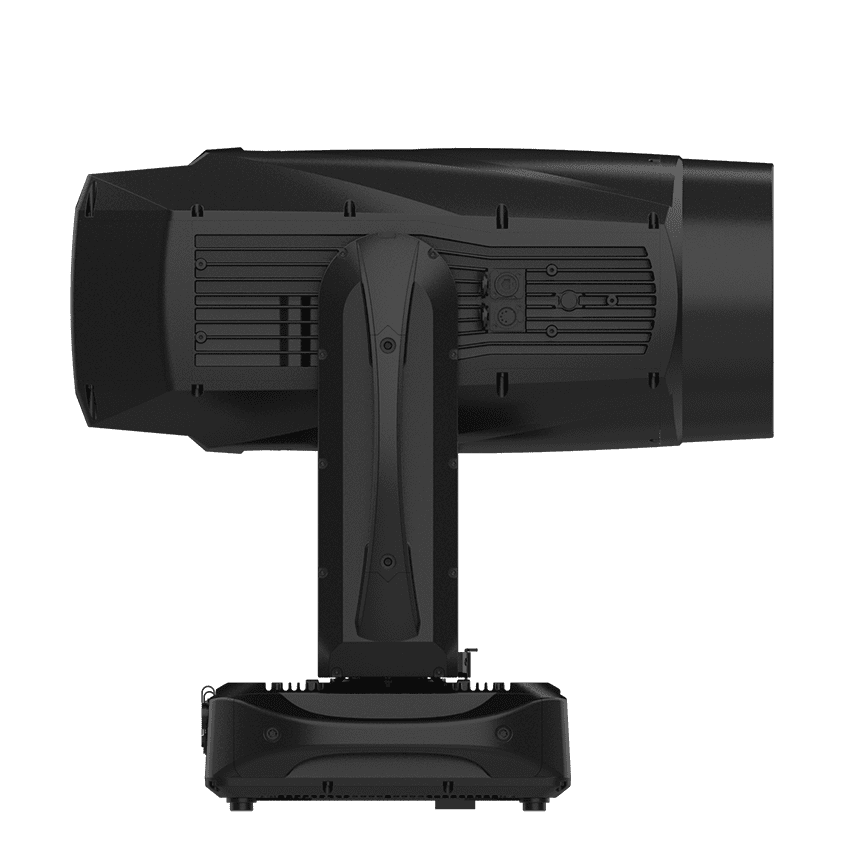

SUPERNOVA LT

Presentamos el nuevo ACME SUPERNOVA LT, un dispositivo innovador diseñado para aplicaciones de alto rendimiento y largo alcance que requieren haces intensos y alta precisión.

Impulsado por un potente motor LED de 1800 W, el SUPERNOVA LT ofrece una impresionante potencia de 70 000 lúmenes a través de su gran lente frontal de 245 mm. En el modo de zoom óptico estándar, el dispositivo ofrece un alcance de 3,6 a 52,5 grados. Al usar la apertura del haz, el dispositivo proporciona un haz ultrafino de 1,9 a 25 grados para proyecciones nítidas y precisas.

El SUPERNOVA LT cuenta con un sistema de mezcla CMY, ruedas de color duales y CTO variable, lo que ofrece una flexibilidad de color excepcional. Lleva tu creatividad al siguiente nivel: el SUPERNOVA LT está repleto de efectos que inspirarán a los diseñadores. Incluye ruedas de gobos giratorias duales, filtros de escarcha claros y medios combinables, una rueda de animación que ahora ofrece movimiento horizontal y vertical, así como un prisma circular de 4 facetas combinable y un prisma lineal de 4 facetas.

Una carcasa opcional para cámara está diseñada para la integración con sistemas de focos de seguimiento remotos de terceros. Con el kit opcional de focos de seguimiento, que incluye un asa y un panel de control, los usuarios pueden controlar manualmente la luz, los niveles de atenuación, la temperatura de color y la dirección del haz, recreando la experiencia de un foco de seguimiento tradicional.

Redefiniendo el rendimiento, la excelencia óptica y la salida, la SUPERNOVA LT se erige como la solución definitiva de iluminación de gran formato. Diseñada para profesionales que exigen lo mejor, ofrece brillo, precisión y control inigualables para cualquier aplicación de iluminación de alto impacto.

  • Rueda de gobos giratoria 2: 6 gobos, más abierto
  • Ranura de gobo 1-5: Ф34 mm, imagen: ф27,5 mm
  • Ranura de gobo 6: Ф31 mm

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    1,800W LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    70,000 lumens

    Variable CTO

    2,700K-6,700K

    Color Rendering

    Standard Mode: Ra≥72

    HCRI Mode: Ra≥95

    Zoom Range

    3.6°-52.5°

    (standard optical zoom)

    Diameter of Frontal Lens

    245 mm

    Weight

    64.5 kg (142.2 lbs)



    Technical Specification

    Model

    • Model Name: SUPERNOVA LT
    • Model Code: XA 2000 BSWF IP LT

    Light Source

    • Light Source: 1,800W LED engine
    • Color Temperature Output of Fixture: 6,700K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Photometric Data

    • Total Lumen Output of Fixture: 70,000 lumens
    • Standard Mode: Ra≥72
    • HCRI Mode: Ra≥95

    Optical System

    • Zoom Range :
      • Standard Optical Zoom: 3.6°-52.5°
      • Using Beam Aperture: 1.9°-25°
      • Long-Throw Mode: 0.9°-5°
    • Diameter of Frontal Lens: 245 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 4
    • Control Channels: 23/32/35/44
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 270°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Pan/Tilt lock

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 2,700K-6,700K
    • 2 Color Wheels:
      • Color Wheel 1: 5 colors, plus open
      • Color Wheel 2: 3 colors + CRI, plus open

    Rotating Gobos

    • 2 Rotating Gobo Wheel:
      • Rotating Gobo Wheel 1:
        • 6 gobos, plus open
        • Gobo: Ф34 mm, lmage: Ф26.5 mm
      • Rotating Gobo Wheel 2:
        • 6 gobos, plus open
        • Gobo Slot 1-5: Ф34 mm, lmage: Ф27.5 mm
        • Gobo Slot 6: Ф31 mm

    Animation Wheel

    • A graphic animation wheel with continuous rotation in both directions, offering excellent vertical and horizontal movement. It can be used alone or in combination with gobos to create water and flame effects

    Prism

    • 2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions

    Frost Filter

    • 1 combinable light frost filter and 1 combinable medium frost filter

    Framing System

    • Shutter Blades: 4 blades, each with separate movement and full blackout
    • Rotation: ±60° of the complete framing system

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized linear iris

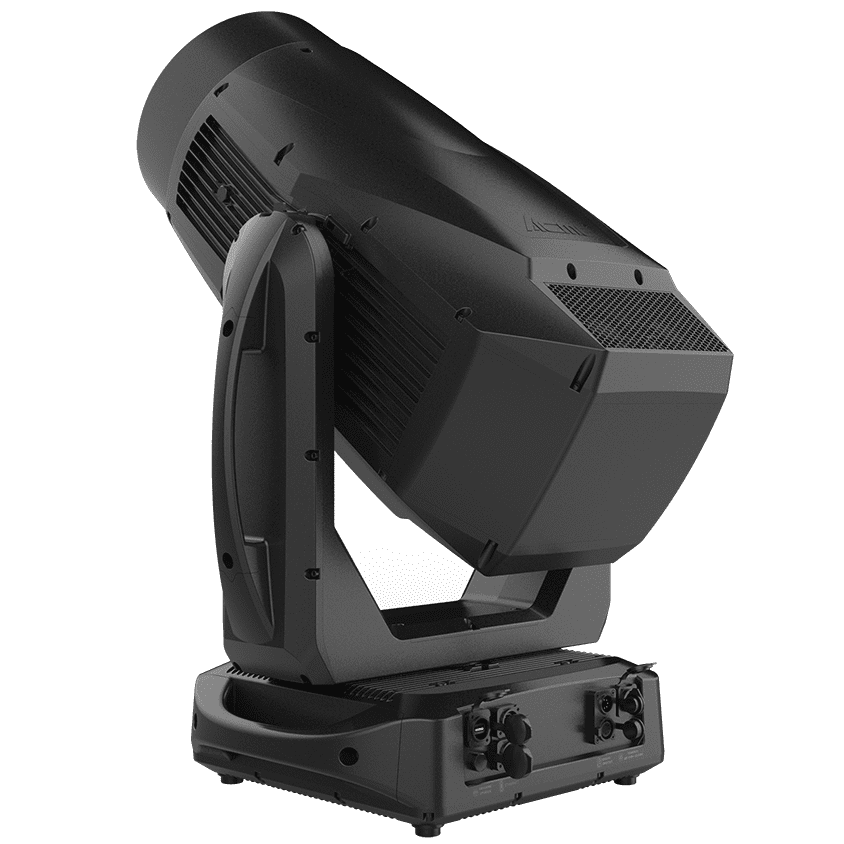

    Electrical and Connectors

    • Input Voltage Range: 180-240Vac; 50/60Hz
    • Power Consumption: 2,200W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 465 mm (18.3″)
      • Depth: 365 mm (14.4″)
      • Height: 893 mm (35.2″)
      • Weight: 64.5 kg (142.2 lbs)

    Packing Information

    • Carton Dimensions:
      • Width : 870 mm (34.3″)
      • Depth : 656 mm (25.8″)
      • Height : 855 mm (33.7″)
      • Weight :
        G.W.: 79.5 kg (175.3 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 45°C
    • Minimum Operating Temperature: -20°C
    • Maximum Surface Temperature: 80°C
    • Protection Rating: IP66

    Approvals

    • CE compliant
    • UKCA compliant
    • cETLus compliant

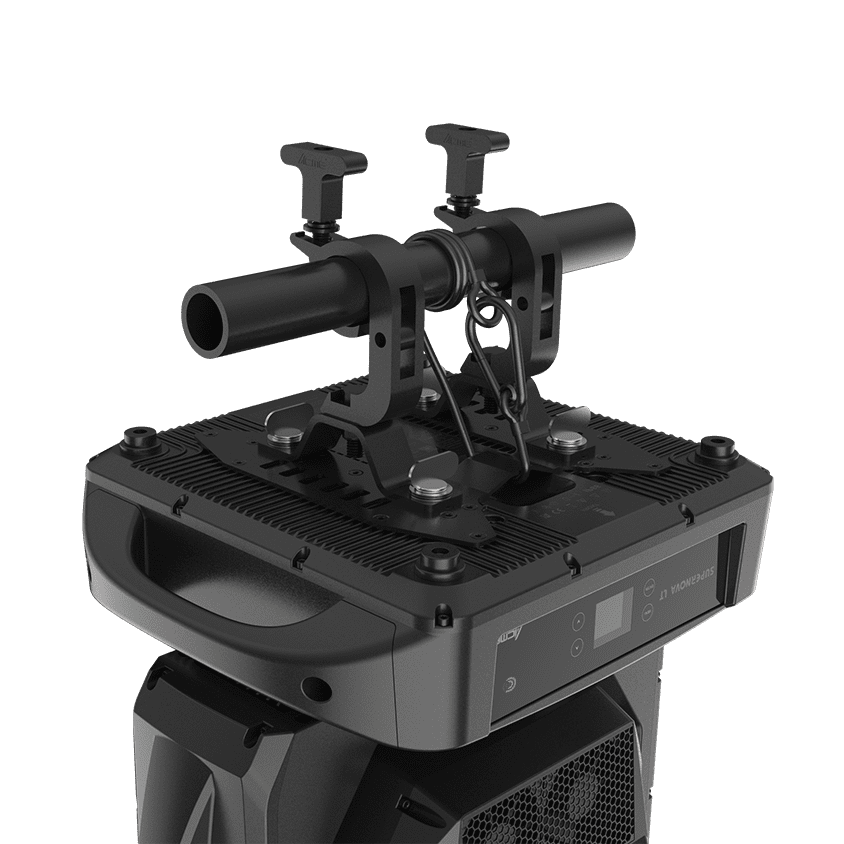

    Installation

    • Vertical mounting
    • 2 omega brackets
    • Safety cable attachment point

    Included Items

    • QR code on fixture to receive digital user manual
    • Power cable
    • 2 omega brackets (3002003003)

    Optional Accessories (With Order Code)

    • Clamp : C-250B (2060001632-B)
    • Safety Cable: SW-05 (2060001603-E)
    • Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
    • SUPERNOVA LT Camera Enclosure: 63584189
    • SUPERNOVA LT Follow Spot Kit: 63584190
    • SUPERNOVA LT Follow Spot Handle Only: 63584218
    • SUPERNOVA LT Follow Spot Control Pad Only: 63584219



    Dimensions

    Photometrics



    Video

    v

    Colors

    Linear CMY Color Mixing

    CMY

    3027002394
    3027002395

    3027002396
    3027002397

    3027002398
    3027002399

    Linear CTO Color Correction

    2,700K-6,700K

    3027002400
    3027002401

    Color Wheel 1: 5 colors, plus open

    Red
    3027002389
    Slot 1

    Green
    3027002391
    Slot 2

    Pink
    3027002392
    Slot 3

    Orange
    3027002390
    Slot 4

    Blue
    3027002393
    Slot 5

    Color Wheel 2: 3 colors + CRI, plus open

    CTB
    3027005336
    Slot 1

    Yellow
    3027002386
    Slot 2

    UV
    3027002388
    Slot 3

    CRI
    3015001314
    Slot 4



    Gobos

    Rotating Gobo Wheel 1: 6 gobos, plus open

    Gobo: Ф34 mm, lmage: Ф26.5 mm

    Broken Circle
    3011001655
    Slot 1

    Eccentric Circles
    3011001656
    Slot 2

    Dream Tunne
    3011001657
    Slot 3

    Tiny Bubbles
    3011001658
    Slot 4

    Square Bar
    3011001659
    Slot 5

    Slot 6

    Rotating Gobo Wheel 2: 6 gobos, plus open

    Gobo Slot 1-5: Ф34 mm, lmage: ф27.5 mm

    Gobo Slot 6: Ф31 mm

    Square Tunnel
    3011001481
    Slot 1

    Clouds
    3011001482
    Slot 2

    Mixed Beams
    3011001483
    Slot 3

    Multiple Angles
    3011001484
    Slot 4

    Grid
    3011001480
    Slot 5

    Diamond Glass A
    3015001218
    Slot 6



    Prisms/Frost Filters

    2 Combinable Rotating and indexable Prisms:

    1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions

    1 combinable light frost filter and 1 combinable medium frost filter

    4-Facet Circular Prism

    4-Facet Linear Prism

    Light Frost Filter

    Medium Frost Filter



    Zoom Range









    Animation Wheel

    A graphic animation wheel with continuous rotation

    in both directions, offering excellent vertical and horizontal movement.

    It can be used alone or in combination with gobos to create water and flame effects.



    Framing System

    Shutter Blades: 4 blades, each with separate movement and full blackout

    Rotation: ±60° of the complete framing system
