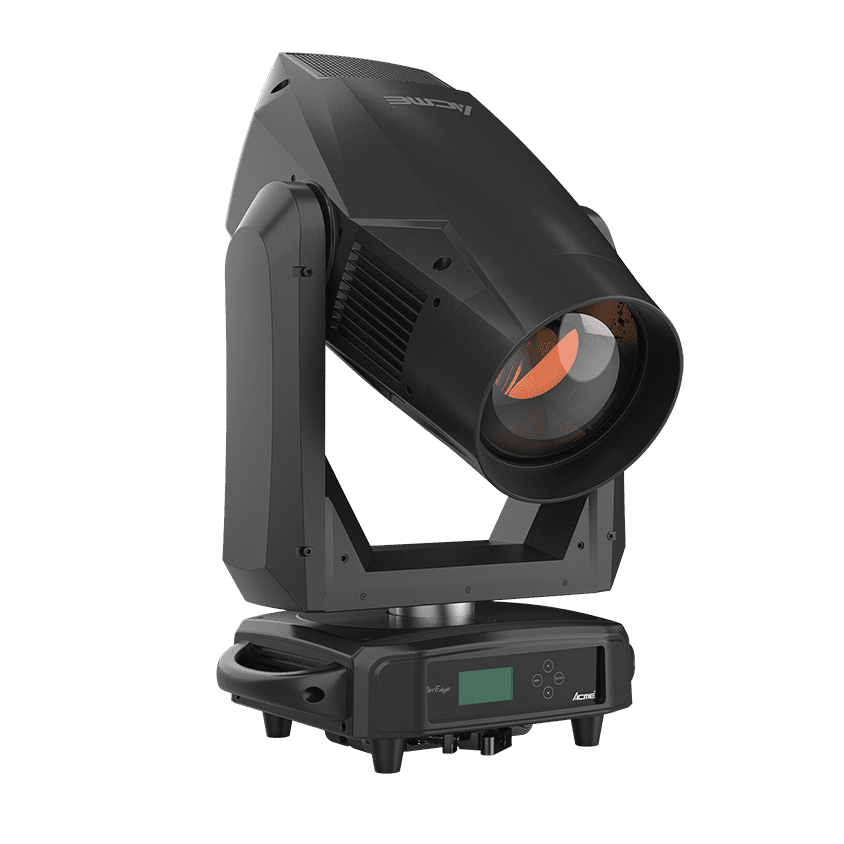

SUNRISE

SUNRISE Beam Wash de ACME, con su revolucionaria tecnología LED de 1000 W / 6500 K, ofrece una excelente potencia de salida de 60 000 lúmenes, ideal para proyectar un haz potente y un efecto wash amplio y uniforme. El filtro de alto CRI y el filtro de escarcha resistente están fabricados con materiales de última generación, mientras que sus dos ruedas de color predeterminadas permiten a SUNRISE cambiar fácilmente entre grabaciones de vídeo y conciertos.

Además, SUNRISE está equipado con un módulo de encuadre giratorio con un movimiento de +/-60°. Gracias a su salida ultrabrillante, su amplio rango de zoom (relación 1:15, 5-72˚), su modo de alto CRI y su bajo consumo de energía, el dispositivo SUNRISE Beam Wash es ideal para conciertos a gran escala, grabaciones de vídeo, desfiles de moda y mucho más.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    1,000W LED engine

    LED Life Expectancy

    20,000 hours*

    Total Lumen Output of Fixture

    60,000 lumens

    Variable CTO

    2,700K-6,500K

    Color Rendering

    Standard mode Ra>70

    High CRI mode Ra>90

    Zoom Range

    5°-72°

    Diameter of Frontal Lens

    200 mm

    Weight

    44.5 kg (98.1 lbs)



    Technical & Specification

    Model

    • Model Name: SUNRISE
    • Model Code: XA-1200 BW

    Light Source

    • Light Source: 1,000W LED engine
    • Total Lumen Output of Fixture: 60,000 lumens
    • Color Temperature Output of Fixture: 6,500K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range: 5°-72°
    • Standard Mode: Ra>70
    • HCRI Mode: Ra>90
    • Diameter of Frontal Lens: 200 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 2
    • Control Channels: 18/27
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 270°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 2,700K-6,500K
    • 2 Color Wheels:
      • Color Wheel 1: 5 colors + CRI, plus open
      • Color Wheel 2: 6 colors, plus open

    Frost Filter

    • 2 diffuser filters with patented design, made from new material, can achieve 0-100% linear softening, making the spot larger and more uniform

    Framing System

    • Shutter Blades: 4 blades, each with separate movement and full blackout
    • Rotation: ±60° of the complete framing system

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 1,535W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 465 mm (18.3″)
      • Depth: 352 mm (19.8″)
      • Height: 848 mm (33.4″)
      • Weight: 44.5 kg (98.1 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 715 mm (28.2″)
      • Depth : 595 mm (23.4″)
      • Height : 905 mm (30.6″)
      • Weight :
        • Standard: G.W.: 92 kg (202.8 lbs) (one-pack loader case)
    • Carton Dimensions:
      • Width : 710 mm (28.0″)
      • Depth : 580 mm (22.8″)
      • Height : 790 mm (31.1″)
      • Weight :
        G.W.: 52.5 kg (115.7 lbs) (One-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP20

    Approvals

    • CE compliant
    • cETLus compliant

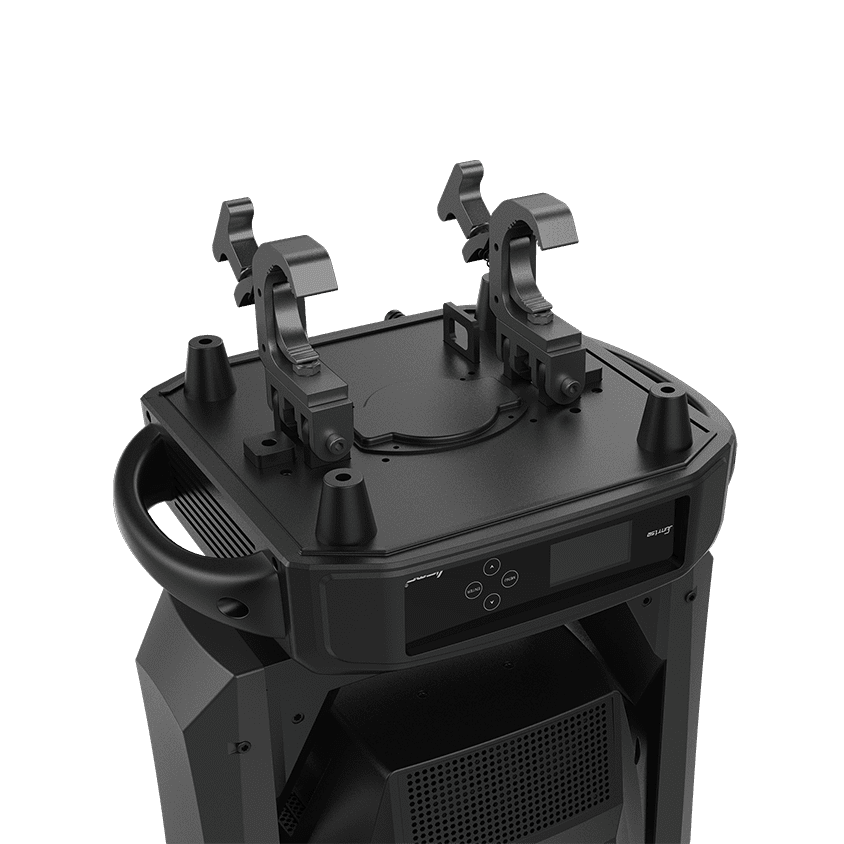

    Installation

    • Horizontal or vertical mounting
    • Universal working position



    Dimensions

    Photometrics



    Video



    Colors

    Linear CMY Color Mixing

    CMY

    Linear CTO Color Correction

    2,700K-6,500K

    Color Wheel 1: 5 colors+ CRI, plus open

    Red
    3027005061
    Slot 1

    Green
    3027005063
    Slot 2

    Pink
    3027002209
    Slot 3

    Orange
    3027002210
    Slot 4

    Deep Blue
    3027005062
    Slot 5

    CRI≥90
    Slot 6

    Color Wheel 2: 6 colors, plus open

    Yellow
    3027001745
    Slot 1

    Lavender
    3027001769
    Slot 2

    Magenta
    3027001755
    Slot 3

    Light yellow
    3027001747
    Slot 4

    Light blue
    3027001744
    Slot 5

    Light green
    3027001746
    Slot 6





    Prisms/Frost Filters

    2 diffuser filters with patented design, made from new material, can achieve 0-100% linear softening, making the spot larger and more uniform

    Frost Effect



    Zoom Range



    Framing System

    Shutter Blades: 4 blades, each with separate movement and full blackout

    Rotation: ±60° of the complete framing system
