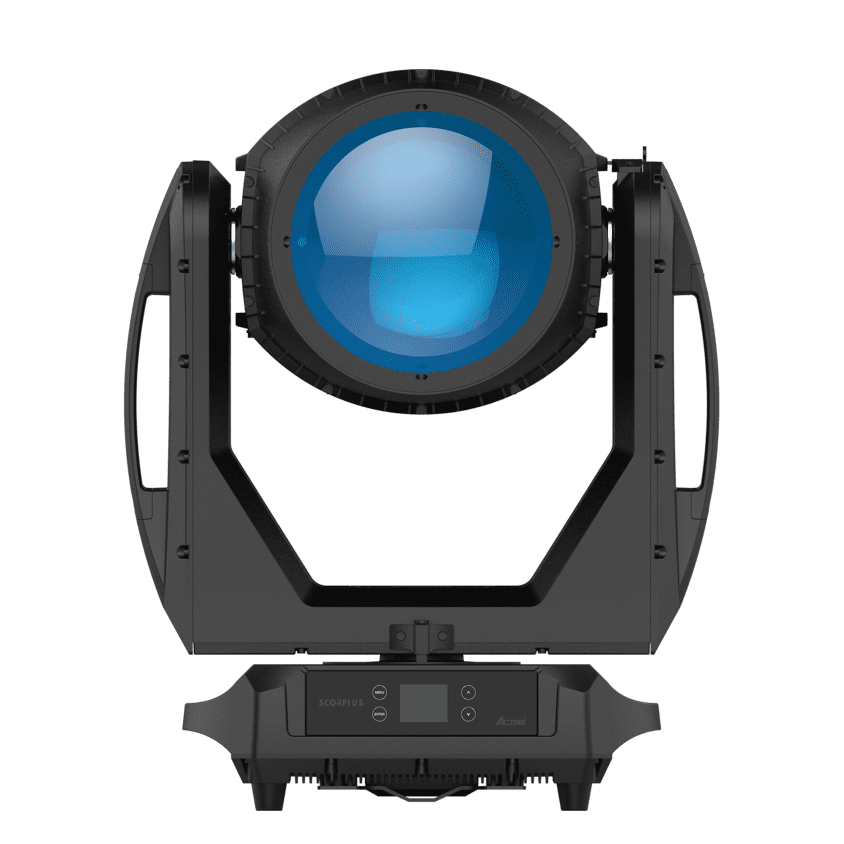

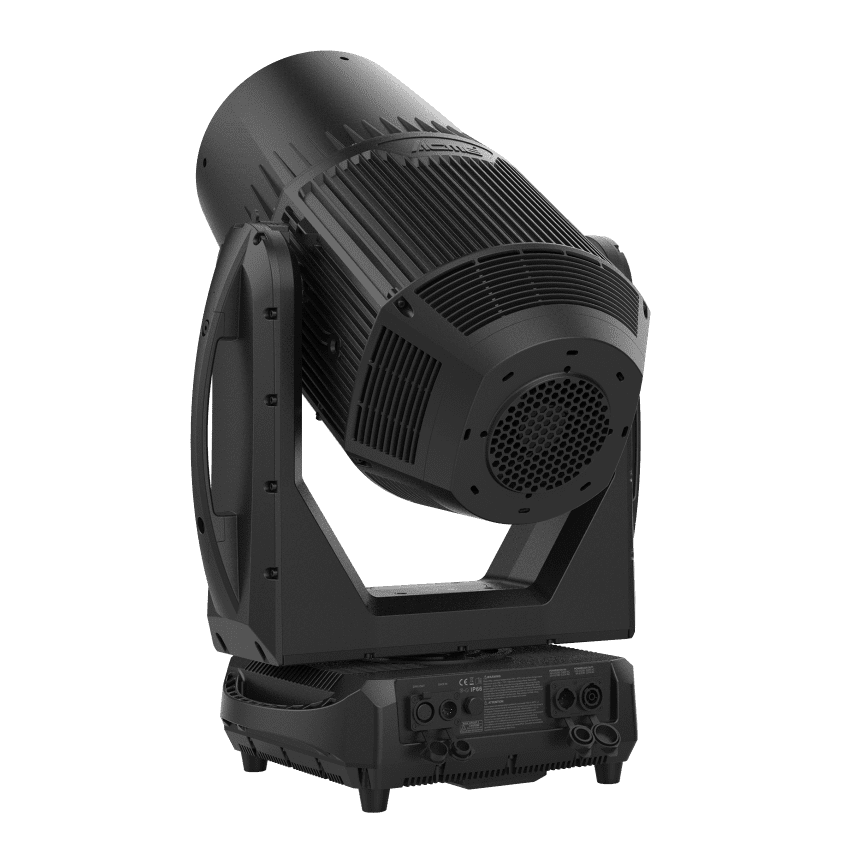

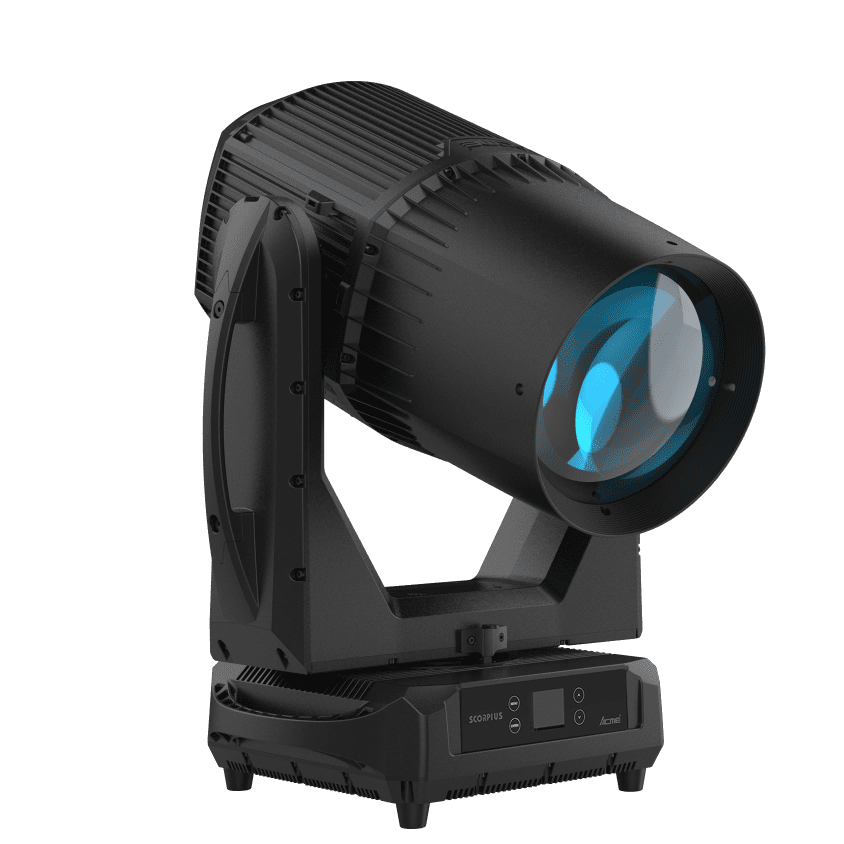

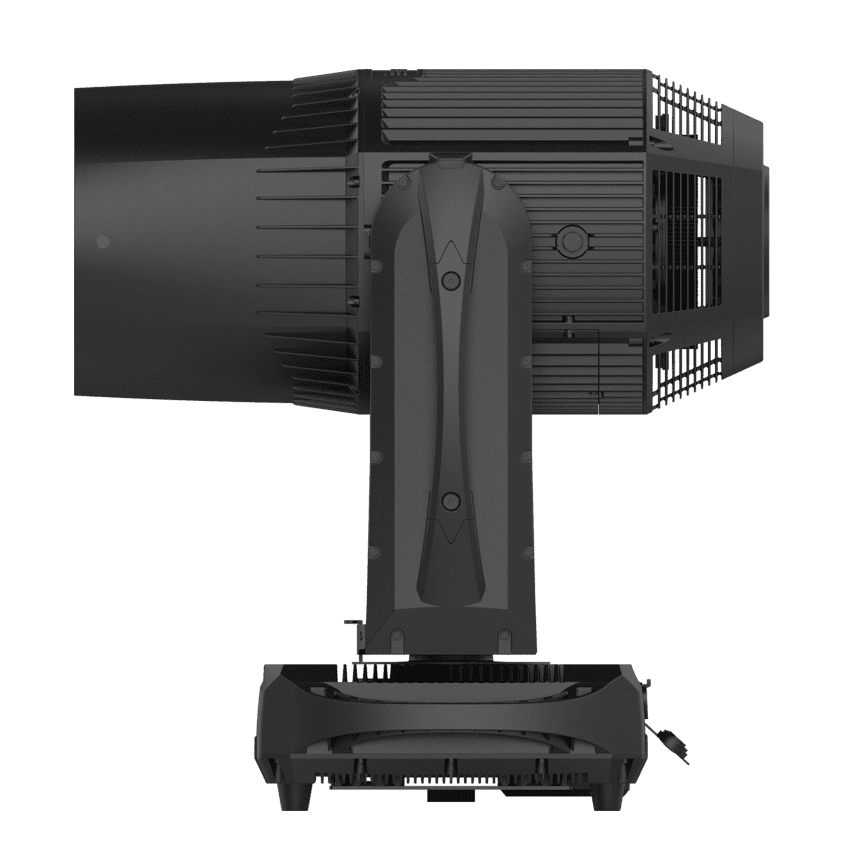

SCORPIUS

SCORPIUS es la luminaria de haz móvil de nueva generación, resistente a la intemperie y con clasificación IP66. Equipado con la nueva lámpara de descarga Philips MSD Platinum 500L Flex, SCORPIUS ofrece un haz sólido, uniforme y ultranítido de 1,8 grados. Con su sistema óptico de alta calidad y su lente frontal de 230 mm, produce un flujo luminoso de 4.680.000 lux a 5 metros y 1.170.000 lux a 10 metros. Su largo alcance y su brillante haz son perfectos para cualquier espacio o producción.

El sistema de color del SCORPIUS incluye un sistema de mezcla de colores CMY, CTO de 3200 K a 6700 K y una rueda de 14 colores. Tanto si busca colores saturados, profundos y ricos como pasteles suaves, SCORPIUS le ofrece el rendimiento que espera de una luminaria de haz.

Para efectos, SCORPIUS cuenta con una rueda de gobos giratoria con 7 gobos de alta definición, una rueda de gobos estática con 18 gobos, un sistema de prisma dual con prismas de 8 y 6 facetas, y un filtro frost para suavizar los bordes del haz.

Ya sea para conciertos al aire libre, teatro en interiores, festivales, eventos temáticos o cualquier otra producción, SCORPIUS es uno de los equipos más versátiles del mercado, ofreciendo la potencia y los efectos aéreos que espera de un equipo beam.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    Philips MSD Platinum 500L Flex

    Lamp Life Expectancy

    4,000 hours

    Total Lumen Output of Fixture

    16,000 lumens

    Variable CTO

    3,200K-6,700K

    Color Rendering

    Ra>80

    Beam Angle

    1.8°

    Diameter of Frontal Lens

    230 mm

    Weight

    42.5 kg (93.7 lbs)



    Technical & Specification

    Model

    • Model Name: SCORPIUS
    • Model Code: XP 550 BEAM IP

    Light Source

    • Light Source : Philips MSD Platinum 500L Flex
    • Total Lumen Output of Fixture: 16,000 lumens
    • Color Temperature Output of Fixture: 6,700K
    • Life Expectancy: 4,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 1.8°
    • Diameter of Frontal Lens: 230 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 2
    • Control Channels: 23/17
    • Firmware Upgrade: Upgrade via DMX link

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 260°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Fixation: Pan/Tilt lock

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 3,200K-6,700K
    • 1 Color Wheel: 14 colors, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 18 gobos, plus open
      • Gobo: Ф130 mm

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 7 gobos, plus open
      • Gobo: Ф8 mm, lmage: Ф22.5 mm

    Prism

    • 2 Combinable Rotating and Indexable Prisms: 1×8-facet circular prism, 1×6-facet linear prism, rotatable in both directions

    Frost Filter

    • 1 frost filter

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 780W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR
    • Adaptive power supply

    Physical Information

    • Fixture Dimensions:
      • Width: 499 mm (19.6″)
      • Depth: 330 mm (13.0″)
      • Height: 794 mm (31.3″)
      • Weight: 42.5 kg (93.7 lbs)

    Packing Information

    • Flight Case Dimensions 1:
      • Width : 715 mm (28.1″)
      • Depth : 595 mm (23.4″)
      • Height : 905 mm (35.6″)
      • Weight :
        • Standard : G.W.: 90.5 kg (200 lbs) (One-pack loader case)
    • Flight Case Dimensions 2:
      • Width : 1,235 mm (48.6″)
      • Depth : 810 mm (31.9″)
      • Height : 875 mm (34.5″)
      • Weight :
        • North American Standard : G.W.: 193.1 kg (426 lbs) (Two-pack loader case)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: -10°C



    Dimensions

    Photometrics



    Video



    Colors

    Linear CMY Color Mixing

    CMY

    Linear CTO Color Correction

    3,200K-6,700K

    Color Wheel 1: 14 colors, plus open

    Red
    Slot 1

    Orange
    Slot 2

    Aqua Marine
    Slot 3

    Green
    Slot 4

    Light Green
    Slot 5

    Levender
    Slot 6

    Pink
    Slot 7

    Light Yellow
    Slot 8

    Magenta
    Slot 9

    Cyan
    Slot 10

    Yellow
    Slot 11

    3,200K
    Slot 12

    6,000K
    Slot 13

    UV
    Slot 14



    Gobos

    Static Gobo Wheel 1: 18 gobos, plus open

    Gobo: Ф130 mm

    3011000712-1
    Slot 1

    3011000712-2
    Slot 2

    3011000712-3
    Slot 3

    3011000712-4
    Slot 4

    3011000712-5
    Slot 5

    3011000712-6
    Slot 6

    3011000712-7
    Slot 7

    3011000712-8
    Slot 8

    3011000712-9
    Slot 9

    3011000712-10
    Slot 10

    3011000712-11
    Slot 11

    3011000712-12
    Slot 12

    3011000712-13
    Slot 13

    3011000712-14
    Slot 14

    3011000712-15
    Slot 15

    3011000712-16
    Slot 16

    3011000712-17
    Slot 17

    3011000712-18
    Slot 18

    Rotating Gobo Wheel 1: 7 gobos, plus open

    Gobo: Ф8 mm, lmage: ф22.5 mm

    “Slot and Lock” system for easy and quick gobo replacement

    3011001132
    Slot 1

    3011001136
    Slot 2

    3011001137
    Slot 3

    3011001131
    Slot 4

    3011001135
    Slot 5

    3011001133
    Slot 6

    3011001134
    Slot 7



    Prisms/Frost Filters

    2 Combinable Rotating and Indexable Prisms:

    1 x 8-facet circular prism, 1 x 6-facet linear prism,

    rotatable in both directions

    1 frost filter

    8-Facet Circular Prism

    6-Facet Linear Prism

    Frost Filter



    Beam Angle
