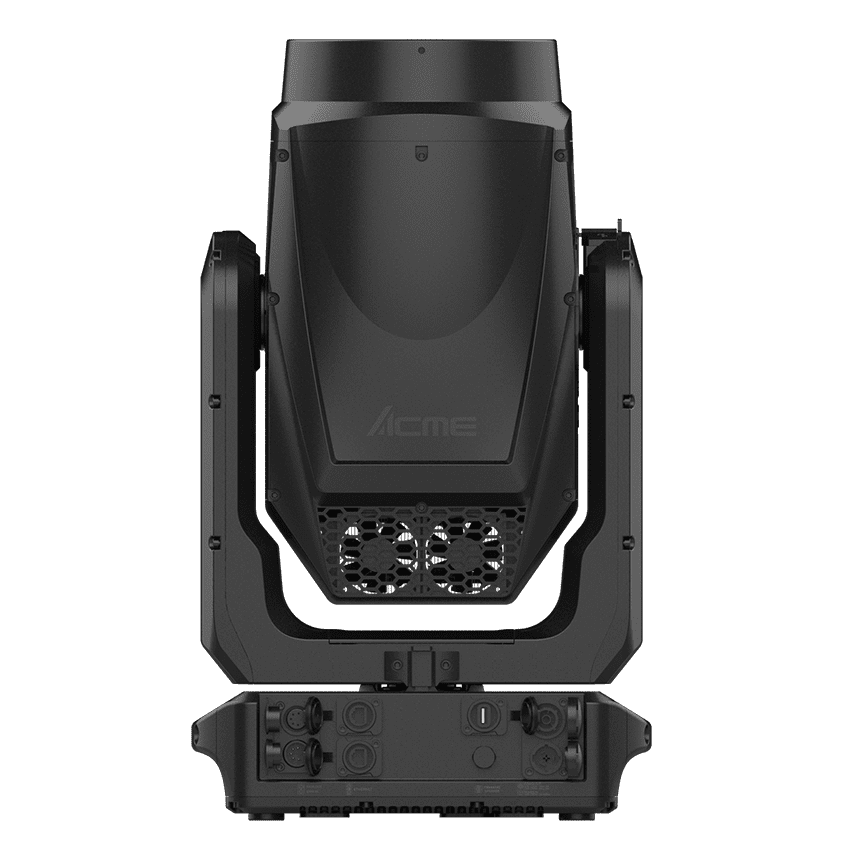

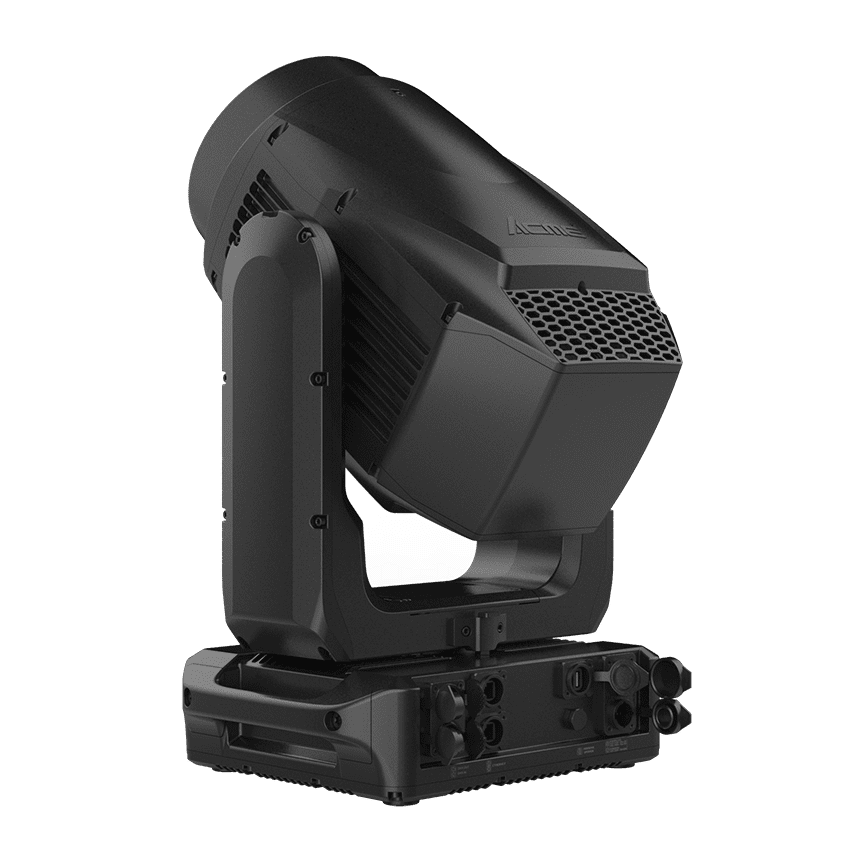

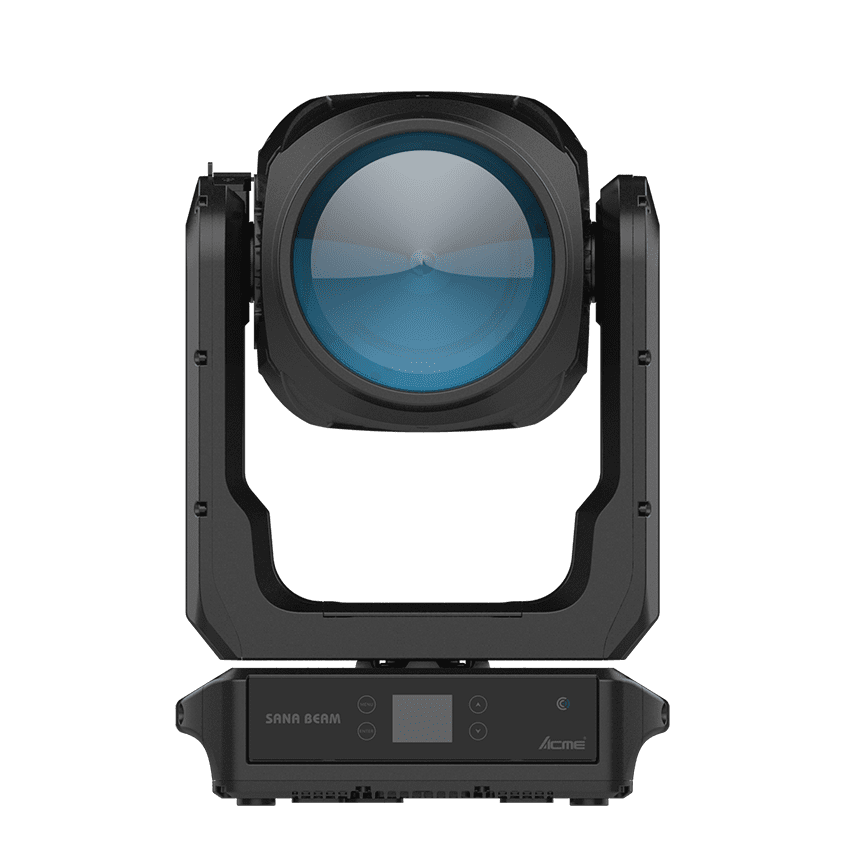

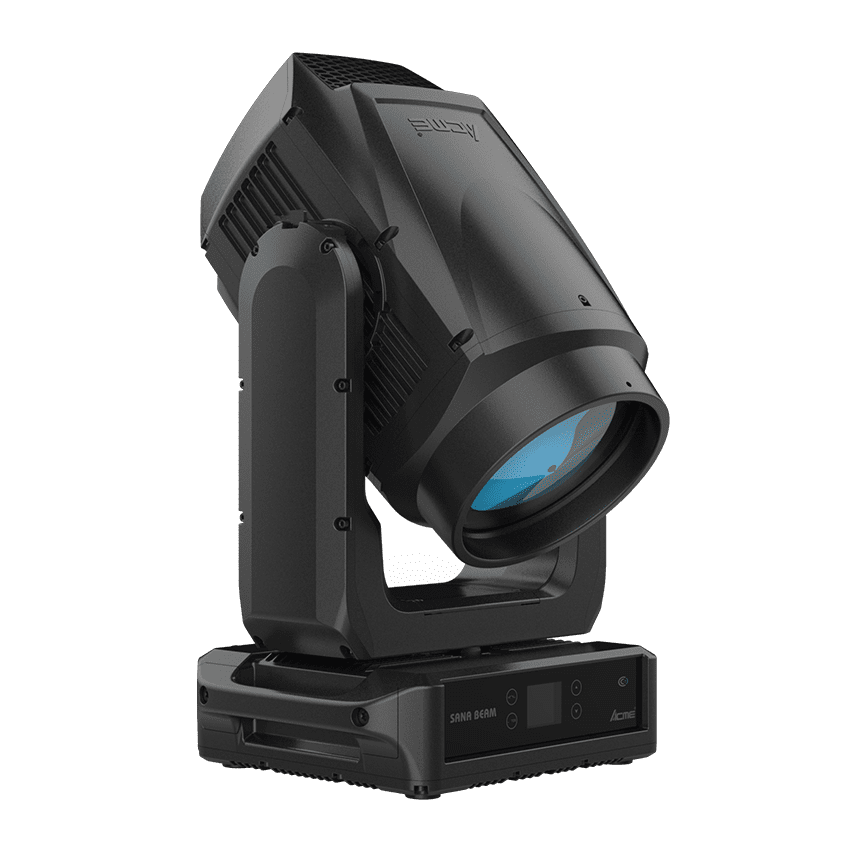

SANA BEAM

ACME
SKU: XA 300 BEAM IP

El ACME SANA BEAM marca el inicio de la serie SANA y establece un nuevo estándar en cabezas móviles LED con clasificación IP66. Ligero pero potente, este dispositivo ofrece haces de luz nítidos, control preciso y movimiento infinito en un diseño compacto.

Impulsado por un motor LED de 330 W, el SANA BEAM ofrece una deslumbrante salida de 5500 lúmenes, proyectando haces de luz intensos a través de una gran lente frontal de 180 mm para una claridad e impacto inigualables. Con un impresionante rango de zoom de 1,9° a 8°, emite haces de luz nítidos que cortan el aire sin cesar, creando un impacto visual espectacular.

Su movimiento horizontal y vertical infinito ofrece un movimiento fluido para crear impactantes efectos visuales en el aire, rompiendo con los límites de movimiento convencionales. La luminaria cuenta con dos ruedas de color (6 colores cada una), un CTO variable y una mezcla de colores CMY lineal, lo que permite crear paletas vívidas y expresivas ideales para cualquier ambiente.

La creatividad de los efectos se expande aún más con una rueda de gobos estática con 17 gobos y dos prismas para crear efectos multicapa. Un filtro escarcha transforma haces de luz nítidos y enfocados en lavados uniformes, ofreciendo opciones de iluminación versátiles para cualquier entorno.

Con un peso de tan solo 23,5 kg (51,8 lbs), el filtro antiescarcha SANA BEAM transforma haces nítidos y enfocados en luces uniformes, brindando opciones de iluminación versátiles para cualquier entorno.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    330W LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    5,500 lumens

    Variable CTO

    2,700K-10,000K

    Color Rendering

    Standard Mode: Ra≥66

    Zoom Range

    1.9°-8°

    Diameter of Frontal Lens

    180 mm

    Weight

    23.5 kg (51.8 lbs)



    Model

    • Model Name: SANA BEAM
    • Model Code: XA 300 BEAM IP

    Light Source

    • Light Source: 330W LED engine
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Photometric Data

    • Light Engine Luminous Output: 9,600 lumens
    • Total Lumen Output of Fixture: 5,500 lumens
    • CCT: 7,000K (+/- 200K)
    • Standard Mode: Ra≥66
    • TM-30 Rf (IES TM-30-15 Fidelity Index): 69
    • TM-30 Rg (IES TM-30-15 Fidelity Index): 91
    • TLCI: 42
    • Peak Luminous Intensity: 5,690,000 cd

    Optical System

    • Zoom Range: 1.9°-8°
    • Diameter of Frontal Lens: 180 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,sACN,NFC
    • DMX Protocol Modes: 4
    • Control Channels: 16/27/27/29
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement : Infinity
    • Tilt Movement : Infinity
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Pan/Tilt lock

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 2,700K-10,000K
    • 2 Color Wheels:
      • Color Wheel 1: 6 colors, plus open
      • Color Wheel 2: 6 colors, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 17 gobos, plus open
      • Gobo: Ф113 mm

    Prism

    • 2 Combinable Rotating and Indexable Prisms: 1 x 8-facet circular prism, 1 x 6-facet linear prism, rotatable and overlayable in both directions

    Frost Filter

    • 1 frost filter

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized focus system
    • Motorized zoom

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 590W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 332 mm (13.1″)
      • Depth: 256 mm (10.1″)
      • Height: 567 mm (22.3″)
      • Weight: 23.5 kg (51.8 lbs)

    Packing Information

    • Flight Case Dimensions 1:
      • Width : 820 mm (32.3″)
      • Depth : 580 mm (22.8″)
      • Height : 880 mm (34.7″)
      • Weight :
        • Standard : G.W.: 97 kg (213.9 lbs) (two-pack loader case)
    • Flight Case Dimensions 2:
      • Width : 1,220 mm (48″)
      • Depth : 610 mm (24″)
      • Height : 840 mm (33.1″)
      • Weight :
        • North American Standard : G.W.: 160.9 kg (354.7 lbs) (three-pack loader case)
    • Carton Dimensions:
      • Width : 550 mm (21.7″)
      • Depth : 455 mm (17.9″)
      • Height : 665 mm (26.2″)
      • Weight :
        G.W.: 29.5 kg (465 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 45°C
    • Minimum Operating Temperature: -20°C
    • Maximum Surface Temperature: 75°C
    • Protection Rating: IP66

    Approvals

    • CE compliant
    • UKCA compliant
    • cETLus compliant

    Installation

    • Universal working position
    • 2 omega brackets
    • Safety cable attachment point

    Included Items

    • QR code on fixture to receive digital user manual
    • Power cable
    • 2 omega brackets (3002003003)

    Optional Accessories (With Order Code)

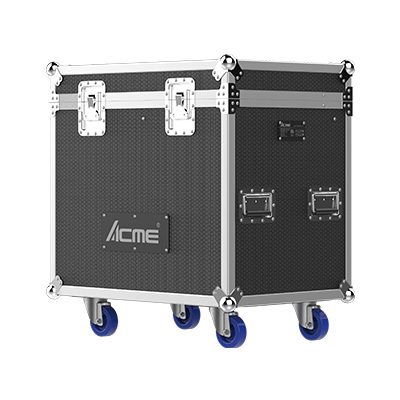

    • Flight Case 1:
      • Standard : Two-pack loader case (63584352)
    • Flight Case 2:
      • North American Standard : Three-pack loader case (63584379)
    • Clamp : C-150B (2060001625-C)
    • Safety Cable: SW-05 (2060001603-E)
    • Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)



    Dimensions

    Photometrics



    v

    Colors

    Linear CMY Color Mixing

    CMY

    3027005387

    3027005388

    3027005389

    Linear CTO Color Correction

    2,700K-10,000K

    3027005390

    Color Wheel 1: 6 colors, plus open

    Red
    3027005395
    Slot 1

    Orange
    3027005360
    Slot 2

    Aqua Marine
    3027005396
    Slot 3

    Green
    3027005362
    Slot 4

    Light Green
    3027005398
    Slot 5

    Levender
    3027005397
    Slot 6

    Color Wheel 2: 6 colors, plus open

    Pink
    3027005365
    Slot 1

    Light Yellow
    3027005366
    Slot 2

    Magenta
    3027005367
    Slot 3

    Blue
    3027005368
    Slot 4

    Yellow
    3027005369
    Slot 5

    Deep Blue
    3027005370
    Slot 6



    Gobos

    Static Gobo Wheel: 17 gobos, plus open

    Gobo: Ф113 mm

    3011001736
    Slot 1

    3011001736
    Slot 2

    3011001736
    Slot 3

    3011001736
    Slot 4

    3011001736
    Slot 5

    3011001736
    Slot 6

    3011001736
    Slot 7

    3011001736
    Slot 8

    3011001736
    Slot 9

    3011001736
    Slot 10

    3011001736
    Slot 11

    3011001800
    Slot 12

    3011001738
    Slot 13

    3011001739
    Slot 14

    3011001740
    Slot 15

    3011001741
    Slot 16

    3011001742
    Slot 17



    Prisms/Frost Filters

    2 Combinable Rotating and Indexable Prisms:

    1× 8-facet circular prism and 1 x 6-facet circular prism,

    rotatable and overlayable in both directions

    1 frost filter

    8-Facet Circular Prism

    6-Facet Linear Prism

    1 Frost Filter



    Zoom Range
