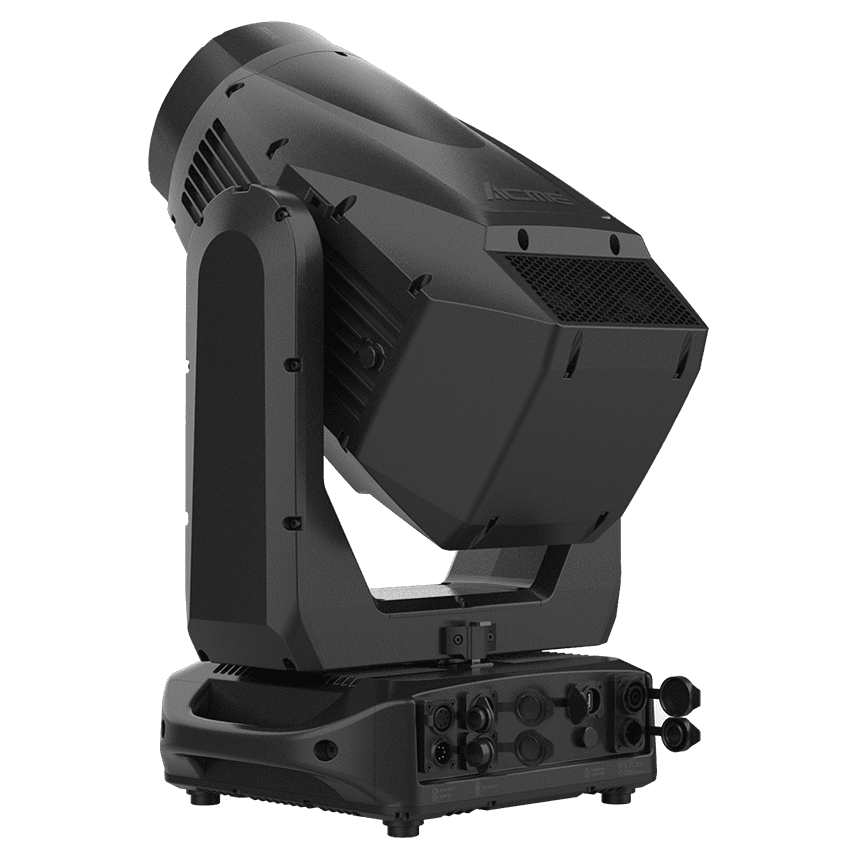

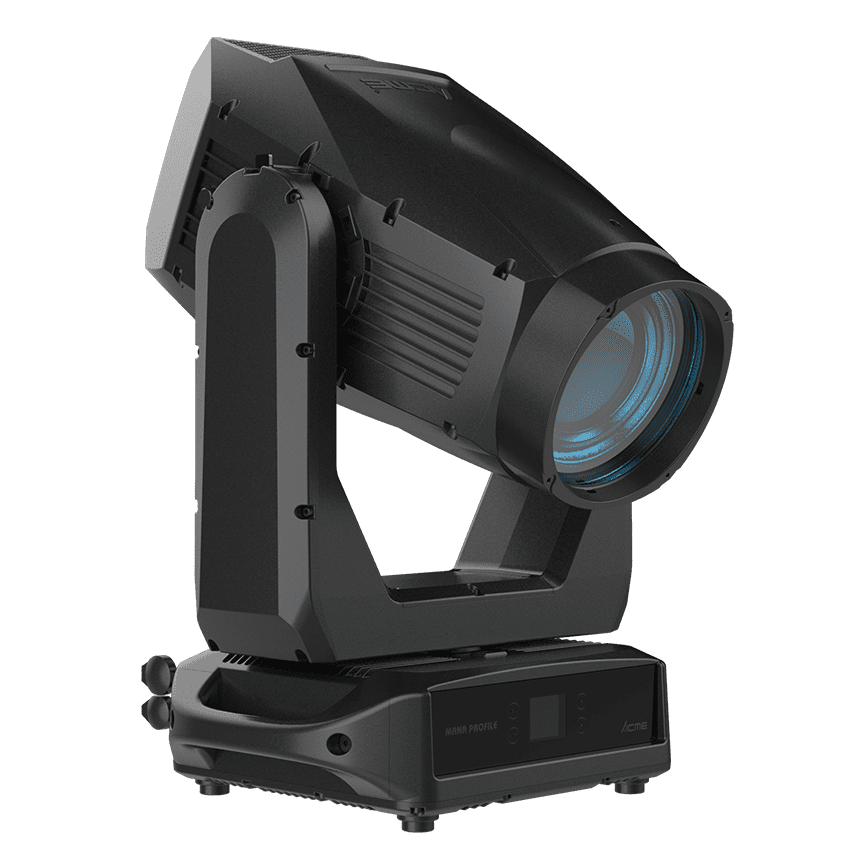

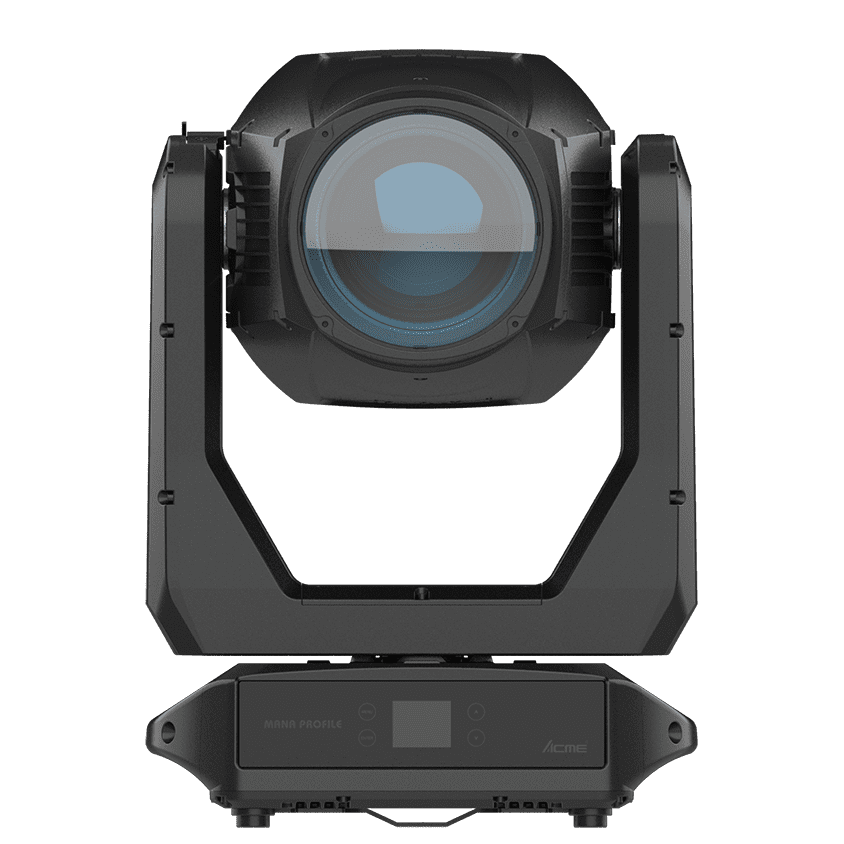

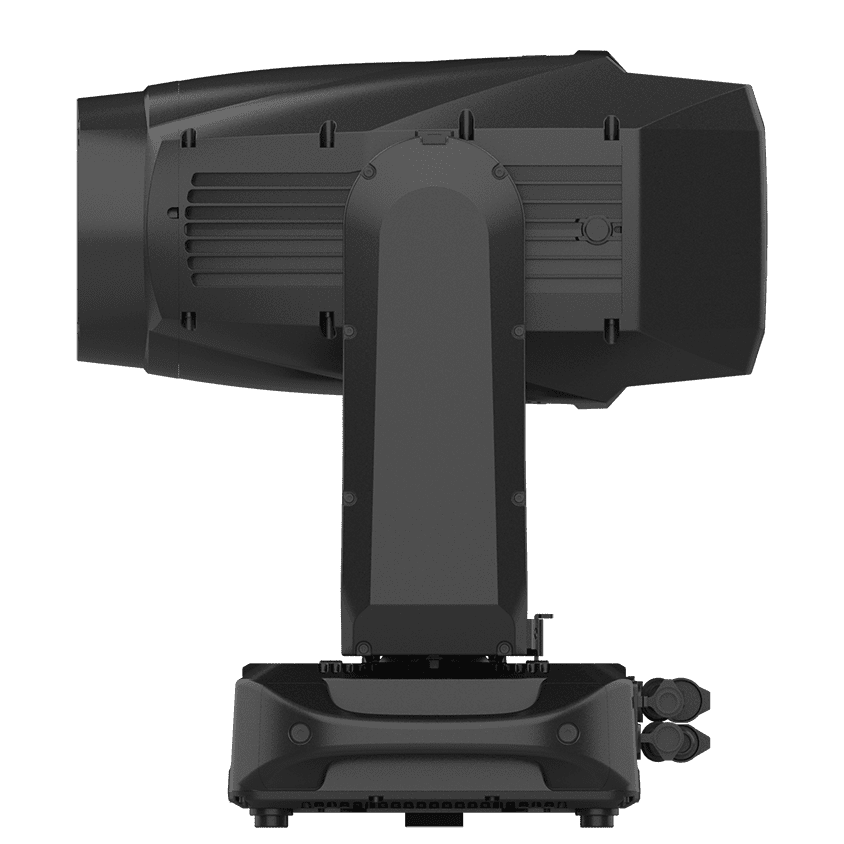

MANA PROFILE

ACME MANA PROFILE, una potente innovación con características diseñadas para redefinir su experiencia de iluminación. Con un motor LED de 600 W y una lente de 170 mm, este dispositivo crea una luz brillante y vibrante. Con un ángulo de haz versátil de 3,5° a 45° y una salida total de 26.000 lúmenes, ofrece una flexibilidad inigualable para sus diseños de iluminación. Su precisa temperatura de color de 7.000 K, con un modo HCRI Ra≥90, garantiza una iluminación escénica vibrante.

Equipado con un sistema de mezcla de colores CMY lineal y un CTO variable de 2.700 K a 7.000 K, MANA PROFILE ofrece infinitas posibilidades de color. Con múltiples gobos, incluyendo 9 ruedas de gobos estáticas y 8 gobos giratorios, además de una gran variedad de colores con 6 colores, este dispositivo estimula la creatividad. Con una rueda de animación gráfica y dos filtros frost combinables, crea efectos de iluminación cautivadores.

La luminaria cuenta con un grado de protección IP66, lo que la hace fiable para su uso en exteriores durante todo el año. MANA PROFILE cuenta con excepcionales efectos estroboscópicos con velocidad variable, lo que garantiza una experiencia visual inolvidable.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    600W LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    26,000 lumens

    Variable CTO

    2,700K-7,000K

    Color Rendering

    Standard Mode : Ra>70

    HCRI Mode : Ra ≥ 90

    Beam Angle

    3.5° – 45°

    Diameter of Frontal Lens

    170 mm

    Weight

    32.5 kg (71.7 lbs)



    Technical & Specification

    Model

    • Model Name: MANA PROFILE
    • Model Code: XA 600 BSWF IP

    Light Source

    • Light Source: 600W LED engine
    • Total Lumen Output of Fixture: 26,000 lumens
    • Color Temperature Output of Fixture: 7,000K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 3.5°-45°
    • Standard Mode: Ra>70
    • HCRI Mode: Ra≥90
    • Diameter of Frontal Lens: 170 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 4
    • Control Channels: 22/31/31/40
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 260°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Fixation: Pan/Tilt lock

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 2,700K-7,000K
    • 1 Color Wheel: 6 colors + CTB, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 9 gobos, plus open
      • Gobo: Ф24 mm, lmage: Ф18 mm

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 8 gobos, plus open
      • Gobo Slot 1-7: Ф20 mm, lmage: Ф17 mm
      • Gobo Slot 8: Ф20 mm

    Animation Wheel

    • A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels

    Prism

    • 2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions

    Frost Filter

    • 1 combinable light frost filter and 1 combinable medium frost filter

    Framing System

    • Shutter Blades: 4 blades, each with separate movement and full blackout
    • Rotation: ±60° of the complete framing system

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized linear iris

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 910W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 380 mm (15.0″)
      • Depth: 284 mm (11.2″)
      • Height: 658 mm (25.9″)
      • Weight: 32.5 kg (71.7 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 1,220 mm (48.0″)
      • Depth : 610 mm (24.0″)
      • Height : 805 mm (31.7″)
      • Weight :
        • Standard: G.W.: 132 kg (291.0 lbs) (Two-pack loader case)
        • North American Standard: G.W.: 139 kg (306.4 lbs) (Two-pack loader case)
    • Carton Dimensions:
      • Width : 610 mm (24.0″)



    Dimensions

    Photometrics



    Video



    Colors

    Linear CMY Color Mixing

    CMY

    3027005285

    3027005286

    3027005284

    Linear CTO Color Correction

    2,700K-7,000K

    3027005288

    Color Wheel 1: 6 colors + CTB, plus open

    Red
    3027005283
    Slot 1

    Green
    3027005282
    Slot 2

    Pink
    3027005289
    Slot 3

    Orange
    3027005281
    Slot 4

    Blue
    3027005280
    Slot 5

    CRI
    3027002411
    Slot 6

    CTB
    3027005303
    Slot 7



    Gobos

    Static Gobo Wheel : 9 gobos, plus open

    Gobo: Ф24 mm, lmage: Ф18 mm

    Target
    3011001510
    Slot 1

    Bars
    3011001513
    Slot 2

    Mixed Beams
    3011001547
    Slot 3

    Cross Stripes
    3011001506
    Slot 4

    Concentric Dots
    3011001507
    Slot 5

    Multiple Angles
    3011001508
    Slot 6

    Square Tunnel
    3011001509
    Slot 7

    Clouds
    3011001511
    Slot 8

    Grid
    3011001512
    Slot 9

    1 Rotating Gobo Wheel : 8 gobos, plus open

    Gobo Slot 1-7: Ф20mm, lmage: ф17 mm

    Gobo Slot 8: Ф20 mm, lmage: ф17 mm

    Broken Circle
    3011001500
    Slot 1

    Eccentric Circles
    3011001501
    Slot 2

    Dream Tunnel
    3011001502
    Slot 3

    Tiny Bubbles
    3011001503
    Slot 4

    Dots Line
    3011001504
    Slot 5

    Linear Breakup
    3011001505
    Slot 6

    Scattered Dots
    3011001546
    Slot 7

    Diamond Glass
    3015001230
    Slot 8



    Prisms/Frost Filters

    2 Combinable Rotating and indexable Prisms:

    1 x 4-facet circular prism, 1 x 4-facet linear prism

    rotatable in both directions

    1 combinable light frost filter and 1 combinable medium frost filter

    4-Facet Circular Prism

    4-Facet Linear Prism

    Light Frost Filter

    Medium Frost Filter



    Beam Angle

    Animation Wheel

    A graphic animation wheel with continuous rotation

    in both directions, used alone or in combination with

    gobos to create the splendid water wave & flame

    effect



    Framing System

    Shutter Blades: 4 blades, each with separate movement and full blackout

    Rotation: ±60° of the complete framing system
