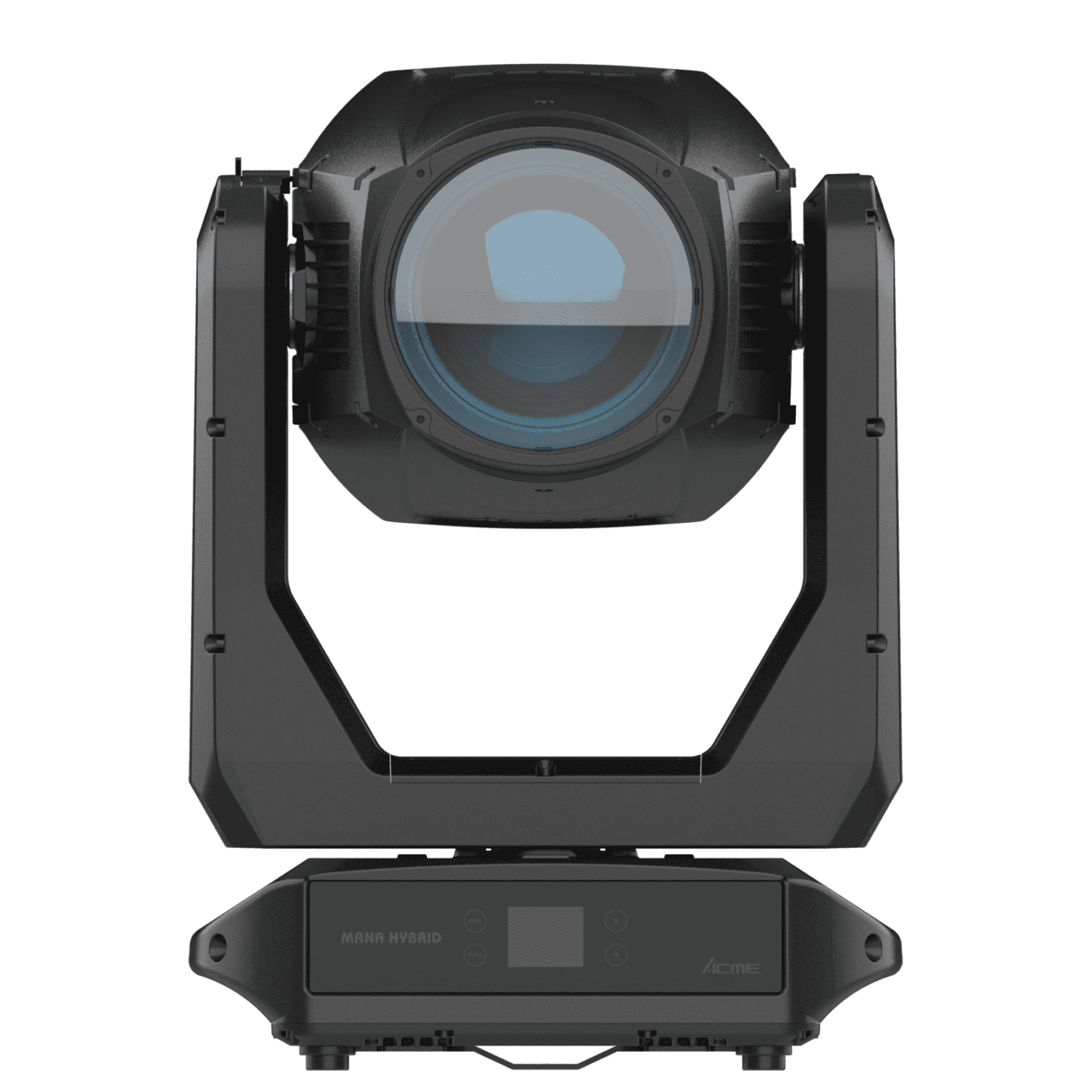

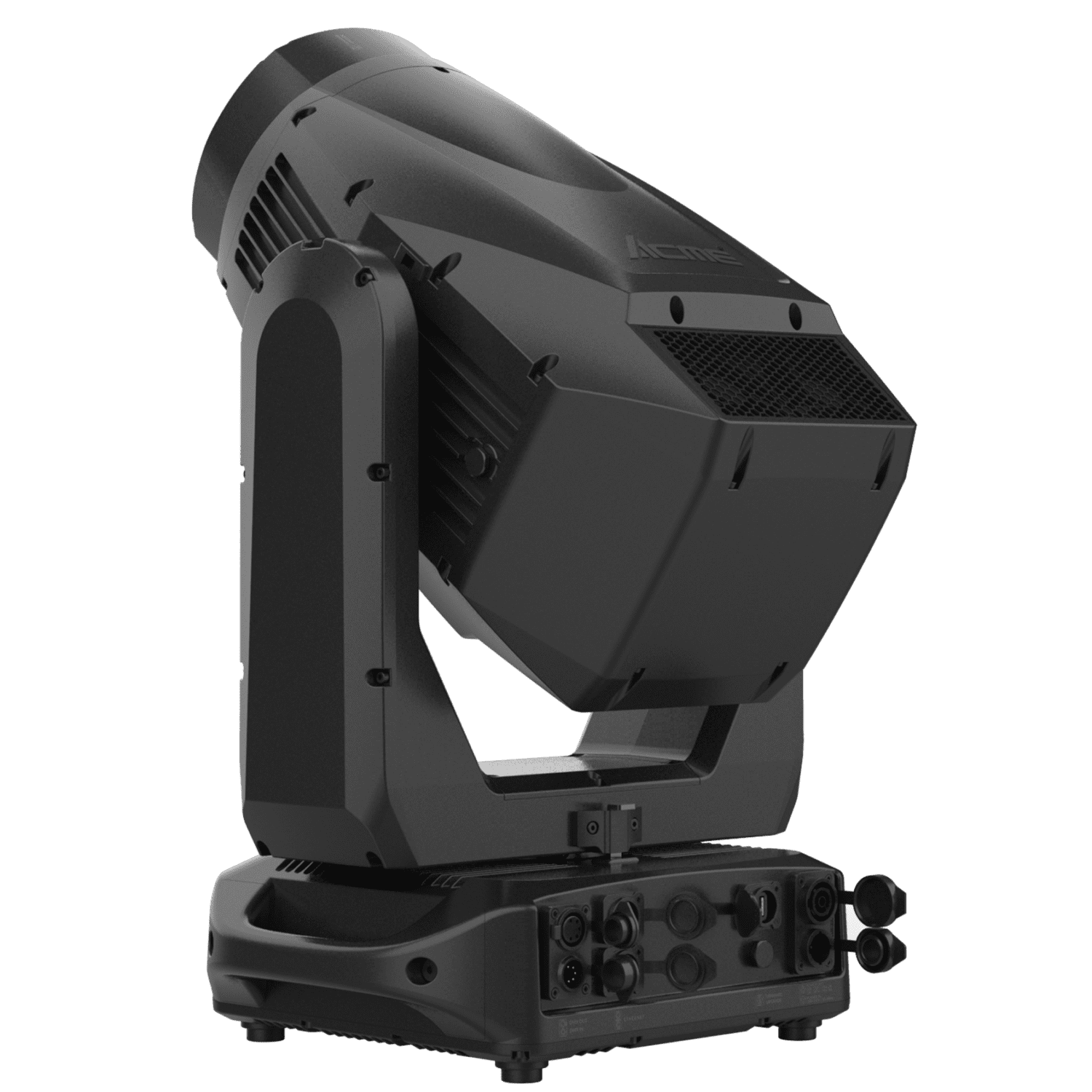

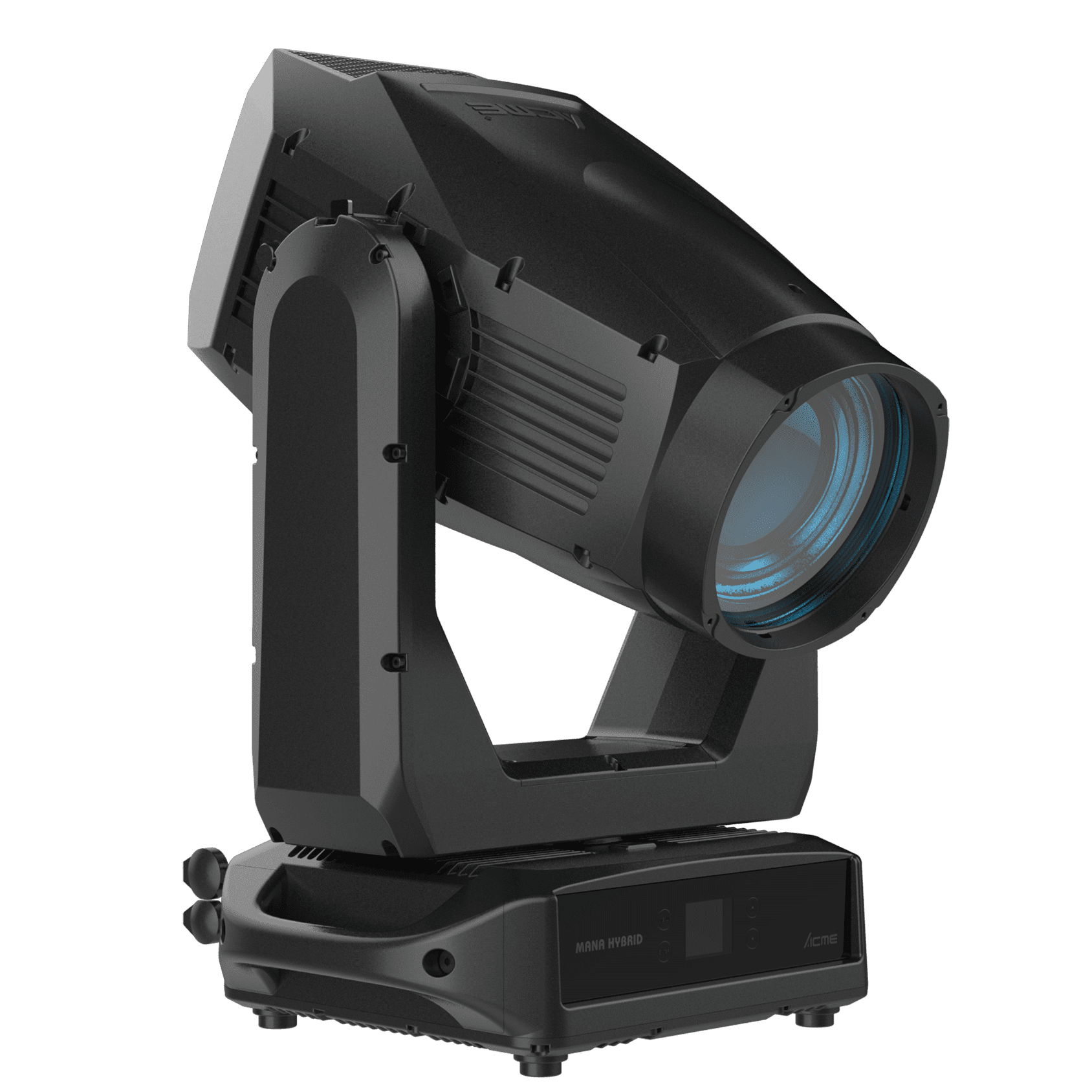

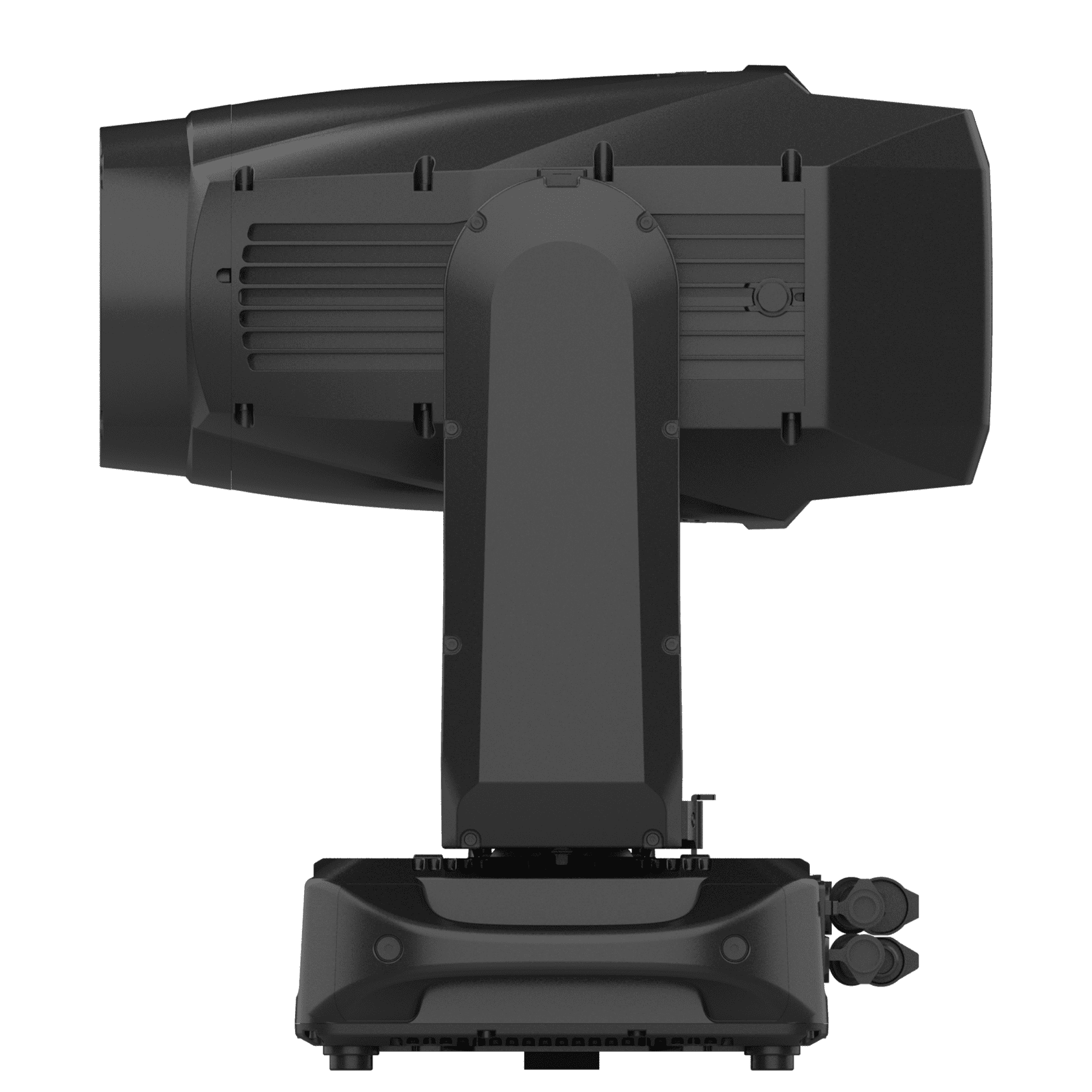

MANA HYBRID

MANA HYBRID es una luminaria híbrida móvil, fuente de inspiración para iluminar tus proyectos innovadores. Con LED de 600 W y una lente de 170 mm, crea una luz brillante y vibrante. Con un ángulo de haz único de 2° a 45° y una salida total de 21 000 lúmenes, la luz se puede manipular libremente. La temperatura de color de la luminaria es de 7000 K, con un modo estándar Ra>70 y un modo HCRI Ra≥90, reproduciendo con precisión cada color.

El sistema de mezcla de colores CMY lineal y el ajuste de temperatura de color CTO lineal varían de 2700 K a 7000 K, ofreciendo infinitas posibilidades de color. Cuenta con múltiples gobos, incluyendo 13 estáticos y 8 giratorios, además de una gran variedad de colores con 7 colores que estimulan la creatividad. Con una rueda de animación gráfica y dos filtros frost combinables, crea fantásticos efectos de iluminación.

MANA HYBRID cuenta con un grado de protección IP66, lo que la hace fiable para su uso en exteriores durante todo el año. Ofrece un ajuste de luz variable del 0 al 100 % y efectos estroboscópicos con velocidad variable, lo que proporciona una experiencia visualmente impactante para un escenario.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    600W LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    21,000 lumens

    Variable CTO

    2,700K-7,000K

    Color Rendering

    Standard: Ra>70

    HCRI:Ra ≥ 90

    Zoom Range

    2° – 45°

    Diameter of Frontal Lens

    170 mm

    Weight

    30.5 kg (67.3 lbs)



    Technical & Specification

    Model

    • Model Name: MANA HYBRID
    • Model Code: XA 600 BSW IP

    Light Source

    • Light Source: 600W LED Engine
    • Total Lumen Output of Fixture: 21,000 lumens
    • Color Temperature Output of Fixture: 7,000K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range: 2°-45°
    • Standard Mode: Ra>70
    • HCRI Mode: Ra≥90
    • Diameter of Frontal Lens: 170 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 4
    • Control Channels: 24/30
    • Firmware Upgrade: Upgrade via DMX link or USB disk

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 260°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 2,700K-7,000K
    • 1 Color Wheel: 7 colors, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 13 gobos, plus open
      • Gobo: Ф17 mm, lmage: Ф13 mm

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 8 gobos, plus open
      • Gobo Slot 1-7: Ф20 mm, lmage: Ф12 mm
      • Gobo Slot 8: Ф20 mm

    Animation Wheel

    • A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave effect, and can be changed into other wheels

    Prism

    • 2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions

    Frost Filter

    • 1 combinable light frost filter and 1 combinable medium frost filter

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 910W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 380 mm (15.0″)
      • Depth: 284 mm (11.2″)
      • Height: 658 mm (25.9″)
      • Weight: 30.5 kg (67.3 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 1,220 mm (48.0″)
      • Depth : 610 mm (24.0″)
      • Height : 805 mm (31.7″)
      • Weight :
        • Standard: G.W.: 125 kg (275.6 lbs) (two-pack loader case)
    • Carton Dimensions:
      • Width : 610 mm (24.0″)
      • Depth : 490 mm (19.3″)
      • Height : 675 mm (26.6″)
      • Weight :
        G.W.: 37.5 kg (82.7 lbs) (One-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C



    Dimensions

    Photometrics



    Video



    Colors

    Linear CMY Color Mixing

    CMY

    3027005285

    3027005286

    3027005284

    Linear CTO Color Correction

    2,700K-7,000K

    3027005288

    Color Wheel:  7 colors, plus open

    Red
    3027002412
    Slot 1

    Green
    3027002413
    Slot 2

    Pink
    3027002414
    Slot 3

    Orange
    3027002415
    Slot 4

    Blue
    3027002416
    Slot 5

    HCRI
    3015001238
    Slot 6

    CTB
    3027002418
    Slot 7



    Gobos

    Static Gobo Wheel: 13 gobos, plus open

    Gobo: Ф17 mm, lmage: Ф13 mm

    Aperture 1
    /
    Slot 1

    Aperture 2
    /
    Slot 2

    TargetA
    3011001515
    Slot 3

    Broken Mirrors
    3011001523
    Slot 4

    Bars
    3011001516
    Slot 5

    Mixed Beams
    3011001517
    Slot 6

    Cross Stripes
    3011001519
    Slot 7

    Concentric Dots
    3011001520
    Slot 8

    Multiple Angles
    3011001521
    Slot 9

    Square Tunnel
    3011001518
    Slot 10

    Multiple Arrows
    3011001522
    Slot 11

    Clouds
    3011001524
    Slot 12

    Grid
    3011001525
    Slot 13

    Rotating Gobo Wheel: 8 indexable and interchangeable gobos, plus open

    Gobo Slot 1-7: Ф20 mm, lmage: Ф12 mm

    Gobo Slot 8: Ф20 mm

    Broken Circle
    3011001526
    Slot 1

    Eccentric Circles
    3011001527
    Slot 2

    Dream Tunnel
    3011001528
    Slot 3

    Tiny Bubbles
    3011001529
    Slot 4

    Dots Line
    3011001530
    Slot 5

    Linear Breakup
    3011001531
    Slot 6

    Scattered Dots
    3011001532
    Slot 7

    Diamond Glass
    3015001230
    Slot 8



    Prisms/Frost Filters

    2 x Combinable Rotating and Indexable Prisms:

    1× 4-facet circular prism, 1× 4-facet linear prism, rotatable in both directions
    1 x combinable light frost filter and 1 x combinable medium frost filter

    4-Facet Circular Prism

    4-Facet Linear Prism

    Light Frost Filter

    Medium Frost Filter



    Zoom Range

    Animation Wheel

    A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels



    Framing System
