LYRA BW

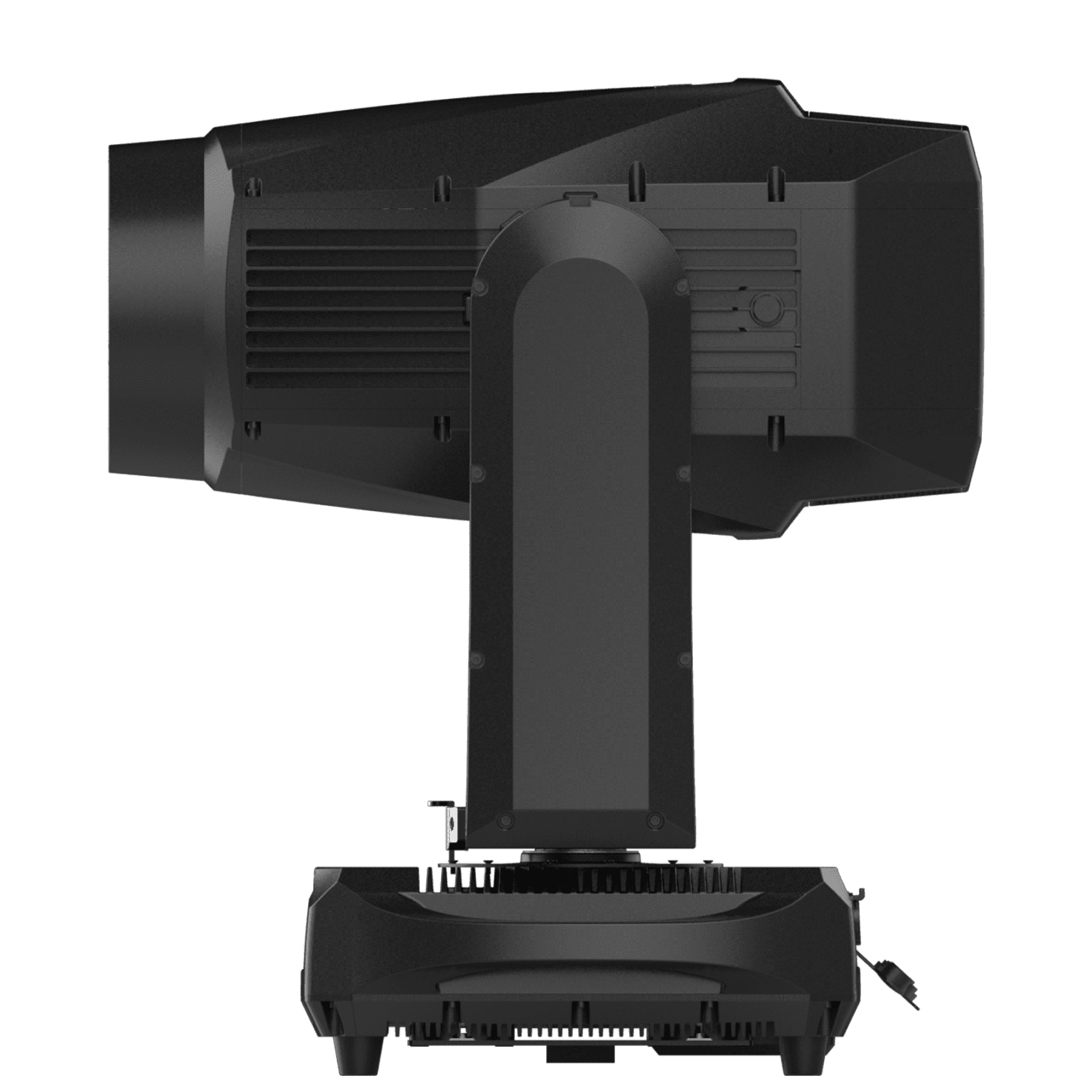

LYRA BW es más que una cabeza móvil wash convencional. Al igual que LYRA, cuenta con una luminaria LED multifacética diseñada y fabricada por ACME para ofrecer el rendimiento que necesita y para afrontar exteriores en cualquier condición climática. Con certificación IP66, el potente motor LED blanco de 1000 vatios del LYRA BW ofrece 56 000 lúmenes con una temperatura de color nativa de 6700 K.

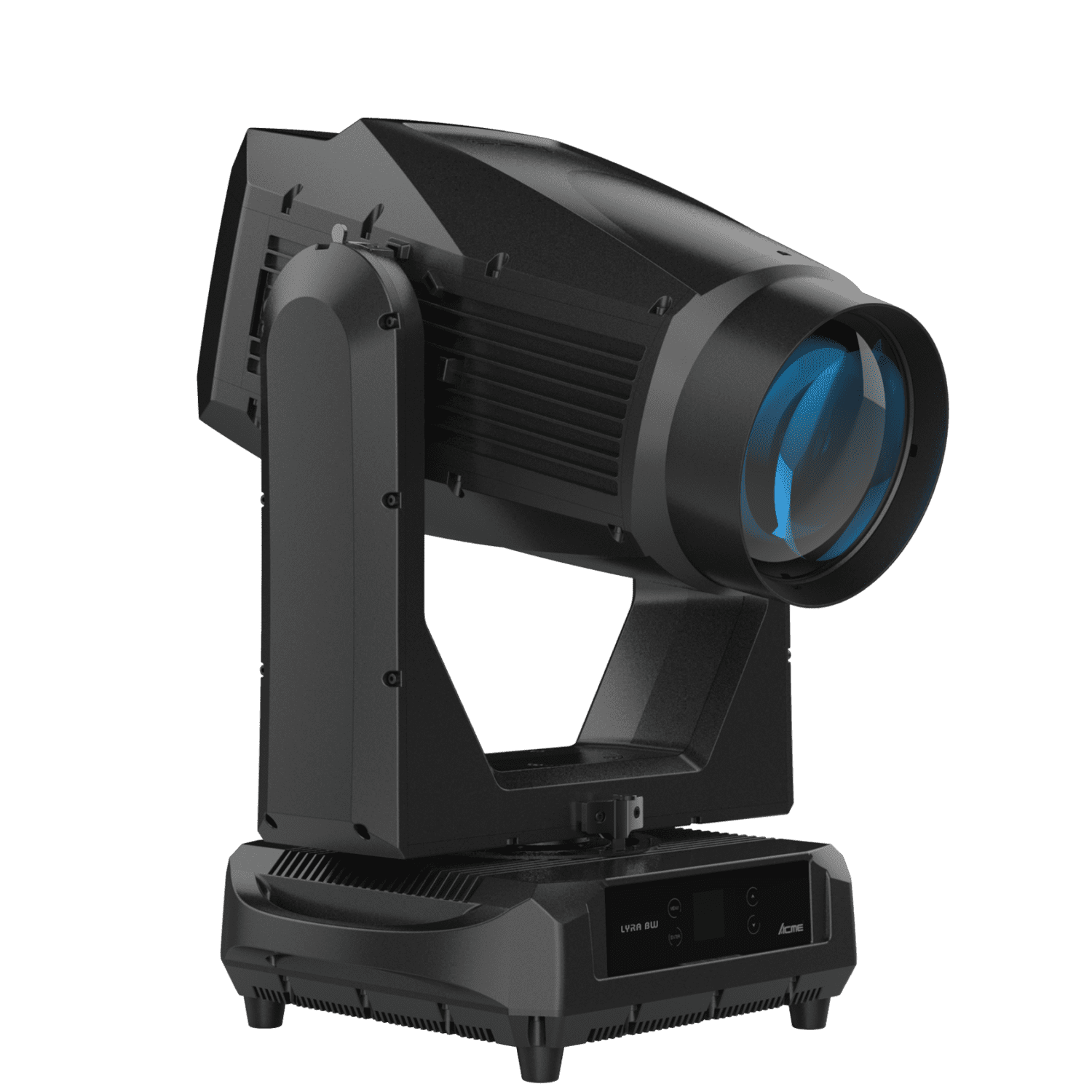

El dispositivo incorpora un sistema de mezcla de colores CMY, una rueda de color fija con cinco colores y un filtro CRI alto, y ofrece corrección de color CTO lineal de 2700K a 6700K. Para efectos especiales, LYRA BW cuenta con una rueda de gobos estática con seis gobos de precisión, un sistema de obturador de 4 palas que proporciona un oscurecimiento total y gira en ambas direcciones, y un filtro de difusión Frost patentado, variable del 0 al 100% para suavizar los bordes del haz. El dispositivo cuenta con una gran lente frontal de 180 mm y un rango de zoom de 5° a 60°, con haces de luz uniformes en todo el rango.

Ya sea que sus necesidades sean conciertos al aire libre, teatro en interiores, festivales, eventos temáticos o cualquier otra que sea su producción, LYRA BW es uno de los equipos de lavado más potentes y versátiles disponibles.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    1,000W LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    56,000 lumens

    Variable CTO

    2,700K-6,700K

    Color Rendering

    Standard Mode: Ra>70

    High CRI Mode: Ra>90

    Zoom Range

    4.5° – 40°

    Diameter of Frontal Lens

    180 mm

    Weight

    42.5 kg (93.7 lbs)



    Technical & Specification

    Model

    • Model Name: LYRA BW
    • Model Code: XA 1000 BW IP

    Light Source

    • Light Source: 1,000W LED engine
    • Total Lumen Output of Fixture: 56,000 lumens
    • Color Temperature Output of Fixture: 6,700K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 4.5°-40°
    • Field Angle : 5°-60°
    • Standard Mode: Ra>70
    • HCRI Mode: Ra>90
    • Diameter of Frontal Lens: 180 mm

    Control

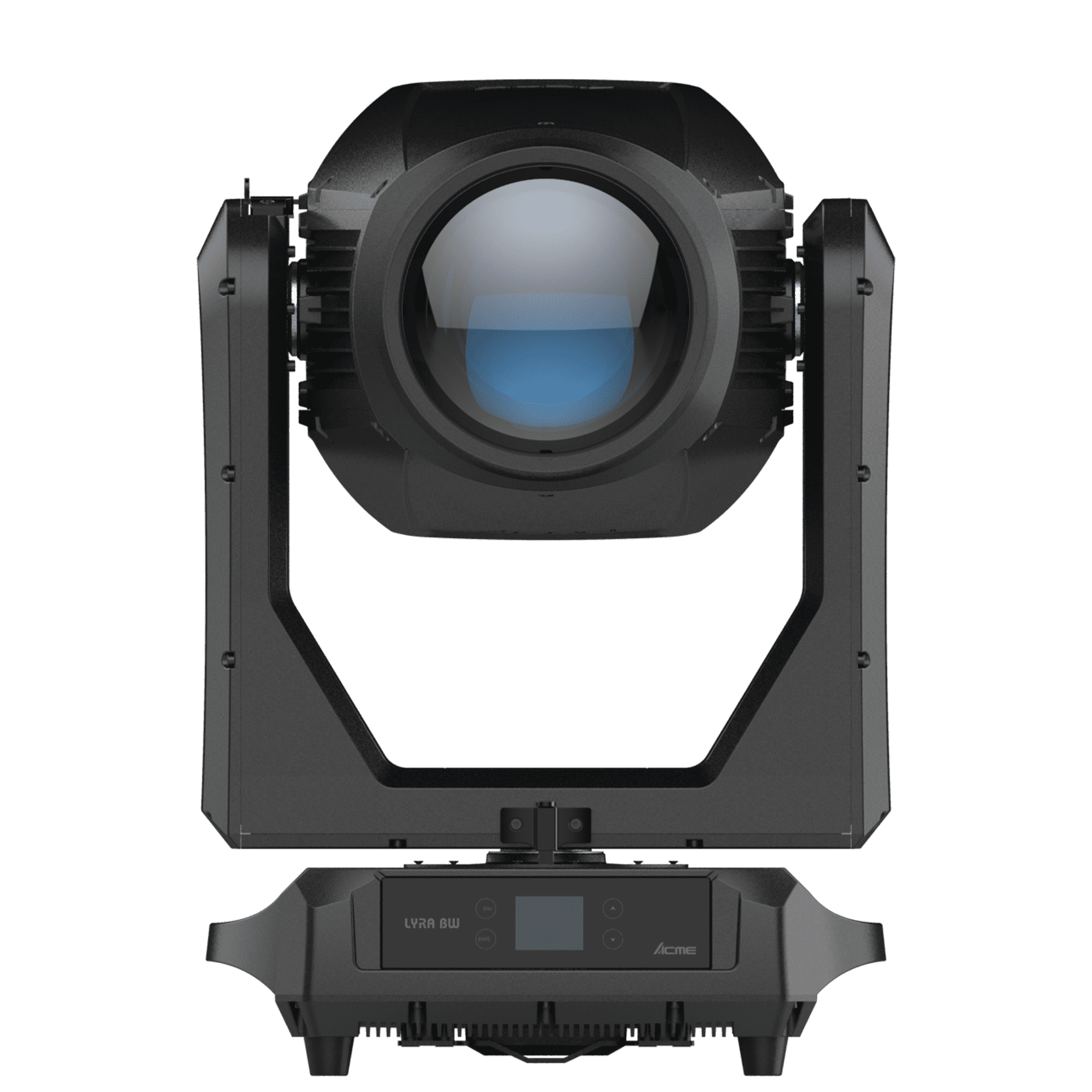

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 2
    • Control Channels: 30/18
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 260°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit

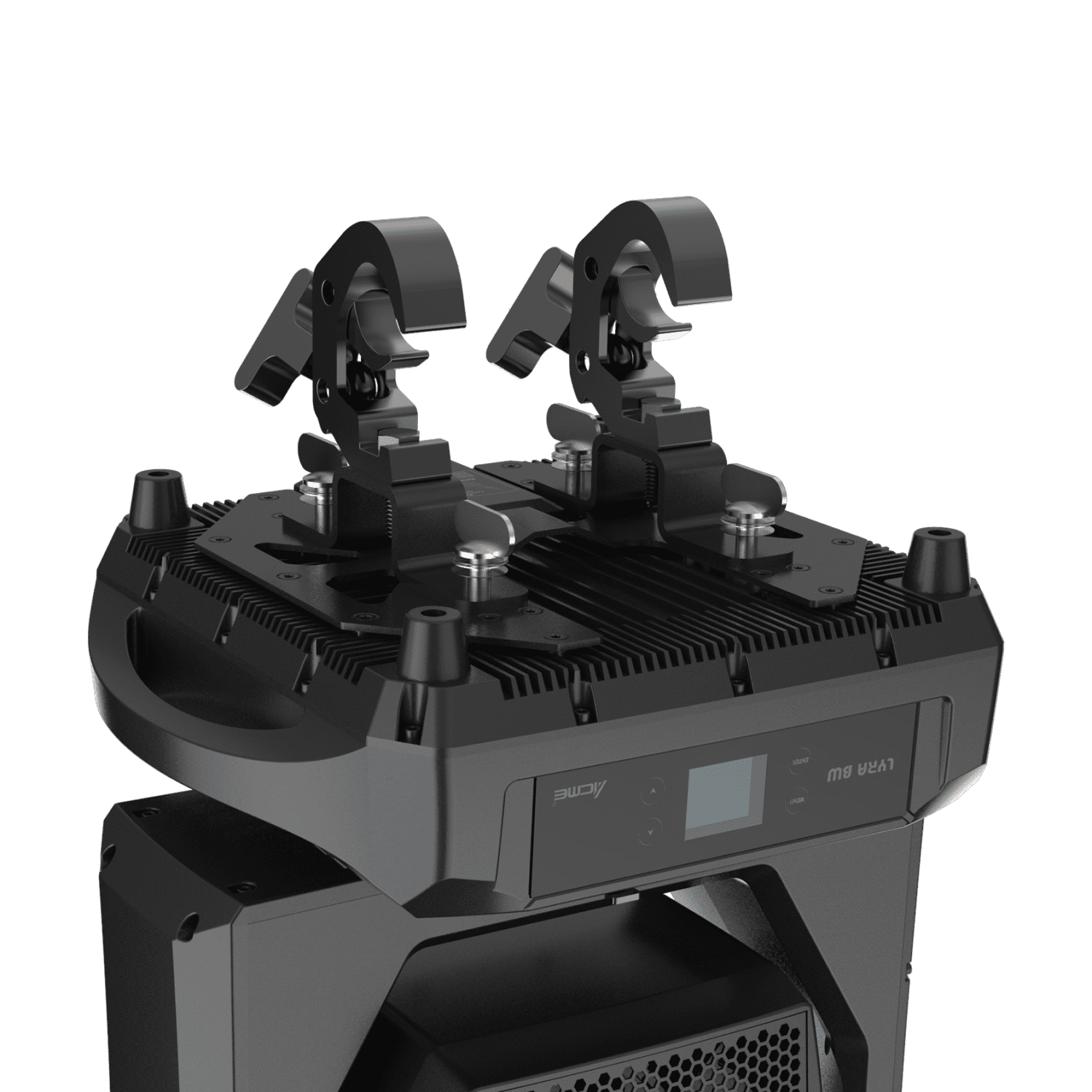

    • Fixation: Pan/Tilt lock

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 2,700K-6,700K
    • 1 Color Wheel: 5 colors, 1 HCRI filter, plus open

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 6 High-precision gobos, plus open
      • Gobo: Ф32 mm, lmage: Ф28 mm

    Framing System

    • Shutter Blades: 4 blades, each with separate movement and full blackout
    • Rotation: ±60° of the complete framing system

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • New material patented diffusion filter can achieve 0~100% linear softening effects and center beam more uniform

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 1,455W

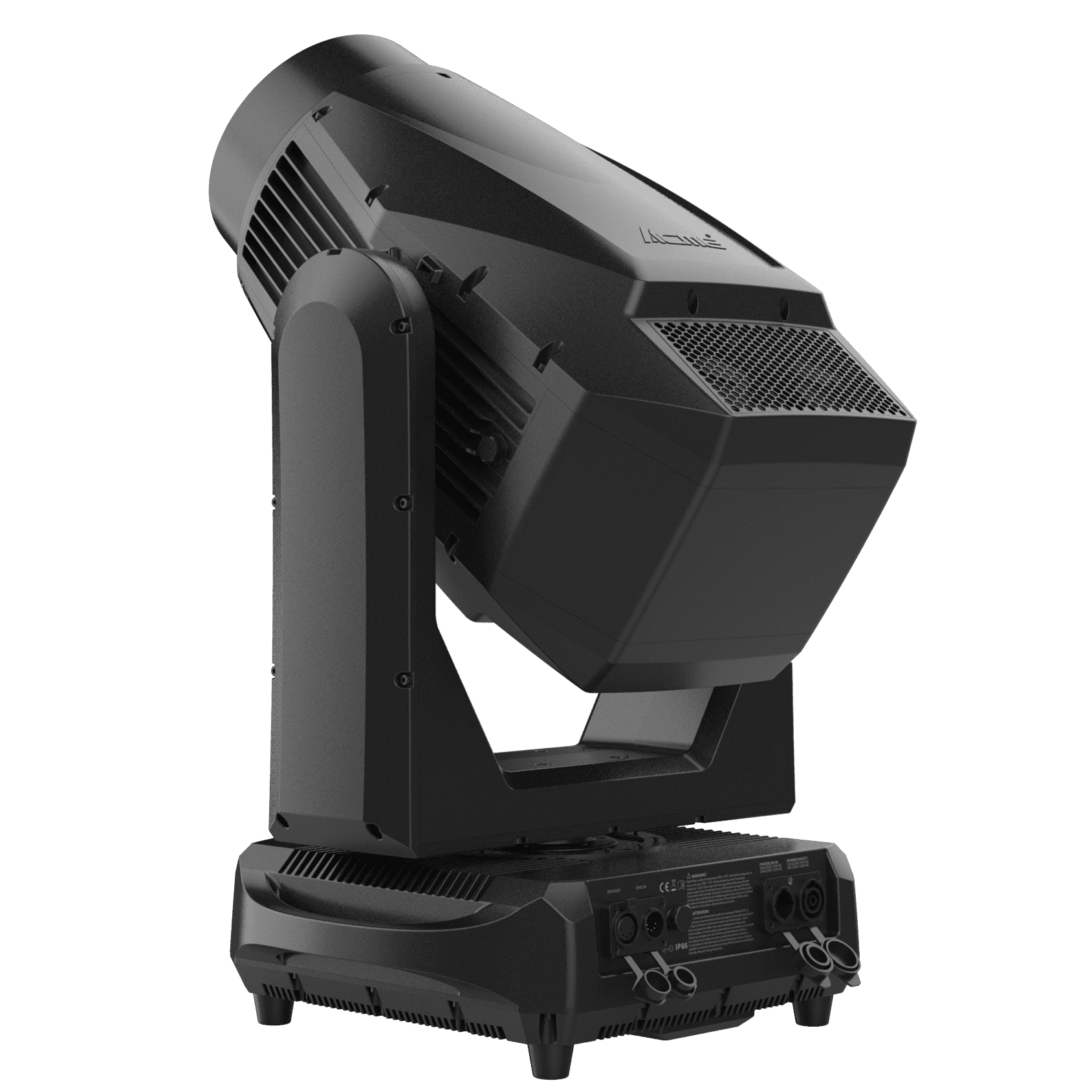

    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 412 mm (16.2″)
      • Depth: 330 mm (13.0″)
      • Height: 743 mm (29.3″)
      • Weight: 42.5 kg (93.7 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 1,143 mm (45.0″)
      • Depth : 812 mm (32.0″)
      • Height : 840 mm (33.1″)
      • Weight :
        • Standard: G.W.: 184.5 kg (406.8 lbs) (Two-pack loader case)
    • Carton Dimensions:
      • Width : 630 mm (24.8″)
      • Depth : 520 mm (20.5″)
      • Height : 715 mm (28.1″)
      • Weight :
        G.W.: 50.5 kg (111.3 lbs) (One-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: -10°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP66

    Approvals



    Video



    Colors

    Linear CMY Color Mixing

    CMY

    Linear CTO Color Correction

    2,700K-6,700K

    Color Wheel : 5 colors, 1 HCRI filter, plus open

    Red
    3027005190
    Slot 1

    Green
    3027005189
    Slot 2

    Pink
    3027005188
    Slot 3

    Orange
    3027005187
    Slot 4

    Blue
    3027005186
    Slot 5

    HCRI
    3027005188
    Slot 6



    Gobos


    Rotating Gobo Wheel 1: 6 gobos, plus open

    Gobo: Ф32 mm, lmage: Ф28 mm

    3011001487
    Slot 1

    3011001488
    Slot 2

    3011001489
    Slot 3

    3011001490
    Slot 4

    3011001491
    Slot 5

    3011001492
    Slot 6



    Prisms/Frost Filters

    New material patented diffusion filter can achieve 0~100% linear softening effects and center beam more uniform

    Light Frost Filter

    Medium Frost Filte



    Beam Angle



    Framing System

    Framing: 4 fast and smooth framing shutters. Each shutter blade position and angle can be controlled individually, the framing module can be rotated at ±60°

    Descargas


    LYRA BW Descargas Enlace
