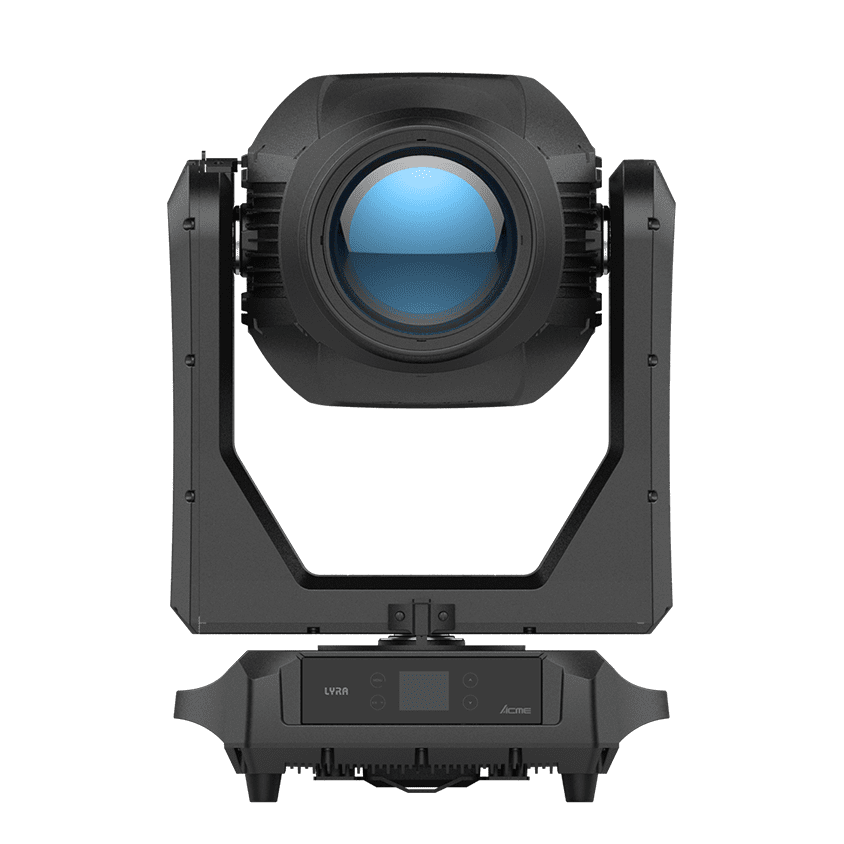

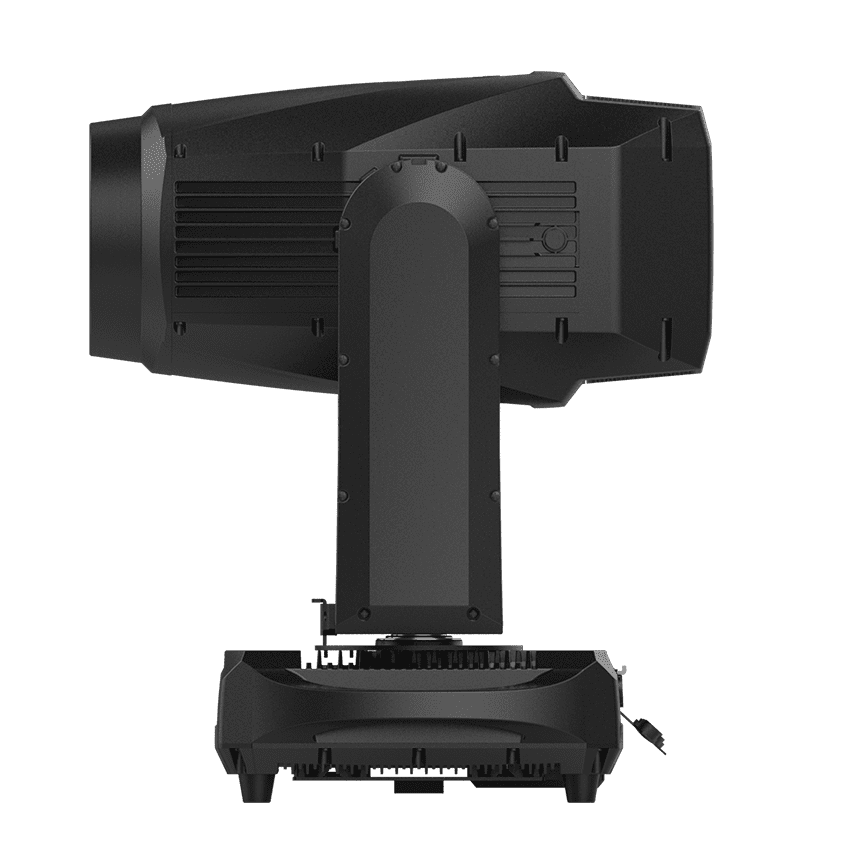

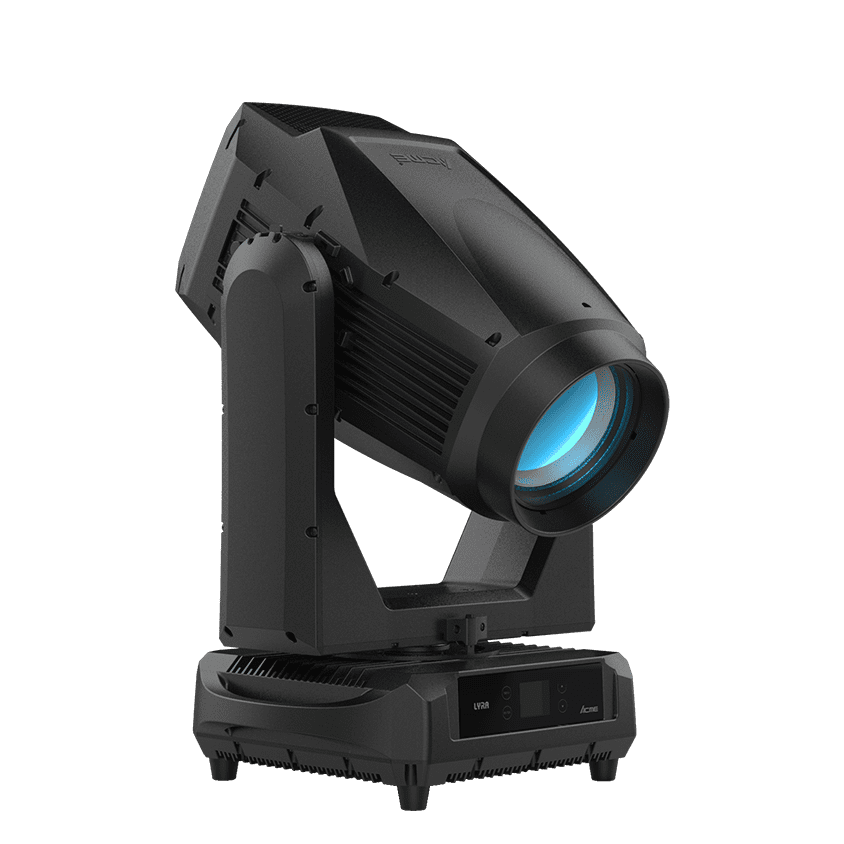

LYRA

LYRA es un dispositivo de iluminación LED multifacético que ACME diseñó y fabricó para brindar el rendimiento que necesita y para enfrentarse a exteriores en todas las condiciones climáticas. Con clasificación IP66, el potente motor LED blanco de 1000 vatios del dispositivo LYRA ofrece 35,000 lúmenes a una temperatura de color nativa de 8000 K.

La unidad tiene un sistema de mezcla de colores CMY, una rueda de color fija con cinco colores más un filtro CRI alto y ofrece una corrección de color CTO lineal de 2700 K a 6700 K. Para los efectos, LYRA tiene una rueda de gobos giratoria con siete gobos giratorios de alta precisión, una rueda de gobos estática con nueve gobos, una rueda de animación bidireccional con numerosos efectos, dos prismas combinables (prisma de 4 facetas y prisma lineal de 4 facetas), iris y sistema de obturador de 4 hojas que proporciona un apagón total y gira en ambas direcciones, y filtros de escarcha claros y medios. El dispositivo cuenta con una lente frontal de 160 mm y un zoom de 6° a 50°, produciendo imágenes nítidas y definidas en todo su alcance.

Ya sea para conciertos al aire libre, teatro en interiores, festivales, eventos temáticos o cualquier otra producción, LYRA es uno de los dispositivos más versátiles del mercado.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    1,000W LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    35,000 lumens (Ra>70)

    Variable CTO

    2,700K-6,500K

    Color Rendering

    Standard: Ra>70

    HCRI: Ra>90

    Zoom Range

    Beam: 6° – 50°

    Diameter of Frontal Lens

    160 mm

    Weight

    42 kg (92.6 lbs)



    Technical & Specification

    Model

    • Model Name: LYRA
    • Model Code: XA 1000 BSWF IP

    Light Source

    • Light Source: 1,000W 8,000K White LED Engine
    • Total Lumen Output of Fixture :
      • Ra>70: 35,000 lumens
      • Ra>90: 25,600 lumens
    • Color Temperature Output of Fixture: 6,500K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range: 6°-50°
    • Standard Mode: Ra>70
    • HCRI Mode: Ra>90
    • Diameter of Frontal Lens: 160 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 5
    • Control Channels: 22/30/31/39/40
    • Firmware Upgrade: Upgrade via DMX link

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 260°
    • Automatic Pan/Tilt position correction
    • Resolution: 8 or 16 bit
    • Fixation: Pan/Tilt lock

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 2,700K-6,500K
    • 1 Color Wheel: 5 colors + CRI + frost, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 9 gobos, plus open
      • Gobo: Ф22.5 mm, lmage: Ф17 mm

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 7 gobos, plus open
      • Gobo Slot 1-6: Ф22.5 mm, lmage: Ф17 mm
      • Gobo Slot 7: Ф22.5 mm

    Animation Wheel

    • A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels

    Prism

    • 2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable and overlayable in both directions

    Frost Filter

    • 1 combinable light frost filter and 1 combinable medium frost filter

    Framing System

    • Shutter Blades: 4 blades, each with separate movement and full blackout
    • Rotation: ±60° of the complete framing system

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized linear iris
    • Motorized zoom and focus

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 1,190W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 412 mm (16.2″)
      • Depth: 330 mm (13.0″)
      • Height: 719 mm (28.3″)
      • Weight: 42 kg (92.6 lbs)

    Packing Information

    • Flight Case Dimensions 1:
      • Width : 620 mm (24.4″)
      • Depth : 590 mm (23.2″)
      • Height : 850 mm (33.5″)
      • Weight :
        • Standard : G.W.: 86.5 kg (190.7 lbs) (one-pack loader case)
    • Flight Case Dimensions 2:
      • Dimensions

        Photometrics



    Video



    Colors

    Linear CMY Color Mixing

    CMY

    3027002331
    3027002332

    3027002329
    3027002330

    3027002333
    3027002333

    Linear CTO Color Correction

    2,700K-6,500K

    3027002335
    3027002336

    Color Wheel: 5 colors + CRI +frost

    Red
    3027005190
    Slot 1

    Green
    3027005189
    Slot 2

    Pink
    3027005188
    Slot 3

    Orange
    3027005187
    Slot 4

    Blue
    3027005186
    Slot 5

    CRI
    3015001119
    Slot 6

    Frost
    3015001121
    Slot 7



    Gobos

    Static Gobo Wheel: 9 gobos, plus open

    Gobo: Ф22.5 mm, lmage: Ф17 mm

    Target
    3011001326
    Slot 1

    Broken Waves
    3011001328
    Slot 2

    Concentric Dots
    3011001335
    Slot 3

    Multiple Angles
    3011001330
    Slot 4

    Broken Mirrors
    3011001331
    Slot 5

    Leafy Branches
    3011001100
    Slot 6

    Cross Stripes
    3011001332
    Slot 7

    Grid
    3011001333
    Slot 8

    Fingerprint
    3011001334
    Slot 9

    Rotating Gobo Wheel: 7 gobos, plus open

    Gobo Slot 1-6: Ф22.5 mm, lmage: Ф17 mm

    Gobo Slot 7: Ф22.5 mm

    Broken Circle
    3011001329
    Slot 1

    Multiple Arrows
    3011001336
    Slot 2

    Dream Tunnel
    3011001327
    Slot 3

    Tiny Bubbles
    3011001099
    Slot 4

    Square Bar
    3011001337
    Slot 5

    Linear Breakup
    3011001338
    Slot 6

    Diamond Glass
    3015000886
    Slot 7



    Prisms/Frost Filters

    2 Combinable Rotating and indexable Prisms:

    1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions

    1 combinable light frost filter and 1 combinable medium frost filter

    4-Facet Circular Prism

    4-Facet Linear Prism

    Light Frost Filter

    Medium Frost Filter



    Zoom Range

    Animation Wheel

    A graphic animation wheel with continuous

    rotation in both directions, creating the

    splendid water wave and flame effect, and can be changed into other wheels



    Framing System

    Shutter Blades: 4 blades, each with separate movement and full blackout

    Rotation: ±60° of the complete framing system
