KRAKEN

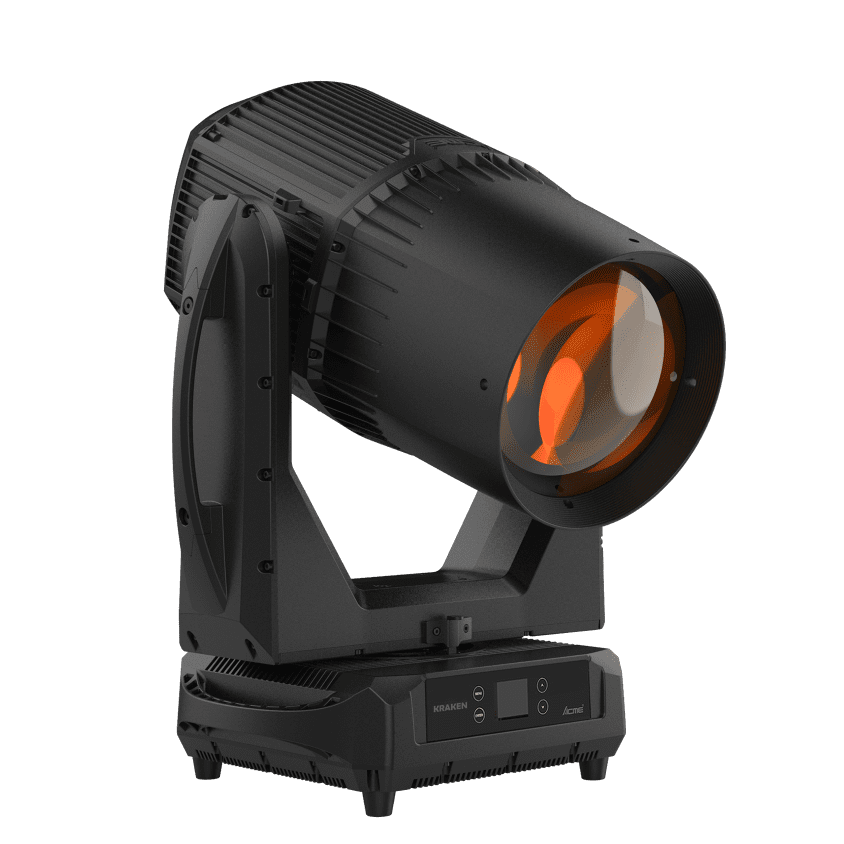

ACME KRAKEN, una cabeza móvil láser de seguridad completamente nuevo con una óptica única y un excelente rendimiento de color, se utiliza principalmente para aplicaciones en exteriores a gran escala. Equipado con una lente ultragrande de 230 mm, emite un haz de 0,8° superpotente y nítido, capaz de alcanzar 372.000 lux a 20 m de distancia. Al añadir un gobo dinámico y dos prismas combinables, la cadena de un solo haz produce diversos efectos en el aire. La increíble gama de colores de su exclusiva fuente láser inspira al usuario en múltiples diseños.

Con una construcción robusta, protección IP66 y una resistente carcasa de aluminio fundido a presión, lo protege del polvo, la arena, la humedad y los líquidos, ideal para cualquier situación, desde desiertos polvorientos hasta campos lluviosos. Perfecto para festivales y espectáculos al aire libre, así como para su instalación en exteriores y otros espacios de entretenimiento, este innovador dispositivo ofrece una vida útil excepcional y un mantenimiento reducido gracias a su diseño de carcasa sellada. KRAKEN se caracteriza por su gran alcance, gran penetración, gran potencia de haz y un efecto de color de altísima calidad. Está diseñado para exteriores.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    1 x 260W Laser Engine(A safe module encloser)

    LED Life Expectancy

    12,000 hours

    Total Lumen Output of Fixture

    12,000 lumens

    Variable CTO

    7,000K-9,000K

    Beam Angle

    0.8°

    Diameter of Frontal Lens

    230 mm

    Weight

    45.0 kg (99.2 lbs)





    Technical & Specification

    Model

    • Model Name: KRAKEN
    • Model Code: XL 300 BEAM IP

    Light Source

    • Light Source: 1 x 260W Laser Engine(A safe module encloser)
    • Total Lumen Output of Fixture: 12,000 lumens
    • Color Temperature Output of Fixture: 7,000k-9,000K
    • Life Expectancy: 12,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 0.8°
    • Diameter of Frontal Lens: 230 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 1
    • Control Channels: 18
    • Firmware Upgrade: Upgrade via DMX link

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 270°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Fixation: Pan/Tilt lock

    Colors

    • 1 Color Wheel: 15 colors, plus open

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 11 gobos, plus open
      • Gobo Slot 1-10: Ф9.8 mm, lmage: Ф4 mm
      • Gobo Slot 11: Ф9.8 mm

    Prism

    • 2 Combinable Rotating and Indexable Prisms: 1×8-facet circular prism, 1×24-facet linear prism, rotatable in both directions

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized focus system

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 405W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 499 mm (19.6″)
      • Depth: 330 mm (13.0″)
      • Height: 794 mm (31.3″)
      • Weight: 45 kg (99.2 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 715 mm (28.1″)
      • Depth : 595 mm (23.4″)
      • Height : 905 mm (35.6″)
      • Weight :
        • Standard: G.W.: 92 kg (203.0 lbs) (One-pack loader case)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: -10°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP66

    Installation

    • Horizontal or vertical mounting
    • Universal working position

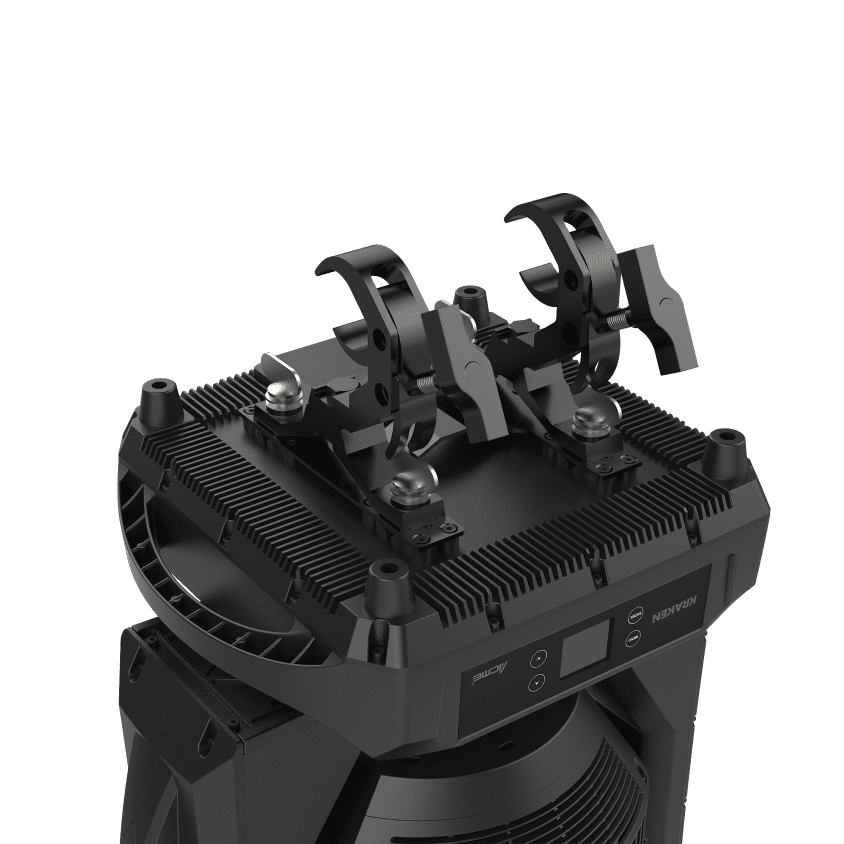

    • 2 omega brackets
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable
    • 2 omega brackets (3002003003)

    Optional Accessories (With Order Code)

    • Flight Case:
      • Standard : One-pack loader case (63583820)
    • Clamp : C-250B (2060001632-B)
    • Safety Cable: SW-05 (2060001603-A)
    • Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)



    Dimensions

    Photometrics



    Video



    Colors

    15 colors, plus open

    Red
    3027002314
    Slot 1

    Orange
    3027002327
    Slot 2

    Aqua Marine
    3027002316
    Slot 3

    Dark Green
    3027002317
    Slot 4

    Light Green
    3027002318
    Slot 5

    Lavender
    3027002319
    Slot 6

    Light Yellow
    3027002320
    Slot 7

    Magenta
    3027002321
    Slot 8

    Cyan
    3027002322
    Slot 9

    Orange
    3027002315
    Slot 10

    Yellow
    3027002323
    Slot 11

    Green
    3027002328
    Slot 12

    6,000K
    3027002325
    Slot 13

    8000K
    3027002326
    Slot 14

    UV
    3027002324
    Slot 15



    Gobos


    1 Rotating & Interchangable Gobo Wheel : 11 gobos, plus open

    Gobo1-10: Ф9.8 mm, lmage: Ф4 mm

    Gobo11: Ф9.8 mm

    Bar
    3011001324
    Slot 1

    Cross
    3011001315
    Slot 2

    Triangle
    3011001313
    Slot 3

    Square
    3011001312
    Slot 4

    Pentagram
    3011001316
    Slot 5

    Three Dots
    3011001314
    Slot 6

    Four Dots
    3011001319
    Slot 7

    Magnets
    3011001320
    Slot 8

    Lightning
    3011001322
    Slot 9

    Bubbles
    3011001321
    Slot 10

    Diamond B
    3011001318
    Slot 11



    Prisms/Frost Filters

    2 Combinable Rotating and indexable Prisms:

    1 x 8-facet circular prism, 1 x 24-facet circular prism,

    rotatable in both directions and overlayable

    8-Facet Circular Prism

    24-Facet Circular Prism



    Beam Angle
