The ACME Lighting GEIST BSWF is a multi-functional LED fixture powered by a 450-Watt white LED engine. This fixture can be a beam, spot, or wash, delivers over 20,000 lumens, and weighs only 24.5 kilograms (or 54.0 pounds) making it one of the smallest but brightest fixtures in its class.

Although small, the GEIST BSWF is packed with the features you would expect from a fixture in this class. It has CYM color mixing, variable CTO from 2,700K to 7,000K, a color wheel with five colors and a high CRI filter, a rotating gobo wheel with seven rotating gobos, a static gobo wheel with eight gobos including two beam reducers, a four-blade framing system that can rotate in 45° in either direction and do full blackouts, two frost filters, and a four-facet prism. The fixture’s High-efficiency optics and 120 mm frontal lens produce sharp images and rich colors.

The GEIST BSWF is designed to be what you need it to be when you need it for a wide variety of productions.

    Consultar precios

    Descripción

    Performance

    Light Source

    450W white LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    20,000 lumens

    Variable CTO

    2,700K-7,000K

    Color Rendering

    Standard: Ra>70

    HCRI: Ra>90

    Zoom Range

    6.5° – 54°

    Diameter of Frontal Lens

    120 mm

    Weight

    24.5 kg (54.0 lbs)



    Technical & Specification

    Model

    • Model Name: GEIST BSWF
    • Model Code: XA-500 BSWF

    Light Source

    • Light Source: 450W white LED engine
    • Total Lumen Output of Fixture: 20,000 lumens
    • Color Temperature Output of Fixture: 7,000K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range: 6.5°-54°
    • Standard Mode: Ra>70
    • HCRI Mode: Ra>90
    • Diameter of Frontal Lens: 120 mm

    Control

    • 4 touch button control panel
    • Display: Color display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 3
    • Control Channels: 25/29/34
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 260°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Fixation: Pan/Tilt lock

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 2,700K-7,000K
    • 1 Color Wheel: 5 colors + CRI, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 8 gobos, plus open
      • Gobo: Ф130 mm

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 7 gobos, plus open
      • Gobo Slot 1-6: Ф22.5 mm, lmage: Ф17.5 mm
      • Gobo Slot 7: Ф22.5 mm

    Animation Wheel

    • A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels

    Prism

    • 1 Rotating and Indexable Prism: 1 x 4-facet circular prism, rotatable in both directions

    Frost Filter

    • 1 combinable light frost filter and 1 combinable medium frost filter

    Framing System

    • Shutter Blades: 4 blades, each with separate movement and full blackout
    • Rotation: ±45° of the complete framing system

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized zoom and focus

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 670W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 364 mm (14.3″)
      • Depth: 250 mm (9.9″)
      • Height: 658 mm (25.9″)
      • Weight: 24.5 kg (54.0 lbs)

    Packing Information

    • Flight Case Dimensions 1:
      • Width : 890 mm (35.0″)
      • Depth : 780 mm (30.7″)
      • Height : 575 mm (22.6″)
      • Weight :
        • Standard : G.W.: 96 kg (211.6 lbs) (two-pack loader case)
    • Flight Case Dimensions 2:
      • Width : 1,220 mm (48.0″)
      • Depth : 610 mm (24.0″)
      • Height :



    Dimensions

    Photometrics



    Video



    Colors

    Linear CMY Color Mixing

    CMY

    3027002240

    3027002241

    3027002242

    Linear CTO Color Correction

    2,700K-7,000K

    3027002243

    Color Wheel: 5 colors + CRI, plus open

    Red
    3027002235
    Slot 1

    Green
    3027002237
    Slot 2

    Pink
    3027002238
    Slot 3

    Orange
    3027002239
    Slot 4

    Blue
    3027002236
    Slot 5

    CRI
    3015000903
    Slot 6



    Gobos

    Static Gobo Wheel: 8 gobos, plus open

    Gobo: Ф130 mm

    Order Code: 3011001120

    Slot 1

    Slot 2

    Slot 3

    Slot 4

    Slot 5

    Slot 6

    Slot 7

    Slot 8

    Rotating Gobo Wheel: 7 gobos, plus open

    Gobo Slot 1-6: Ф22.5 mm, lmage: Ф17 mm

    Gobo Slot 7: Ф22.5 mm

    Draughtboard
    3011001097
    Slot 1

    Shredded Paper
    3011001098
    Slot 2

    Tiny Bubbles
    3011001099
    Slot 3

    Leafy Branches
    3011001100
    Slot 4

    Bamboo Forest
    3011001101
    Slot 5

    Gravel
    3011001102
    Slot 6

    Diamond Glass
    3015000886
    Slot 7



    Prisms/Frost Filters

    1 Rotating and indexable Prism:

    1 x 4-facet circular prism, rotatable in both directions

    1 combinable light frost filter and 1 combinable medium frost filter

    4-Facet Circular Prism

    Light Frost Filter

    Medium Frost Filter

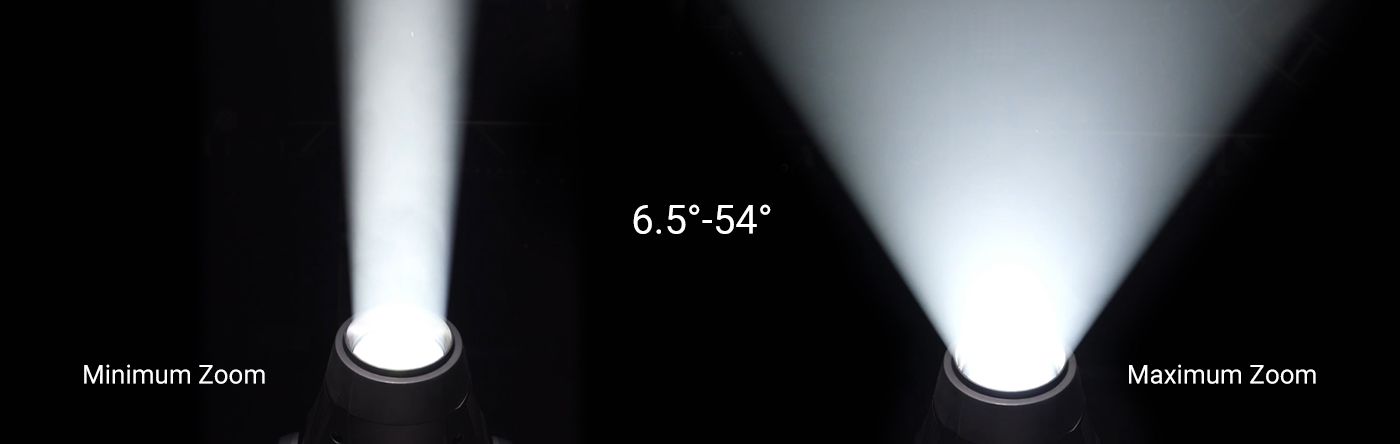

    Zoom Range



    Framing System

    Shutter Blades: 4 blades, each with separate movement and full blackout

    Rotation: ±45° of the complete framing system
