DIAMONDS

DIAMONDS II laser lighting, equipped with 10W RGB Semi-conductor, a variety of built-in laser graphics and animation effects, can reach long distance beam effect, the penetration is strong, suitable for many programming software, meet the needs of KTV, clubs, concerts, large-scale venues and other applications.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    10W RGB laser light

    Angle

    X/Y scanning angle ±30°

    Weight

    13.5 kg (29.8 lbs)



    Model

    • Model Name: DIAMONDS
    • Model Code: LS 1010 RGB

    Light Source

    • Light Source : 10W RGB laser light

    Optical System

    • Angle: X/Y scanning angle ±30°

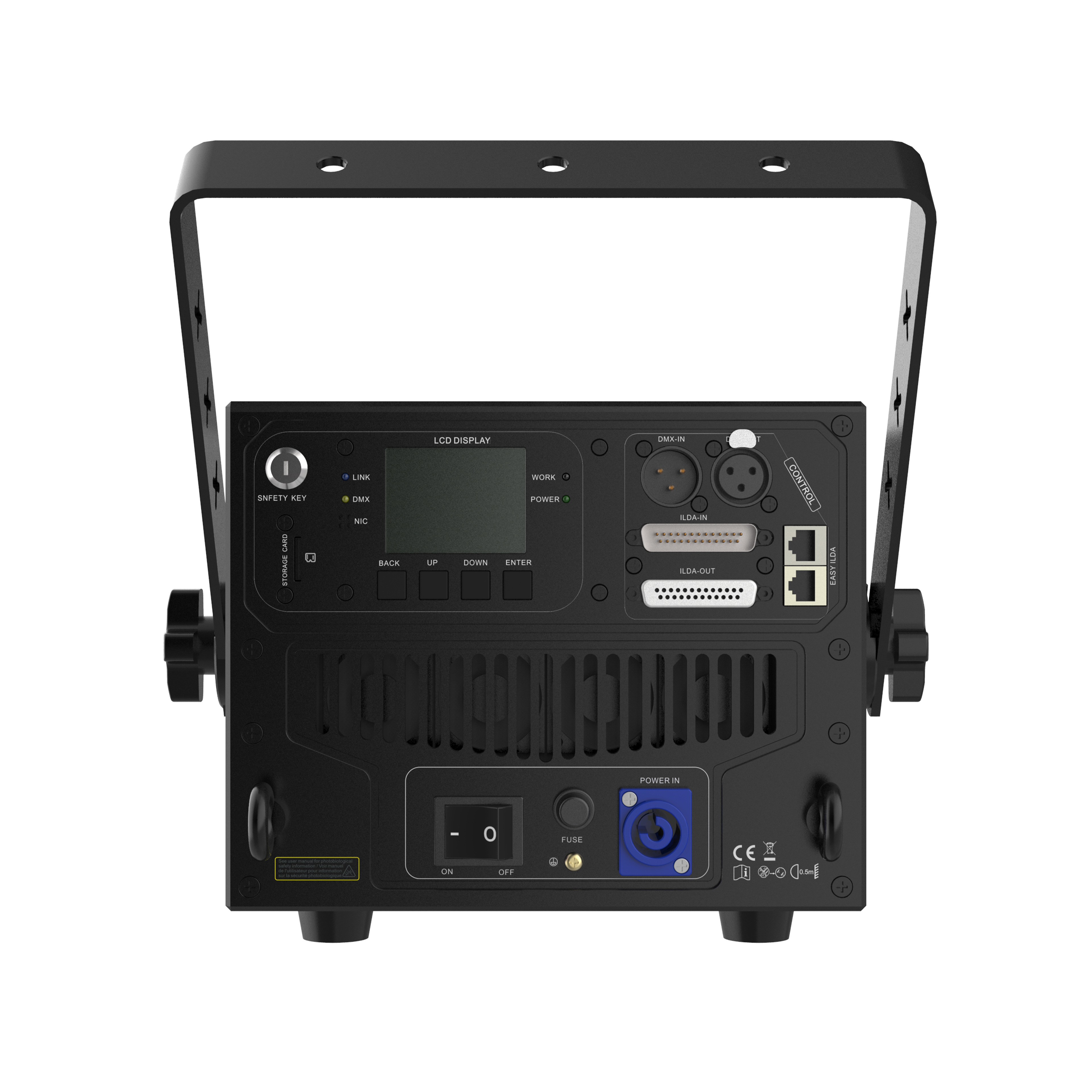

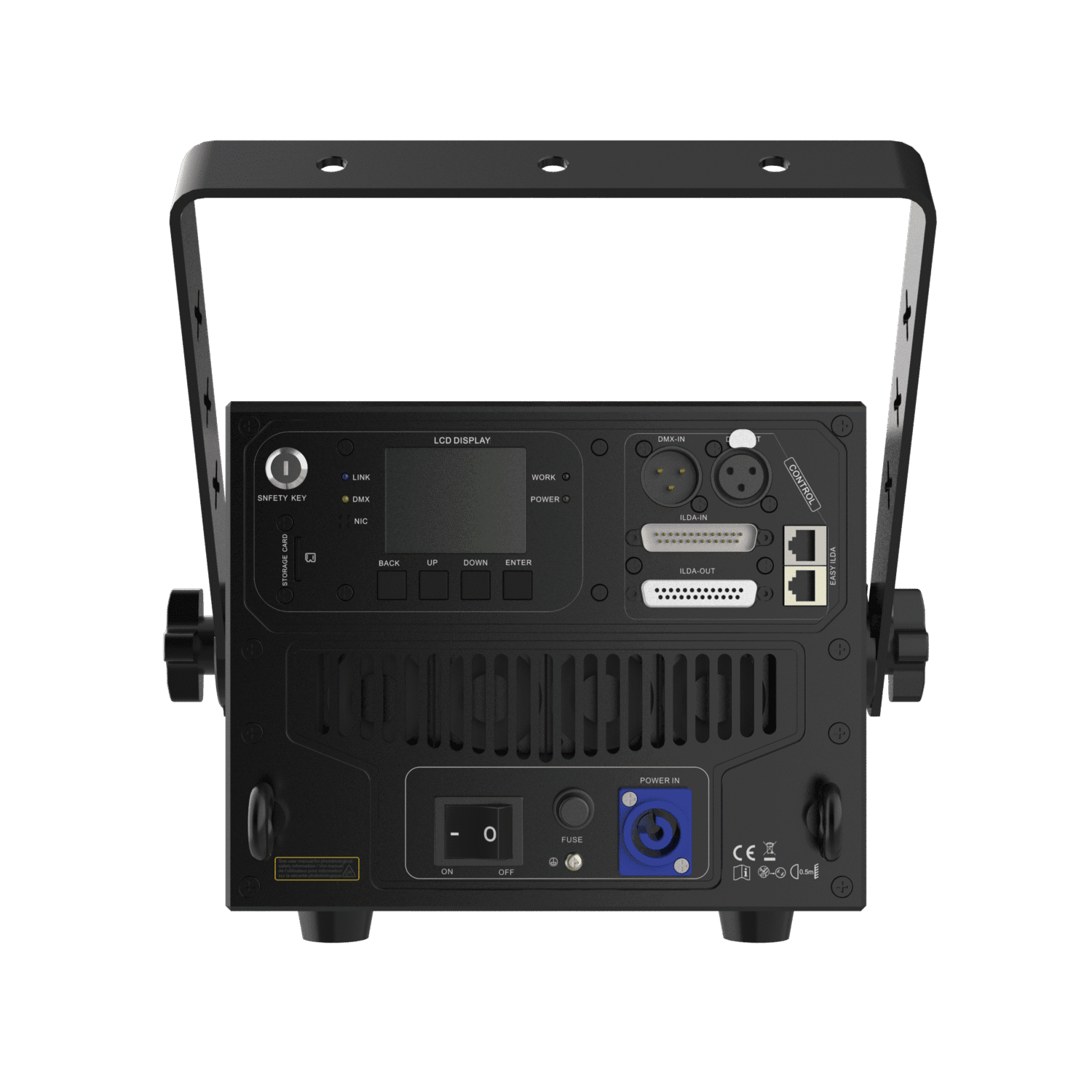

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Operational Modes: DMX Control,Sound Active,ILDA,SD card control
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 2
    • Control Channels: 27/52
    • Firmware Upgrade: Upgrade via SD card control

    Other Effects

    • Flicker-free management
    • Effects: 50K optical scanner for beam, various built-in laser patterns and animation
    • Compatible with laser show software: Pangolin, Phoenix, Mamba
    • Dust-proof and oil-proof design

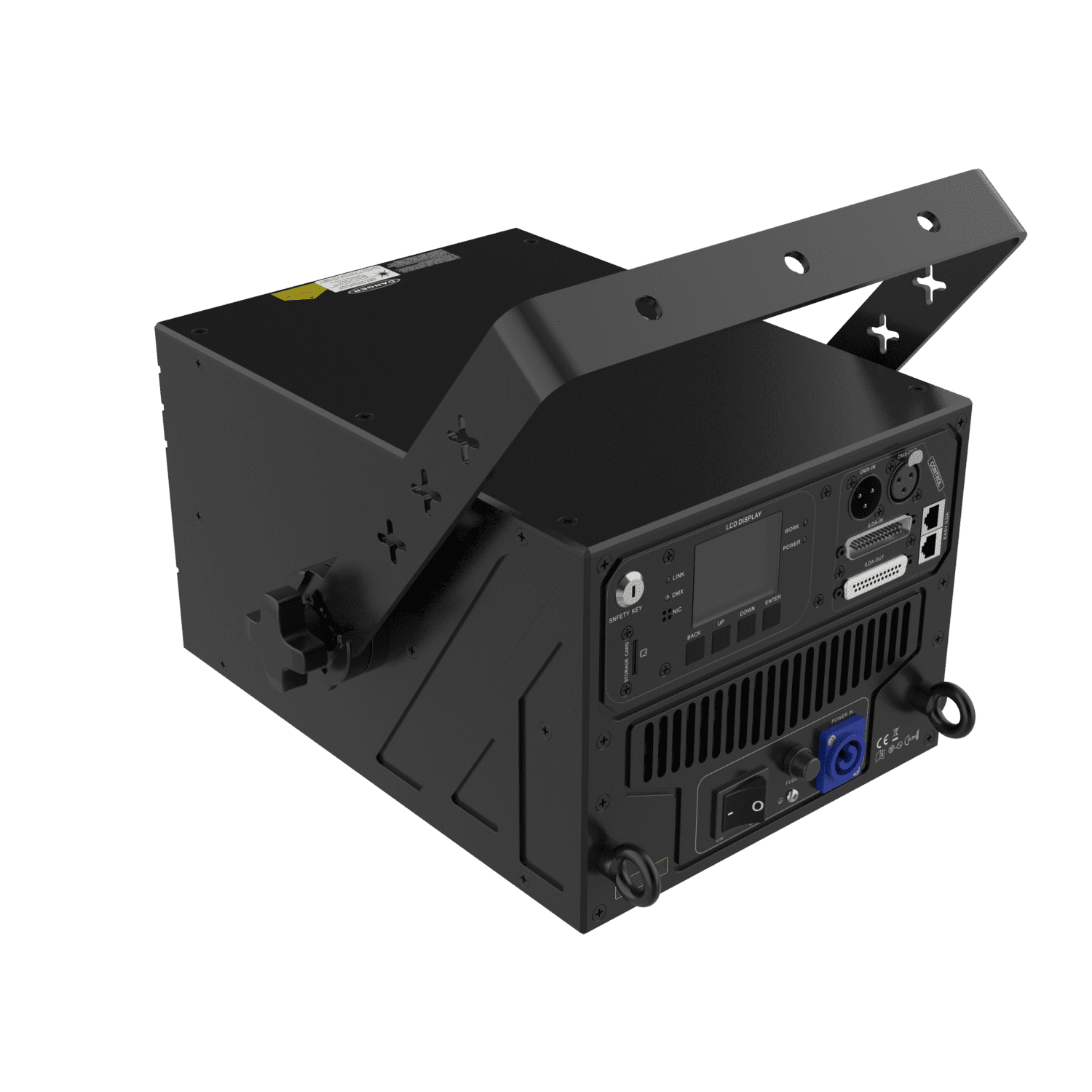

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 185W
    • Power In/Out: Power connector in
    • Data In/Out: 3-pin or 5-pin waterproof XLR
    • Power supply with electronic auto-ranging

    Physical Information

    • Fixture Dimensions:
      • Width: 230 mm (9.1″)
      • Depth: 320 mm (12.6″)
      • Height: 183 mm (7.2″)
      • Weight: 13.5 kg (29.8 lbs)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C

    Approvals

    • CE compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • The feet support with 1 locking points
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable

    Optional Accessories (With Order Code)

    • Signal Cable: 3-pin or 5-pin signal cable



    Dimensions
