DETONATOR

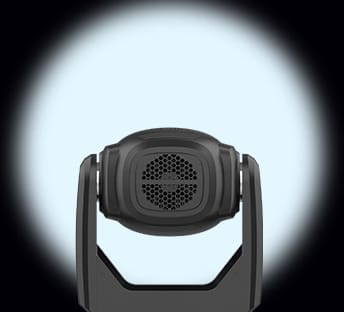

DETONATOR , una luz móvil ligera y potente, cuenta con un cuerpo robusto de tan solo 8,1 kg y un motor LED de 200 vatios. Produce una brillante temperatura de color de 10 000 K con una impresionante potencia de 2600 lúmenes en un ángulo de haz de 2,4°.

Gracias a su óptica de alta calidad para garantizar efectos precisos, el dispositivo ofrece 10 colores para un impresionante efecto arcoíris, 10 gobos estáticos de alta precisión y un prisma circular multifacético, lo que crea un sinfín de posibilidades para el diseño de iluminación.

Gracias a su diseño compacto y ligero, DETONATOR es ideal para diversas aplicaciones, como bares, salones de baile y otras instalaciones de entretenimiento.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    200W LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    2,600 lumens

    Color Rendering

    Ra >70

    Beam Angle

    2.4°

    Diameter of Frontal Lens

    125 mm

    Weight

    8.1 kg (17.9 lbs)





    Technical & Specification

    Model

    • Model Name: DETONATOR
    • Model Code: BEAM 200

    Light Source

    • Light Source: 200W LED engine
    • Total Lumen Output of Fixture: 2,600 lumens
    • Color Temperature Output of Fixture: 10,000K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 2.4°
    • Standard Mode: Ra>70
    • Diameter of Frontal Lens: 125 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 1
    • Control Channels: 16
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 270°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Fixation: Pan/Tilt lock

    Colors

    • 1 Color Wheel: 10 colors, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 10 gobos, plus open
      • Gobo: Ф108 mm, lmage: Ф5 mm

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized linear iris
    • Motorized focus system

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 160W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 286 mm (11.3″)
      • Depth: 166 mm (6.6″)
      • Height: 434 mm (17.1″)
      • Weight: 8.1 kg (17.9 lbs)

    Packing Information

    • Carton Dimensions:
      • Width : 380 mm (15.0″)
      • Depth : 345 mm (13.6″)
      • Height : 490 mm (19.3″)
      • Weight :
        G.W.: 10.2 kg (22.5 lbs) (One-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 60°C
    • Protection Rating: IP20

    Approvals

    • CE compliant
    • UKCA compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • Truss hanging in two clamps
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable

    Optional Accessories (With Order Code)

    • Clamp : C-100A (2060001635)
    • Safety Cable: SW-02 (2060000200)
    • Signal Cable: 3-pin or 5-pin signal cable



    Dimensions

    Photometrics





    Colors

    Color Wheel 1: 10 colors, plus open

    Red
    3027005209
    Slot 1

    Orange
    3027005210
    Slot 2

    Aqua Marine
    3027005211
    Slot 3

    Green
    3027005212
    Slot 4

    Light Green
    3027005213
    Slot 5

    Magenta
    3027005214
    Slot 6

    Cyan
    3027005215
    Slot 7

    Light Yellow
    3027005216
    Slot 8

    6000K
    3027005217
    Slot 9

    UV
    3027005218
    Slot 10



    Gobos

    Static Gobo Wheel 1: 10 gobos, plus open

    Gobo: Ф10 mm, lmage: Ф5 mm

    Slot 1

    Slot 2

    Slot 3

    Slot 4

    Slot 5

    Slot 6

    Slot 7

    Slot 8

    Slot 9

    Slot 10




    Prisms/Frost Filters

    1 Combinable Rotating and Indexable Prism:

    1 multi-facet circular prism, rotatable in both directions

    1 multi-facet circular prism

    Frost Filter



    Beam Angle
