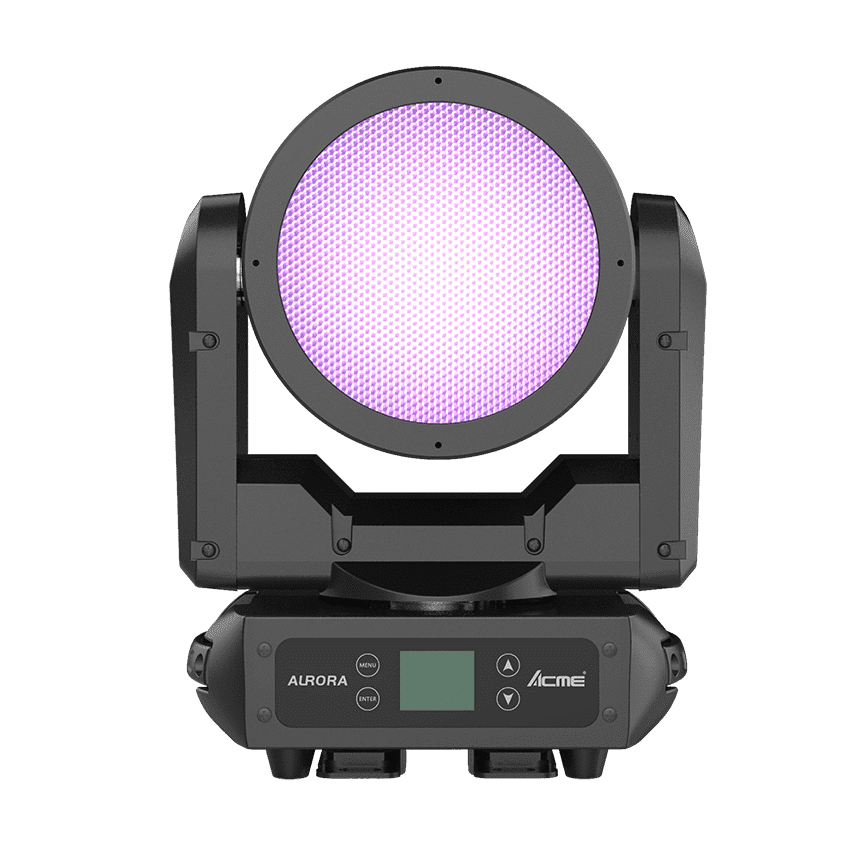

AURORA

The new AURORA was innovated by a 300W high output RGBW COB LED, providing 30,800lux@2m in a tight angle of 11 degrees. Such a compact and powerful moving par light features a 1:4.1 ratio 11°- 39°degree zooming and silent operating, AURORA can be used as a moving façade light in multi-application, support with DMX and RDM control, 0-100 smooth dimming and various strobe effects. This is a future demand from Stage shows, Theater, Churches Ballroom, etc.

    Consultar precios

    Descripción

    Performance

    Light Source

    1 x 300W RGBW LED

    LED Life Expectancy

    20,000* hours

    Total Lumen Output of Fixture

    5,380 lumens

    Zoom Range

    11° – 39°

    Weight

    10.3 kg (22.7 lbs)



    Technical & Specification

    Model

    • Model Name: AURORA
    • Model Code: CM-250Z RGBW

    Light Source

    • Light Source: 1 x 300W RGBW LED
    • Total Lumen Output of Fixture: 5,380 lumens
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range: 11°-39°
    • Zoom Ratio : 1 : 4.1

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 2
    • Control Channels: 13/15
    • Firmware Upgrade: Upgrade via DMX link or USB disk

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 200°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Dimmer: 16 bit

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Powered by a high output C.O.B. (Chip on Board) LED on a moving head base
    • Wide range and uniform lighting, ideal for stages, theatres, churches, ballrooms, concerts and other venues
    • Flicker free management
    • Dust-proof and oil-proof design

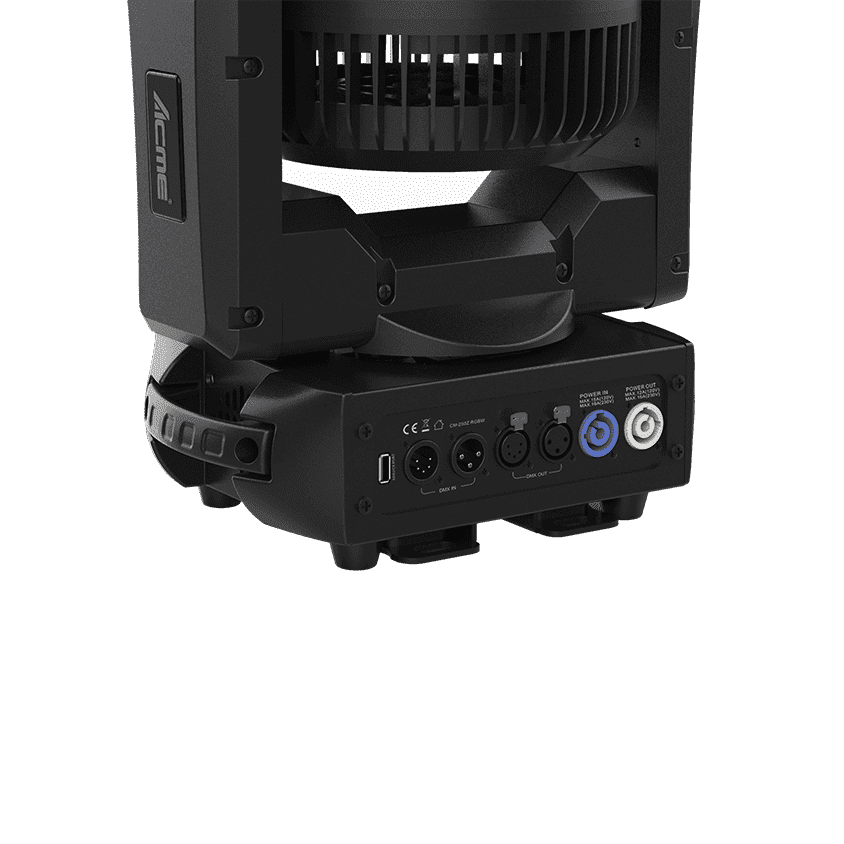

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 270W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR
    • Power supply with electronic auto-ranging

    Physical Information

    • Fixture Dimensions:
      • Width: 310 mm (12.2″)
      • Depth: 218 mm (8.6″)
      • Height: 452 mm (17.8″)
      • Weight: 10.3 kg (22.7 lbs)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C

    Approvals

    • CE compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • 2 pairs of 1/4-turn locking points under the base
    • 2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable
    • 2 pairs of 1/4-turn locking points under the base

    Optional Accessories (With Order Code)

    • Flight Case:
      • Standard : Six-pack loader case (63582229)
    • Clamp : C-250B (2060001632-B)
    • Safety Cable: SW-05 (2060001603-A)
    • Signal Cable: 3-pin or 5-pin signal cable
    • Raincover: 3033001749



    Dimensions

    Photometrics













    Descargas


    AURORA Descargas Enlace
