AECO 5

Basado en la combinación perfecta de su fuente de luz y tecnología óptica avanzada, el ACME AECO 5 es un dispositivo híbrido 4 en 1 que cuenta con un innovador motor de luz de 450 vatios de alto CRI, diseñado para iluminar cualquier producción con un increíble CRI de RA≥95 y R9≥90.

Tras la lente frontal de 120 mm, el AECO cuenta con un sistema óptico de precisión y un rango de zoom de 6,5 a 54 grados con imágenes suaves y consistentes en todo el rango. Para efectos y colores, este dispositivo compacto cuenta con ocho gobos fijos, siete gobos giratorios, una rueda de color con seis colores, prisma, escarcha, sistema de obturador de encuadre, sistema CMY lineal con CTO, todos en capas para crear efectos complejos manteniendo un alto rendimiento e imágenes nítidas.

El AECO 5 ofrece un haz uniforme con una salida total de 13.000 lúmenes y es ideal para escenarios, teatros, filumens, retransmisiones, pantallas y muchas otras aplicaciones.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    450W LED engine

    LED Life Expectancy

    20,000 hours*

    Total Lumen Output of Fixture

    13,000 lumens

    Variable CTO

    2,700K-6,000K

    Color Rendering

    Ra≥95,R9≥90,R15≥95,TLCI≥95

    Zoom Range

    6.5° – 54°

    Diameter of Frontal Lens

    120 mm

    Weight

    26.5 kg (58.5 lbs)



    Technical & Specification

    Model

    • Model Name: AECO 5

    Light Source

    • Light Source: 450W LED engine
    • Total Lumen Output of Fixture: 13,000 lumens
    • Color Temperature Output of Fixture: 6,000K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range: 6.5°-54°
    • Color Rendering: Ra≥95,R9≥90,R15≥95 TLCI≥95,CCI:0-0.5G TM-30RF: 91 TM-30Rg: 99
    • Diameter of Frontal Lens: 120 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 3
    • Control Channels: 33/24/28
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 270°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 2,700K-6,000K

    Static Gobos

    • 1 Static Gobo Wheel:
      • 8 gobos, plus open

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 7 gobos, plus open
      • Gobo Slot 1-6: Ф22.5 mm, lmage: Ф17 mm
      • Gobo Slot 7: Ф22.5 mm

    Prism

    • 1 Rotating and Indexable Prism: 1 x 4-facet circular prism, rotatable in both directions

    Frost Filter

    • 1 combinable light frost filter and 1 combinable medium frost filter

    Framing System

    • Shutter Blades: 4 blades, each with separate movement and full blackout
    • Rotation: ±45° of the complete framing system

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized focus system
    • Motorized linear Iris
    • Flicker free operation

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 670W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 692 mm (27.2″)
      • Depth: 364 mm (14.3″)
      • Height: 252 mm (9.9″)
      • Weight: 26.5 kg (58.5 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 890 mm (35.0″)
      • Depth : 780 mm (30.7″)
      • Height : 575 mm (22.6″)
      • Weight :
        • Standard: G.W.: 96 kg (211.6 lbs) (Two-pack loader case)
    • Flight Case Dimensions 2:
      • Width : 1,220 mm (48.0″)
      • Depth : 610 mm (24.0″)
      • Height : 915 mm (36.0″)
      • Weight :
        • North American Standard : G.W.: 135 kg (297.6 lbs) (Two-pack loader case)



    Dimensions
    Photometrics



    Video
    <!–

    Images

    –>



    Colors

    Linear CMY Color Mixing

    CMY

    <!–

    3027002308

    3027002312

    3027002310

    –>

    3027002308

    3027002312

    3027002310

    Linear CTO Color Correction

    2,700K-6,000K

    3027002309

    <!–

    {COLORS1}Color Wheel 1: 6 colors, plus open{COLORS1}



    –>

    Color Wheel 1: 6 colors, plus open

    Red
    3027005033
    Slot 1

    Green
    3027005035
    Slot 2

    Pink
    3027005036
    Slot 3

    Orange
    3027005037
    Slot 4

    Blue
    3027005034
    Slot 5

    Blue
    3027005279
    Slot 6



    Gobos

    <!–

    {Static GOBOS1}

    Static Gobo Wheel: 8 gobos, plus open

    {Static GOBOS1}

    {Rotating GOBOS1}

    Rotating Gobo Wheel: 7 gobos, plus open

    Gobo Slot 1-6: Ф22.5 mm, lmage: Ф17 mm

    Gobo Slot 7: Ф22.5 mm

    {Rotating GOBOS1}

    –>

    Static Gobo Wheel: 8 gobos, plus open

    3011001164
    Slot 1

    3011001163
    Slot 2

    3011001164
    Slot 3

    3011001164
    Slot 4

    3011001164
    Slot 5

    3011001164
    Slot 6

    3011001164
    Slot 7

    3011001162
    Slot 8

    Rotating Gobo Wheel: 7 gobos, plus open

    Gobo Slot 1-6: Ф22.5 mm, lmage: Ф17 mm

    Gobo Slot 7: Ф22.5 mm

    Gobo
    3011001097
    Slot 7

    Gobo
    3011001098
    Slot 6

    Gobo
    3011001099
    Slot 5

    Gobo
    3011001100
    Slot 4

    Gobo
    3011001101
    Slot 3

    Gobo
    3011001102
    Slot 2

    Gobo
    3015000886
    Slot 1



    <!–

    Our Services

    –>

    Prisms/Frost Filters

    Prisms: 1 4-facet prism rotatable in either direction

    Frost: 2 different frost filters to create wash effects – can be used independently and overlaid.

    <!–

    Images

    –>

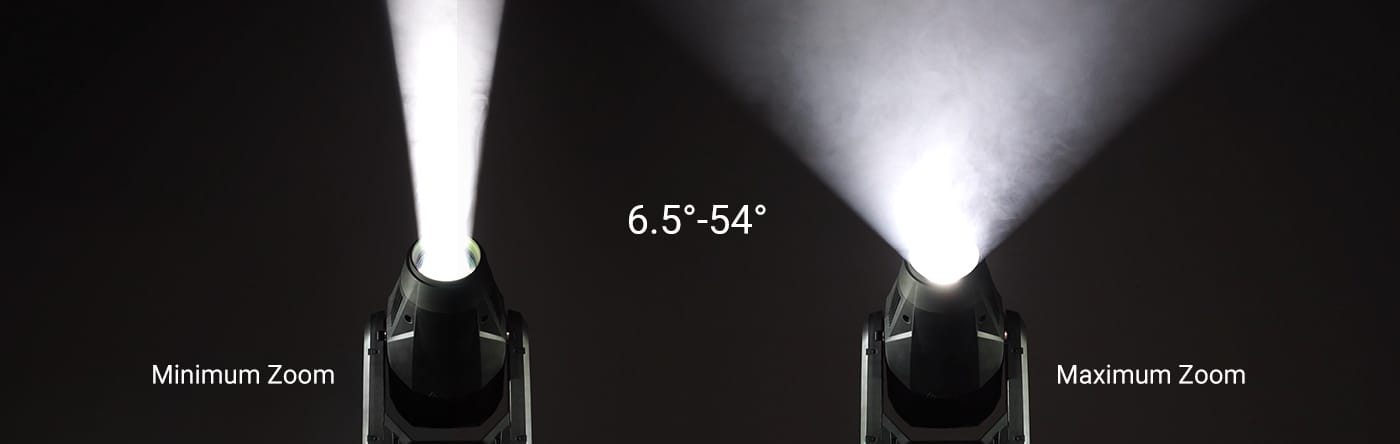

    Zoom Range



    Framing System

    4 fast and smooth framing shutters;

    The position and the angle of each shutter blade can be controlled individually;

    Each shutter blade can block light completely;

    The framing module can rotate at ±45 degrees.
