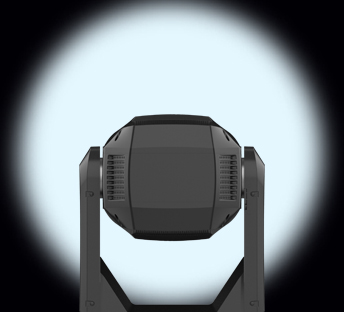

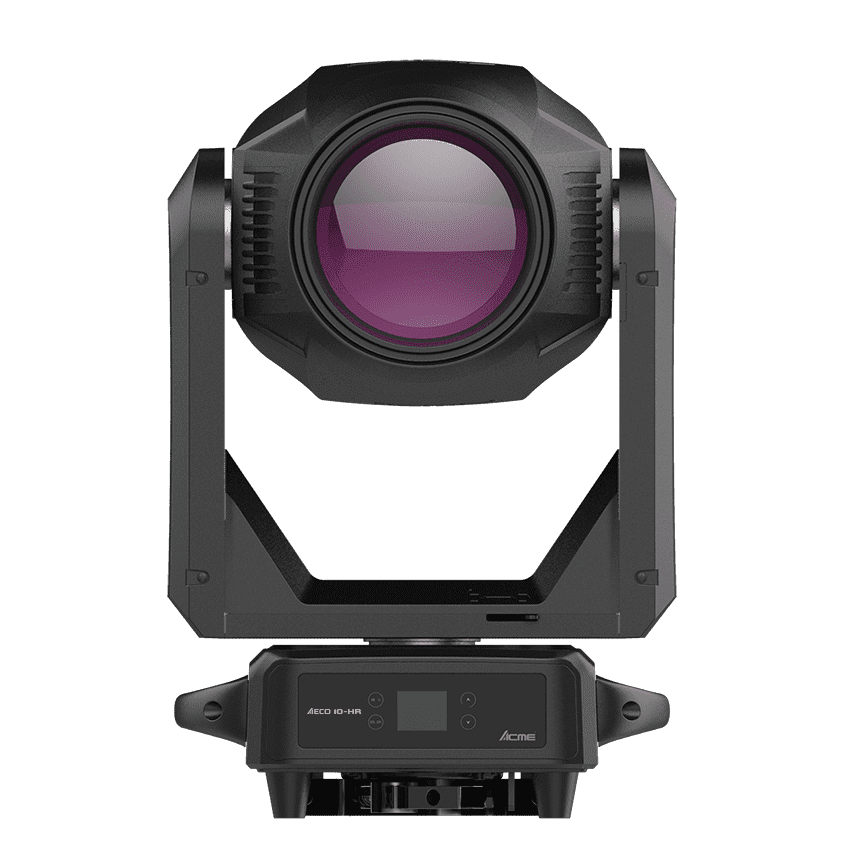

AECO 10-HR

Featuring an upgraded 1200W HCRI LED engine, the AECO 10-HR is a versatile fixture you can count on, delivering uncompromised color performance. We revolutionize the color of this powerhouse, so you will see the perfect Red (630nm± 3nm), Green (535nm±3nm), and Blue (450nm±3nm) through the innovative CMY color mixing system. With its upgraded HCRI LED, the AECO 10-HR delivers excellent white light of RA≥95, R9≥95, R15≥ 95, TLCI≥95, and CCI 0-0.5G, ensuring uncompromised color accuracy.

Beneath the 180mm frontal lens, a complex but compact functional area is waiting. Static gobos, rotating gobos, saturated colors, 2 prisms, animation wheel, framing shutters, linear CMY & CTO, all functions can be layered to create original and complex effects while maintaining a high luminous flux – at a tight angle of 5 °, the luminous flux reaches 84,300 lx @5m and 20,350 lx @10m. With a total lumen output of 33,000 lumens, the AECO 10-HR is not only a profile moving light, but also an energy-saving and environmentally friendly partner, making it an ideal choice for large-scale concert, TV studio, theater show, and multiple kinds of art performances.

    Consultar precios

    Descripción

    Performance

    Light Source

    1,200W LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    33,000 lumens

    Variable CTO

    2,700K-6,000K

    Color Rendering

    Ra ≥ 95

    Zoom Range

    5°-52°

    Diameter of Frontal Lens

    180 mm

    Weight

     43 kg (94.8 lbs)



    Technical & Specification

    Model

    • Model Name: AECO 10-HR

    Light Source

    • Light Source: 1,200W LED engine
    • Total Lumen Output of Fixture: 33,000 lumens
    • Color Temperature Output of Fixture: 6,000K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range: 5°-52°
    • Color Rendering: Ra≥95, R9≥95, R15≥95;TLCI≥95, CCI:0-0.5G;TM-30 Rf: 91;TM-30 Rg: 100
    • Diameter of Frontal Lens: 180 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 4
    • Control Channels: 20/26/29/35
    • Firmware Upgrade: Upgrade via DMX link or USB stick

    Pan & Tilt

    • Pan Movement: 540°
    • Tilt Movement: 270°
    • Automatic Pan/Tilt position correction
    • Resolution: 16 bit
    • Fixation: Pan/Tilt lock

    Colors

    • Linear CMY color mixing
    • Linear CTO Color Correction: 2,700K-6,000K
    • 1 Color Wheel: 6 colors, plus open

    Static Gobos

    • 1 Static Gobo Wheel:
      • 8 gobos, plus open
      • Gobo: Ф29.8 mm, lmage: Ф22 mm

    Rotating Gobos

    • 1 Rotating Gobo Wheel:
      • 7 gobos, plus open
      • Gobo: Ф29.8 mm, lmage: Ф22 mm

    Animation Wheel

    • A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave effect, and can be changed into other wheels

    Prism

    • 2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions

    Frost Filter

    • 1 combinable light frost filter and 1 combinable medium frost filter

    Framing System

    • Shutter Blades: 4 blades, each with separate movement and full blackout
    • Rotation: ±60° of the complete framing system

    Other Effects

    • Motorized linear iris
    • Outstanding color macro effects
    • Flicker-free management

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 1,500W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 412 mm (16.2″)
      • Depth: 308 mm (12.1″)
      • Height: 770 mm (30.3″)
      • Weight: 43 kg (94.8 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 715 mm (28.1″)
      • Depth : 595 mm (23.4″)
      • Height : 905 mm (35.6″)
      • Weight :
        • Standard: G.W.: 91 kg (200.6 lbs) (one-pack loader case)
    • Carton Dimensions:
      • Width : 670 mm (26.4″)
      • Depth : 520 mm (20.5″)
      • Height : 750 mm (29.5″)
      • Weight :
        G.W.: 50.3 kg (110.9 lbs) (one-pack loader carton)



    Dimensions

    Photometrics





    Colors

    Linear CMY Color Mixing

    CMY

    3027005136
    3027005137

    3027005134
    3027005135

    3027005138
    3027005139

    Linear CTO Color Correction

    2,700K-6,000K

    3027005140
    3027005141

    Color Wheel: 6 colors, plus open

    Red
    3027005033
    Slot 1

    Green
    3027005035
    Slot 2

    Pink
    3027005036
    Slot 3

    Orange
    3027005037
    Slot 4

    Blue
    3027005034
    Slot 5

    UV
    3027005279
    Slot 6



    Gobos

    Static Gobo Wheel: 8 gobos, plus open

    Gobo: Ф29.8 mm, lmage: Ф22 mm

    3011001143
    Slot 1

    3011001148
    Slot 2

    3011001142
    Slot 3

    3011001144
    Slot 4

    3011001151
    Slot 5

    3011001147
    Slot 6

    3011001146
    Slot 7

    3011001145
    Slot 8

    Rotating Gobo Wheel: 7 gobos, plus open

    Gobo: Ф29.8 mm, lmage: Ф22 mm

    3015000932
    Slot 1

    3011001149
    Slot 2

    3011001150
    Slot 3

    3011001158
    Slot 4

    3011001152
    Slot 5

    3011001153
    Slot 6

    3011001154
    Slot 7



    Prisms/Frost Filters

    2 Combinable Rotating and indexable Prisms:

    1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions

    1 combinable light frost filter and 1 combinable medium frost filter

    4-Facet Circular Prism

    4-Facet Linear Prism

    Light Frost Filter

    Medium Frost Filter



    Zoom Range

    Animation Wheel

    A graphic animation wheel with continuous

    rotation in both directions, creating the

    splendid water wave effect, and can be changed into other wheels



    Framing System

    Shutter Blades: 4 blades, each with separate movement and full blackout

    Rotation: ±60° of the complete framing system
