FLASHDOT

ACME
> SKU: STROBE 3

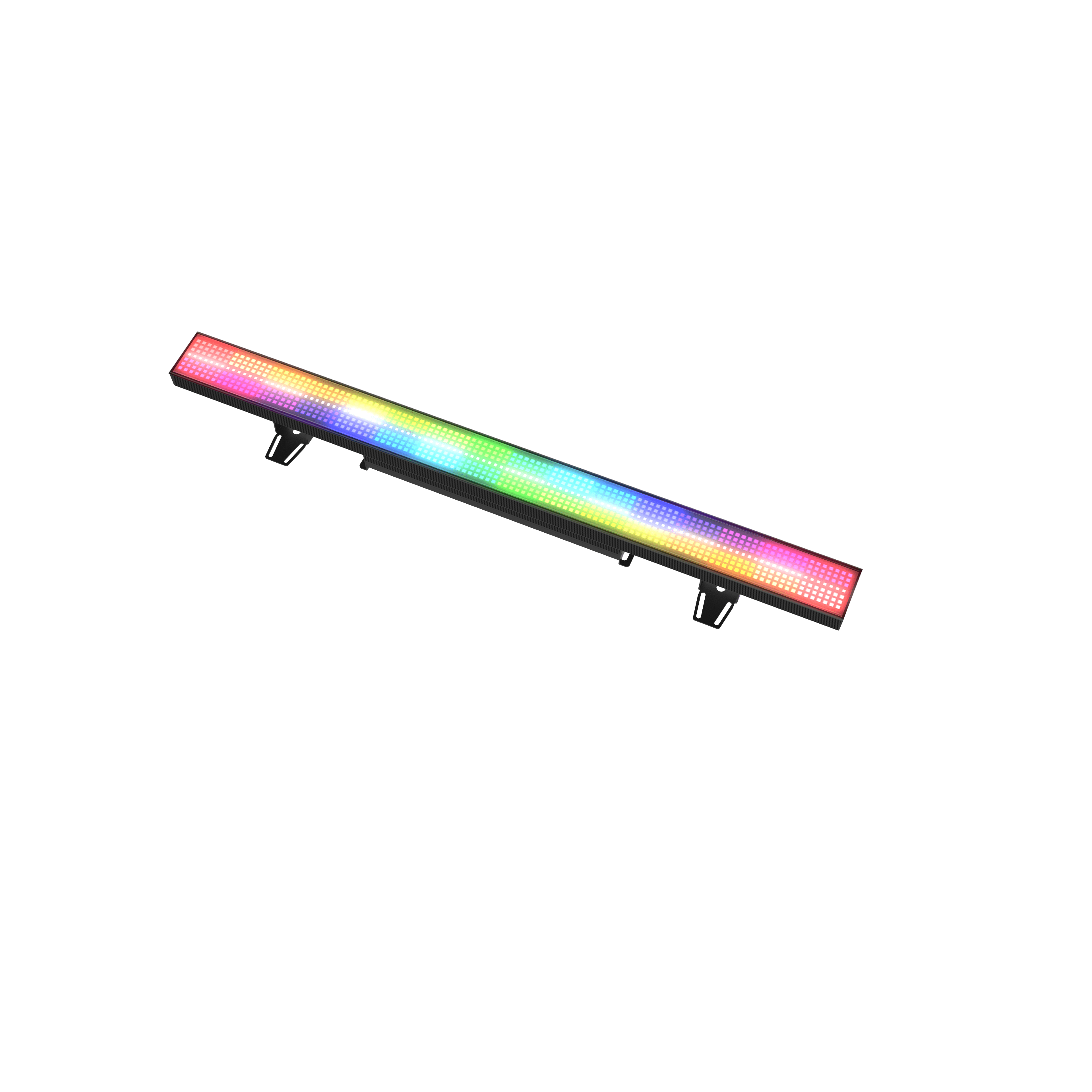

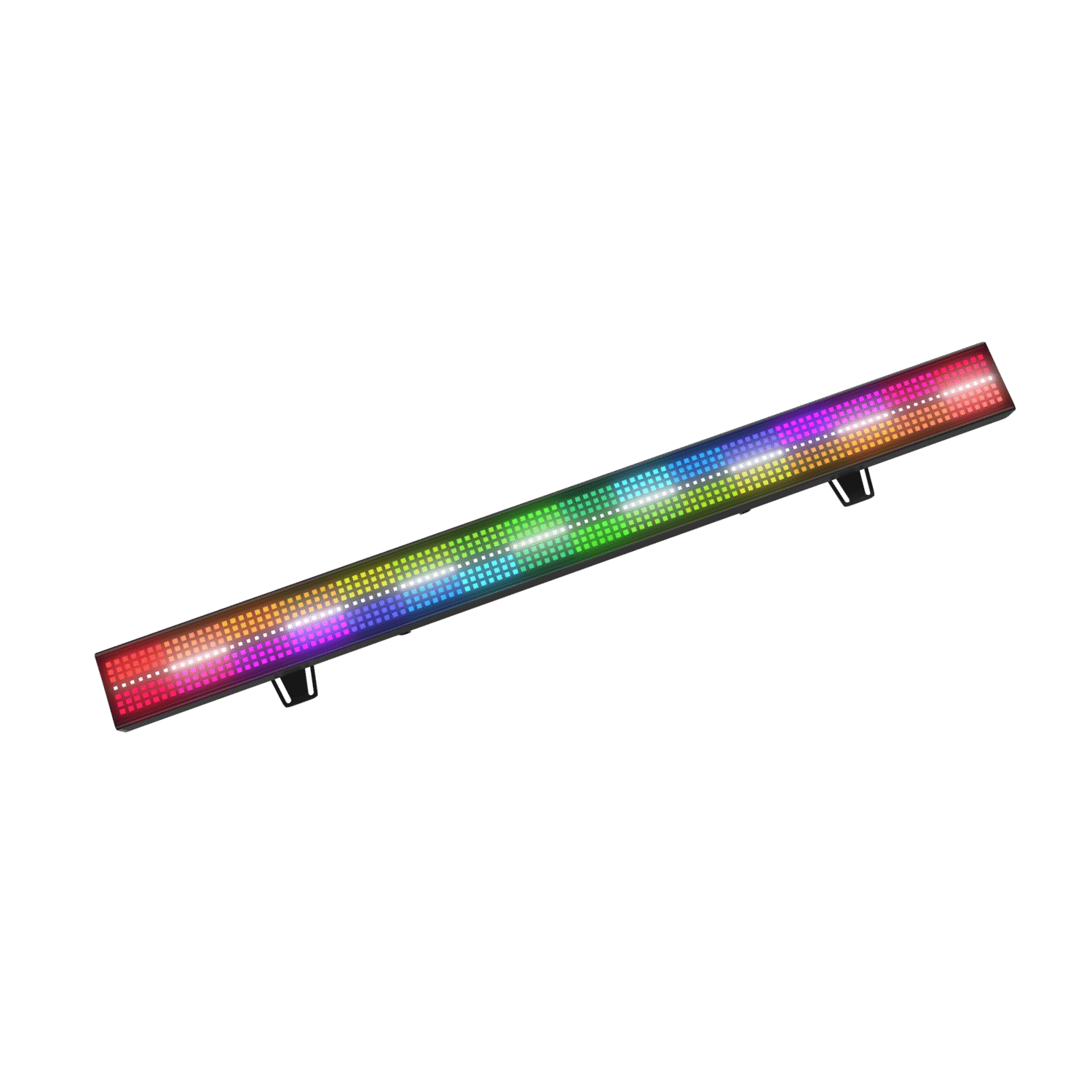

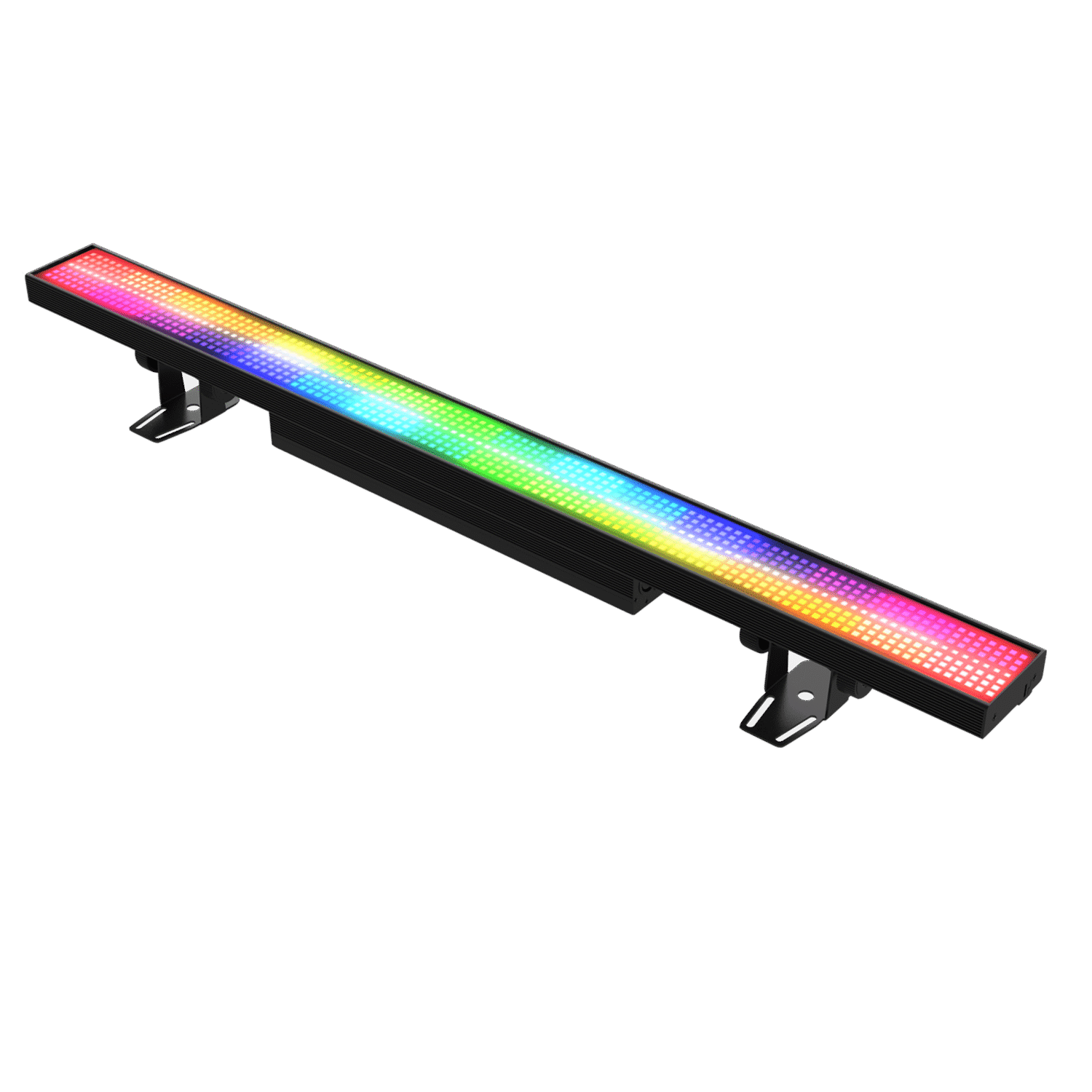

The FLASHDOT strobe bar contains 672 x 0.3-Watt RGB LEDs and 112pcs 3-Watt CW LEDs, which divides into 32 individuallly controlled zoons with 32pcs RGB LEDs and 16pcs CW LEDs. Its 116° provides wide beam angle and outstanding strobe effect. It still provides 0-100% smotth dimming, preset color mixing, dynamic strobing and auto chasing program. Applicable to the nightclub, ballroom, or any other entertaining lighting applications.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    672 x 0.3W RGB LED

    112 x 3W CW LED

    LED Life Expectancy

    20,000 hours

    Beam Angle

    116°

    Weight

    4.7 kg (10.36 lbs)



    Technical & Specification

    Model

    • Model Name: FLASHDOT
    • Model Code: STROBE 3

    Light Source

    • Light Source :
      • 672 x 0.3 W RGB LEDs
      • 112 x 3 W CW LEDs
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 116°

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Protocols: DMX512,RDM
    • Control Channels: 6/13/14/16/18/20/32/38/64/67/112
    • Firmware Upgrade: Upgrade via DMX link

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Outstanding RGB color mixing
    • High brightness, outstanding washing effect
    • Flicker free management

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 350W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 84 mm (3.3″)
      • Depth: 1,000 mm (39.4″)
      • Height: 111 mm (4.4″)
      • Weight: 4.7 kg (10.4 lbs)

    Packing Information

    • Carton Dimensions:
      • Width : 1,090 mm (42.9″)
      • Depth : 280 mm (11.0″)
      • Height : 340 mm (13.4″)
      • Weight :
        G.W.: 21.7 kg (47.8 lbs) (Four-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP20

    Approvals

    • CE compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable

    Optional Accessories (With Order Code)

    • Clamp : C-100A (2060001635)
    • Safety Cable: SW-02 (2060000200)
    • Signal Cable: 3-pin or 5-pin signal cable



    Dimensions

    Photometrics













    Descargas


    FLASHDOT Descargas Enlace
