The BLINDER LINE 5 IP, the complementary shorter version of the BLINDER LINE 10 IP, is a half-meter length blinder fixture with the same features and functionalities as the longer version. This luminaire is powered with five, 150-Watt RGBAW LEDs that produce vivid colors and captivating visual effects.

The BLINDER LINE 5 IP features ACME’s patented Smart Glass technology for soft light effects and has extremely bright strobe effects, four different dimming curves, and individual pixel control for unlimited looks and effects. Multiple units can be connected end-to-end using their integrated interlocking connectors.

The BLINDER LINE 5 IP has an IP66 protection rating, making this fixture perfect for any application, indoors or outdoors, in any weather conditions.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    5 x 150W RGBAW LEDs

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    10,500 lumens

    Beam Angle

    23°, 34°, 52° (W)

    24°, 33°, 55° (RGBA)

    Field Angle

    46°, 88°, 127° (W)

    48°, 85°, 131° (RGBA)

    Weight

    7.7 kg (17.0 lbs)



    Technical & Specification

    Model

    • Model Name: BLINDER LINE 5 IP
    • Model Code: BLB 5 IP

    Light Source

    • Light Source: 5 x150W RGBAW LEDs
    • Total Lumen Output of Fixture: 10,500 lumens
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle :
      • W: 23°, 34°, 52°
      • RGBA: 24°, 33°, 55°
    • Field Angle :
      • W: 46°, 88°, 127°
      • RGBA: 48°, 85°, 131°
    • DMX Controllable Smart Glass technology:
      • Patent No. :
        • CN216010577U
        • US11698183B1
        • DE202023101966U1
        • FR3134870B3

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 2
    • Control Channels: 14/30
    • Firmware Upgrade: Upgrade via DMX link

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Tungsten emulation during dimming
    • Individual pixel control and built-in color macro effects

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 350W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 500 mm (19.7″)
      • Depth: 103.3 mm (4.1″)
      • Height: 160.3 mm (6.3″)
      • Weight: 7.7 kg (17.0 lbs)

    Packing Information

    • Flight Case Dimensions 1:
      • Width : 880 mm (34.6″)
      • Depth : 580 mm (22.8″)
      • Height : 890 mm (35.0″)
      • Weight :
        • Standard : G.W.: 115 kg (253.5 lbs) (eight-pack loader case)
    • Flight Case Dimensions 2:
      • Width : 1,220 mm (48.0″)
      • Depth : 610 mm (24.0″)
      • Height : 850 mm (33.5″)
      • Weight :
        • North American Standard : G.W.: 179 kg (394.6 lbs) (twelve-pack loader case)
    • Carton Dimensions:
      • Width : 630 mm (24.8″)
      • Depth : 245 mm (9.6″)
      • Height : 210 mm (8.3″)
      • Weight :
        G.W.: 9.0 kg (19.8 lbs) (one-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: -10°C



    Dimensions



    Video

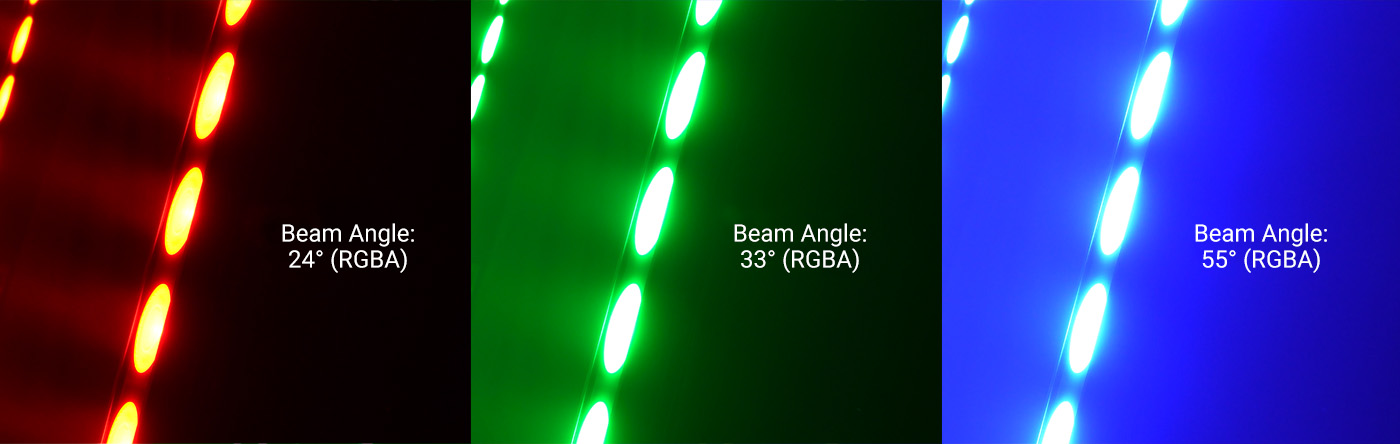

    Beam Angle

    Field Angle



    Descargas


    BLINDER LINE 5 IP Descargas Enlace
