BIG BANG

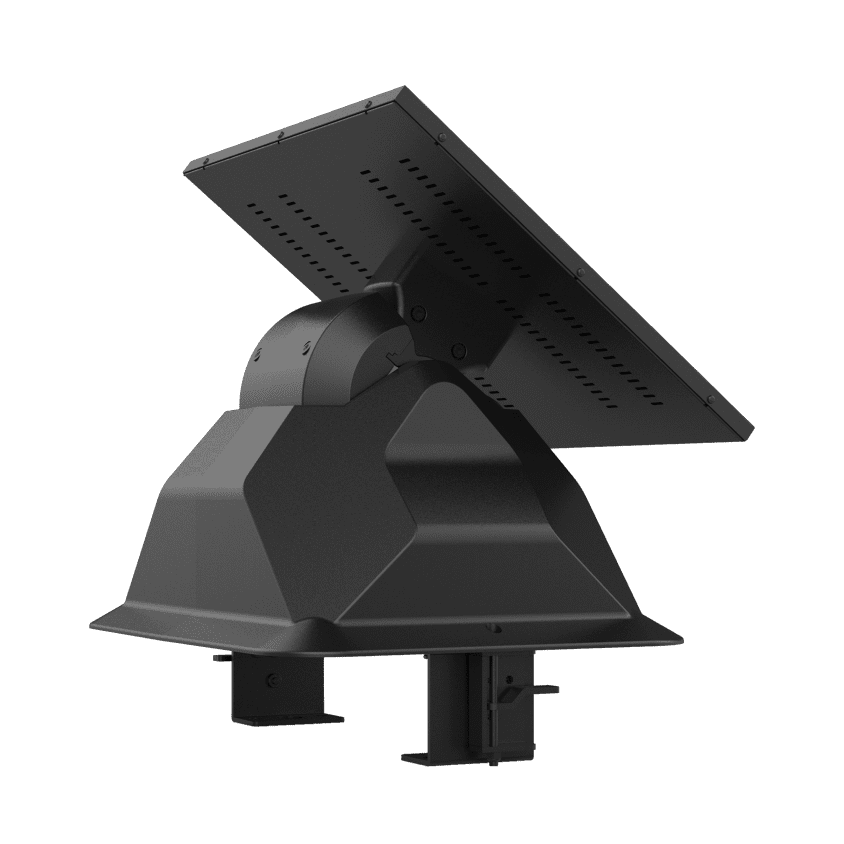

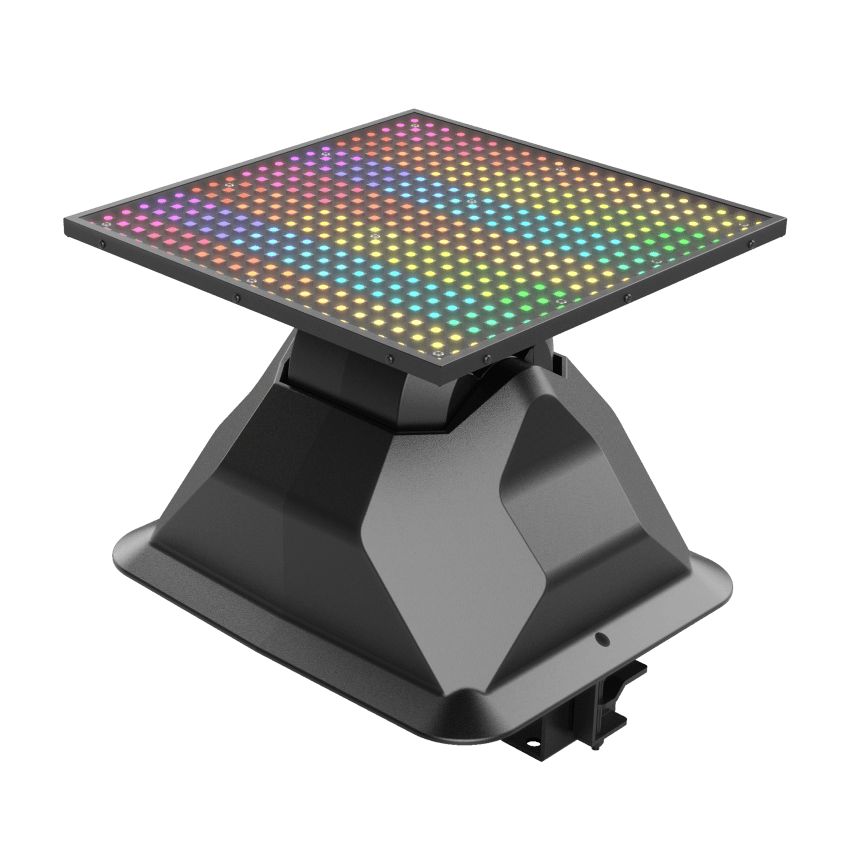

BIG BANG! An effect LED panel featured 441×0.3W RGB Hybrid LEDs, divided into 49 control sections with 9 LEDs in each block. A variety of programmed effects create uniform color mixing and dynamic graphic performance, with compact size, it will be an ideal tool for creating moveable virtual sets and complex light compositions for multiple panels. The unique base design allows the ceiling installation, side-wall hanging, and Pipe hanging. Apply to multiple applications such as Venue Event lighting, Entertainment center, Stage effects Party House, Club lighting, etc.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    441 X 0.3W RGB LED

    LED Life Expectancy

    20,000 hours

    Beam Angle

    110°

    Field Angle

    150°

    Weight

    5 kg (11 lbs)



    Technical & Specification

    Model

    • Model Name: BIG BANG
    • Model Code: PM 1

    Light Source

    • Light Source: 441 x 0.3W RGB LED
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 110°
    • Field Angle : 150°

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 2
    • Control Channels: 16/156
    • Firmware Upgrade: Upgrade via DMX link

    Pan & Tilt

    • Pan Movement: 76°
    • Tilt Movement: 76°
    • Resolution: 16 bit

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Outstanding color mixing
    • Intelligent sound control, lighting effect changes with the music rhythm
    • Dynamic graphic effect
    • Compact size light weight

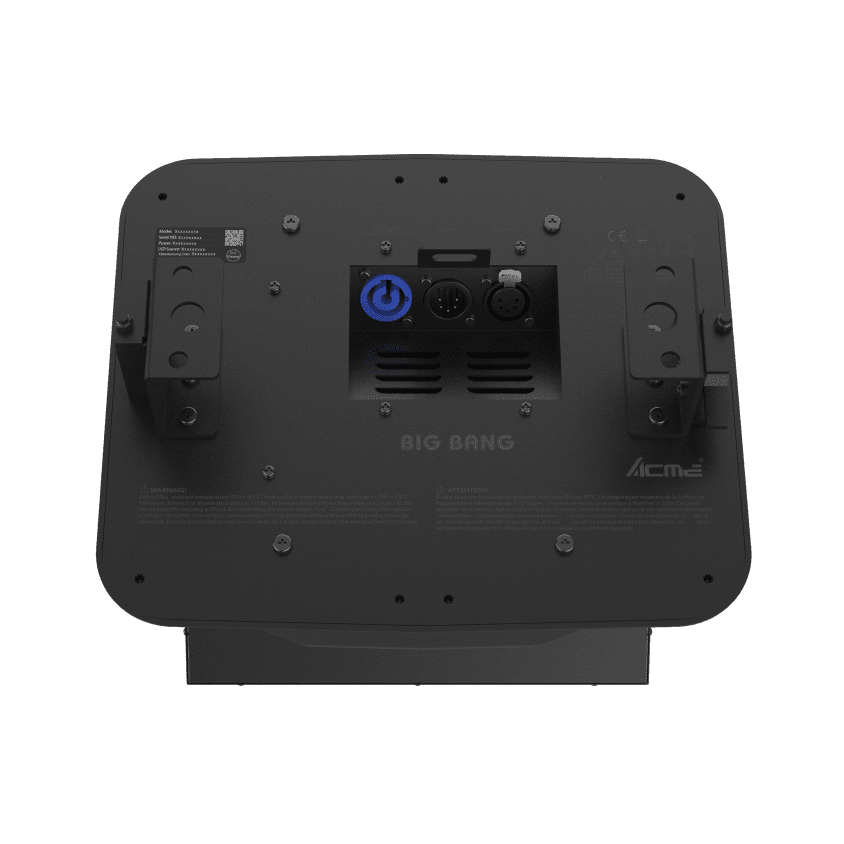

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 150W
    • Power In/Out: Power connector in
    • Data In/Out: 3-pin or 5-pin XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 272 mm (10.7″)
      • Depth: 250 mm (9.8″)
      • Height: 252 mm (9.9″)
      • Weight: 5 kg (11 lbs)

    Packing Information

    • Carton Dimensions:
      • Width : 375 mm (14.8″)
      • Depth : 335 mm (13.2″)
      • Height : 360 mm (14.2″)
      • Weight :
        G.W.: 6.5 kg (14.3 lbs) (One-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP20

    Approvals

    • CE compliant

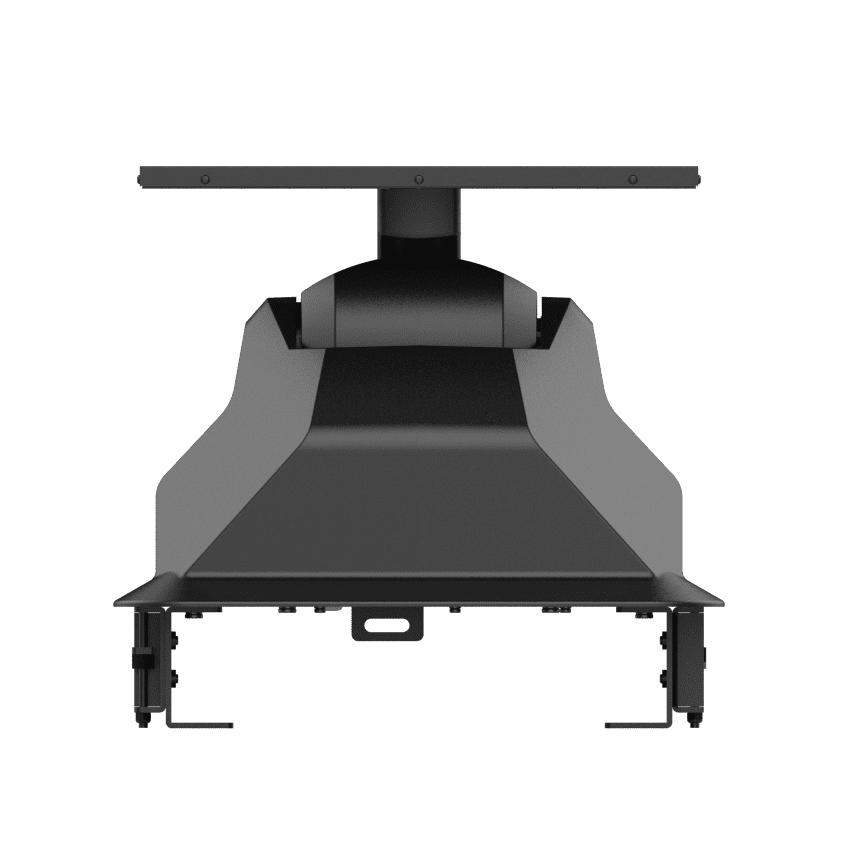

    Installation

    • Horizontal or vertical mounting
    • Universal working position

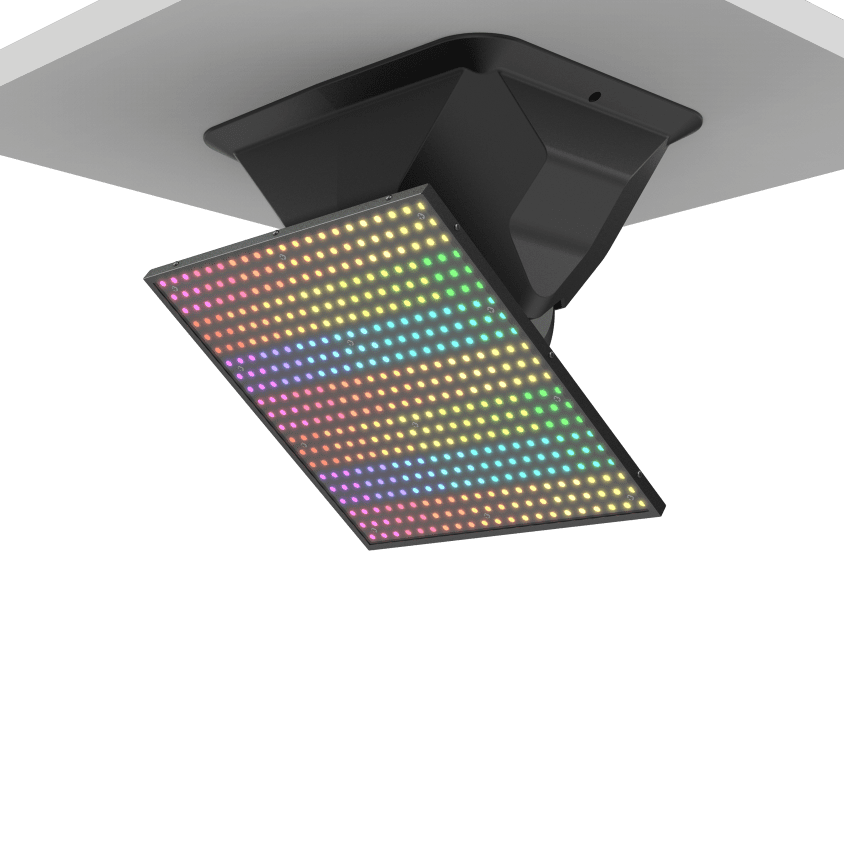

    • Special clamp, which can assist installation on the ceiling of the room
    • 2 x Clamps for 50mm truss
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable
    • Factory certificate and warranty card

    Optional Accessories (With Order Code)

    • Clamp : C-100A (2060001635)
    • Safety Cable: SW-02 (2060000200)
    • Signal Cable: 3-pin or 5-pin signal cable
    • Optional with Frost Filter



    Dimensions

    Photometrics













    Descargas


    BIG BANG Descargas Enlace
