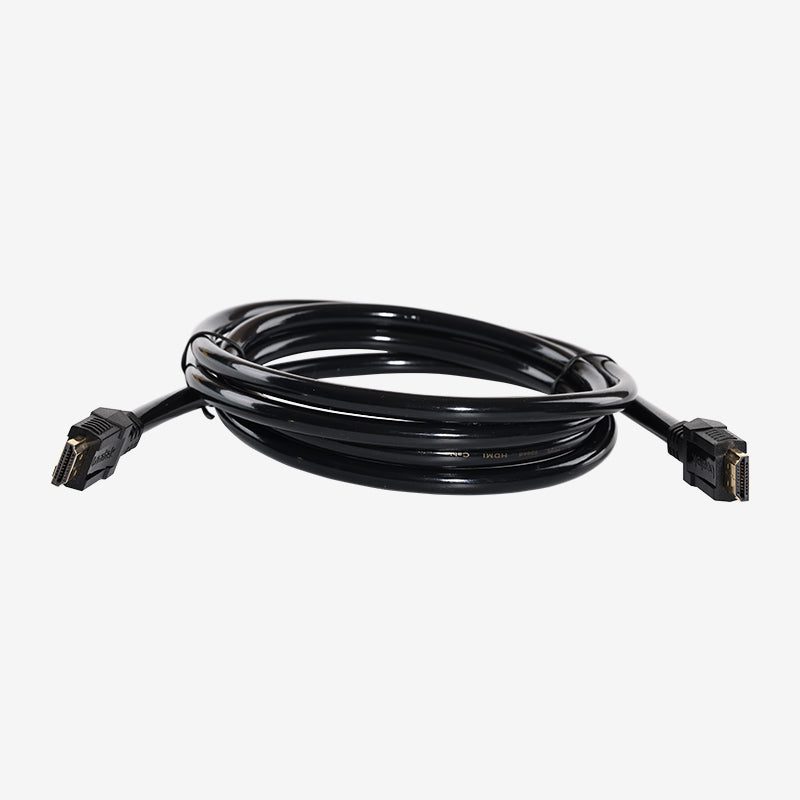

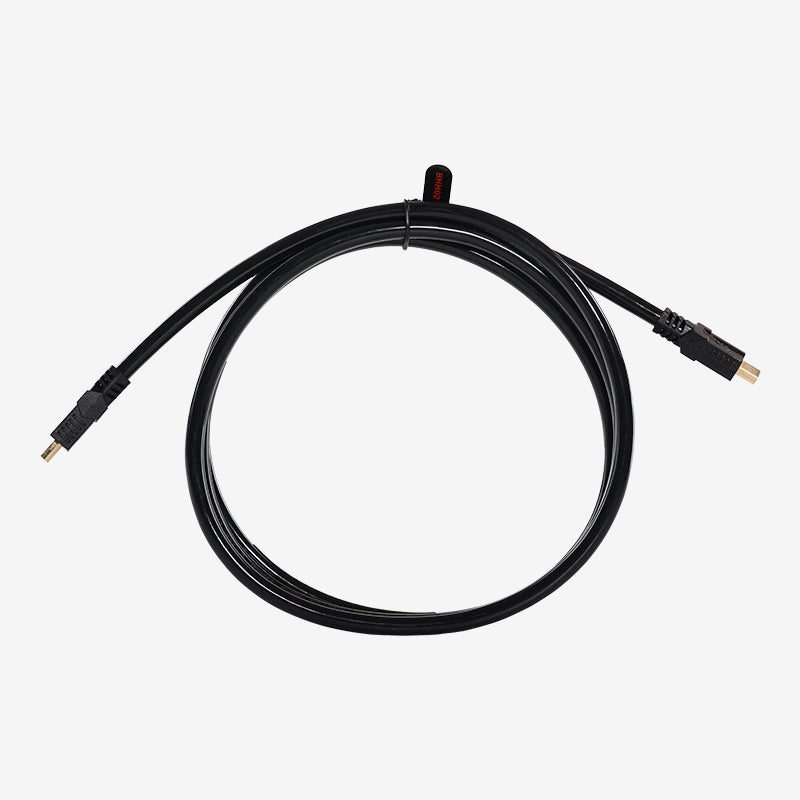

HDMI 2.0 de alta velocidad BHH 4K SERIES

Cable de cobre 4K HDMI 2.0 de alta velocidad

Admite la resolución hasta 4K@60 4: 4: 4
Admite HDCP 2.2, ARC, HDR y CEC
Los conectores de cobre chapados en oro proporcionan una conexión firme y duradera. Da doble capa con tasa de blindaje de tejido del 95%


Longitudes disponibles

BHH-02M 2M
BHH-03M 3M
BHH-05M 5M
BHH-08M 8M
BHH-10M 10M

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Cable de cobre 4K HDMI 2.0 de alta velocidad

    Admite la resolución hasta 4K@60 4: 4: 4
    Admite HDCP 2.2, ARC, HDR y CEC
    Los conectores de cobre chapados en oro proporcionan una conexión firme y duradera. Da doble capa con tasa de blindaje de tejido del 95%

    Especificaciones


    Name Specification
    Product Name HDMI 2.0 Installation Cable
    Model BHH-xxM
    Brand Beetek
    Signal Type HDMI 2.0
    Input Connector Type HDMI Type A Male – HDMI Type A Male
    Environmental Info RoHS 2.0 Compliant
    Connector Gold Plating 1μm
    Connector Dimensions 49.4*20*12mm
    Connector Structure Plug plate + Inner mold + Copper foil + Shell
    Inner Mold PE material filled inner mold
    Copper Foil Double-sided conductive copper foil
    Shell 45P PVC injection molded shell (UL, RoHS)
    Components Conductor + Copper foil + Mylar + Braid + Jacket
    Conductor Material Single core tinned copper
    Conductor Diameter 1 – 3M: 30AWG; 5M: 28AWG; 8 – 10M: 26AWG
    Braid Material 144 aluminum-magnesium braids
    Shielding Rate 95% shielding rate
    Jacket Material Black PVC + transparent PVC dual-layered outer jacket (UL, RoHS)
    Cable Diameter 1,2,3,5M: 8mm; 8, 10M: 8.5mm
    Cable Color Gloss black
    Cable Meter Marking Waterproof Yellow Text
    EDID Yes
    DDC channel Yes
    HDMI audio Yes
    3D Yes
    CEC Yes
    ARC Yes
    HDCP Yes
    HDR Yes
    XvYCC Color Space Yes
    Compatibility Backward compatible with HDMI and DVI-SL
    Supported Resolutions 3840×2160@60Hz
    Clock Bandwidth 600MHz * 3
    Transmission Rate 18Gbps
    Plug and Play Yes
    Delay Zero
    Deep Color Yes
    Sampling Rate RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
    Compression None
    Electrical Test (Voltage) Voltage: DC 300V
    Impedance Test (Insulation) Insulation resistance: ≥ 10MΩ
    Impedance Test (Continuity) On-resistance: ≤ 2Ω
    Tensile Strength ≤400N
    Bending Angle 90°
    Operating Temperature -20℃~75℃

    Descargas


    Modelos disponibles

    ImageSKUDescription
    BHH-02MLongitud de cable: 2 m
    BHH-03MLongitud de cable: 3 m
    BHH-05MLongitud de cable: 5 m
    BHH-08MLongitud de cable: 8 m
    BHH-10MLongitud de cable: 10 m
