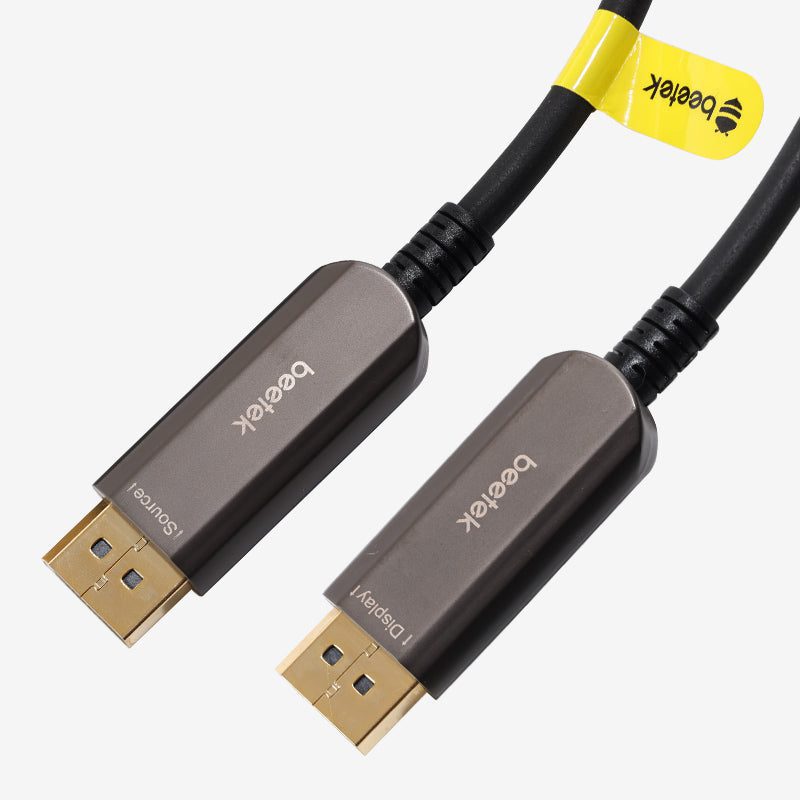

Cable óptico activo DP 1.4 blindado GDH02 SERIES

Cable óptico activo DP 1.4 blindado

Admite resoluciones hasta 8K@60 a 32.4 Gbps.
Tecnología de enchufe y reproducción
Admite la tecnología HDR
El cable disponible en varias distancia hasta 100 metros.
Agregue la etiqueta de información de su empresa utilizando los tubos transparentes de calor transparentes proporcionados


Longitudes disponibles

GDH02-10M 10M
GDH02-15M 15M
GDH02-20M 20M
GDH02-25M 25M
GDH02-30M 30M
GDH02-35M 35M
GDH02-40M 40M
GDH02-50M 50M
GDH02-60M 60M
GDH02-70M 70M
GDH02-80M 80M
GDH02-90M 90M
GDH02-100M 100M

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Cable óptico activo DP 1.4 blindado

    Admite resoluciones hasta 8K@60 a 32.4 Gbps.
    Tecnología de enchufe y reproducción
    Admite la tecnología HDR
    El cable disponible en varias distancia hasta 100 metros.
    Agregue la etiqueta de información de su empresa utilizando los tubos transparentes de calor transparentes proporcionados

    Especificaciones


    Name Specification
    Product Name DP1.4 TPU Armored Active Optical Cable
    Model GDH02-xxM
    Brand Beetek
    Signal Type DP1.4
    Input Connector Type DP Male
    Output Connector Type DP Male
    Connector Gold Plating Gold-plated Copper Shell
    Connector Structure Zinc Alloy mold
    In-wall Installation Not supported
    Connector Dimensions DP Male, 69.2 * 20 * 13mm
    Power from connector (TX) Not supported
    Power from connector (RX) Not supported
    Power 250mW
    Plug-n-Play Yes
    Cable Structure Optical fiber + inner jacket + Kevlar + copper wire + aluminum foil +
    armored tube + outer jacket
    Fiber Type Multi-mode OM3 * 4
    Fiber Wavelength 850 – 1300nm
    Copper Wire Material 8 multi-strand tinned copper wires
    Copper Wire Specification 24AWG*1, 26AWG*1, 28AWG*3, 30AWG*2
    Cable Diameter 5.8mm
    Jacket Color Black
    Jacket Material Matt Frosted TPU
    Spiral Tube Diameter 2.88mm ± 0.1mm
    Spiral Tube Color Silver
    Spiral Tube Material Stainless steel
    Packing Dimensions Short-length 10 – 40M:240*230*75mm
    Medium-length 50 – 60M:290*280*75mm
    Long-length 70 – 100M:340*330*75mm
    EDID Pass-through
    3D Yes
    CEC Yes
    ARC Yes
    HDCP HDCP 2.3
    HDR Yes
    AUX Channel Yes
    High-speed Ethernet Yes
    USB USB 2.0/ USB 3.1
    Audio Channels 32
    BT.2020 Color Space Yes
    Technical Characteristics Photoelectric Conversion Technology
    Optical Module Lifetime 100,000 hours
    Resolution 7680×4320 30Hz
    Clock Bandwidth 810MHz * 4
    Transmission Rate 32.4Gbps
    Power Amplification Yes
    Reclocking Chip Support above 30 meters
    Pixel Reclocking Yes
    ESD protection Yes
    Hot Swap Yes
    Delay Zero frame delay
    Compression None
    Sampling Rate 8~16bit within the bandwidth range
    Sampling Ratio RBG 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
    Anti-jamming Yes
    Tensile Strength ≤700N
    Compressive Strength 2000N /10cm
    Minimum Bending Radius Dynamic > 10D; Static > 20D (*D is the outer diameter of the cable)
    Operating Temperature -30-80℃

    Descargas


    Modelos disponibles

    ImageSKUDescription
    GDH02-10MLongitud de cable: 10 m
    GDH02-15MLongitud de cable: 15 m
    GDH02-20MLongitud de cable: 20 m
    GDH02-25MLongitud de cable: 25 m
    GDH02-30MLongitud de cable: 30 m
    GDH02-35MLongitud de cable: 35 m
    GDH02-40MLongitud de cable: 40 m
    GDH02-50MLongitud de cable: 50 m
    GDH02-60MLongitud de cable: 60 m
    GDH02-70MLongitud de cable: 70 m
    GDH02-80MLongitud de cable: 80 m
    GDH02-90MLongitud de cable: 90 m
    GDH02-100MLongitud de cable: 100 m
