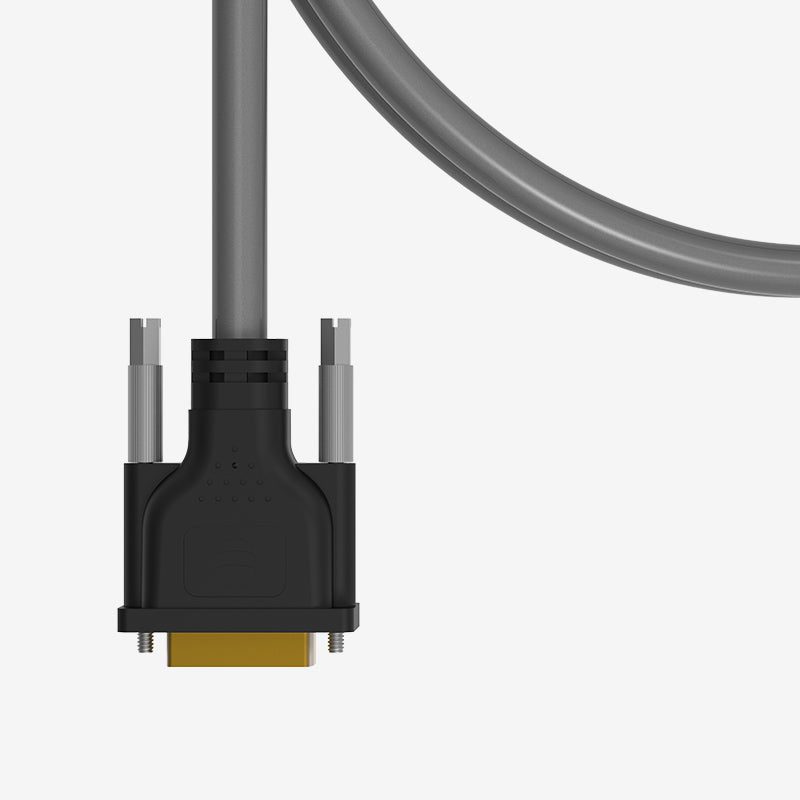

Cable DVI de enlace dual D702 SERIES

Cable DVI de enlace dual

Conector DVI hecho a medida con carcasa y alfileres más rígidos
Tornillos de acero inoxidables personalizados para una conexión firme
Conector chapado de oro completo de 15 μm
Dos tubos transparentes transparentes con calefacción transparente para personalizar la etiqueta de información de su empresa


Longitudes disponibles

D702-1M 1M
D702-2M 2M
D702-3M 3M
D702-5M 5M

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Cable DVI de enlace dual

    Conector DVI hecho a medida con carcasa y alfileres más rígidos
    Tornillos de acero inoxidables personalizados para una conexión firme
    Conector chapado de oro completo de 15 μm
    Dos tubos transparentes transparentes con calefacción transparente para personalizar la etiqueta de información de su empresa

    Especificaciones


    Name Specification
    Product Name DVI-DL Cable
    Model D702-xxM
    Brand Beetek
    Signal Type DVI-DL
    Input Connector Type DVI 24+1 Male – DVI 24+1 Male
    Environmental Info RoHS 2.0 Compliant
    Connector Gold Plating Shell: 3μm; Pins: 15μm
    Connector Dimensions 59.2*40*17mm
    Connector Structure Soldered plug + Inner mold + Copper foil + Tinplate + Shell + Screw + Protective cap
    Soldering Sleeve soldering process
    Internal Mold Transparent PE material
    Copper Foil Double-sided conductive copper foil
    Tinplate DVI three-piece tinplate
    Shell Black PVC injection molded shell (UL, RoHS)
    Lockable screw Internal: Stainless steel Phillips screws
    External: Stainless steel Hex screws
    Protective Cap Detachable cap with cord leash
    Components Conductor + Copper foil + Mylar + Braid + Jacket
    Conductor Material Stranded tinned copper
    Conductor Diameter 28AWG
    Braid Material 16*10 braided copper wire
    Shielding Rate 7 mesh 85% shielding rate
    Jacket Material 90P PVC (UL, RoHS)
    Cable Diameter 9.0mm
    Cable Color Fluorescent gray
    Cable Meter Marking Waterproof Yellow Text
    Velcro P-shaped Velcro Strap: 20*200mm
    Custom Label Heat-shrink transparent tubing on both ends for custom labels
    EDID Yes
    DDC channel Yes
    HDMI audio Yes
    3D Yes
    Compatibility Backward compatible with DVI-SL
    Supported Resolutions 1920×1080@120Hz
    Clock Bandwidth 165MHz * 6
    Transmission Rate 9.9Gbps
    Plug and Play Yes
    Delay Zero
    Compression None
    Electrical Test (Voltage) Voltage: DC 300V
    Impedance Test (Insulation) Insulation resistance: ≥ 10MΩ
    Impedance Test (Continuity) On-resistance: ≤ 2Ω
    Tensile Strength ≤400N
    Bending Angle 120°
    Operating Temperature -20℃~80℃

    Descargas


    Modelos disponibles

    ImageSKUDescription
    D702-1MLongitud de cable: 1 m
    D702-2MLongitud de cable: 2 m
    D702-3MLongitud de cable: 3 m
    D702-5MLongitud de cable: 5 m
