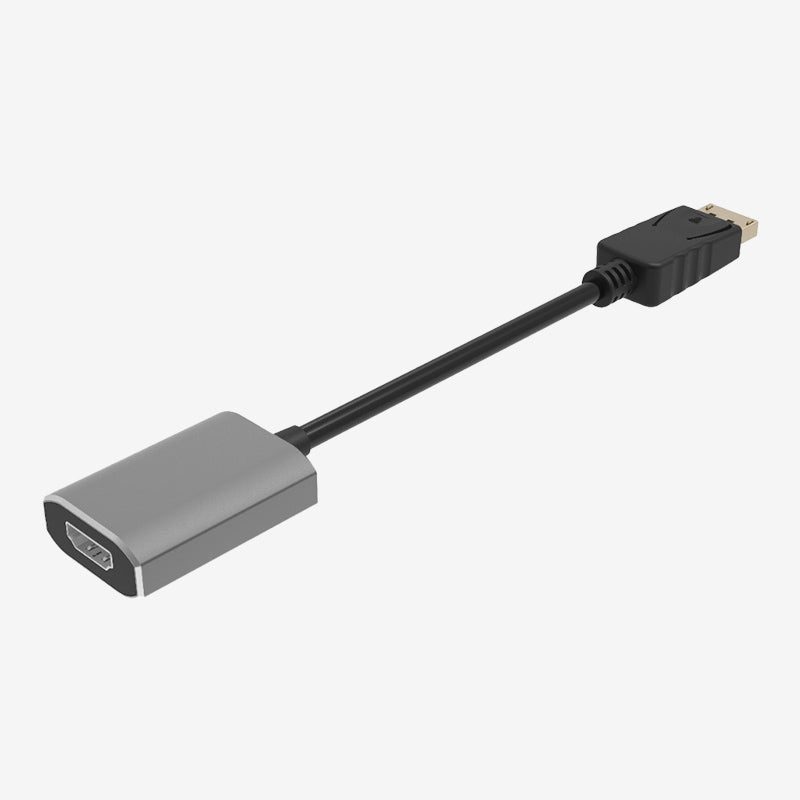

Adaptador de puerto de pantalla a HDMI 4K UHD Z04

Beetek
SKU: Z04

Adaptador DisplayPort HDMI 4K UHD

Admite 3840*2160@60Hz o 4096*2160@60Hz , RGB4: 4: 4;
Admite la tecnología de Pantall Port 1.2A
Conversión de señal activa y ajuste de nivel EQ.

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Puerto de visualización al adaptador HDMI 4K UHD

    Admite 3840*2160@60Hz o 4096*2160@60Hz , RGB4: 4: 4;
    Admite la tecnología de Pantall Port 1.2A
    Conversión de señal activa y ajuste de nivel EQ.

    Especificaciones


    Name Specification
    Product Name DP1.2a – HDMI Female Adapter
    Model Z04
    Brand Beetek
    Signal Type DP1.2a, HDMI 2.0
    Conversion Method Active
    Input Connector Type DP Male
    Output Connector Type HDMI Type A Female
    Length 20cm
    Environmental Info RoHS 2.0 Compliant
    Connector Gold Plating 1μm
    Connector Dimensions DP: 56*20*12.4mm; HDMI:53.7*31.5*14mm
    Connector Structure (DP) Plug plate + Inner mold + Copper foil + SR outer mold + Shell
    Connector Structure (HDMI) Active PCB + SR outer mold + Shell
    Inner Mold (DP) Transparent PE material
    Copper Foil (DP) Double-sided conductive copper foil
    SR Outer Mold 45P black PVC injection mold
    Shell DP: ABS upper and lower assembly shell (UL, RoHS);
    HDMI: Zinc alloy mold sleeve shell
    Locking Connector (DP) Standard DP press-style locking mechanism
    Components Conductor + Copper foil + Mylar + Braid + Jacket
    Conductor Material Single strand oxygen-free copper
    Conductor Diameter 30AWG
    Braid Material 128 aluminum magnesium braid
    Shielding Rate 85% shielding rate
    Jacket Material 90P PVC (UL, RoHS)
    Cable Diameter 5mm
    Cable Color Black
    EDID Yes
    DDC Yes
    HDMI Audio Yes
    3D Yes
    CEC Yes
    ARC Yes
    HDCP Yes
    HDR Yes
    XvYCC Color space Yes
    ESD Yes
    Compatibility Backward compatible with DP 1.1 / 1.0
    Supported Resolutions 3840 x 2160@60Hz
    Clock Bandwidth 600MHz*3
    Transmission Rate 18Gbps
    Plug and Play Yes
    Delay Zero
    Deep Color Yes
    Sampling Rate RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
    Compression None
    Electrical Test (Voltage) Voltage: DC 300V
    Impedance Test (Insulation) Insulation resistance: ≥ 10MΩ
    Impedance Test (Continuity) On-resistance: ≤ 2Ω
    Tensile Strength ≤200N
    Bending Angle 90°
    Operating Temperature -20℃~75℃
