Beetek
SKU: Z01

Adaptador DisplayPort DVI

Admite la resolución hasta 4K @ 60 @ 4: 4: 4 a 18 Gbps
Apoyar la conversión activa y la regulación de nivel de ecualización
Admite EDID passthrough
Admite adaptadores DVI-HDMI

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Adaptador DP- DVI

    Admite la resolución hasta 4K @ 60 @ 4: 4: 4 a 18 Gbps
    Apoyar la conversión activa y la regulación de nivel de ecualización
    Admite EDID passthrough
    Admite adaptadores DVI-HDMI

    Especificaciones


    Name Specification
    Product Name DP 1.2a – DVI Female Adapter
    Model Z01
    Brand Beetek
    Signal Type DP 1.2a, DVI
    Conversion Method Active

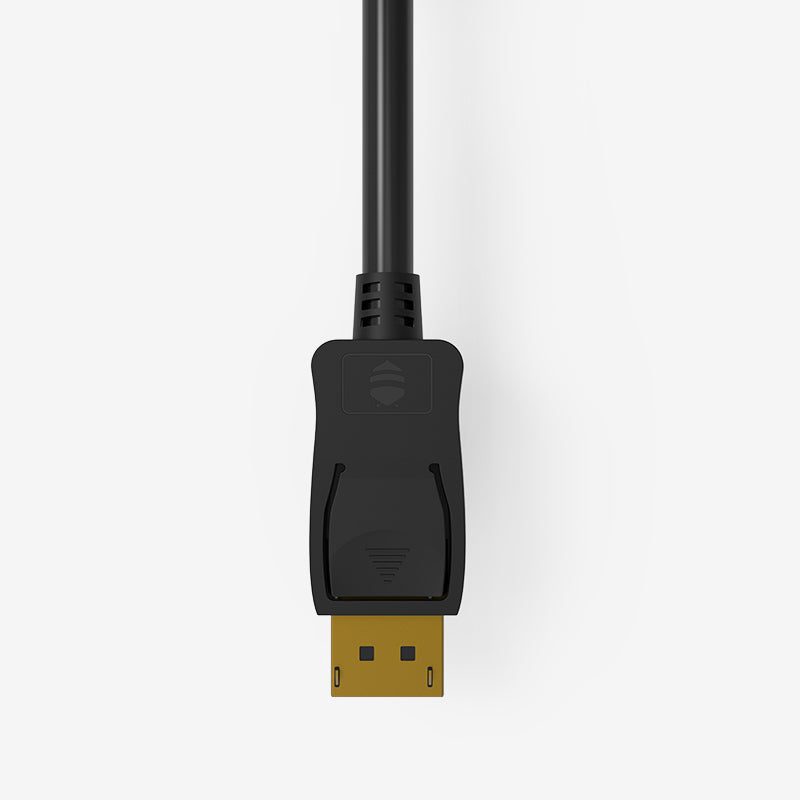

    Input Connector Type DP Male
    Output Connector Type DVI Female
    Length 25cm
    Indicator LED Signal indicator LED
    Environmental Info RoHS 2.0 Compliant
    Connector Gold Plating Shell: 3μm; Pins: 15μm
    Connector Dimensions DP: 59.2*22*13.5mm; DVI: 66.5*40*12.5mm
    Connector Structure (DP) Plug plate + Inner mold + Shielding case + Copper foil + SR outer mold + Shell +
    Protective cap
    Connector Structure (DVI) Active PCB board + SR outer mold + Shell + Screw socket
    Internal Mold (DP) Transparent PE material
    Shielding Case (DP) Upper and lower assembled metal case
    Copper Foil (DP) Double-sided conductive copper foil
    SR Outer Mold 45P black PVC injection mold
    Shell DP: 45P PVC injection molded shell (UL, RoHS);
    DVI: Zinc alloy mold sleeve shell
    Lockable Screw (DP) Standard DP press-style locking mechanism
    Screw Socket (DVI) Standard DVI female
    Protective Cap Detachable cap with cord leash
    Cable Body Components Conductor + Copper foil + Mylar + Braid + Jacket
    Conductor Material Stranded tinned copper
    Conductor Diameter 28AWG
    Shielding Rate 16*10 braided copper wire
    Jacket Material 7 mesh 85% shielding rate
    Jacket Material 90P PVC (UL, RoHS)
    Cable Diameter 7.5mm
    Cable Color Fluorescent black
    EDID Yes
    DDC channel Yes
    HDMI audio Yes
    3D Yes
    HDCP Yes
    HDR Yes
    XvYCC Color Space Yes
    ESD Yes
    Compatibility Backward Compatible with DP1.1/ 1.0
    Supported Resolutions 3840×2160@60Hz / 1920×1080@120Hz
    Clock Bandwidth 600MHz * 3
    Transmission rate 18Gbps
    Plug and play Yes
    Delay Zero
    Deep Color Yes
    Sampling Rate RBG 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
    Compression None
    Electrical Test (Voltage) Voltage: DC 300V
    Impedance Test (Insulation) Insulation resistance: ≥ 10MΩ
    Impedance Test (Continuity) On-resistance: ≤ 2Ω
    Tensile Strength ≤200N
    Bending angle 120°
    Operating Temperature -30℃~75℃
