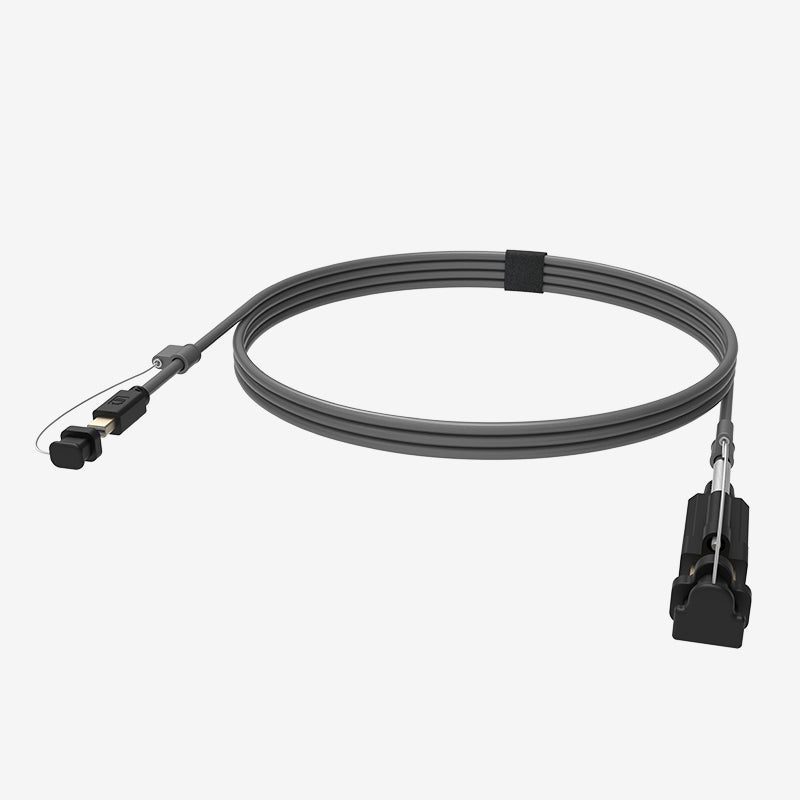

Cable adaptador MiniDP-HDMI4K UHD PH903

Cable adaptador MiniDP-HDMI4K UHD

Soporta 3840*2160@60HZ o 4096*2160@60HZ,RGB4:4:4
Convierte la señal de Mini DisplayPort a HDMI; Soporta EDID pass-through; Soporta CEC;Soporta salida de audio

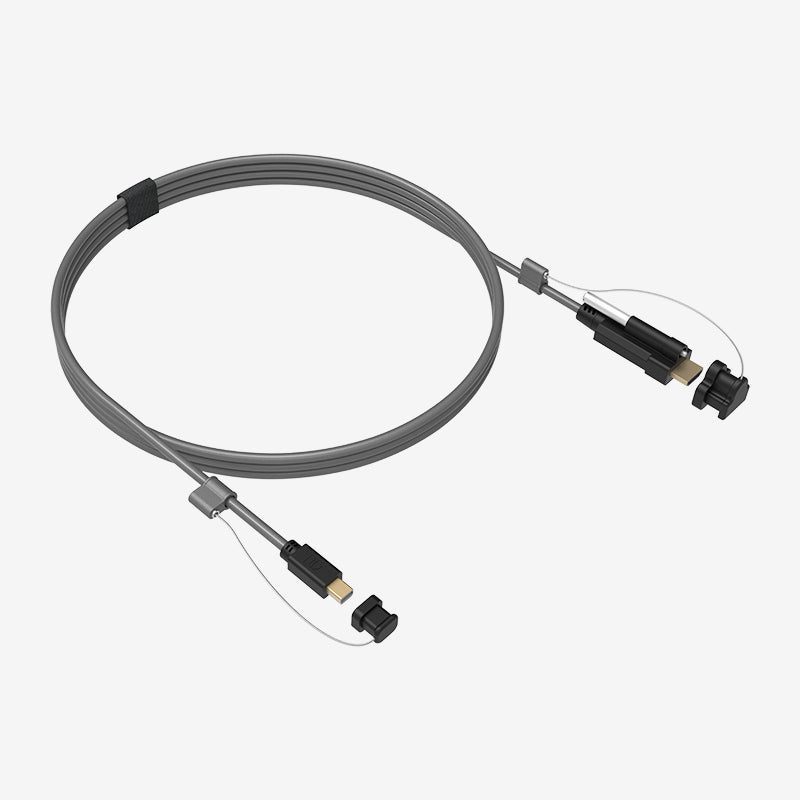

La cubierta del cable está hecha de compuesto de PVC resistente al desgaste. Ambos extremos vienen con cadena de cinturón desmontable a prueba de polvo tapas

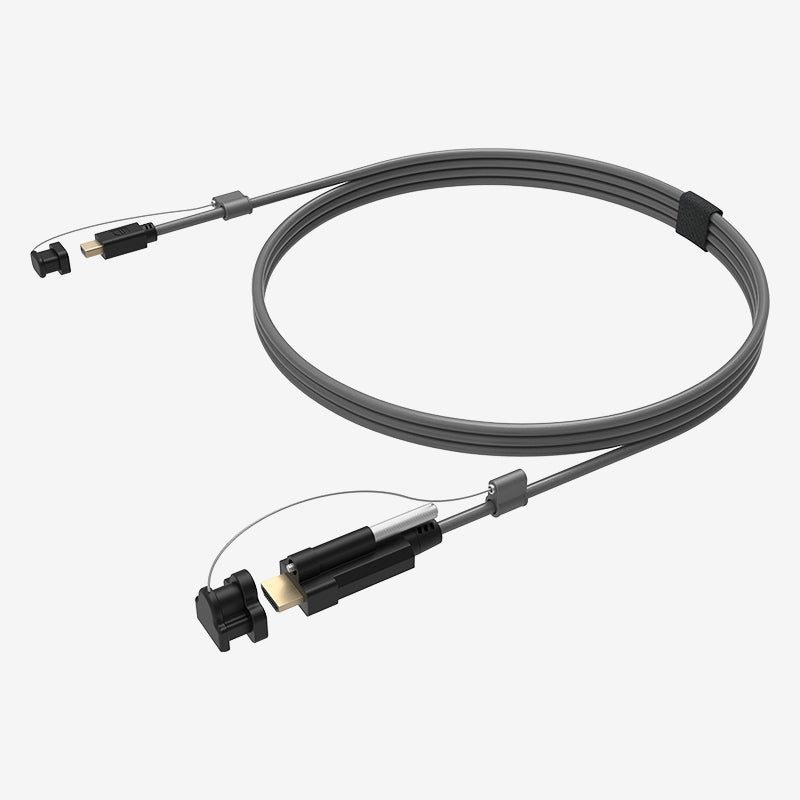

El conector HDMI se puede bloquear con un tornillo moleteado de acero inoxidable para que el sistema de conexión sea más estable.


Longitudes disponibles

PH903-2.5M 2.5M
PH903-5M 5M

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Cable adaptador MiniDP-HDMI4K UHD

    Soporta 3840*2160@60HZ o 4096*2160@60HZ,RGB4:4:4
    Convierte la señal de Mini DisplayPort a HDMI; Soporta EDID pass-through; Soporta CEC;Soporta salida de audio
    La cubierta del cable está hecha de compuesto de PVC resistente al desgaste. Ambos extremos vienen con cadena de cinturón desmontable a prueba de polvo tapas
    El conector HDMI se puede bloquear con un tornillo moleteado de acero inoxidable para que el sistema de conexión sea más estable.

    Especificaciones


    Name Specification
    Product Name MiniDP 1.2a – HDMI 2.0 Adapter Cable
    Model PH903-xxM
    Brand Beetek
    Signal Type DP 1.2a, HDMI 2.0
    Conversion Method Active
    Input Connector Type miniDP Male
    Output Connector Type HDMI Type A Male
    Environmental Info RoHS 2.0 Compliant
    Connector Gold Plating Shell: 3μm; Pins: 15μm
    Connector Dimensions HDMI: 67.4*20.8*20.3mm; mini-DP: 34*11.4*9.4mm
    Connector Structure (miniDP) Plug plate + Inner mold + Copper foil + Shell + Protective cap
    Connector Structure (HDMI) Active PCB board + SR outer mold + Shell + Screw + Protective cap
    Internal Mold (miniDP) Transparent PE material
    SR Outer Mold (HDMI) 45P black PVC injected mold
    Copper Foil (miniDP) Double-sided conductive copper foil
    Shell miniDP: 45P PVC injection molded shell (UL, RoHS);
    HDMI: Zinc alloy upper and lower assembled shell
    Locking Connector (HDMI) Stainless steel screw
    Protective Cap Detachable cap with cord leash
    Components Conductor + Copper foil + Mylar + Braid + Jacket
    Conductor Material Stranded tinned copper
    Conductor Diameter 30AWG
    Braid Material 16*10 braided copper wire
    Shielding Rate 7 mesh 85% shielding rate
    Jacket Material 90P PVC (UL, RoHS)
    Cable Diameter 5.8mm
    Cable Color Fluorescent gray
    Cable Meter Marking Waterproof Yellow Text
    Velcro P-shaped Velcro Strap: 20*200mm
    EDID Yes
    DDC Yes
    HDMI Audio Yes
    3D Yes
    CEC Yes
    ARC Yes
    HDCP Yes
    HDR Yes
    XvYCC Color Space Yes
    ESD Yes
    Compatibility Backward compatible with DP 1.1 / 1.0
    Supported Resolutions 3840 x 2160@60Hz / 2560 x 1600@120Hz
    Clock Bandwidth 600MHz * 3
    Transmission Rate 18 Gbps
    Plug and Play Yes
    Delay Zero
    Compression None
    Deep Color Yes
    Color Sampling Rate RBG 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
    Electrical Test (Voltage) Voltage: DC 300V
    Impedance Test (Insulation) Insulation resistance: ≥ 10MΩ
    Impedance Test (Continuity) On-resistance: ≤ 2Ω
    Tensile Strength ≤400N
    Bending Angle 120°
    Operating Temperature -30℃~75℃

    Descargas


    Modelos disponibles

    ImageSKUDescription
    PH903-2.5MLongitud de cable: 2.5 m
    PH903-5MLongitud de cable: 5 m
