DP428s

DP428s está equipado profesionalmente para el sistema de gestión del procesador DSP de audio digital en el sitio.

Con retardo, límite de presión, EQ, fase multifunción en uno.

La señal del canal de entrada/salida está indicada con precisión por el tubo digital.

Se pueden controlar varias configuraciones de parámetros a través del software de conexión USB / PC / MAC / IPAD / IPHONE, el ajuste es simple y conveniente, y el mejor socio del sistema de matriz lineal.

La interfaz de operación tiene una variedad de opciones de idioma, que incluyen: inglés, alemán, español, francés, holandés.

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    DP428s está equipado profesionalmente para el sistema de gestión del procesador DSP de audio digital en el sitio.

    Con retardo, límite de presión, EQ, fase multifunción en uno.

    La señal del canal de entrada/salida está indicada con precisión por el tubo digital.

    Se pueden controlar varias configuraciones de parámetros a través del software de conexión USB / PC / MAC / IPAD / IPHONE, el ajuste es simple y conveniente, y el mejor socio del sistema de matriz lineal.

    La interfaz de operación tiene una variedad de opciones de idioma, que incluyen: inglés, alemán, español, francés, holandés.

    Especificaciones

    Model DP428s
    Input 4 ways Balanced Type.
    Output 8 ways Imbalanced Type
    Input Impedance bal 20k / unbal 10k
    Output Impedance ≤ 100 Ω
    Output Gain From +12dB to -48dB, 0.25dB increment
    Input Gain From +12dB to -48dB , 0.25dB increment
    Other Parameters
    Frequency Response (-0.3dB) 20Hz – 20kHz
    THD+N ≤ 0.008%
    Max Delay Input 2s, Output 50 ms
    Dynamic Range ≥115dB
    Converts Frequency (high pass/ low pass) 20Hz – 20kHz, 1Hz increment
    Centre Frequency (high pass/ low pass) 20Hz – 20kHz, 1/36 octave (19980 positions) increment
    Minimun Load Inpedance 600 ohms
    Maximum Output Level +18dBu (600 ohms load)
    Filter Gain From +12dB to -12dB, 0.25dB increment
    High Pass & Low Pass Filter Q value 0.2-25 adjustable, 0.1 increment/ 10 bands/1 filter each output channel, open and close
    Frequency Response Bessel/ Butterworth 6/12/18/24dB each octave, and Linkwitz-Riley 24dB/ octave
    Protect Function System can be set code which can prevent unauthorized person operation.

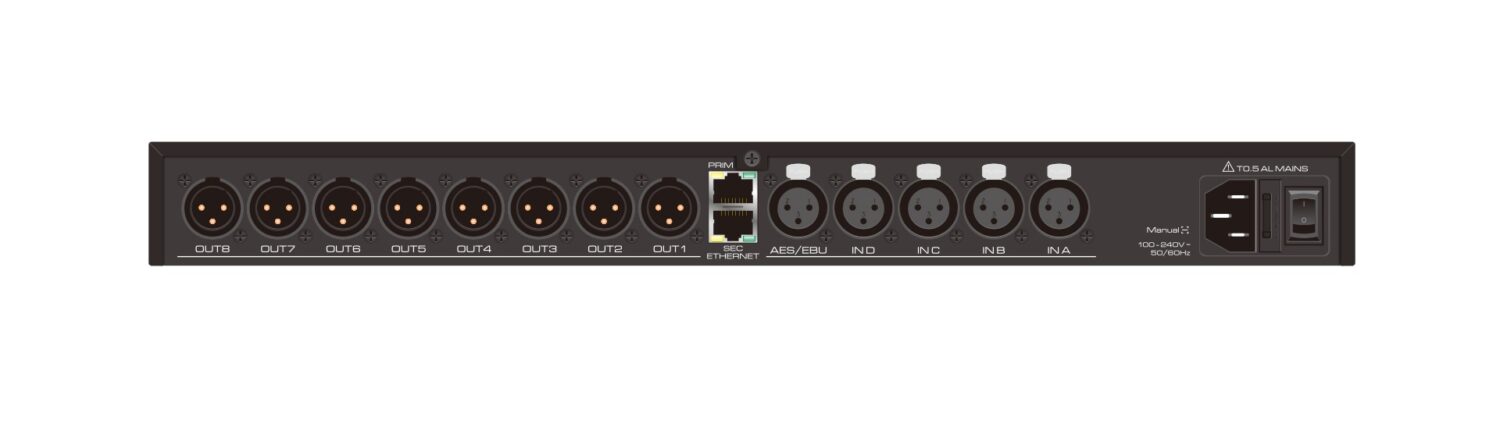

    Connectors
    Input Section 3 cores XLR F socket
    Output Section 3 cores XLR M socket
    USB Connector Square
    Power Socket 3 cores ICE socket
    Input Limiter/Output Limiter Threshold +24dBu to -48dBu/Threshold +12dBu to -48dBu
    Start-up Time 0
    Release Time 1-100
    Sampling Rate 96KHZ
    Phase 180° phase
    LCD Display 2*16 character type LCD display
    Input Level Match 2*7 points, -30dB to clip
    Output Level Match 6*7 points, -30dB to clip
    Preset More than 100 PCS preconfigured/ more than 100 PCS preconfigured
    Language Options English, Germany, Spainish, French, Dutch
    Version Information The version information of hardware, software, DSP module
    Size/Weight(The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.)
    Product dimensions(mm) 482 x 231 x 44.5 mm (1U)
    G.W 4.7kg
