HPA Hybrid-2C – New technology hybrid power amplifier. Amplifier combining low impedance and 100 V for professional sound reinforcement and installation: 2x 400 W RMS / 8 ohms, 2x 800 W RMS / 4 ohms. Possible use in bridge: 1x 1,500 W under 8 ohms / 100 V. Integrated ventilation and limiter
The HPA Hybrid-2C is positioned as a 2-channel power amplifier using Class D hybrid technology to provide optimal energy efficiency and top-notch sound performance.

This device is specifically designed to deliver substantial power: 400 W RMS per channel into 8 ohms, 800 W RMS into 4 ohms, and up to 1,200 W RMS into 2.7 ohms, as well as 200 W RMS into 100V. In bridge configuration, it offers an impressive power of 1,500 W RMS.

Integrating the Pascal Audio L-PRO2S amplification module, the Hybrid-2C benefits from a damping factor greater than 350, which gives it increased control of the speakers for clear, distortion-free sound reproduction.

With an input sensitivity set at 1 V and input impedance options of 20 kohms balanced and 10 kohms unbalanced, it easily adapts to various audio equipment.

This model stands out for its high signal-to-noise ratio of 119 dB and a very low THD of 0.05% at 1 kHz, ensuring exceptional audio clarity. Its frequency response extends from 20 Hz to 20 kHz, with an accuracy of +/- 0.5 dB, ensuring reproduction fidelity across the entire audible spectrum.

Connections are secured thanks to XLR inputs and speakON and Euroblock outputs, facilitating installation in professional audio configurations. Stereo, parallel and bridge modes provide additional operational flexibility.

Integrated electronic, thermal and electrical protection systems, as well as efficient fan cooling and soft start, enhance the reliability and safety of the amplifier.


  • HPA Hybrid-2C
  • 2-channel hybrid Class D power amplifier
  • Power into 8 ohms: 2x 400 W RMS
  • Power into 4 ohms: 2x 800 W RMS
  • Power into 2.7 ohms: 2x 1,200 W RMS
  • Power into 100 V: 2x 200 W RMS
  • Bridge power 8 ohms / 100 V: 1,500 W RMS
  • Bridge power 4 ohms: 2,500 W RMS
  • Pascal Audio L-PRO2S amplification module
  • Damping factor: >350
  • Input sensitivity: 1 V
  • Input impedance: 20 kohms symmetrical
  • Input impedance: 10 kohms unbalanced
  • Signal-to-noise ratio: 119 dB
  • THD: 0.05% at 1 kHz
  • Frequency response: 20 Hz – 20 kHz +/- 0.5 dB
  • Inputs: XLR

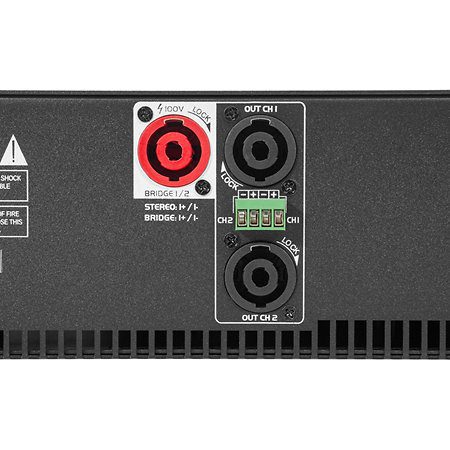

  • Outputs: speakON + Euroblock
  • Stereo, parallel and bridge mode switch
  • Electronic, thermal and electrical protections
  • Fan cooling
  • Soft start
  • Power supply: 100-240 VAC / 50-60 Hz
  • Dimensions: 482 x 88 x 408 mm
  • Net weight: 6.5 kg
    • Consultar precios

      ⓘ PRECIOS SIN IVA

      Descripción

      The HPA Hybrid-2C is positioned as a 2-channel power amplifier using Class D hybrid technology to provide optimal energy efficiency and top-notch sound performance.

      This device is specifically designed to deliver substantial power: 400 W RMS per channel into 8 ohms, 800 W RMS into 4 ohms, and up to 1,200 W RMS into 2.7 ohms, as well as 200 W RMS into 100V. In bridge configuration, it offers an impressive power of 1,500 W RMS.

      Integrating the Pascal Audio L-PRO2S amplification module, the Hybrid-2C benefits from a damping factor greater than 350, which gives it increased control of the speakers for clear, distortion-free sound reproduction.

      With an input sensitivity set at 1 V and input impedance options of 20 kohms balanced and 10 kohms unbalanced, it easily adapts to various audio equipment.

      This model stands out for its high signal-to-noise ratio of 119 dB and a very low THD of 0.05% at 1 kHz, ensuring exceptional audio clarity. Its frequency response extends from 20 Hz to 20 kHz, with an accuracy of +/- 0.5 dB, ensuring reproduction fidelity across the entire audible spectrum.

      Connections are secured thanks to XLR inputs and speakON and Euroblock outputs, facilitating installation in professional audio configurations. Stereo, parallel and bridge modes provide additional operational flexibility.

      Integrated electronic, thermal and electrical protection systems, as well as efficient fan cooling and soft start, enhance the reliability and safety of the amplifier.

    • HPA Hybrid-2C
    • 2-channel hybrid Class D power amplifier
    • Power into 8 ohms: 2x 400 W RMS
    • Power into 4 ohms: 2x 800 W RMS
    • Power into 2.7 ohms: 2x 1,200 W RMS
    • Power into 100 V: 2x 200 W RMS
    • Bridge power 8 ohms / 100 V: 1,500 W RMS
    • Bridge power 4 ohms: 2,500 W RMS
    • Pascal Audio L-PRO2S amplification module
    • Damping factor: >350
    • Input sensitivity: 1 V
    • Input impedance: 20 kohms symmetrical
    • Input impedance: 10 kohms unbalanced
    • Signal-to-noise ratio: 119 dB
    • THD: 0.05% at 1 kHz
    • Frequency response: 20 Hz – 20 kHz +/- 0.5 dB
    • Inputs: XLR
    • Outputs: speakON + Euroblock
    • Stereo, parallel and bridge mode switch
    • Electronic, thermal and electrical protections
    • Fan cooling
    • Soft start
    • Power supply: 100-240 VAC / 50-60 Hz
    • Dimensions: 482 x 88 x 408 mm
    • Net weight: 6.5 kg
    •
