EXPO
La serie EXPO adopta un diseño patentado de recorte LED de carril configurable con zoom bidireccional continuo; carrera corta, longitud focal amplia; forma, tamaño y nitidez del haz ajustables; forma del haz ajustable mediante la inserción de imágenes de bloqueo de luz, incluyendo: circular, cuadrado, rectángulo, paralelogramo, trapezoide, rombo, semicírculo, triángulo y cualquier otro cuadrilátero irregular.
Un diseño de amortiguación física de tres capas; acabado de alta calidad, sin desenfoque y resistente a los arañazos.
Este producto es adecuado para la iluminación de museos de caligrafía y pintura, galerías de arte, exposiciones de arte, etc.; también es adecuado para hoteles de alto nivel, restaurantes y otros establecimientos El usuario puede determinar el tamaño del haz de luz basándose en los datos ópticos de la colorimetría. Por ejemplo: un haz de luz de 1m x 1m requiere una distancia mínima de instalación de 2,5m.
Descripción
Recorte LED de carril 20-40W
Zoom, formas, dimmer, CCT ajustable
Recorte LED de carril configurable
Aplicaciones

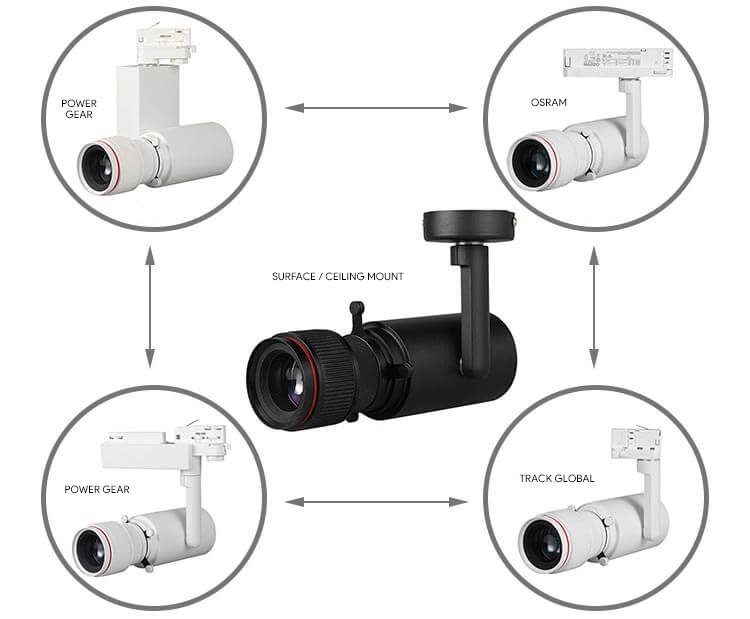

Estructuras de soporte

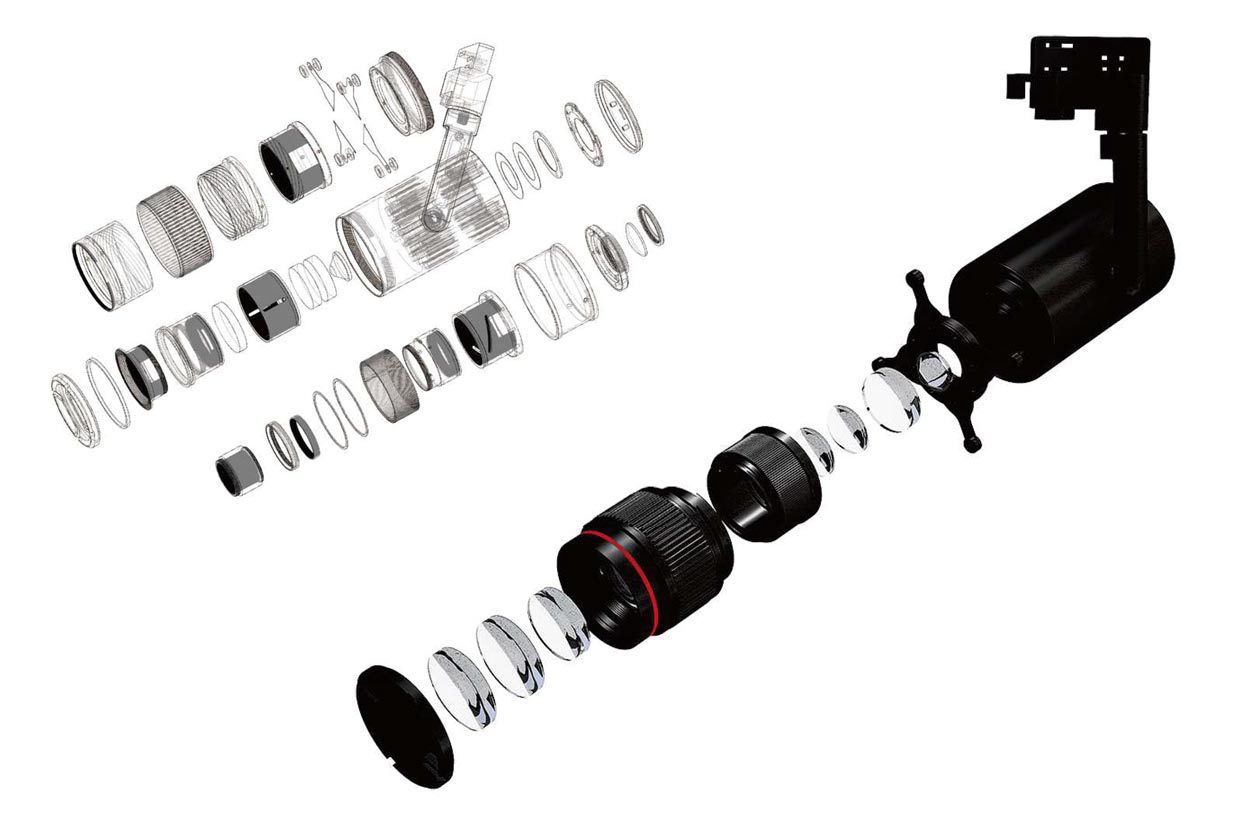

Detalles del producto
Efectos de recorte
Fotometría

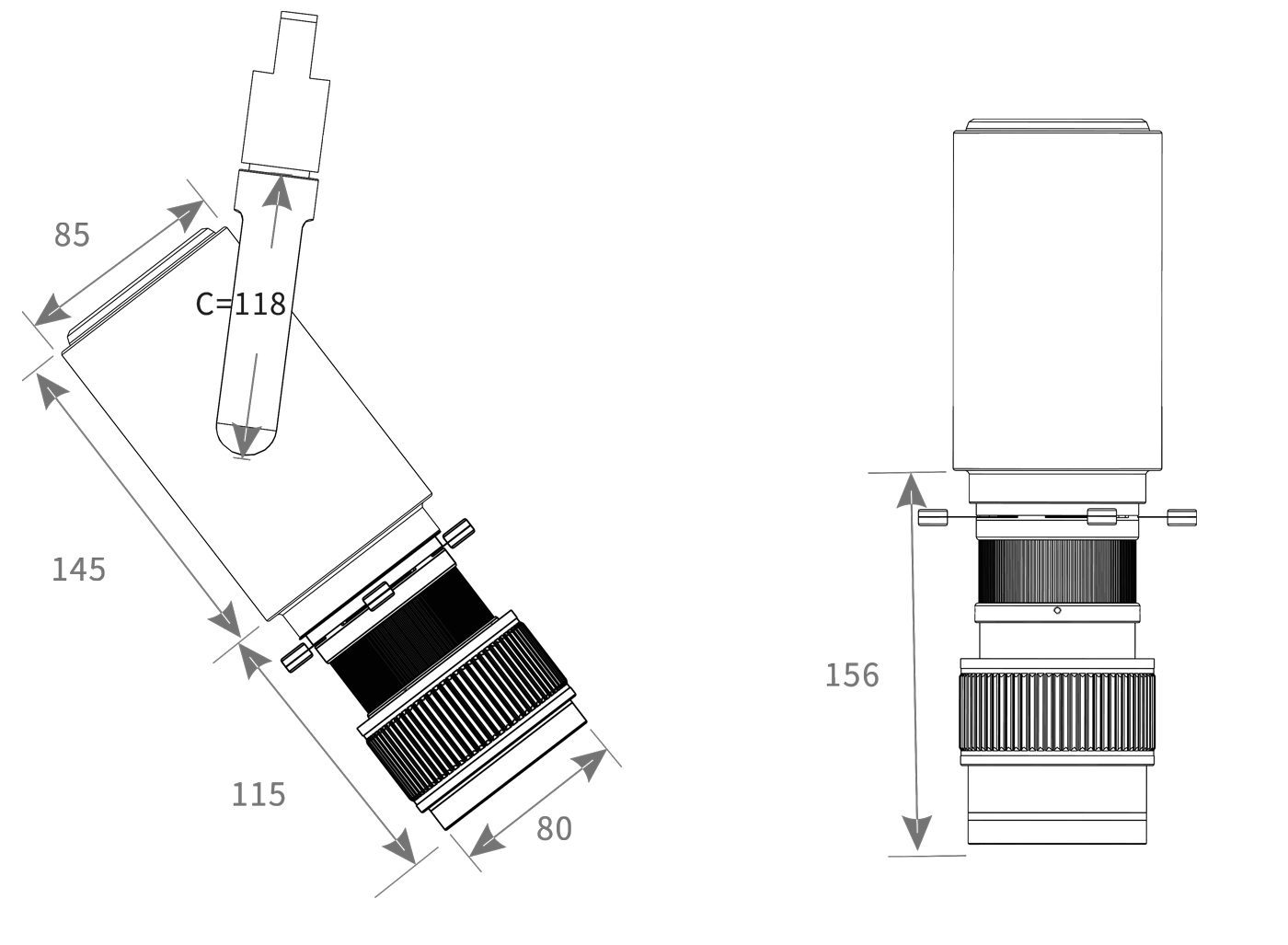

Dimensiones
| Model | Power | Illum. Sys. (3000K) | Bem angle | Color Kelvin | Ra | Driver no flicker | Dimmer | Voltage (AC) | Housing color | Dimensions | Qty/weight | CTN size (mm) | Track adapter | Track type |
| EXPOTUBKTG | 28w | 900lm | Zoomable 20-36° 15-25° | 3000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires, 3 wires, 2 wires |
| EXPOTUWHTG | 28w | 900lm | Zoomable 20-36° 15-25° | 3000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires, 3 wires, 2 wires |
| EXPONBKTG | 28w | 900lm | Zoomable 20-36° 15-25° | 4000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires, 3 wires, 2 wires |
| EXPONWHTG | 28w | 900lm | Zoomable 20-36° 15-25° | 4000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires, 3 wires, 2 wires |
| EXPODYBKTG | 28w | 900lm | Zoomable 20-36° 15-25° | 5000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires, 3 wires, 2 wires |
| EXPODYWHTG | 28w | 900lm | Zoomable 20-36° 15-25° | 5000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires, 3 wires, 2 wires |
| EXPOTUBK | 28w | 900lm | Zoomable 20-36° 15-25° | 3000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPOTUWH | 28w | 900lm | Zoomable 20-36° 15-25° | 3000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPONBK | 28w | 900lm | Zoomable 20-36° 15-25° | 4000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPONWH | 28w | 900lm | Zoomable 20-36° 15-25° | 4000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPODYBK | 28w | 900lm | Zoomable 20-36° 15-25° | 5000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPODYWH | 28w | 900lm | Zoomable 20-36° 15-25° | 5000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPOTUBKTP | 34w | 1100lm | Zoomable 20-36° 15-25° | 3000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires, 3 wires, 2 wires |
| EXPOTUWHTP | 34w | 1100lm | Zoomable 20-36° 15-25° | 3000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires, 3 wires, 2 wires |
| EXPONBKTP | 34w | 1100lm | Zoomable 20-36° 15-25° | 4000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires, 3 wires, 2 wires |
| EXPONWHTP | 34w | 1100lm | Zoomable 20-36° 15-25° | 4000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires, 3 wires, 2 wires |
| EXPODYBKTP | 34w | 1100lm | Zoomable 20-36° 15-25° | 5000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires, 3 wires, 2 wires |
| EXPODYWHTP | 34w | 1100lm | Zoomable 20-36° 15-25° | 5000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires, 3 wires, 2 wires |
| EXPOTUBKTO | 32w | 1000lm | Zoomable 20-36° 15-25° | 3000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | OSRAM | 4 wires, 3 wires |
| EXPOTUWHTO | 32w | 1000lm | Zoomable 20-36° 15-25° | 3000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | OSRAM | 4 wires, 3 wires |
| EXPONBKTO | 34w | 1100lm | Zoomable 20-36° 15-25° | 4000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | OSRAM | 4 wires, 3 wires, 2 wires |
| EXPONWHTO | 34w | 1100lm | Zoomable 20-36° 15-25° | 4000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | OSRAM | 4 wires, 3 wires, 2 wires |
| EXPODYBKTO | 34w | 1100lm | Zoomable 20-36° 15-25° | 5000k | 97 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | OSRAM | 4 wires, 3 wires, 2 wires |
| EXPODYWHTO | 34w | 1100lm | Zoomable 20-36° 15-25° | 5000k | 97 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | OSRAM | 4 wires, 3 wires, 2 wires |
| Model | Power | Illum. Sys. (3000K) | Bem angle | Color Kelvin | Ra | Driver no flicker | Dimmer | Voltage (AC) | Housing color | Dimensions | Qty/weight | CTN size (mm) | Track adapter | Track type |
| EXPOTWBKTG | 28w | 800lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires, 3 wires, 2 wires |
| EXPOTWWHTG | 28w | 800lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires, 3 wires, 2 wires |
| EXPOTWBK | 28w | 800lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPOTWWH | 28w | 800lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPOTWBKTP | 34w | 1000lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires, 3 wires, 2 wires |
| EXPOTWWHTP | 34w | 1000lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires, 3 wires, 2 wires |
| EXPOTWBKTO | 32w | 900lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | OSRAM | No | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | OSRAM | 4 wires, 3 wires |
| EXPOTWWHTO | 32w | 900lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | OSRAM | No | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | OSRAM | 4 wires, 3 wires |
| EXPOTWBKTGDIM | 28w | 800lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires |
| EXPOTWWHTGDIM | 28w | 800lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires |
| EXPOTWBKDIM | 28w | 800lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPOTWWHDIM | 28w | 800lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPOTWBKTPDIM | 34w | 1000lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires |
| EXPOTWWHTPDIM | 34w | 1000lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires |
| EXPOTWBKTODIM | 32w | 900lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | ALLOKING | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | OSRAM | 4 wires, 3 wires |
| EXPOTWWHTODIM | 32w | 900lm | Zoomable 20-36° 15-25° | 2700k 4000k 6000k | 90 | ALLOKING | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | OSRAM | 4 wires, 3 wires |
| Model | Power | Illum. Sys. (3000K) | Bem angle | Color Kelvin | Ra | Driver no flicker | Dimmer | Voltage (AC) | Housing color | Dimensions | Qty/weight | CTN size (mm) | Track adapter | Track type |
| EXPOTUBKTGDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 3000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires |
| EXPOTUWHTGDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 3000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires |
| EXPONBKTGDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 4000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires |
| EXPONWHTGDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 4000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires |
| EXPODYBKTGDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 5000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires |
| EXPODYWHTGDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 5000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | GLOBAL | 4 wires |
| EXPOTUBKDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 3000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPOTUWKDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 3000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPONBKDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 4000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPONWHDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 4000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPODYBKDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 5000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPODYWHDIM | 28w | 900lm | Zoomable 20-36° 15-25° | 5000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | Surface / Ceiling mount diameter 80*H 30mm | |
| EXPOTUBKTPDIM | 34w | 1000lm | Zoomable 20-36° 15-25° | 3000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires |
| EXPOTUWHTPDIM | 34w | 1000lm | Zoomable 20-36° 15-25° | 3000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires |
| EXPONBKTPDIM | 34w | 1000lm | Zoomable 20-36° 15-25° | 4000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires |
| EXPONWHTPDIM | 34w | 1000lm | Zoomable 20-36° 15-25° | 4000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires |
| EXPODYBKTPDIM | 34w | 1000lm | Zoomable 20-36° 15-25° | 5000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires |
| EXPODYWHTPDIM | 34w | 1000lm | Zoomable 20-36° 15-25° | 5000k | 97 | RXPOWER | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 4 wires |
| EXPOTUBKTODIM | 32w | 1000lm | Zoomable 20-36° 15-25° | 3000k | 97 | ALLOKING | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | ALLOKING | 4 wires, 3 wires |
| EXPOTUWHTODIM | 32w | 1000lm | Zoomable 20-36° 15-25° | 3000k | 97 | ALLOKING | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | ALLOKING | 4 wires, 3 wires |
| EXPONBKTODIM | 32w | 1000lm | Zoomable 20-36° 15-25° | 4000k | 97 | ALLOKING | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | ALLOKING | 4 wires, 3 wires |
| EXPONWHTODIM | 32w | 1000lm | Zoomable 20-36° 15-25° | 4000k | 97 | ALLOKING | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | ALLOKING | 4 wires, 3 wires |
| EXPODYBKTODIM | 32w | 1000lm | Zoomable 20-36° 15-25° | 5000k | 97 | ALLOKING | Knob dim 1-10V | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | ALLOKING | 4 wires, 3 wires |
| EXPODYWHTODIM | 32w | 1000lm | Zoomable 20-36° 15-25° | 5000k | 97 | ALLOKING | Knob dim 1-10V | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | ALLOKING | 4 wires, 3 wires |
| Model | Power | Illum. Sys. (3000K) | Bem angle | Color Kelvin | Ra | Driver no flicker | Dimmer | Voltage (AC) | Housing color | Dimensions | Qty/weight | CTN size (mm) | Track adapter | Track type |
| EXPOTUBKTGDIMDA | 34w | 1000lm | Zoomable 20-36° 15-25° | 3000k | 97 | HEP | DALI dim | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 6 wires, 4 wires |
| EXPOTUWHTGDIMDA | 34w | 1000lm | Zoomable 20-36° 15-25° | 3000k | 97 | HEP | DALI dim | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 6 wires, 4 wires |
| EXPONBKTGDIMDA | 34w | 1000lm | Zoomable 20-36° 15-25° | 4000k | 97 | HEP | DALI dim | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 6 wires, 4 wires |
| EXPONWHTGDIMDA | 34w | 1000lm | Zoomable 20-36° 15-25° | 4000k | 97 | HEP | DALI dim | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 6 wires, 4 wires |
| EXPODYBKTGDIMDA | 34w | 1000lm | Zoomable 20-36° 15-25° | 5000k | 97 | HEP | DALI dim | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 6 wires, 4 wires |
| EXPODYWHTGDIMDA | 34w | 1000lm | Zoomable 20-36° 15-25° | 5000k | 97 | HEP | DALI dim | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 6 wires, 4 wires |
| Model | Power | Illum. Sys. (3000K) | Bem angle | Color Kelvin | Ra | Driver no flicker | Dimmer | Voltage (AC) | Housing color | Dimensions | Qty/weight | CTN size (mm) | Track adapter | Track type |
| EXPOTWBKTGDIM24 | 30w | 800-1000lm | Zoomable 20-36° 15-25° | 2700-6000k | 90 | TIGIDIGITAL | 2.4G dim | 220 – 240v | Black | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 6 wires, 4 wires |
| EXPOTWWHTGDIM24 | 30w | 800-1000lm | Zoomable 20-36° 15-25° | 2700-6000k | 90 | TIGIDIGITAL | 2.4G dim | 220 – 240v | White | ￠85x H260-300 (lamp) | 6pcs 15kgs | 48 x 45 x 42 18.5kgs | POWER GEAR | 6 wires, 4 wires |
